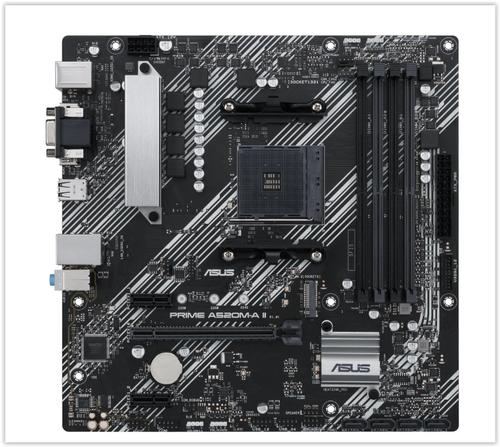

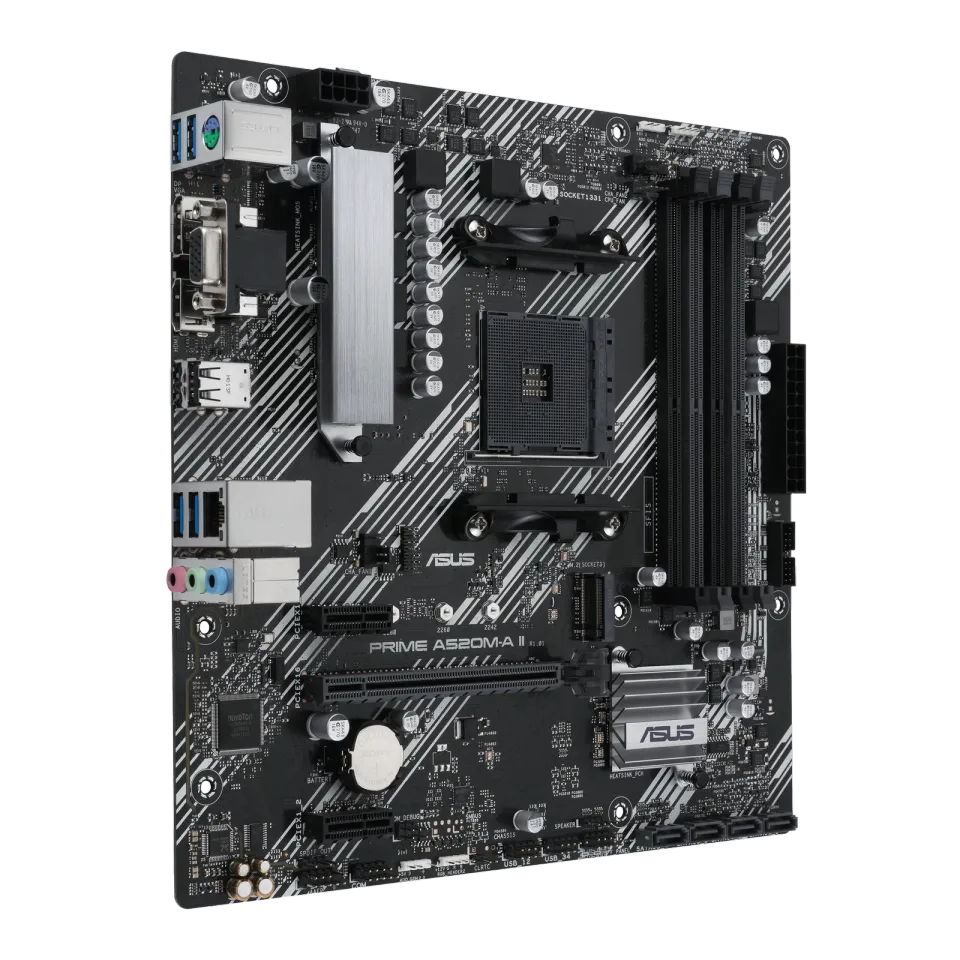

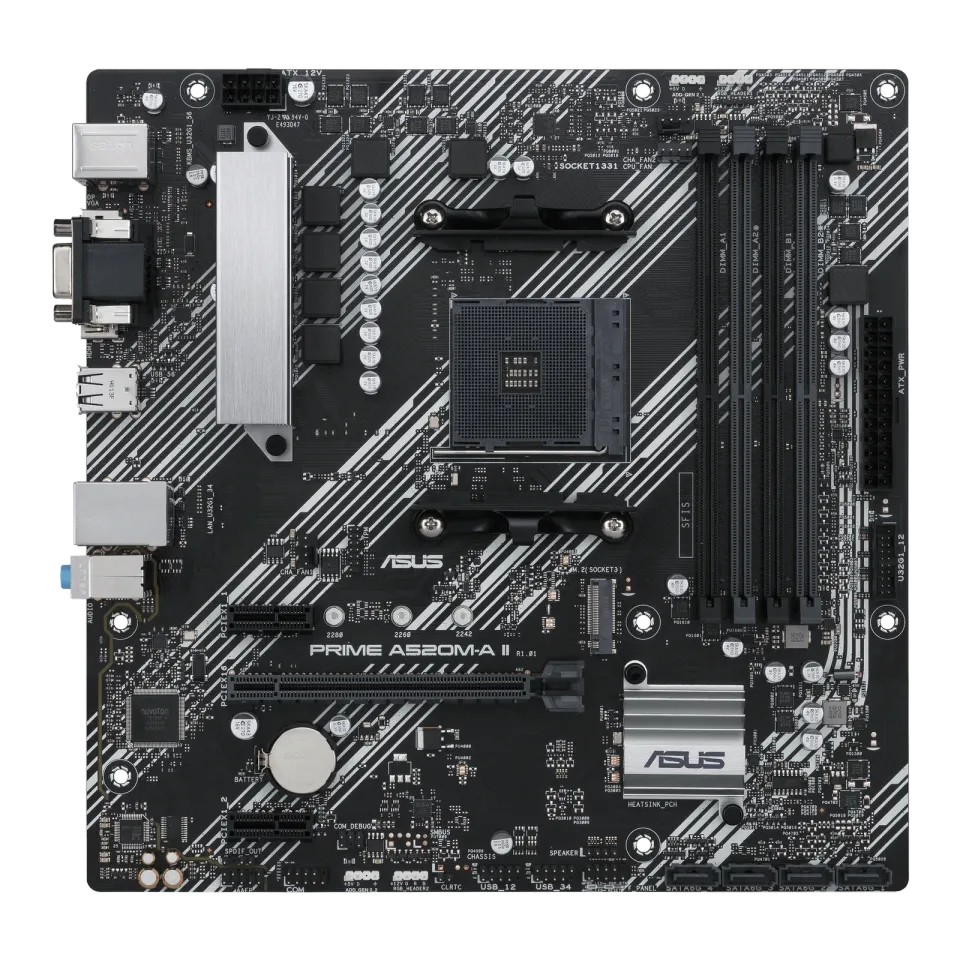

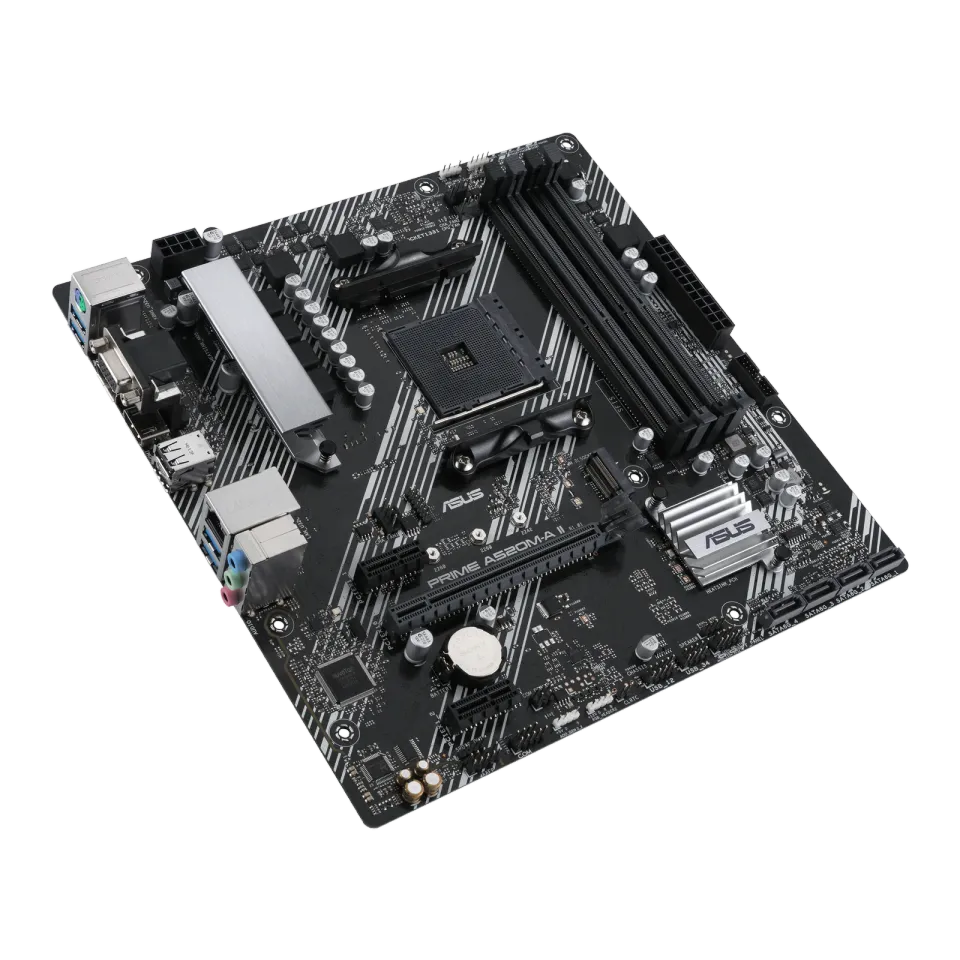

ASUS mb PRIME A520M-A II-CSM soc.AM4 A520 DDR4 mATX M.2 D-Sub HDMI DP

ASUS PRIME A520M-A II/CSM
AMD A520 (Ryzen AM4) micro ATX motherboard with M.2, DP, HDMI,D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 ports, and Aura Sync RGB lighting support

• AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
• Ultrafast connectivity: M.2 support,1 Gb Ethernet, USB 3.2 Gen 1 Type-A
• Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
• ASUS Control Center Express (ACCE) for easier IT endpoint management
  CPU
  AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
  Refer to www.asus.com for CPU support list.
  Chipset
  AMD A520
  Memory
  4x DDR4 4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory
  Dual Channel Memory Architecture
  *ECC Memory (ECC mode) support varies by CPU.

• Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
  Graphics
  1x Display Port
  1x D-Sub
  1x HDMI
  Expansion Slots
  AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
  1 x PCIe 3.0 x16 slot (supports x16 mode)
  AMD A520 Chipset
  2 x PCIe 3.0 x1 slots
  Storage
  Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
  M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  AMD A520 Chipset
  4 x SATA 6Gb/s ports
  Support Raid 0, 1, 10
  Ethernet
  1 x Realtek 1Gb Ethernet
  USB
  Rear USB:Total 6 ports
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB:Total 6 ports
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Audio
  Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*

• Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"
  Audio Features
• Audio Shielding
• Premium Japanese audio capacitors
• Dedicated audio PCB layers
  *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

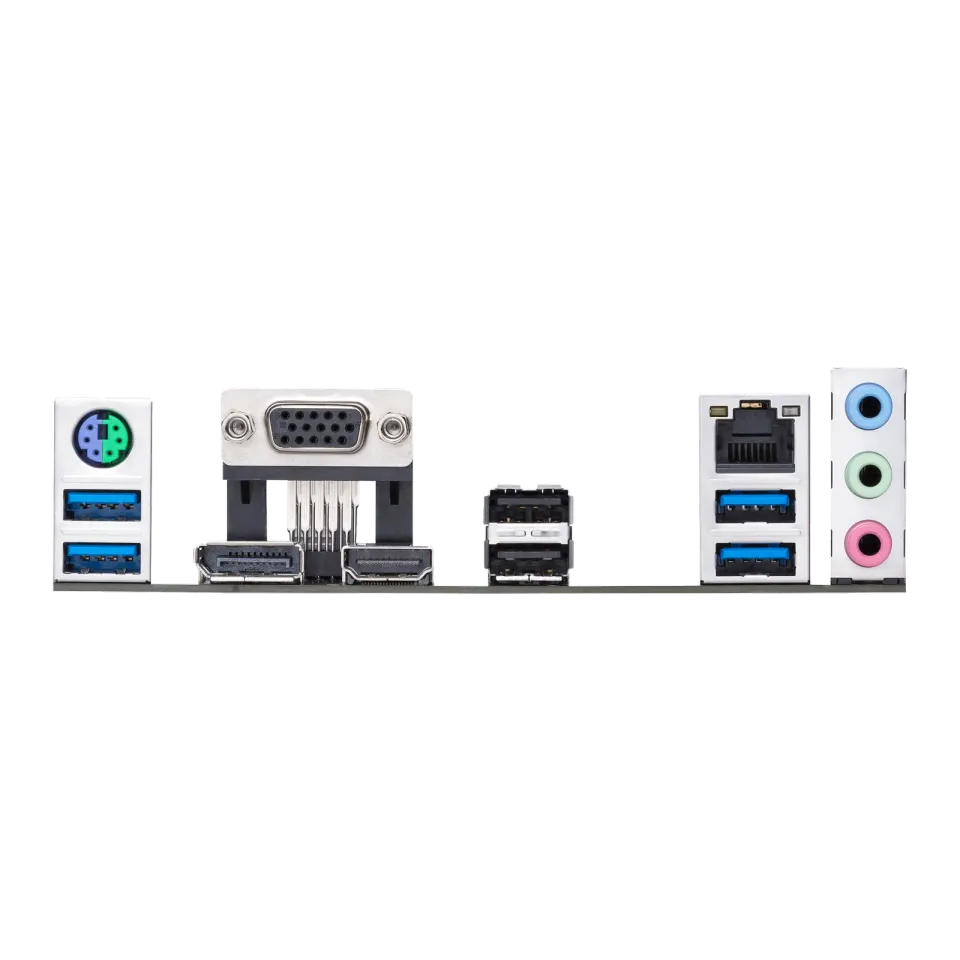

  Back Panel I/O Ports
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x DisplayPort
  1 x HDMITM port
  1 x D-Sub
  1 x Realtek 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port
  Internal I/O Connectors
  Fan and cooling related
  1 x 4-pin CPU Fan header
  2 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  1 x M.2 slot (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  2 x AURA Addressable Gen 2 header
  2 x AURA RGB headers
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header
  Special Features
  ASUS 5X PROTECTION III
• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O
  ASUS Q-Design
• ASUS Q-DIMM
• ASUS Q-Slot
  ASUS Thermal Solution
• VRM heatsink design
  AURA Sync
• AURA RGB headers
• Addressable Gen 2 RGB headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• Aura Creator
• Aura Sync
  AI Suite 3
• Performance And Power Saving Utility
  TurboV EVO
  EPU
  Digi+ VRM
  Fan Xpert 2+
• EZ update
  ASUS CPU-Z
  AI Charger
  DAEMON Tools
  Norton Anti-virus software (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O Shield
  1 x M.2 SSD screw package
  Installation Media
  1 x Support DVD
  Documentation
  1 x User manual
  Operating System
  Windows 10 64bit
  Form Factor
  microATX
  24.4cm x 24.4cm

Formát základní desky: micro ATX
Chipset: AMD A520, Intel
Socket (patice): Socket AM4
Pro procesory: AMD
Technologie paměti RAM: DDR4
Počet paměťových slotů: 4
M.2 slot: 1
SATA 3: 4
Podpora RAID: 0, 1, 10
PCI Express x16: 1
PCI Express x1: 2
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: bez
DisplayPort: 1
HDMI: 1
VGA: 1
DVI: 0
USB 2: 6
USB 3: 6
USB C: 0
