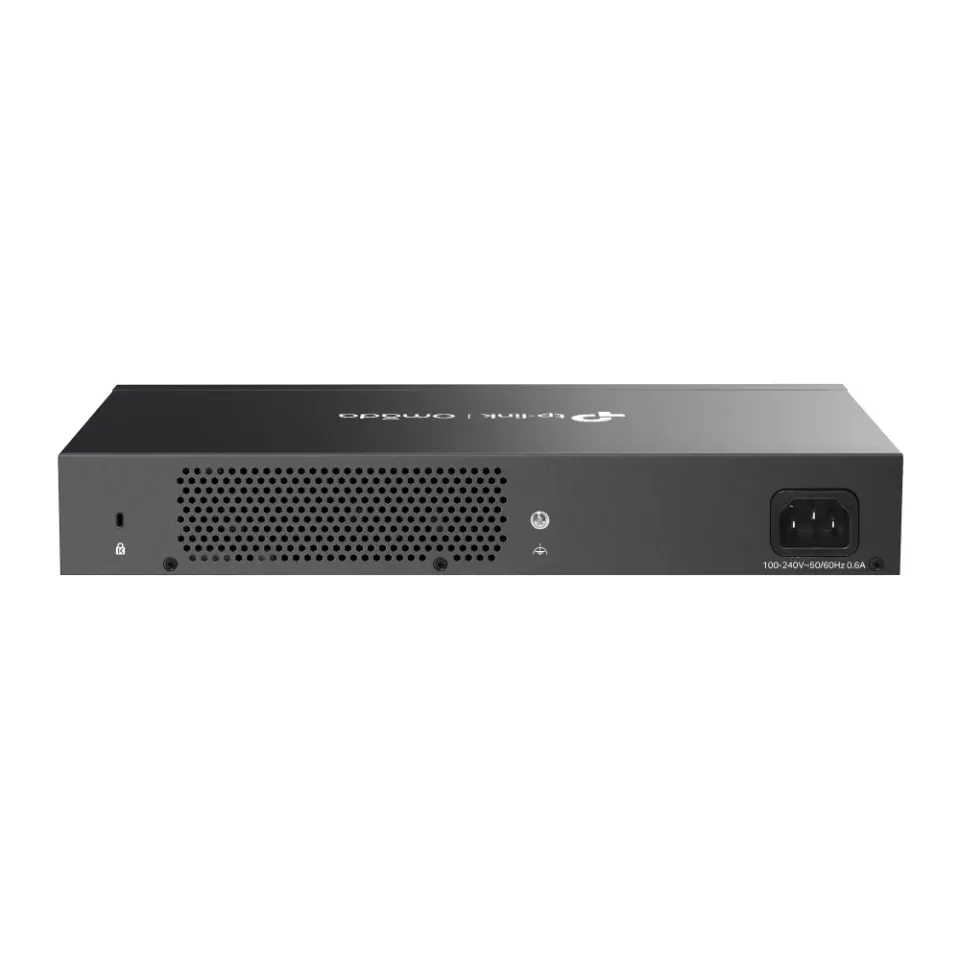

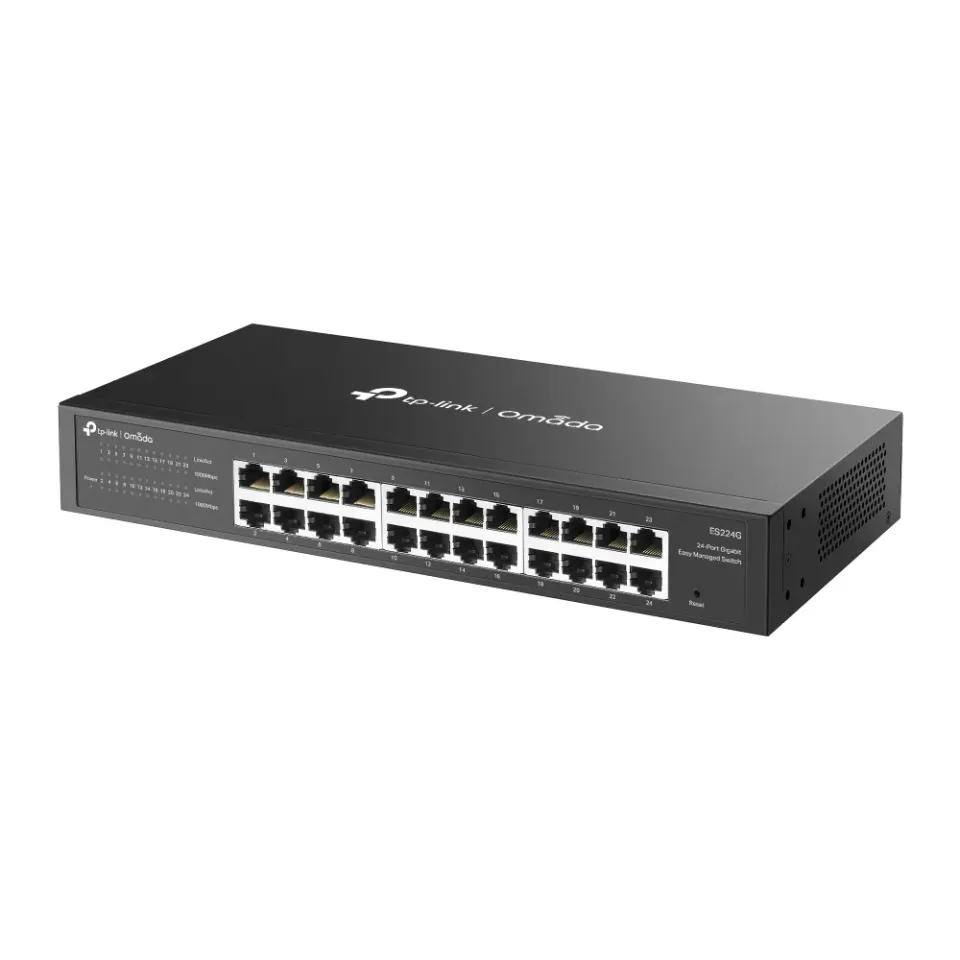

TP-LINK ES224G Omada 24portový gigabitový easy managed switch

TP-Link OMADA switch ES224G
Omada 24portový gigabitový easy managed switch

• 24× 10/100/1000Mb/s RJ45 portů
• Snadné použití: Podporuje plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí
• Centralizovaná správa cloudu prostřednictvím webu nebo aplikace Omada†
• VLAN, izolace portů, test kabelů?, QoS? pro spolehlivé dohledové sítě
• Automatická prevence smyček a IGMP Snooping
• Konstrukce bez ventilátorů pro tichý provoz
• Odolný kovový kryt a konstrukce pro montáž na stůl/rack
  Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-agile/es224g/
  Technické specifikace
  HARDWARE FEATURES
  Interface • 24× 10/100/1000 Mbps RJ45 Ports
  • Auto-Negotiation/Auto MDI/MDIX
  Fan Quantity Fanless
  Installation • Desktop
  • Rackmountable
  Physical Security Lock ?
  Power Supply 100-240 V~50/60 Hz
  Dimensions ( W x D x H ) 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm)
  Surge Protection ±6kV
  PERFORMANCE
  Switching Capacity 48 Gbps
  Packet Forwarding Rate 35.7 Mpps
  MAC Address Table 8K
  Packet Buffer Memory 4 Mbit
  Jumbo Frame 15 KB
  SOFTWARE FEATURES
  Quality of Service • Port-based/802.1p/DSCP QoS
  • 8 Priority Queues
  • Priority Schedule Mode
• WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
• Port-Based Rating Limit
  • Storm Control
• Multiple Control Modes (kbps/pps)
• Broadcast/Multicast/Unknown-Unicast Control?
  L2 Features • Static Link Aggregation
  • Loop Prevention / Loopback Detection
  • Flow Control
• 802.3x Flow Control
  • Mirroring
• Port Mirroring
• One-to-One
• Many-to-One
• Ingress/Egress/Both
  • Port Statistics
• Port Mirror Status
• Traffic Statistics
  • 802.1ab LLDP
  L2 Multicast • IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Fast Leave
  VLAN • MTU VLAN
  • Port-Based VLAN
  • 802.1Q Tag VLAN
• Max 32 VLAN Groups
• 4K VID
  Transmission Method Store-And-Forward
  Management Features
  Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Centralized Management • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller
  Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
  Management Features • Web-based GUI
  • DHCP Client
  • Cable Diagnostics
  • Automatic Device Discovery†
  • Batch Configuration†
  • Batch Firmware Upgrading†
  • Unified Configuration†
  OTHERS
  Certification FCC, CE, RoHS
  Package Content • ES224G
  • Power Cord
  • Rubber Feet
  • Mounting Brackets
  • Screws
  • Installation Guide
  Environment • Operating Temperature: -5?50? (23?122?)
  • Storage Temperature: -40?70? (-40?158?)
  • Operating Humidity: 10%90% non-condensing
  • Storage Humidity: 5%90% non-condensing

Provedení: Desktop, Rack mounted 19"
Funkce: QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, L2, Web management/Smart switch
Technologie: Gigabit Ethernet 1000Mbps
Počet portů LAN: 24
Maximální počet portů: 24
Management: Web
