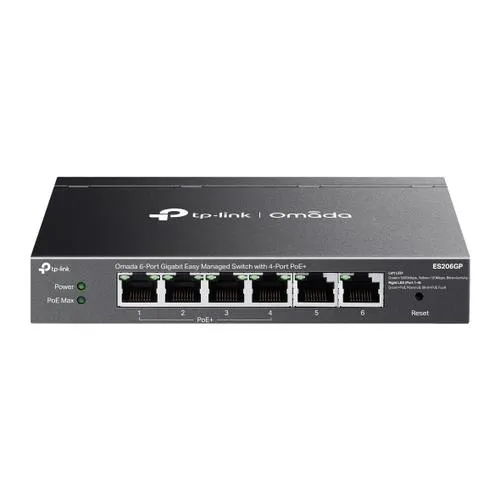

TP-LINK ES206GP Omada 6portový gigabitový Easy Managed switch se 4 porty PoE+

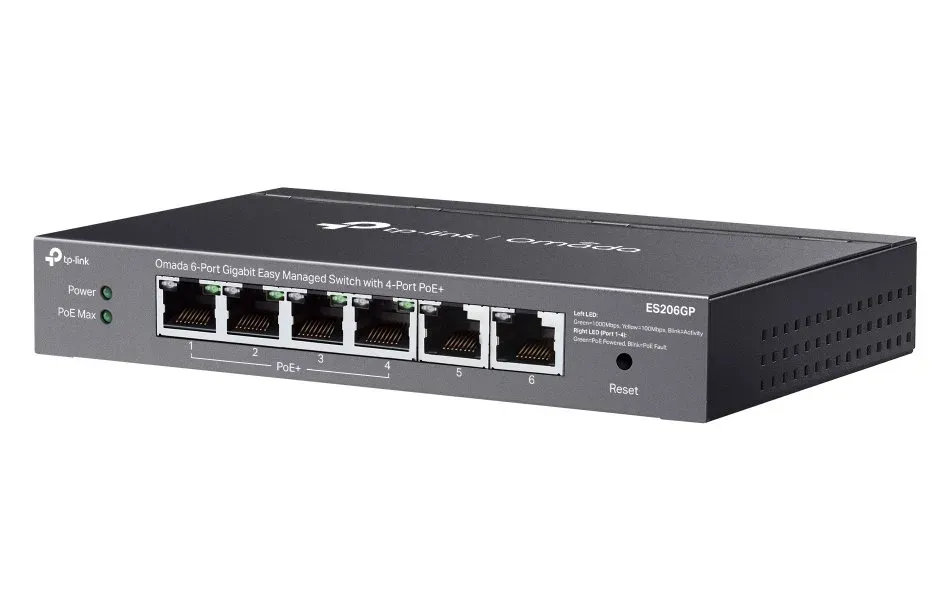

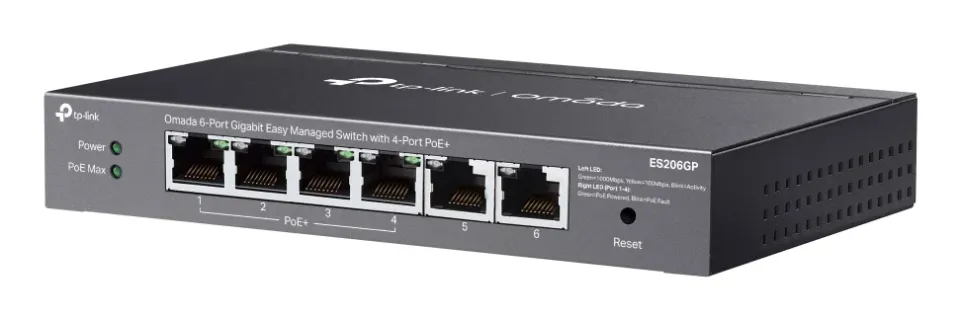

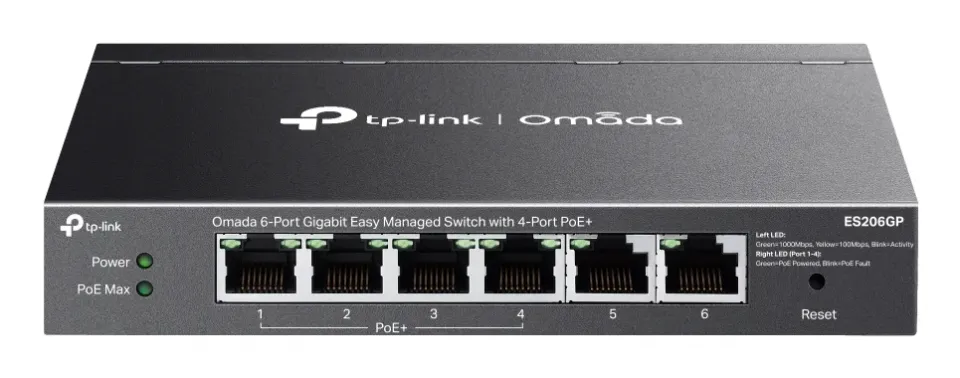

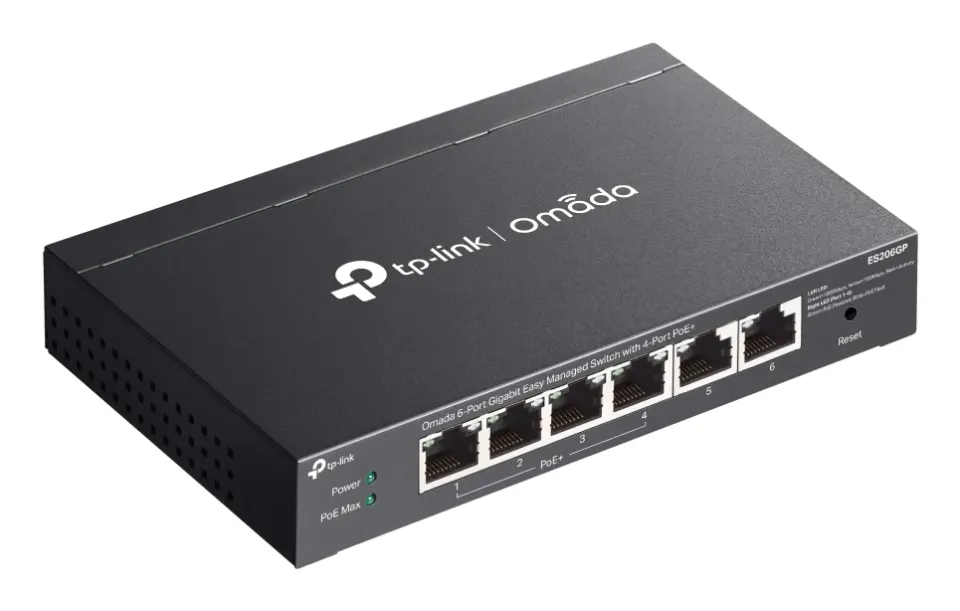

TP-Link OMADA switch ES206GP
Omada 6portový gigabitový Easy Managed Switch se 4 porty PoE+

• 6× 10/100/1000Mb/s RJ45 portů (4× PoE+ s podporou standardu 802.3at/af)
• Napájecí rozpočet 65W, až 30W pro každý PoE port
• Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí
• Centrální správa přes cloud prostřednictvím webu nebo aplikace Omada
• Až 250 m PoE, QoS, automatické obnovení PoE‡ a izolace portů pro spolehlivou síťovou infrastrukturu pro dohled
• Automatická prevence smyček, VLAN a IGMP Snooping
• Bezhlučný provoz díky bezventilátorovému designu
• Odolné kovové pouzdro a design pro umístění na stůl nebo montáž na stěnu
  Learn more about TP-Link PoE technology >
  Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-switch-easy-managed/es206gp/
  Technické specifikace
  HARDWARE FEATURES
  Interface •65× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE)
  • Auto-Negotiation/Auto MDI/MDIX
  Fan Quantity Fanless
  Installation • Desktop

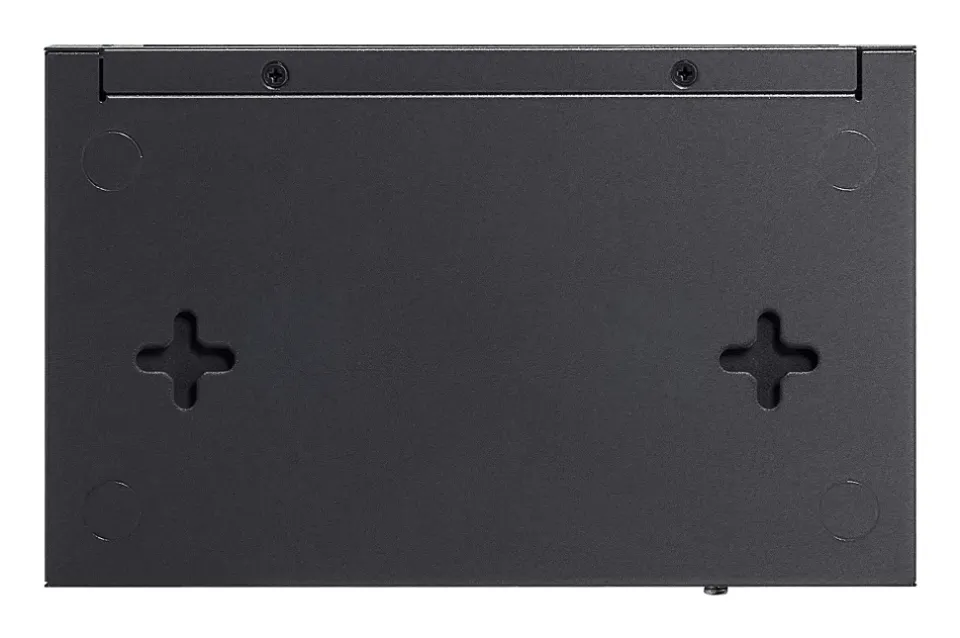

  • Wall Mount
  Physical Security Lock ?

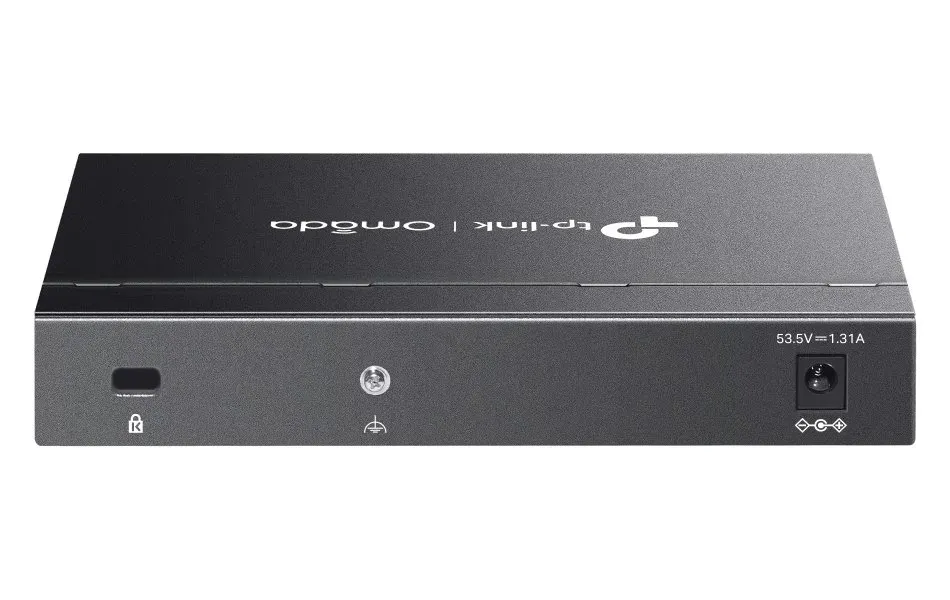

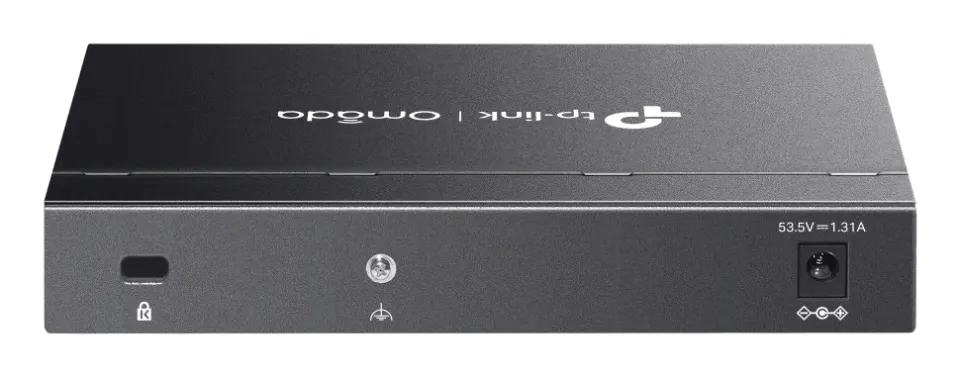

  Power Supply DC Power Adapter (Output: 53.5 VDC/ 1.31 A)
  PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant
  • PoE Ports: 4 ports
  • PoE Budget: 65 W available for all PoE+ ports, 30W max per port
  • PoE Auto Recovery
  • Up to 250m PoE transmission distance**
  Dimensions ( W x D x H ) 6.2×4.0×1.0 in (158×101×25 mm)
  Surge Protection ±6kV
  PERFORMANCE
  Switching Capacity 12 Gbps
  Packet Forwarding Rate 7.4 Mpps
  MAC Address Table 8K
  Packet Buffer Memory 4 Mbit
  Jumbo Frame 15 KB
  SOFTWARE FEATURES
  Quality of Service • Port-based/802.1p/DSCP QoS
  • 8 Priority Queues
  • Priority Schedule Mode
• WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
• Port-Based Rating Limit
  • Storm Control
• Multiple Control Modes (kbps/pps)
• Broadcast/Multicast/Unknown-Unicast Control?
  L2 Features • Static Link Aggregation
  • Loop Prevention / Loopback Detection
  • Flow Control
• 802.3x Flow Control
  • Mirroring
• Port Mirroring
• One-to-One
• Many-to-One
• Ingress/Egress/Both
  • Port Statistics
• Port Mirror Status
• Traffic Statistics
  • 802.1ab LLDP
  L2 Multicast • IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Fast Leave
  VLAN • MTU VLAN
  • Port-Based VLAN
  • 802.1Q Tag VLAN
• Max 32 VLAN Groups
• 4K VID
  Transmission Method Store-And-Forward
  MANAGEMENT
  Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Centralized Management • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller
  Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
  Management Features • Web-based GUI
  • DHCP Client
  • Cable Diagnostics
  • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Unified Configuration
  OTHERS
  Certification FCC, CE, RoHS

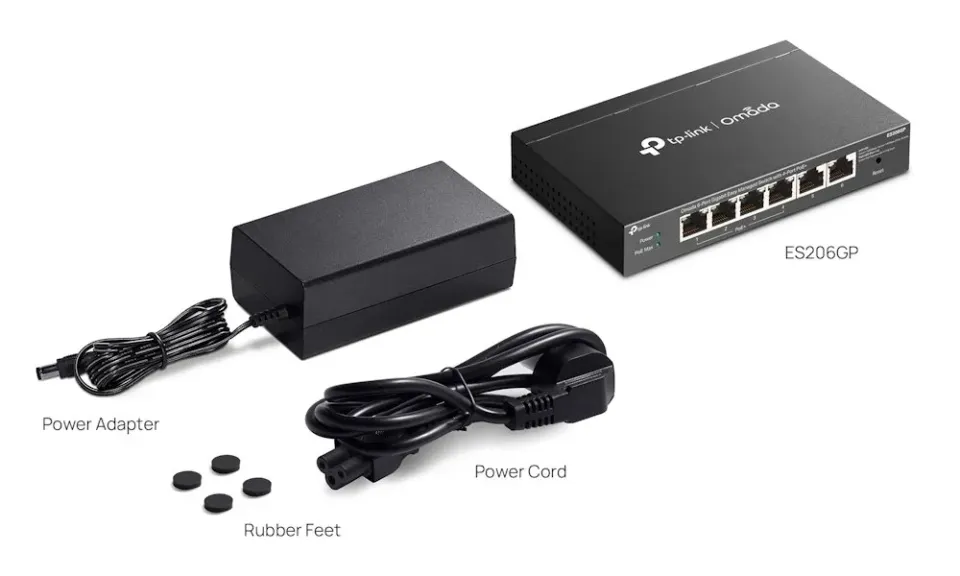

  Package Contents • ES206GP
  • Power Adapter
  • Power Cord
  • Installation Guide
  • Rubber Feet
  Environment • Operating Temperature: 0?40? (32?104?)
  • Storage Temperature: -40?70? (-40?158?)
  • Operating Humidity: 10%90% non-condensing
  • Storage Humidity: 5%90% non-condensing

Provedení: Desktop
Funkce: QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch
Technologie: Gigabit Ethernet 1000Mbps
Počet portů LAN: 6
Podporované standardy PoE: 802.3af, 802.3at
PoE budget (W): 65
Maximální počet portů: 6
Počet PoE+ portů: 4
Management: Web
