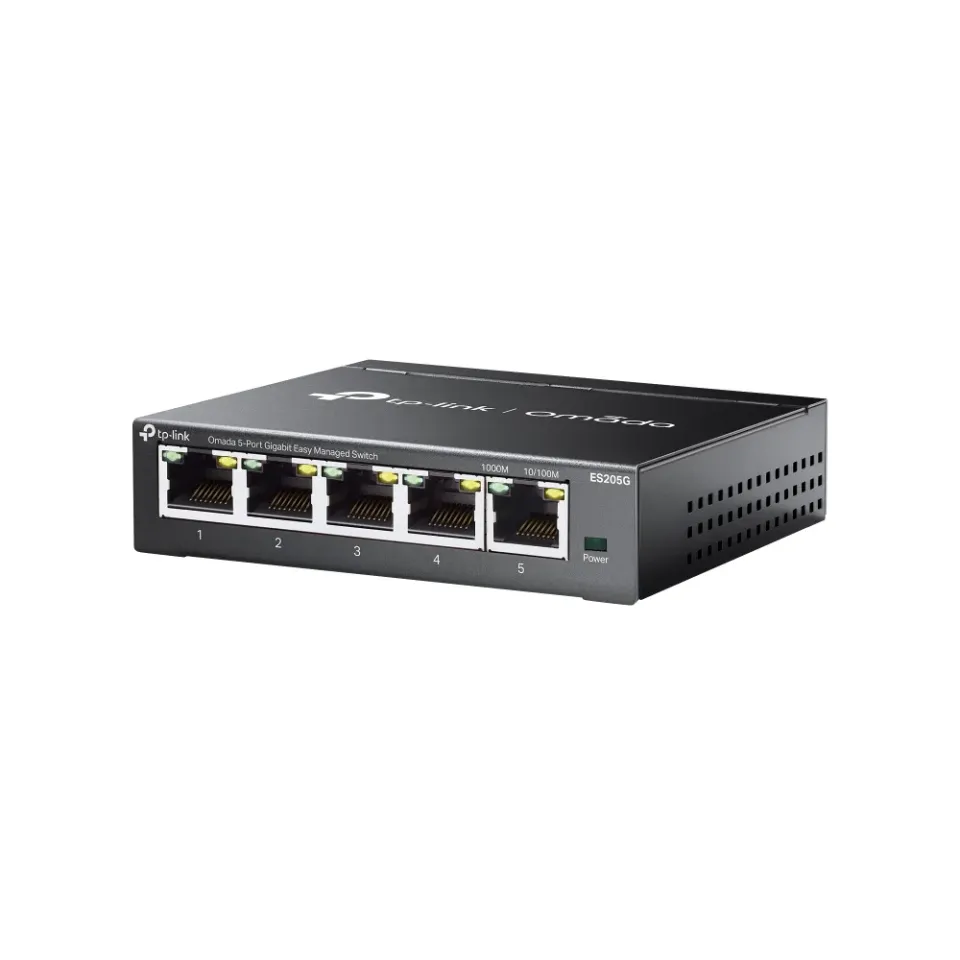

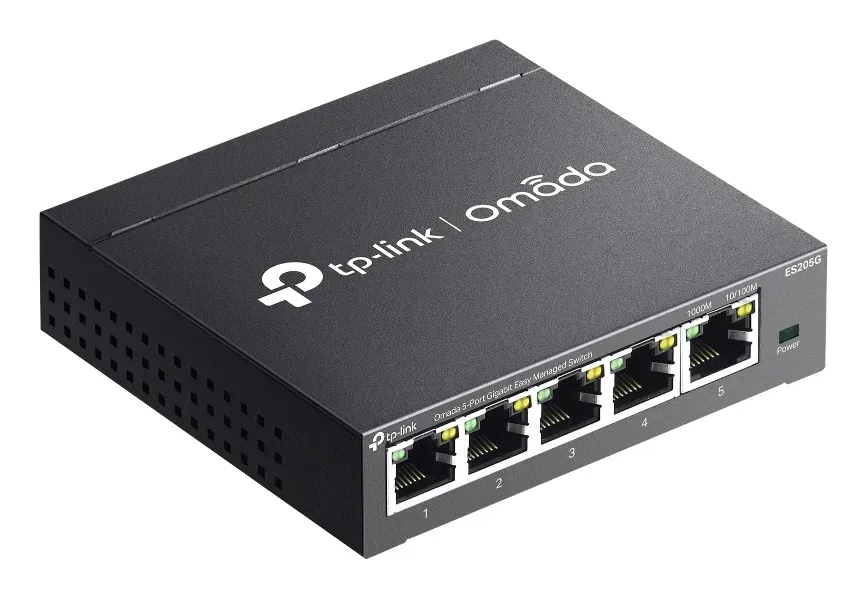

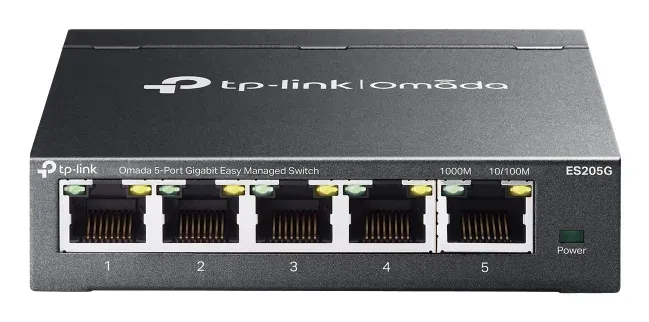

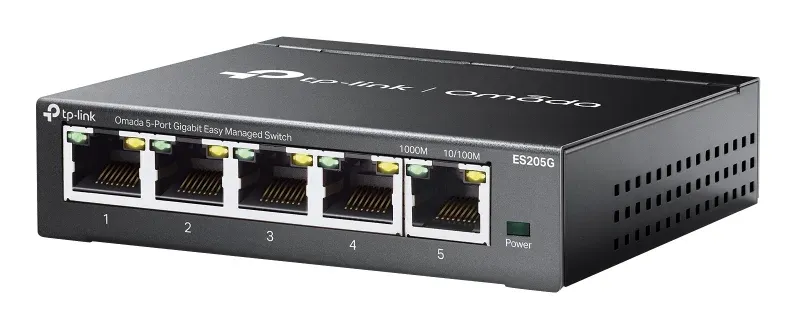

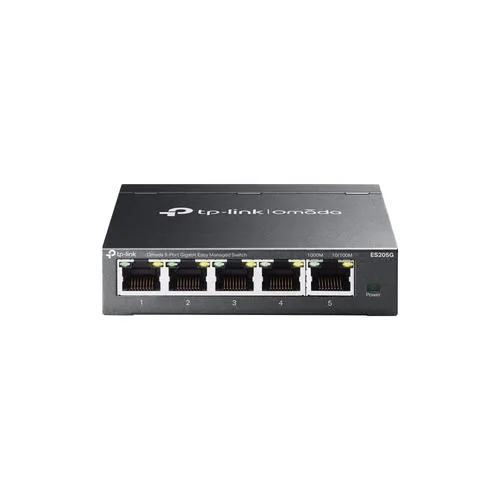

TP-LINK ES205G Omada 5portový gigabitový Easy Managed switch

TP-Link OMADA switch ES205G
Omada 5portový gigabitový Easy Managed Switch

• 5× 10/100/1000Mb/s RJ45 portů
• Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchou konfiguraci dalších funkcí
• Centrální správa přes cloud prostřednictvím webu nebo aplikace Omada
• Automatická prevence smyček, VLAN a IGMP Snooping
• Bezventilátorový design pro tichý provoz
• Odolné kovové šasi a možnost instalace na stůl nebo na zeď
  Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-easy-managed/es205g
  Technické specifikace
  HARDWARE FEATURES
  Interface • 5× 10/100/1000 Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX
  Fan Quantity Fanless
  Installation • Desktop

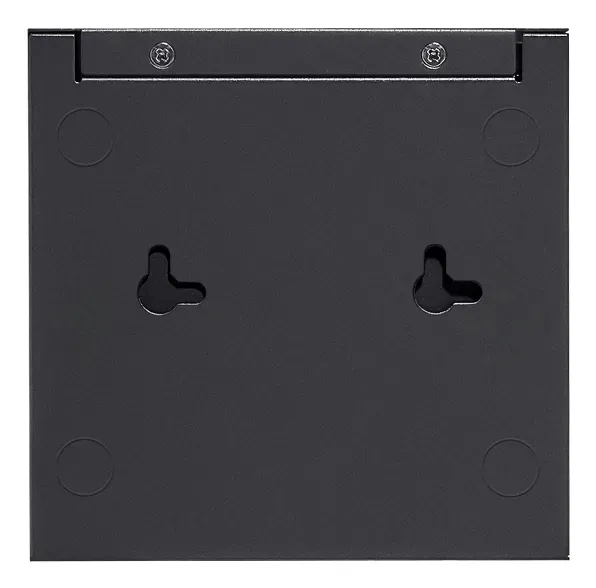

  • Wall Mount
  Physical Security Lock ?
  Power Supply External DC Power Adapter (Output: 5 VDC/ 0.6 A)
  Dimensions ( W x D x H ) 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
  PERFORMANCE
  Switching Capacity 10 Gbps
  Packet Forwarding Rate 7.4 Mpps
  MAC Address Table 8 K
  Packet Buffer Memory 4 Mbits
  Jumbo Frame 15 KB
  SOFTWARE FEATURES
  Quality of Service • Port-based/802.1p/DSCP QoS
  • 8 Priority Queues
  • Priority Schedule Mode
• WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
• Port-Based Rating Limit
  • Storm Control
• Multiple Control Modes (kbps/pps)
• Broadcast/Multicast/Unknown-Unicast Control?
  L2 Features • Static Link Aggregation
  • Loop Prevention / Loopback Detection
  • Flow Control
• 802.3x Flow Control
  • Mirroring
• Port Mirroring
• One-to-One
• Many-to-One
• Ingress/Egress/Both
  • Port Statistics
• Port Mirror Status
• Traffic Statistics
  • 802.1ab LLDP
  L2 Multicast • IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Fast Leave
  VLAN • MTU VLAN
  • Port-Based VLAN
  • 802.1Q Tag VLAN
• Max 32 VLAN Groups
• 4K VID
  Transmission Method Store-And-Forward
  MANAGEMENT
  Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Centralized Management • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller
  Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
  Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
  Management Features • Web-based GUI
  • DHCP Client
  • Cable Diagnostics
  • Automatic Device Discovery†
  • Batch Configuration†
  • Batch Firmware Upgrading†
  • Unified Configuration†
  OTHERS
  Certification FCC, CE, RoHS
  Package Contents • ES205G
  • Power Adapter
  • Installation Guide
  • Rubber Feet
  Environment • Operating Temperature: 0?40? (32?104?)
  • Storage Temperature: -40?70? (-40?158?)
  • Operating Humidity: 10%90% non-condensing
  • Storage Humidity: 5%90% non-condensing

Provedení: Desktop
Funkce: QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, L2, Web management/Smart switch
Technologie: Gigabit Ethernet 1000Mbps
Počet portů LAN: 5
Maximální počet portů: 5
Management: Web
