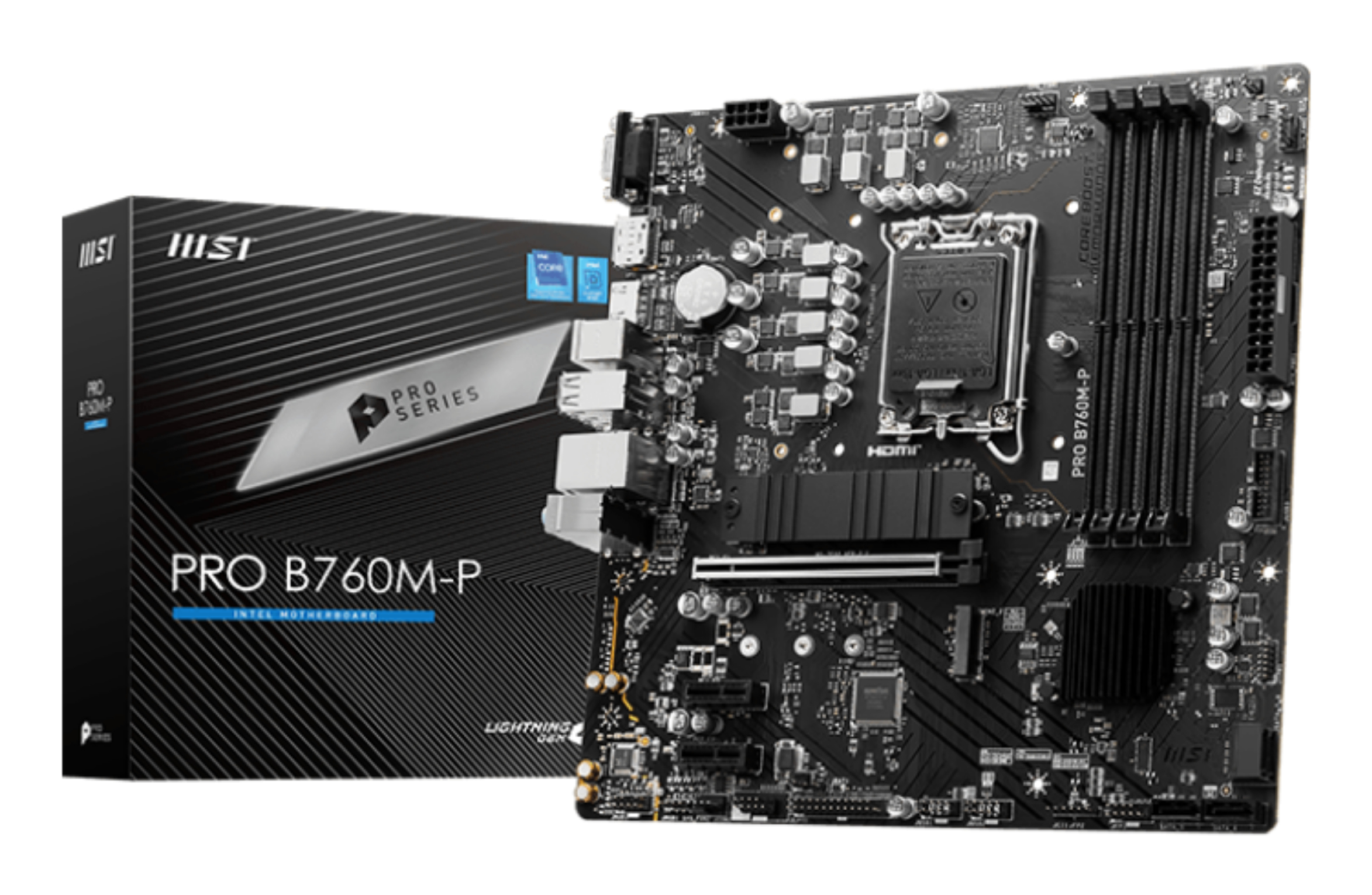

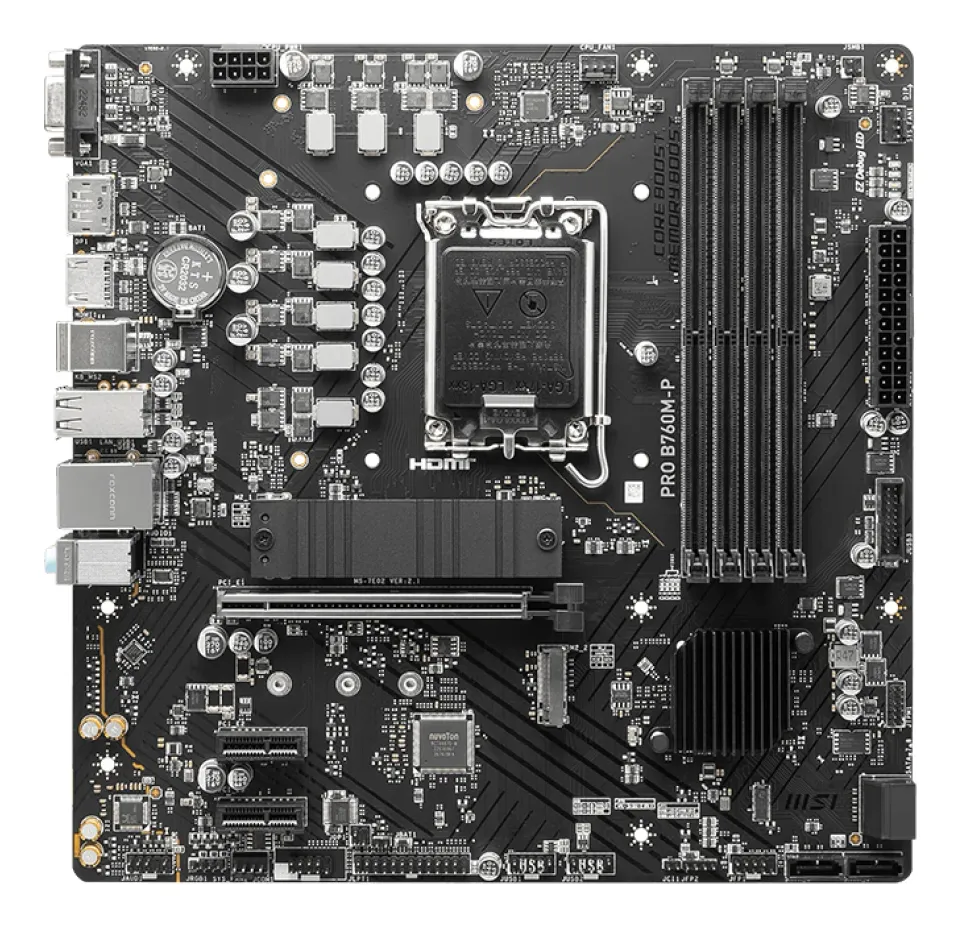

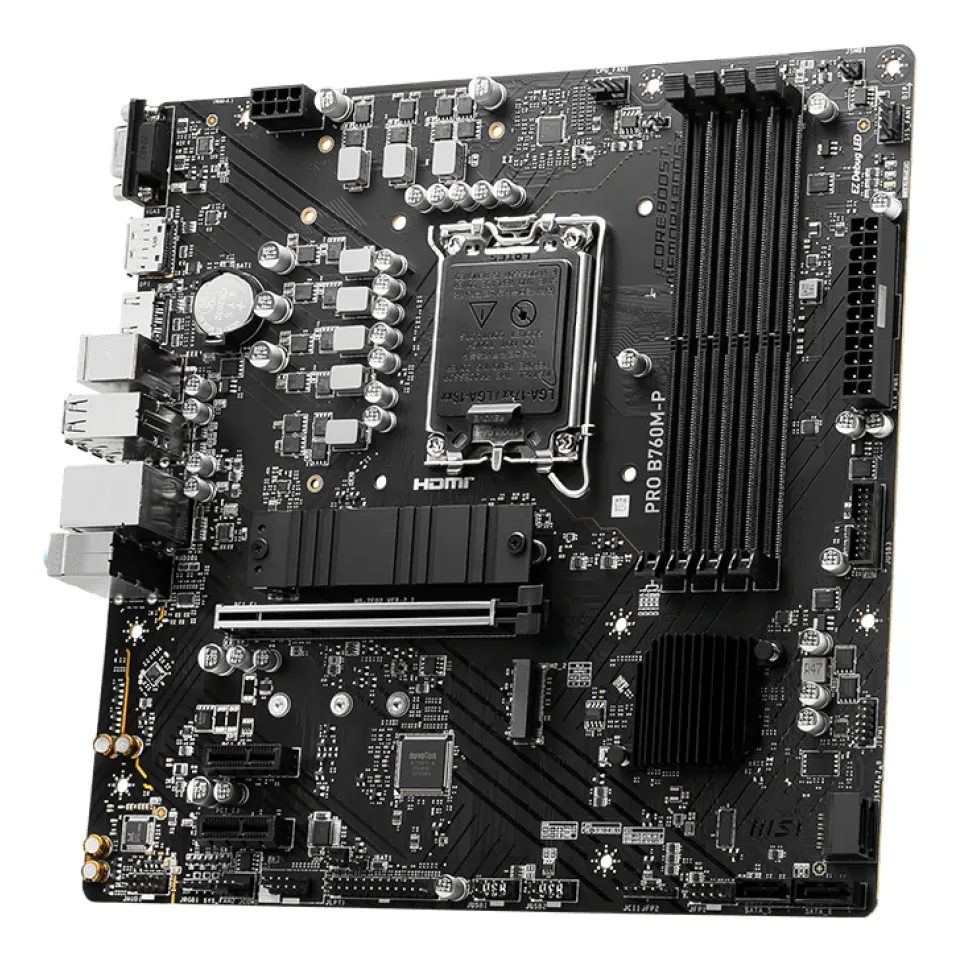

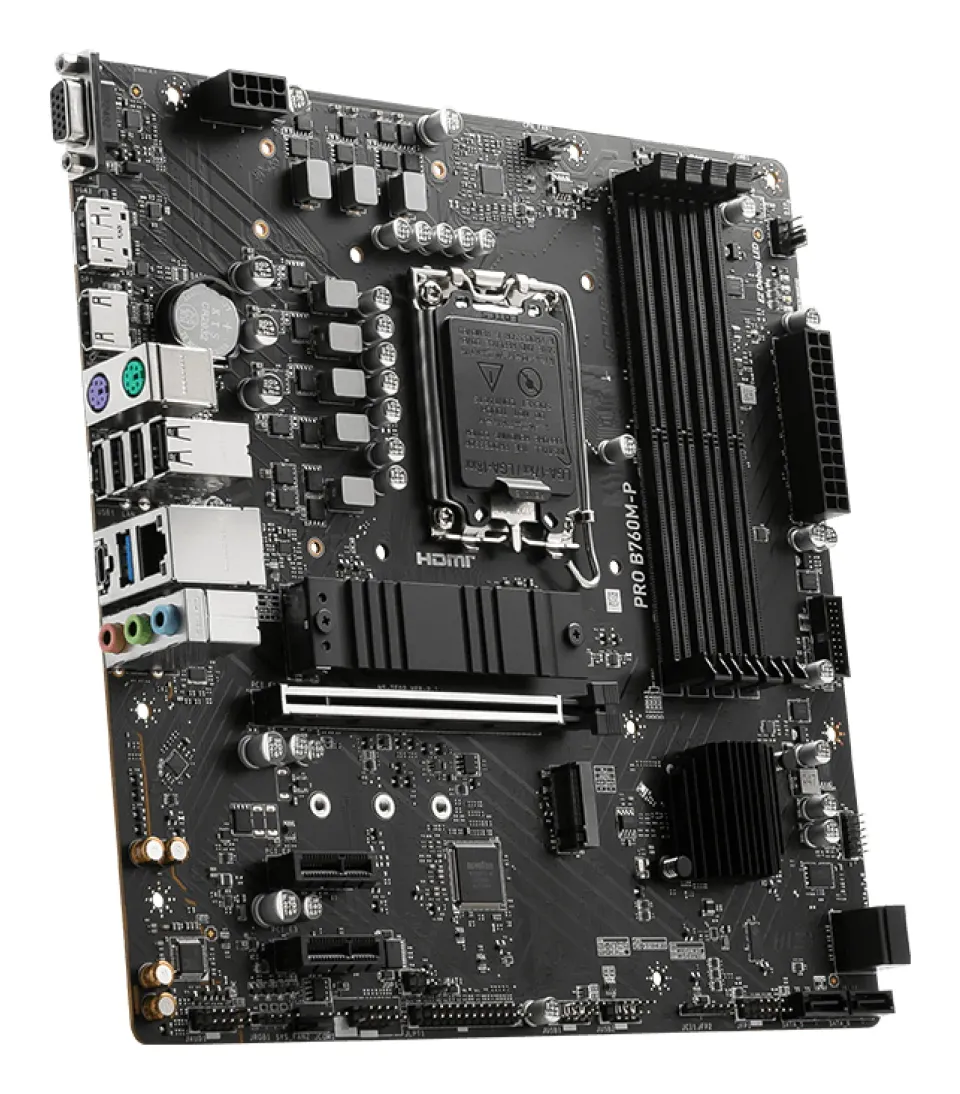

MSI PRO B760M-P, 1700, Intel B760, 4xDDR5, mATX

CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY 4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS 1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT 1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
STORAGE 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

• SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  USB 4x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  1x USB 3.2 Gen1 Type A (Rear)
  2x USB 3.2 Gen1 Type A (Front)
  1x USB 3.2 Gen2 Type C (Rear)
  LAN Realtek® RTL8111H Gigabit LAN
  AUDIO Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
  INTERNAL IO 1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x CPU Fan
  2x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Printer Port (JLPT)
  1x Com Port (JCOM)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 3.2 Gen1 Type A ports
  LED FEATURE 4x EZ Debug LED

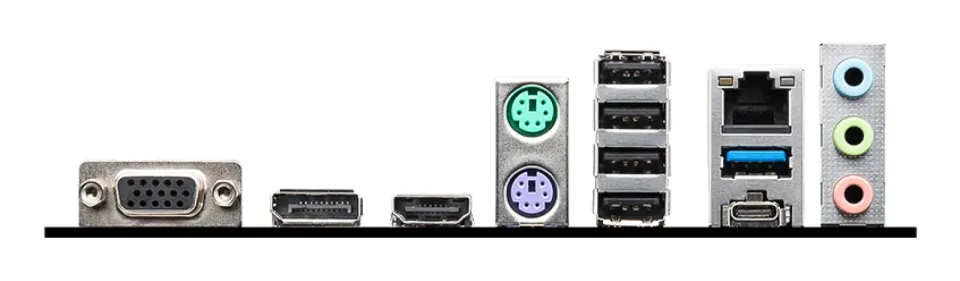

  BACK PANEL PORTS
  VGA
  DisplayPort
  HDMI™
  Keyboard / Mouse
  USB 2.0
  LAN port
  Audio Connectors
  USB 3.2 Gen 1 5Gbps (Type-A)
  USB 3.2 Gen 2 10Gbps (Type-C)

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB INFO mATX
243.84mmx243.84mm

Socket/patice: 1700
Typ paměti: DDR5
Výrobce: MSI
