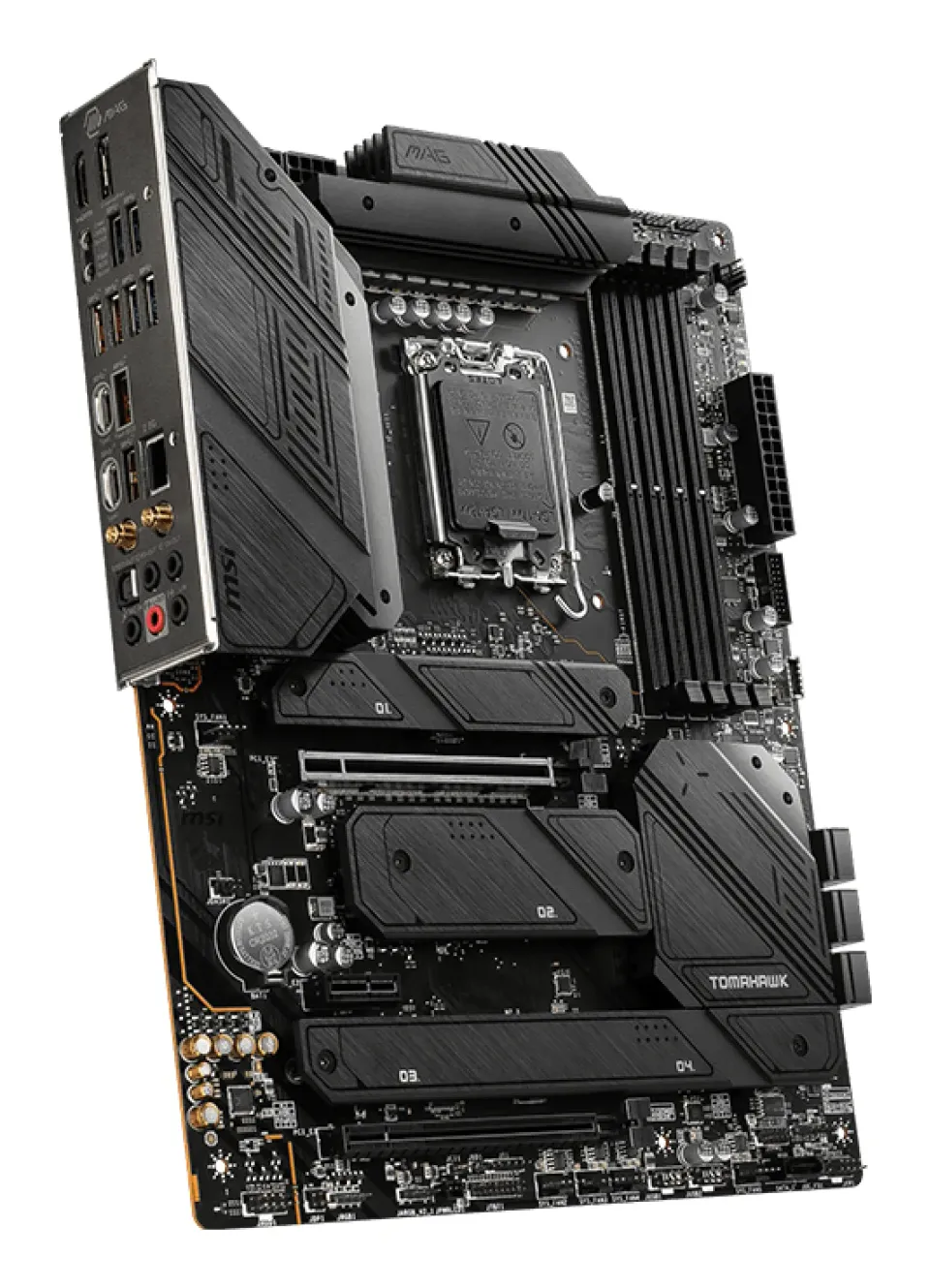

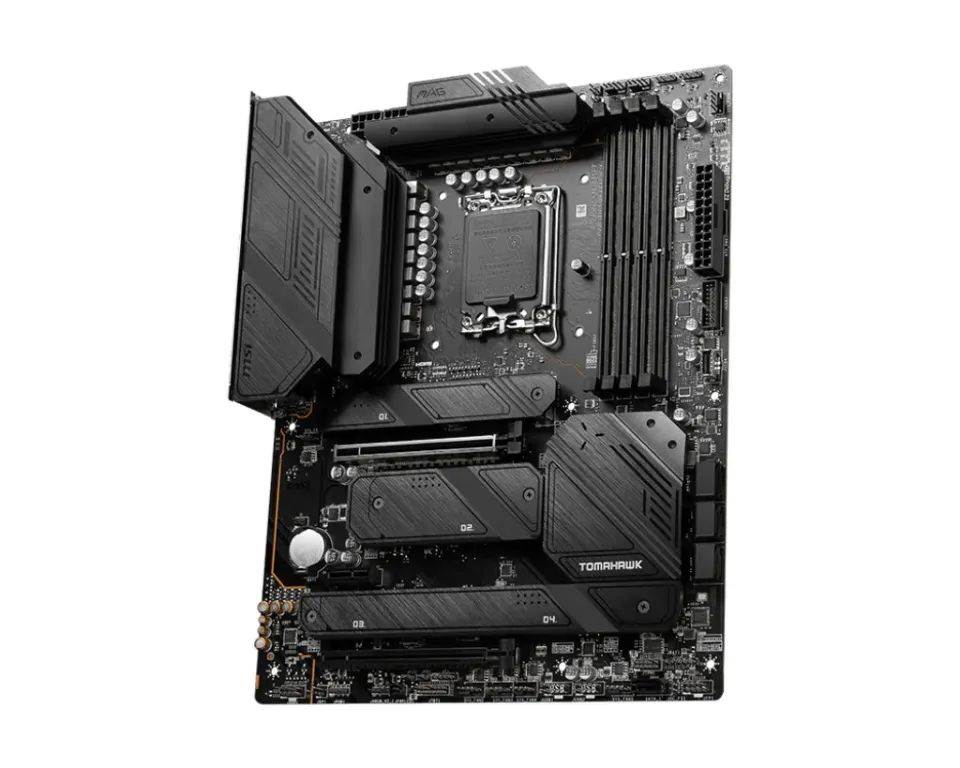

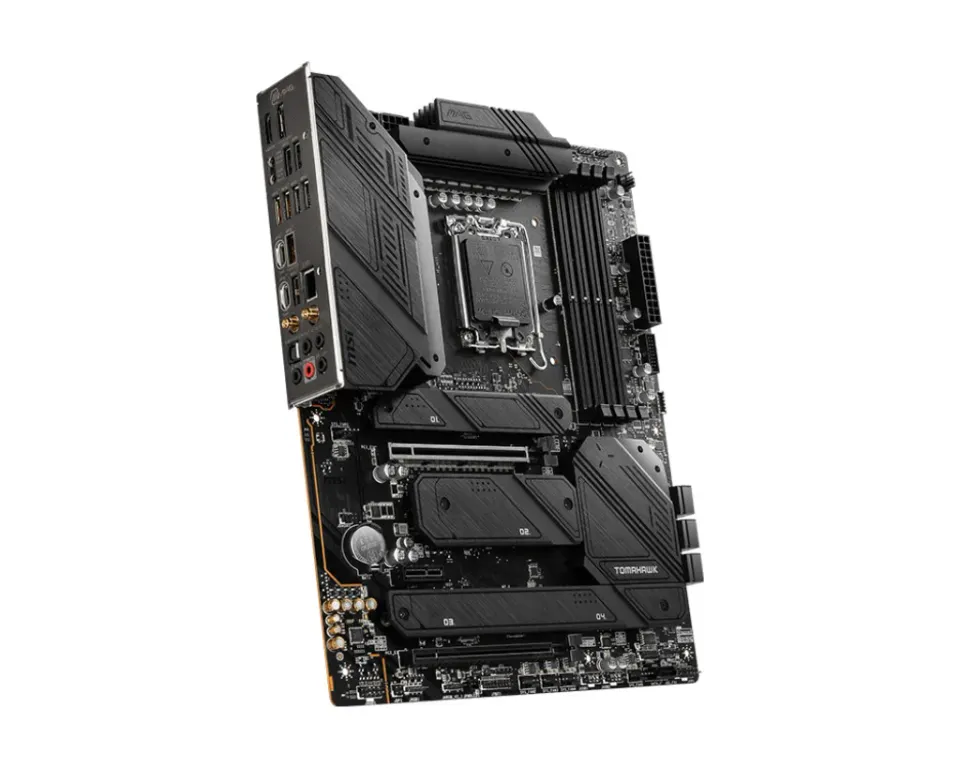

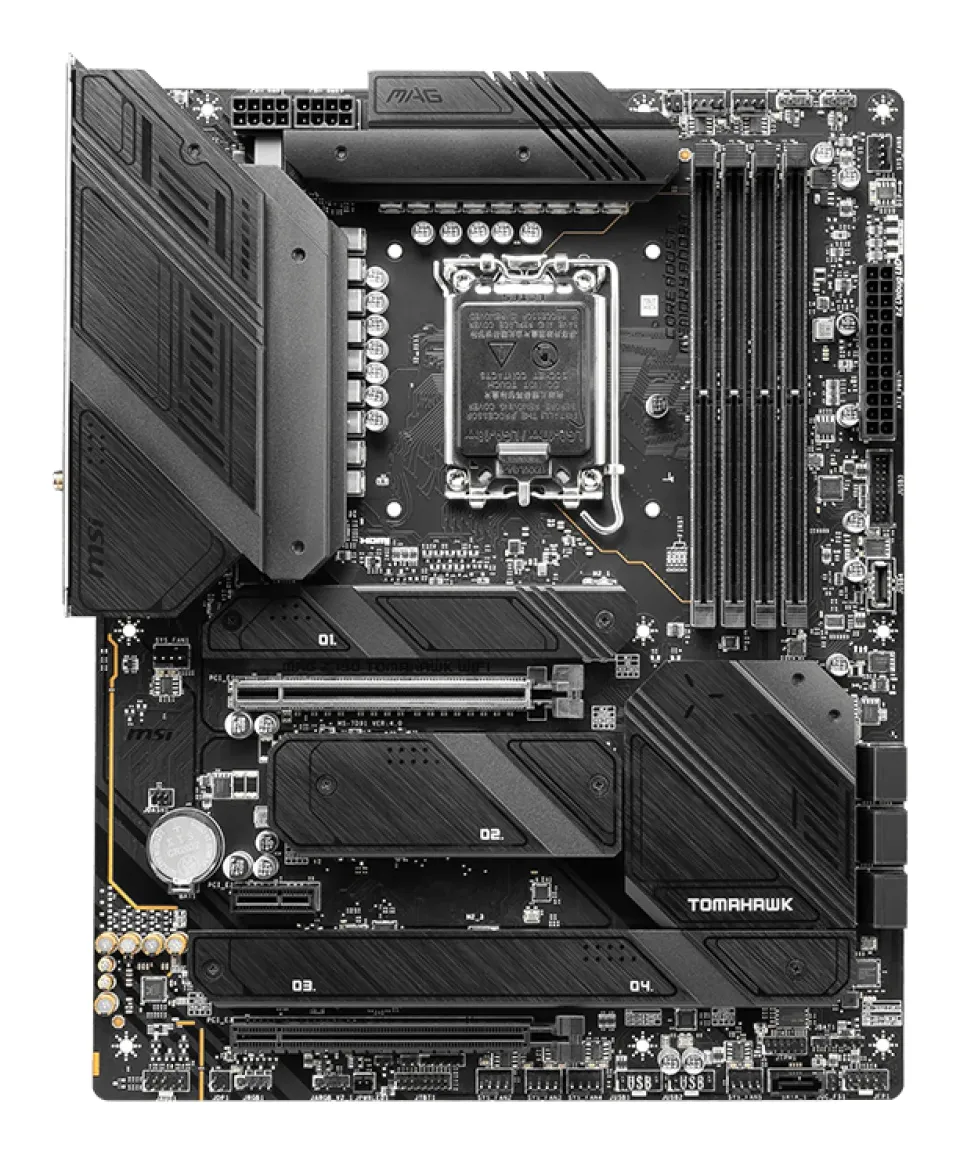

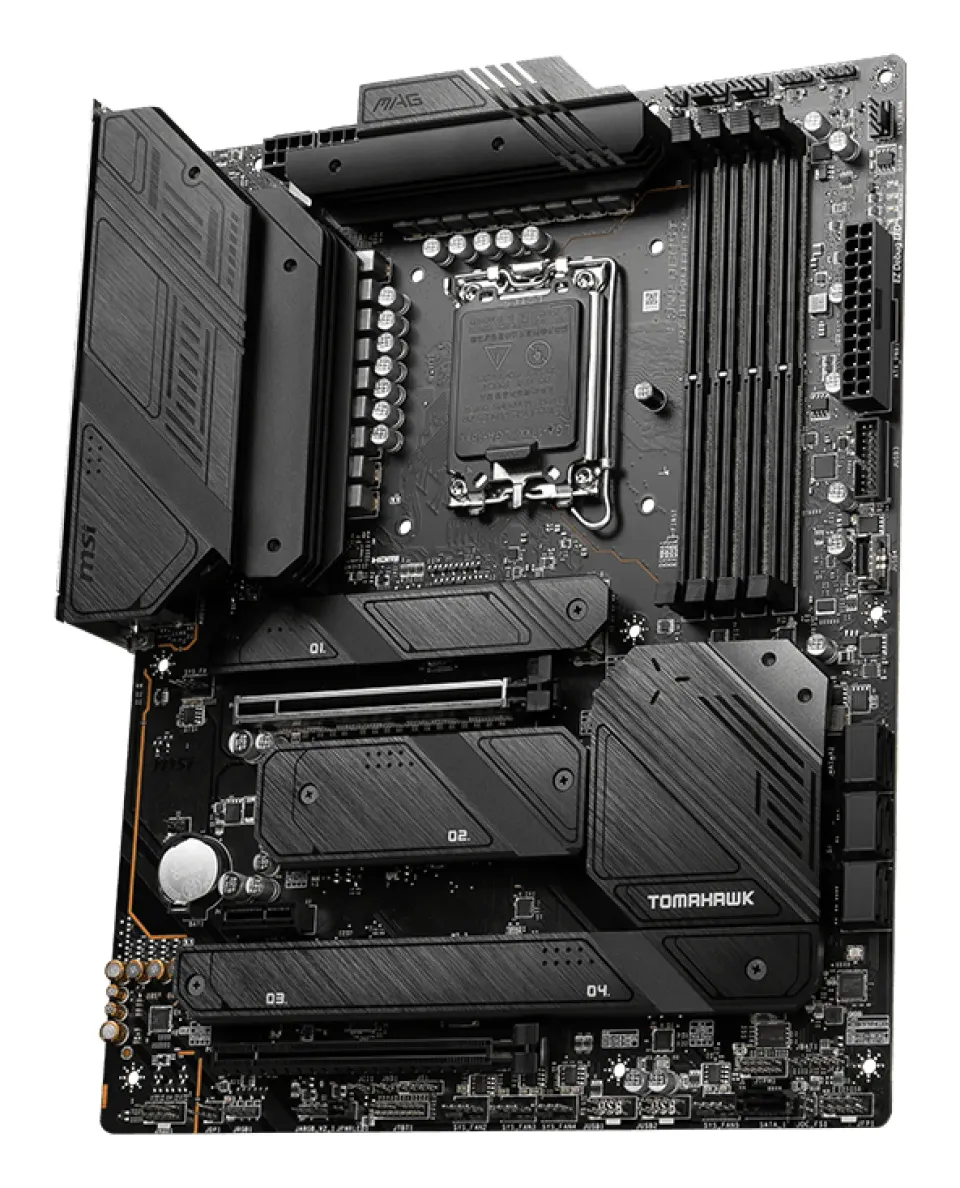

MSI MB Sc LGA1700 MAG Z790 TOMAHAWK WIFI, Intel Z790, 4xDDR5, 1xDP, 1xHDMI, WI-FI, ATX

MAG Z790 TOMAHAWK WIFI

• Support Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
• Supports DDR5 Memory, up to 7200+(OC) MHz
• Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  CHIPSET
  INTEL Z790
  CPU SUPPORT
  Supports 14th/ 13th/ 12th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors
  MEMORY
  4x DDR5, Maximum Memory Capacity 256GB
  Memory Support 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
  Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7200+ MHz
  • 1DPC 2R Max speed up to 6600+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
  Supports Intel XMP3.0 OC
  Supports Dual-Controller Dual-Channel mode
  Supports non-ECC, un-buffered memory
  ONBOARD GRAPHICS
  1x HDMI™
  1x DisplayPort
  Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
  Support DP 1.4, maximum resolution of 8K 60Hz*
  Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  EXPANSION SLOT
  2x PCI-E x16 slot
  Supports x16/x4
  1x PCI-E x1 slot
  PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
  PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
  STORAGE
  4x M.2 slot
  M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
  M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
  7x SATA 6G port
  RAID
  Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

• SATA_A1_A2 do not support RAID function.
  USB
  4x USB 2.0 (Front)
  4x USB 3.2 Gen1 Type A (Rear)
  2x USB 3.2 Gen1 Type A (Front)
  4x USB 3.2 Gen2 Type A (Rear)
  1x USB 3.2 Gen2 Type C (Rear)
  1x USB 3.2 Gen2 Type C (Front)
  1x USB 3.2 Gen2x2 Type C (Rear)
  LAN
  Intel 2.5Gbps LAN
  WIRELESS / BLUETOOTH
  Intel Wi-Fi 6E
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth 5.3**, FIPS, FISMA
• Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
  ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
  AUDIO
  Realtek ALC4080 Codec
  7.1-Channel USB High Performance Audio
  Supports S/PDIF output
  Supports up to 32-Bit/384 kHz playback on front panel
  INTERNAL I/O
  1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Pump Fan
  6x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x TBT connector (JTBT, supports RTD3)
  1x Tuning Controller connector(JDASH)
  3x Addressable V2 RGB LED connector (JARGB_V2)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0
  2x USB 3.2 Gen1 Type A
  1x USB 3.2 Gen2 Type C
  LED FEATURE
  4x EZ Debug LED

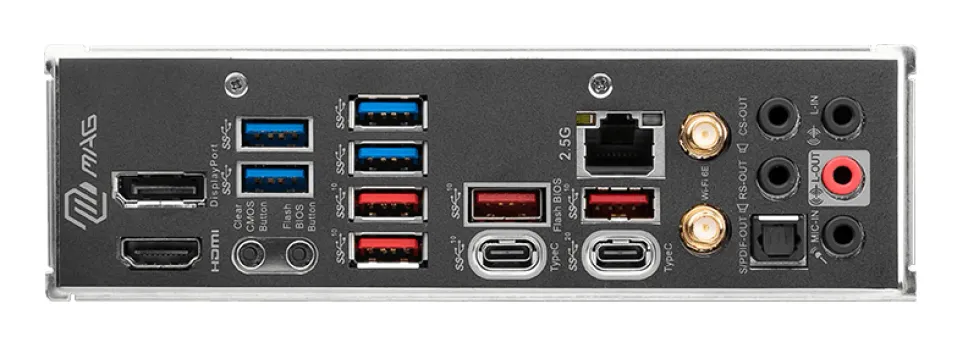

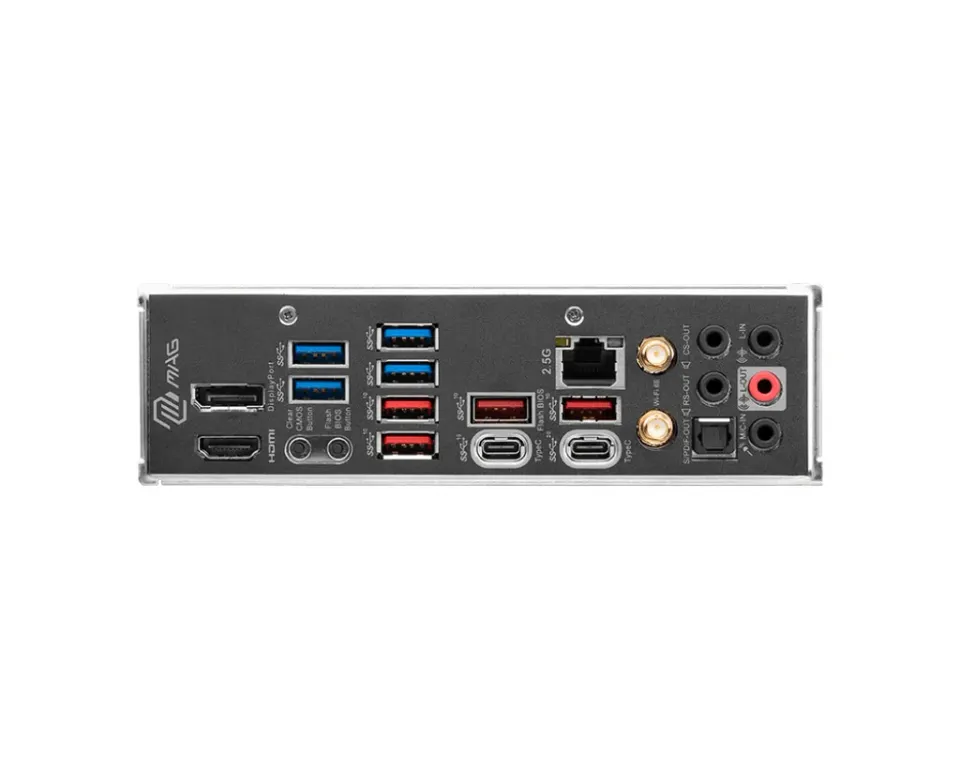

  BACK PANEL PORTS
  DisplayPort 1.4
  USB 3.2 Gen 1 5Gbps Type-A
  USB 3.2 Gen 2 10Gbps Type-A
  2.5G LAN Port,
  HD Audio Connectors
  HDMI™ 2.1 Port
  Clear CMOS Button
  Flash BIOS Button
  USB 3.2 Gen 2 10Gbps Type-C
  USB 3.2 Gen 2x2 20Gbps Type-C
  Wi-Fi / Bluetooth Antenna
  Optical S/PDIF OUT
  OPERATING SYSTEM
  Support for Windows 11 64-bit, Windows 10 64-bit
  PCB DIMENSION
  ATX
  243.84mmx304.8mm

Formát základní desky: ATX
Chipset: Intel Z790
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 4
SATA 3: 7
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 2
PCI Express x1: 1
LAN: 2.5Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 1
HDMI: 1
VGA: 0
DVI: 0
USB 2: 4
USB 3: 10
USB C: 3
