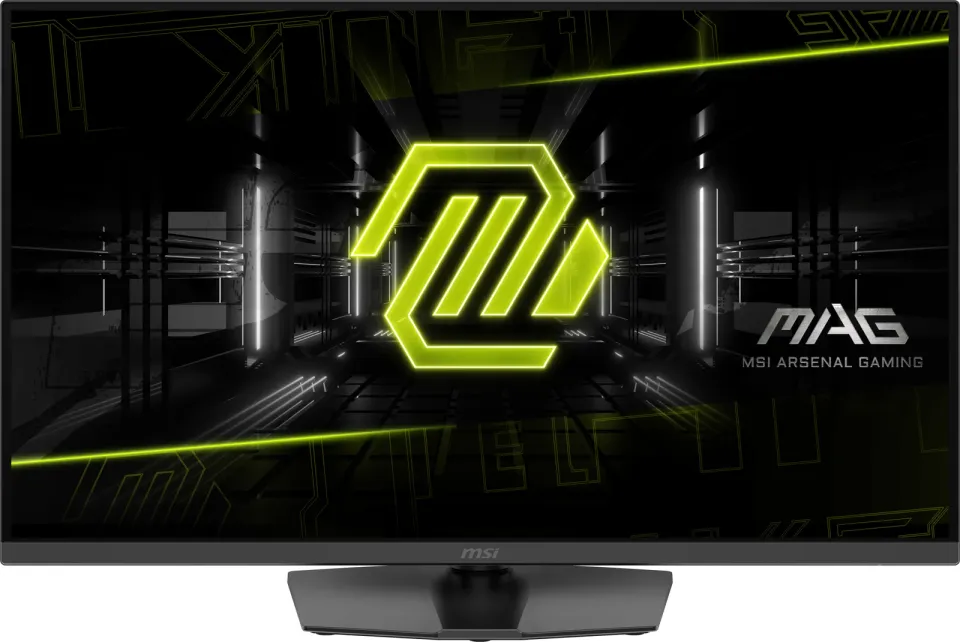

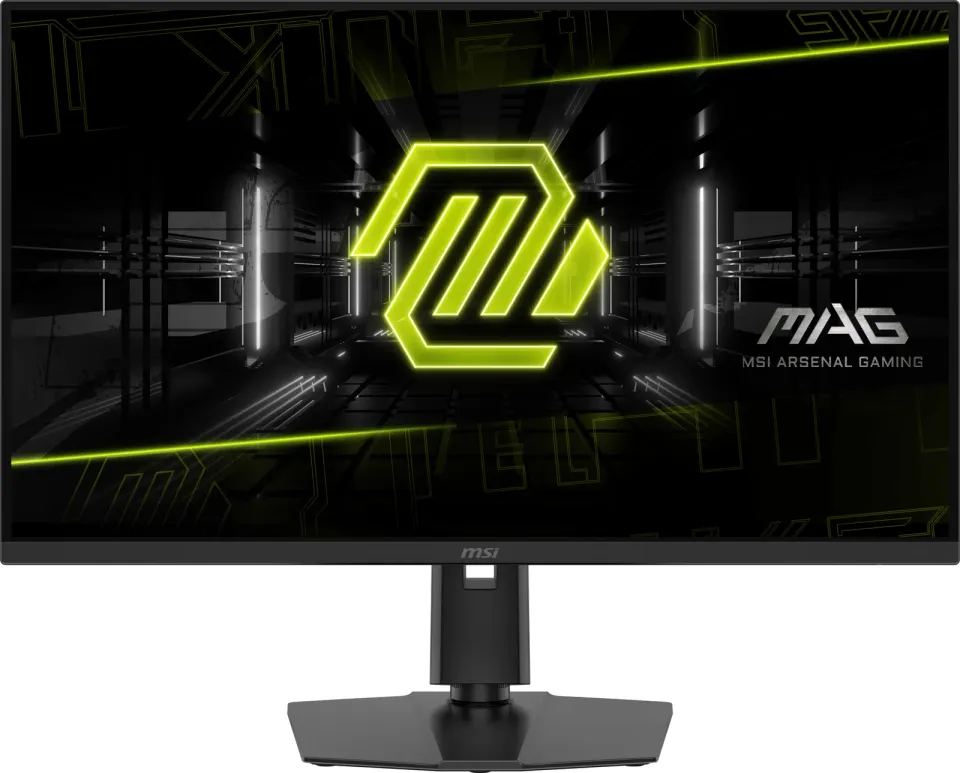

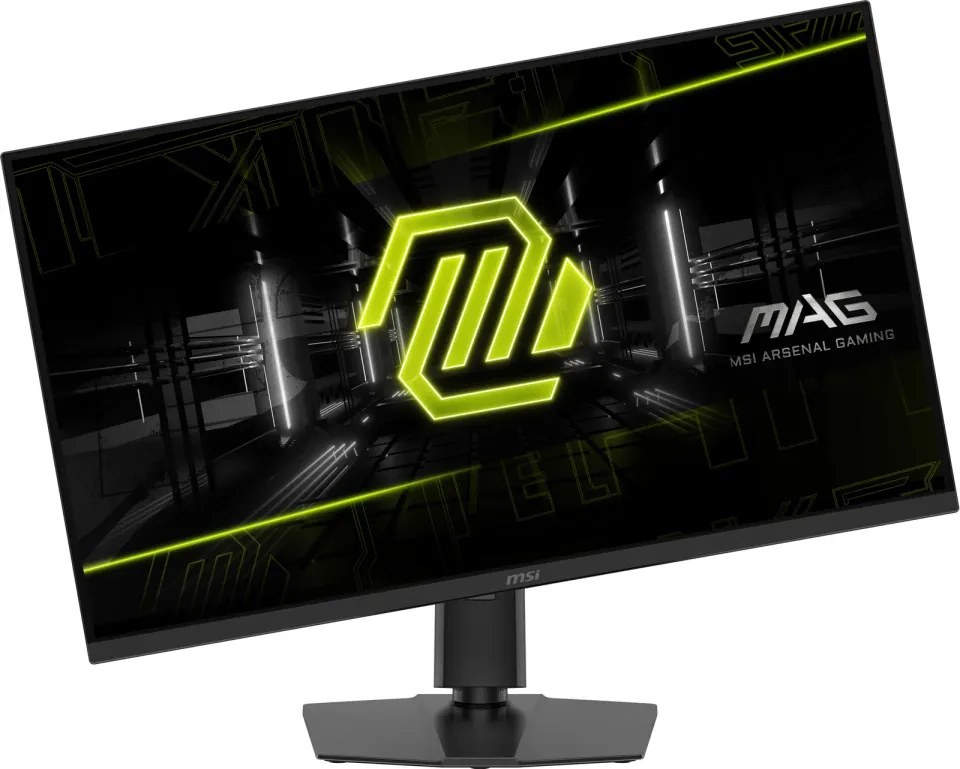

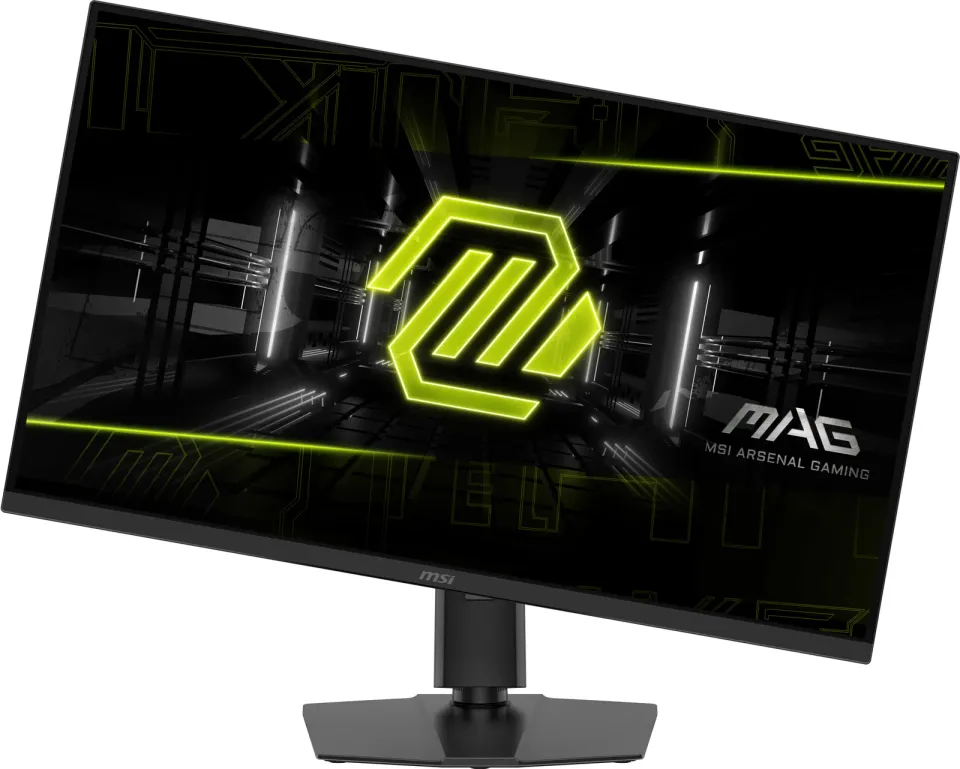

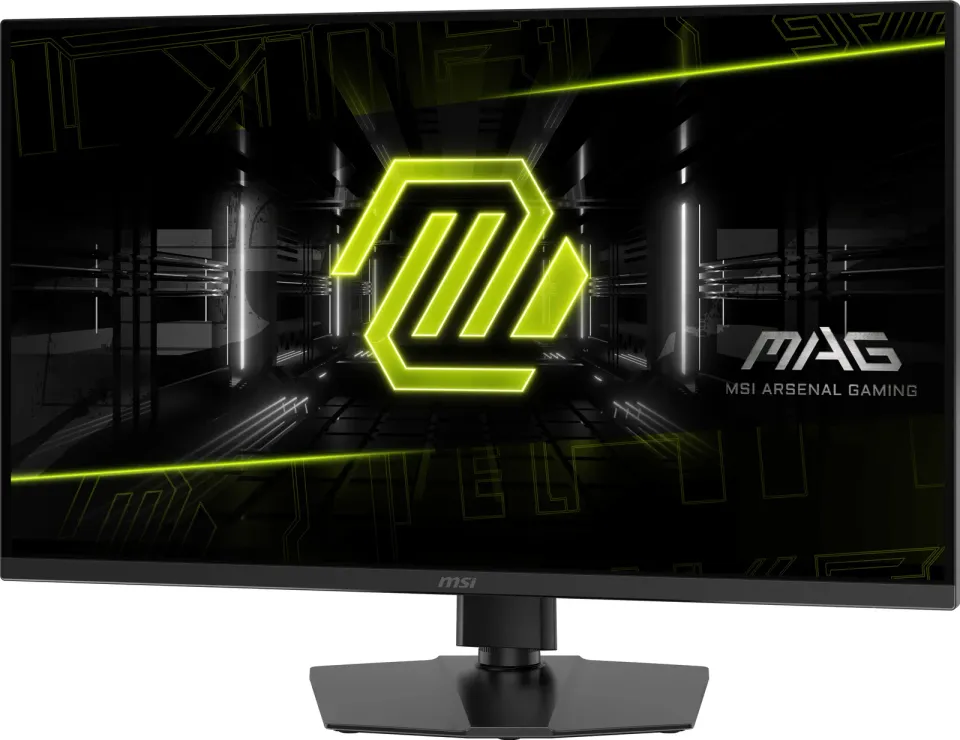

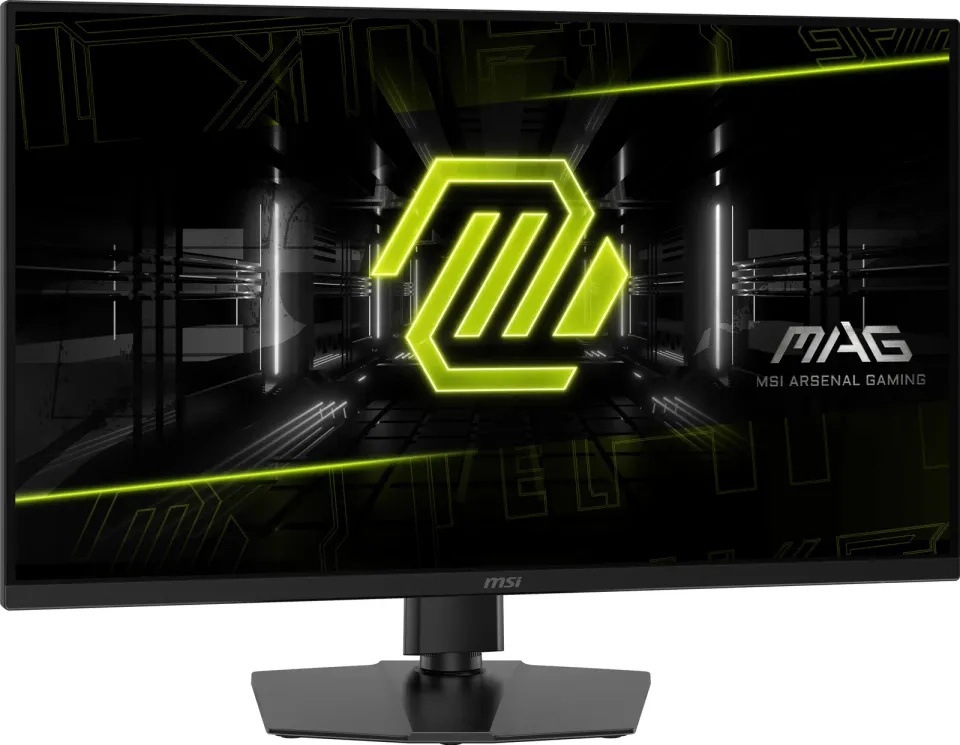

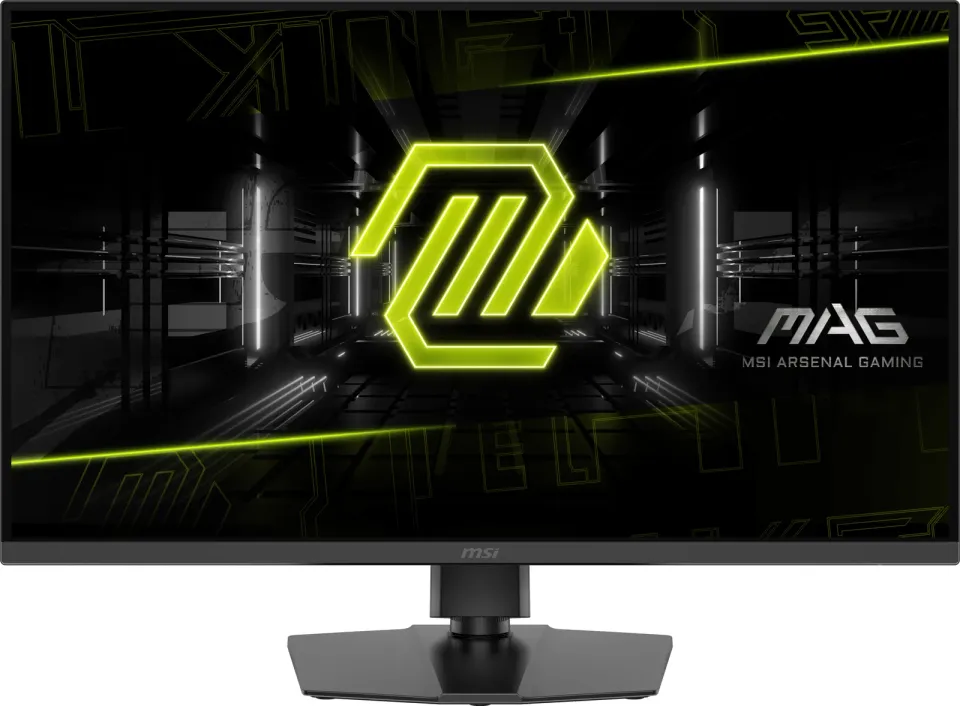

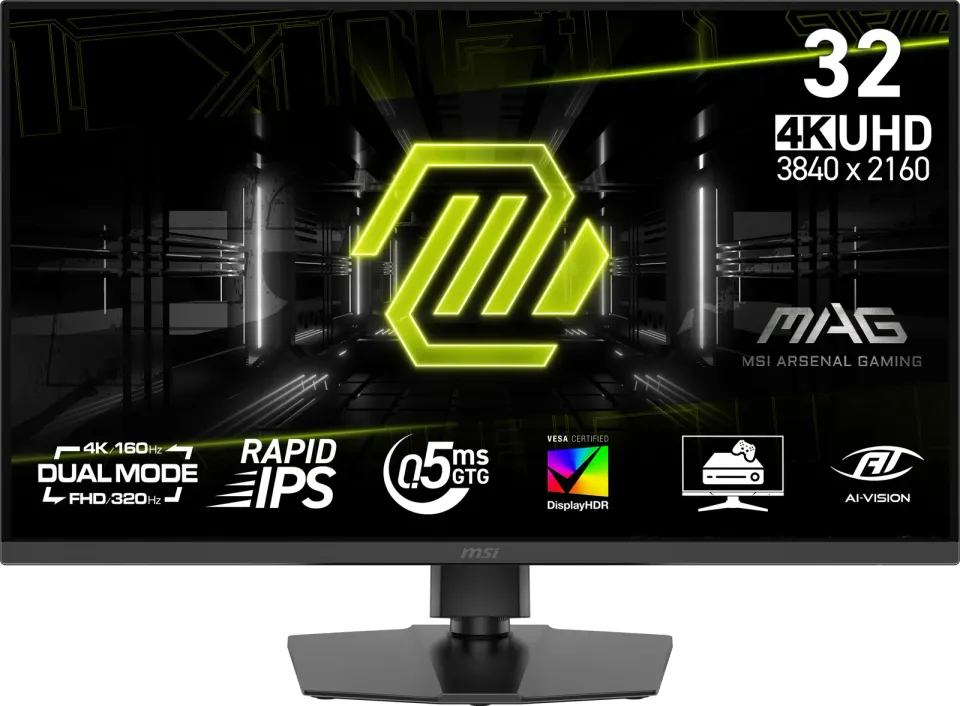

MSI Gaming monitor MAG 322URDF E16 31,5" Rapid IPS/3840 x 2160 UHD/160Hz/0,5ms/2

MSI Gaming monitor MAG 322URDF E16 31,5" Rapid IPS/3840 x 2160 UHD/160Hz/0,5ms/2xHDMI/DP/USB-A,B/Výšk.nast./Pivot/černá

MKT Spec MAG 322URDF E16
Website Name MAG 322URDF E16
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 31.5" (80.01 cm)
Active Display Area (mm) 695.04(H) x 390.96(V)
Curvature Flat
Panel Type Rapid IPS
Resolution 3840x2160 (UHD)
Pixel pitch (mm) 0.181(H)x0.181(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range UHD : 48160Hz , FHD : 48320Hz
HDR (High dynamic range) VESA DisplayHDR 400
SDR Brightness (nits) 400
HDR Brightness (Peak nits) 450
Contrast Ratio 1000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency UHD:146.3353.1 KHz(H) / 48160 Hz(V), FHD:352.2356.1 KHz(H) / 48320 Hz(V)
Refresh Rate UHD:160Hz, FHD:320Hz
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 0.5ms (Min.)
Response Time (Tr + Tf) UHD : 6.87ms FHD : 7.29ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 115%/89%
NTSC (CIE1931 area percentage/overlap) 97%/86%
sRGB (CIE1976 area percentage/overlap) 131%/100%
sRGB (CIE1931 area percentage/overlap) 137%/100%
Adobe RGB (CIE1976 area percentage/overlap) 113%/93%
Adobe RGB (CIE1931 area percentage/overlap) 102%/88%
DCI-P3 (CIE1976 area percentage/overlap) 105%/99%
DCI-P3 (CIE1931 area percentage/overlap) 101%/99%
Rec.709 (CIE1976 area percentage/overlap) 131%/100%
Rec.709 (CIE1931 area percentage/overlap) 137%/100%
Rec.2020 (CIE1976 area percentage/overlap) 76%/76%
Rec.2020 (CIE1931 area percentage/overlap) 73%/72%
Quantum Dot Film NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP UHD:3840 x2160 (Up to 160Hz), FHD:1920 x 1080 (Up to 320Hz)
Note_HDMI UHD:3840 x2160 (Up to 160Hz), FHD:1920 x 1080 (Up to 320Hz)
Note_DVI N/A
VESA DisplayHDR VESA DisplayHDR 400
VESA ClearMR NA
Delta E Delta E ? 2 (Pre-Calibration)
I/O Ports
HDMI 2
HDMI version 2.1
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) NA
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A 2
USB 2.0 Type B 1
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port N/A
Power
Country EU
Territory EU
Entity EU OBD
Power Type Internal Power Board
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) SDR:33 HDR:80
Annual Energy Consumption (KWh) 55
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating G
Adapter's KC safety Number NA
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output NA
PD Output Power NA
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 15°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 110 mm
Adjustment (Pivot) -10° ~ 10°
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode YES
HDMI CEC YES
Firmware Update YES
Stand Attachment Method N/A
Stand Type N/A
Stand with Integrated Mini PC Mount N/A
KVM Version NA
PIP/PBP Support
Optix Scope Support
Smart Crosshair Support
Remote Display Support
AI Gaming NA
MSI OLED Care NA
Scaler FW Update Update by Gaming Intelligence (USB + DP)
Carton
Carton Item (SG14) SG14-M1S246A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 14
Q'ty/20cy (by air) pcs 140
Q'ty/40cy (by air) pcs 294
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1346
Net Weight (by air) kg 182
Gross Weight (by air) kg 199.74
pallet Q'ty (by sea) pcs 24
Q'ty/20cy (by sea) pcs 240
Q'ty/40cy (by sea) pcs 504
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2192
Net Weight (by sea) kg 312
Gross Weight (by sea) kg 329.74
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 714.08 x 227.76 x 564.48
Product Dimension with Stand (WxDxH) (inch) 28.11 x 8.97 x 22.22
Product Dimension without Stand (WxDxH) (mm) 714.08 x 72.93 x 421.29
Product Dimension without Stand (WxDxH) (inch) 28.11 x 2.87 x 16.59
Stand Dimension (WxDxH) (mm) 308.52 x 227.9 x 411.28
Stand Dimension (WxDxH) (inch) 12.15 x 8.97 x 16.19
Weight (Net kg) 9 KG
Weight (Net lbs) 9 KG
Weight Without Stand (kg) 6.5 KG
Weight Without Stand (lbs) 6.5 KG
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 98.5 x 18.3 x 51.3
Inside Carton Dimension (WxDxH) (inch) 38.78 x 7.2 x 20.2
Outer Carton Dimension (WxDxH) (cm) 100 x 19.8 x 53.6
Outer Carton Dimension (WxDxH) (inch) 39.37 x 7.8 x 21.1
Weight (Gross kg) 13 KG
Weight (Gross lbs) 13 KG
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4a
HDMI Cable 0
HDMI Cable Version NA
DVI Cable 0
DVI Cable Version NA
USB Type A to Type B Cable 1
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 0
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name LCD
Segment Name MAG
Segment Name2 MAG 322U E16
Segment Name3 MAG 322URDF E16
Barcode Info
EAN 4711377307383

Barva: Černá
Display port: Ano
Doba odezvy: 0,5 ms
Dotykový displej: Ne
DVI vstup: Ne
Formát zobrazení: 16:9 (širokoúhlý)
HDMI počet: 2
Integrovaný TV tuner: Ne
Jas: 450 cd/m2
Kontrast: 200:1 – 1 000:1
Pivot: Ano
Podpora VESA: Ano
Prohnutá obrazovka: Ne
Reproduktory: Ne
RJ45: Ne
Rozlišení: 3840x2160 (UHD)
Technologie: LCD (LED podsvícení)
Typ displeje: LCD IPS
Typ povrchu displeje: Matný
Úhlopříčka displeje: 31,5"
USB-C integrovaná dokovací stanice: Ne
USB-C zpětné nabíjení ntb: Ne
USB: Ano
VGA/D-SUB vstup: Ne
Výrobce: MSI
Výškově nastavitelný: Ano
