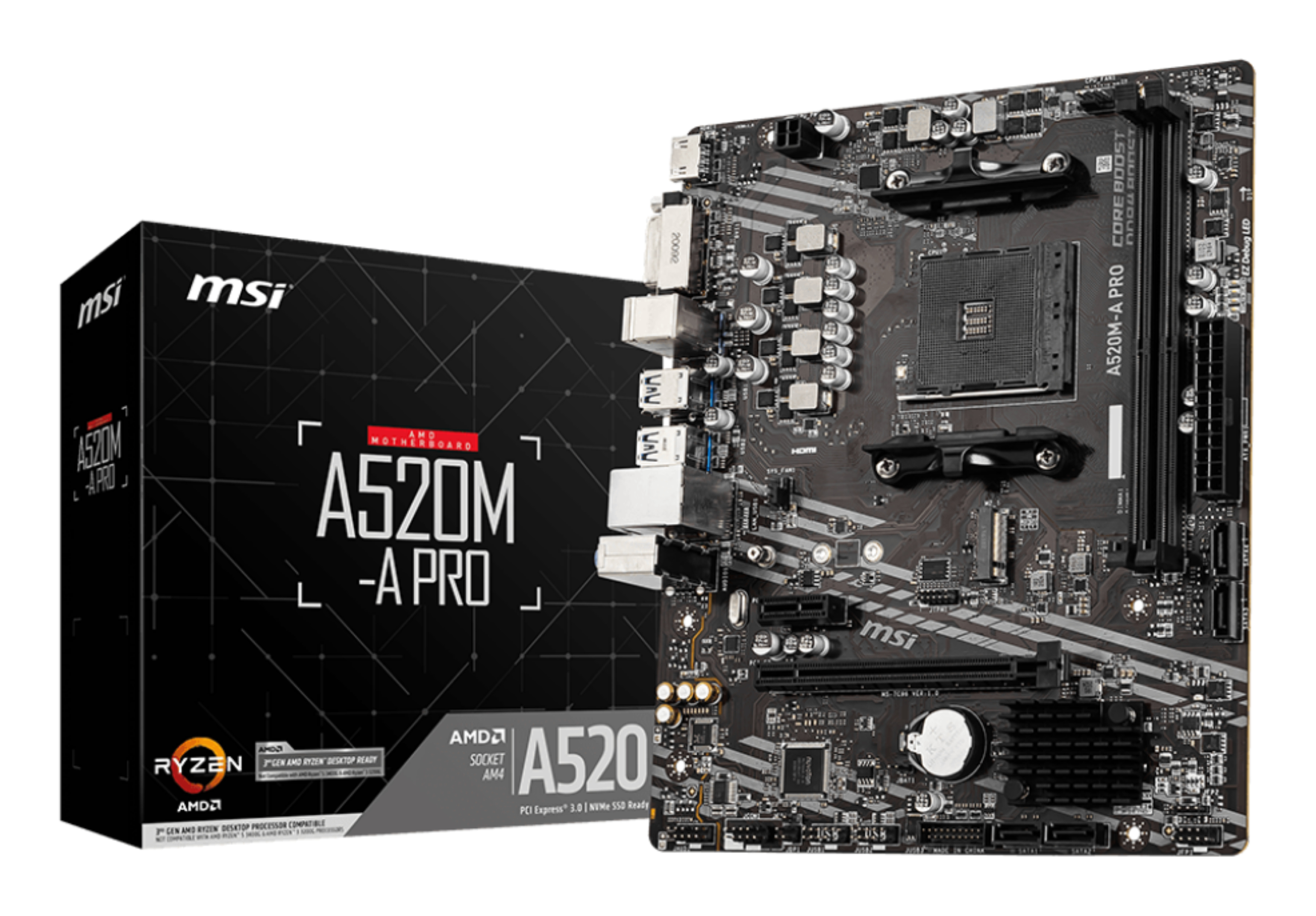

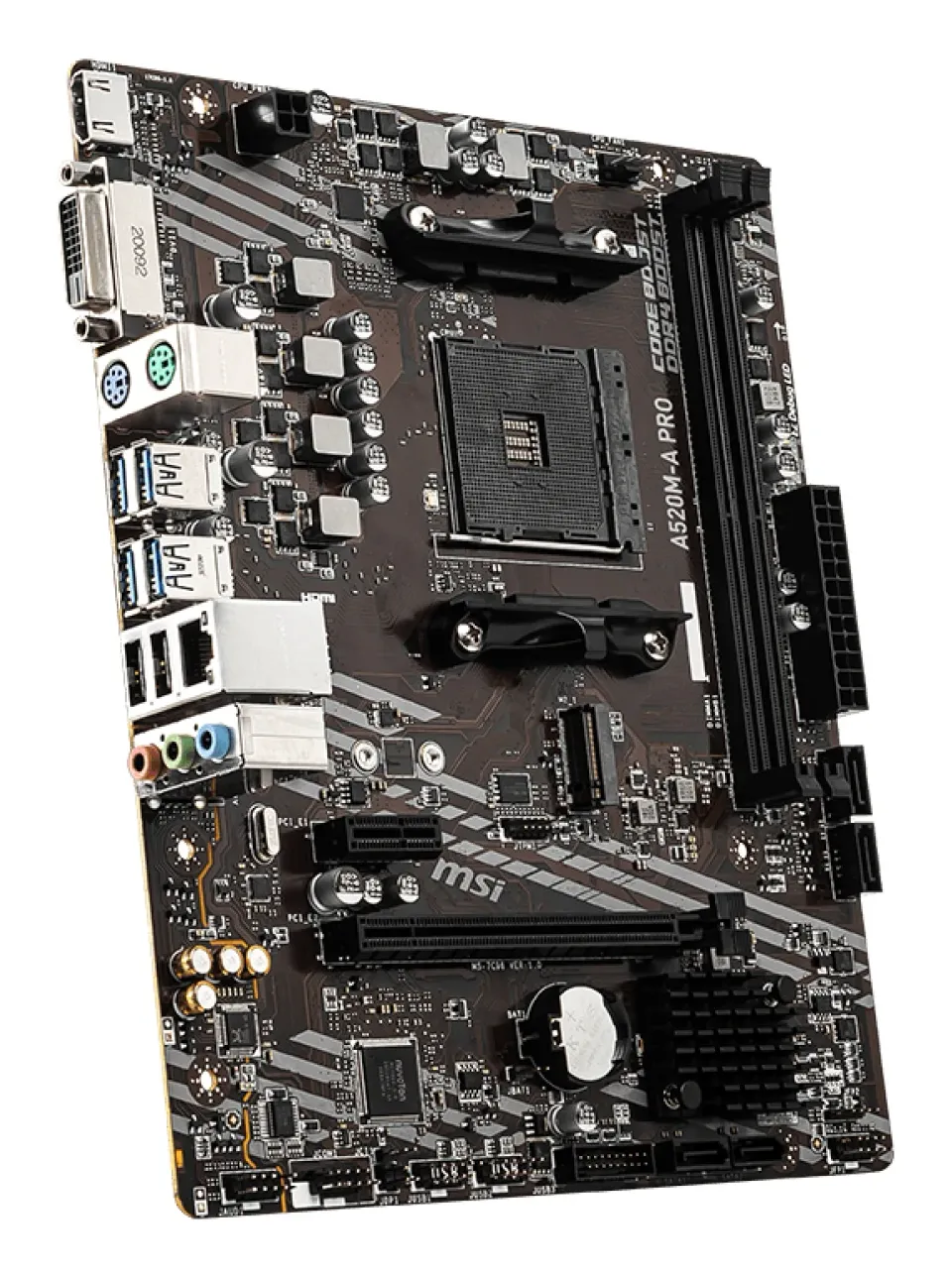

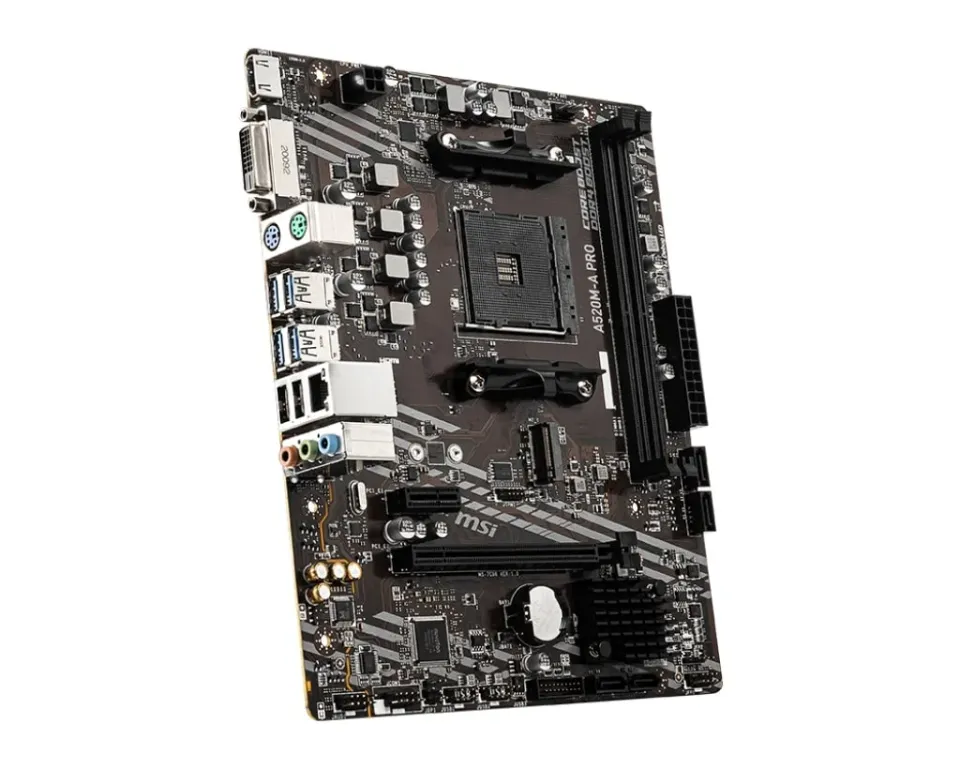

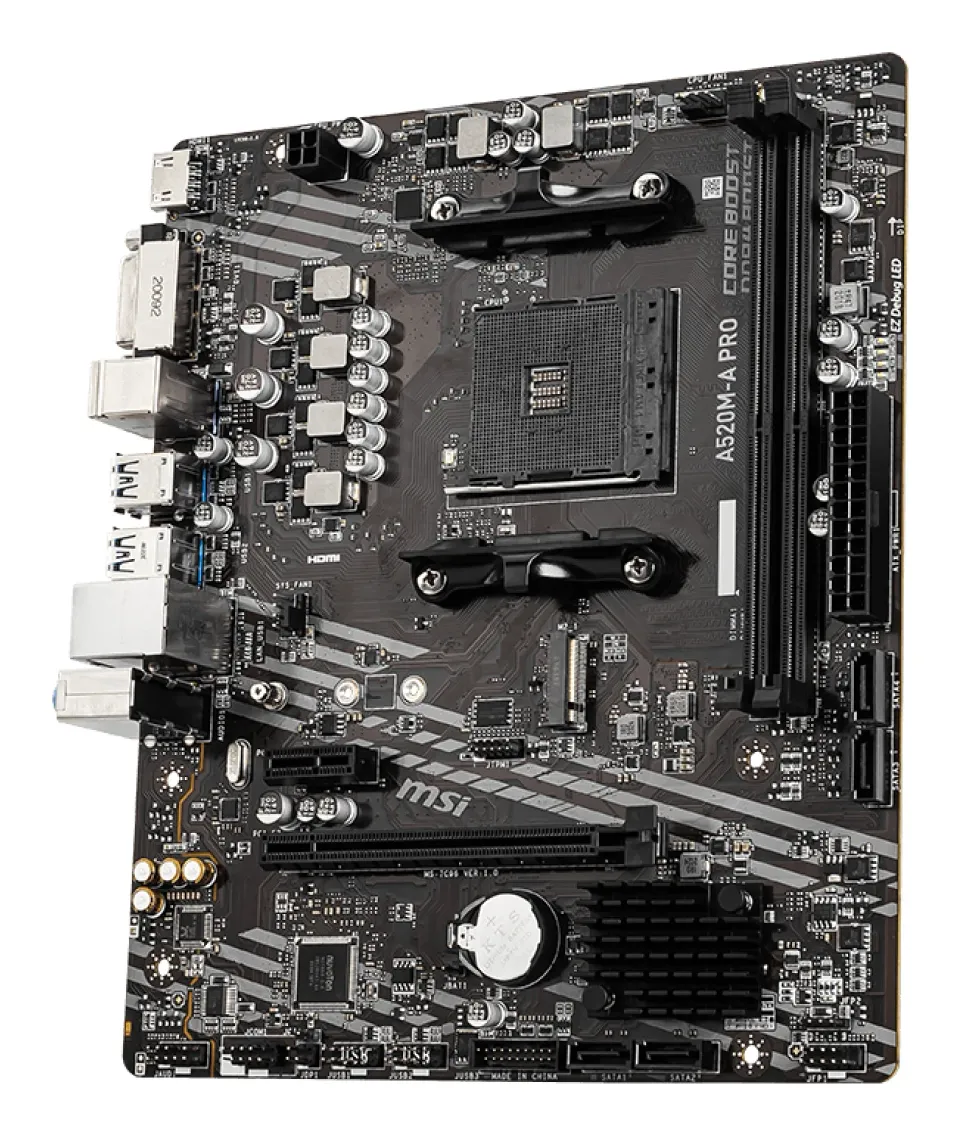

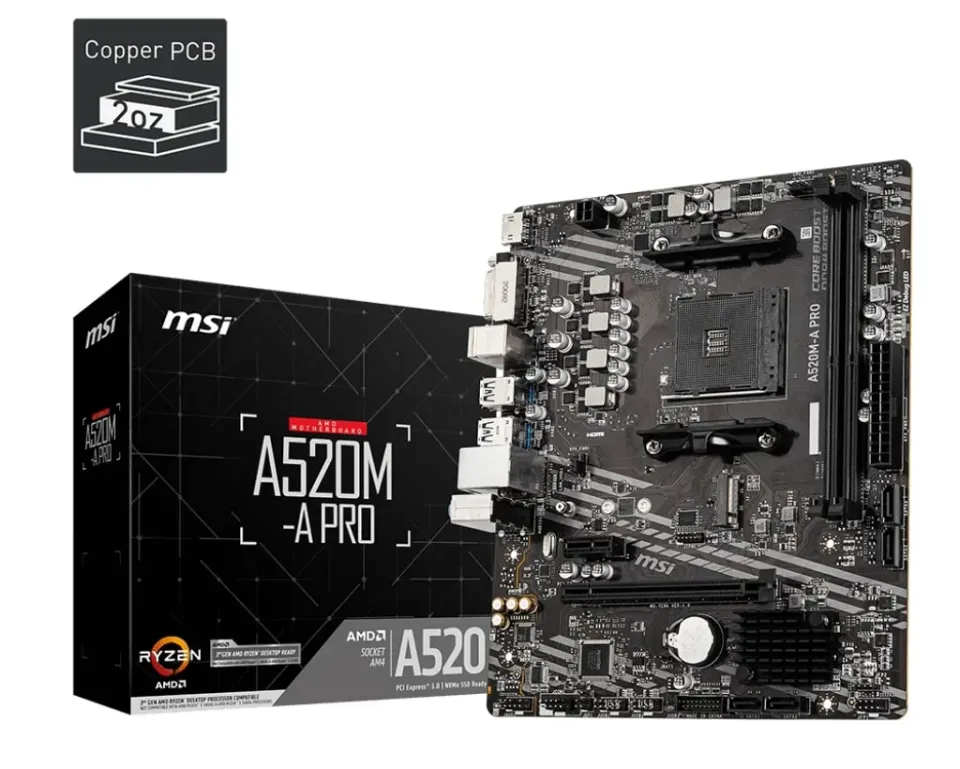

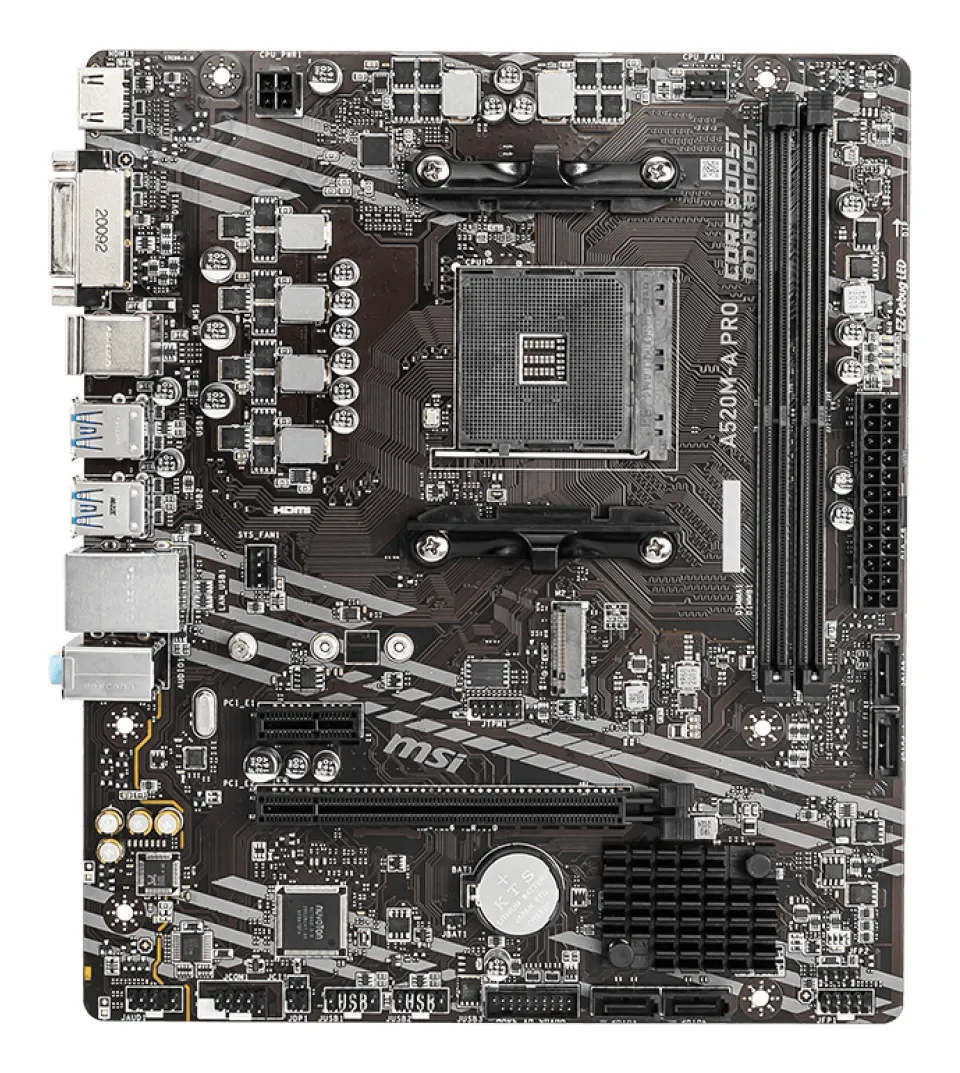

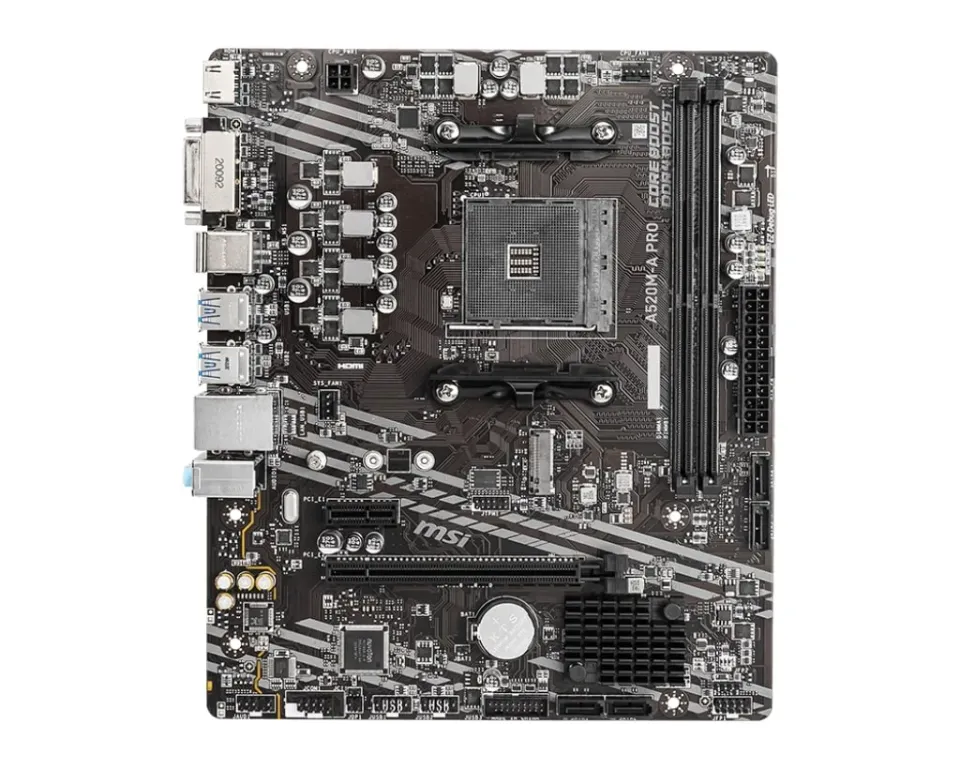

MSI A520M-A PRO, AM4, AMD A520, 2x DDR4, mATX

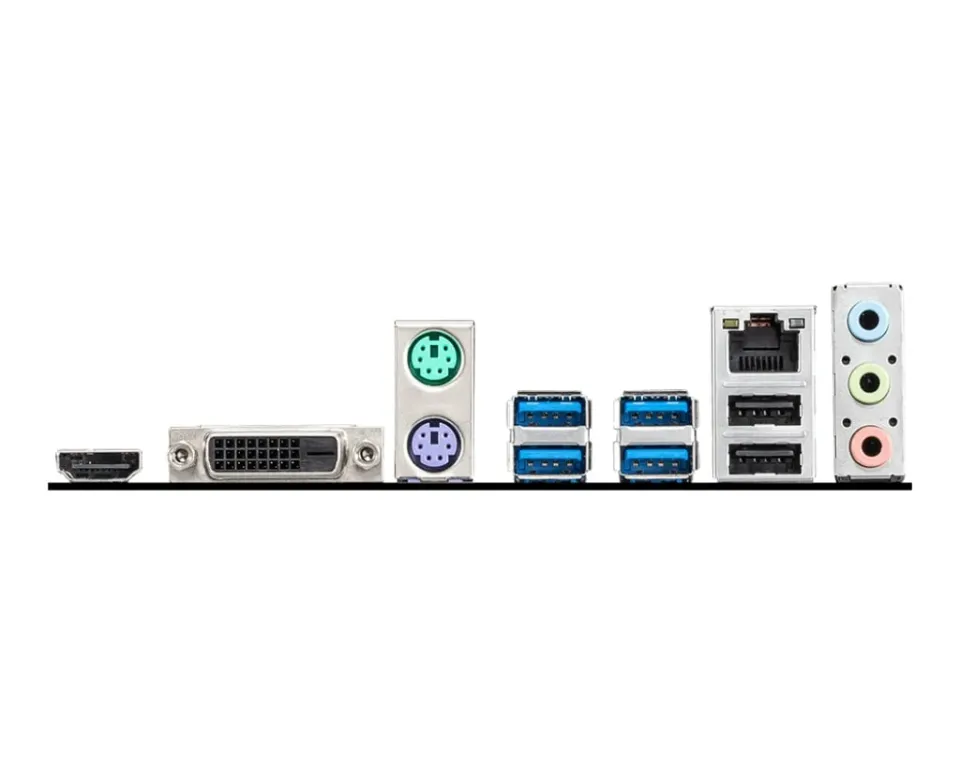

Chipset: AMD A520 Rozměrový formát: Micro-ATX Form Factor (236 mm x 200 mm) Podpora pro procesory: AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors Patice procesoru: AM4 Pozice na paměti: 2x DDR4 DIMM Podpora pro paměti: •1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC •2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE Max.velikost operační paměti: 64 GB Podpora pro paměti typu: DDR4 •Dual channel memory architecture •Supports non-ECC UDIMM memory •Supports ECC UDIMM memory (non-ECC mode) •Supports un-buffered memory Grafická karta: •Integrated Graphics Processor (na základě procesoru) Zvuková karta: •Realtek® ALC892/ALC897 Codec Síťová karta: •1x Realtek® RTL8111H Gigabit LAN controller Rozšiřující sloty: •1x PCIe 3.0 x1 slot •1x PCIe x16 slot RAID řadič: 0, 1, 10 SATA: •4x SATA 6Gb/s M.2: •1x M.2 slots USB: •zadní USB porty ( celkem 6 ) •2x USB 2.0 ports •4x USB 3.2 Gen 1 5Gbps Type-A ports •přední USB porty ( celkem 6 ) •2x USB 3.2 Gen 1 5Gbps ports •4x USB 2.0 ports Interní porty: •1x 24-pin ATX main power connector •1x 4-pin ATX 12V power connector •4x SATA 6Gb/s connectors •1x M.2 slots (M-Key) •1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) •2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) •1x 4-pin CPU fan connector •1x 4-pin system fan connectors •1x Front panel audio connector •2x System panel connectors •1x Chassis Intrusion connector •1x TPM module connector •1x Clear CMOS jumper Externí porty: •LAN port •HDMI •DVI-D •Keyboard / Mouse •4x USB 3.2 Gen 1 5Gbps Type-A •2x USB 2.0 Ports •Audio Connectors Socket/patice: AM4 Typ paměti: DDR4 Výrobce: MSI
