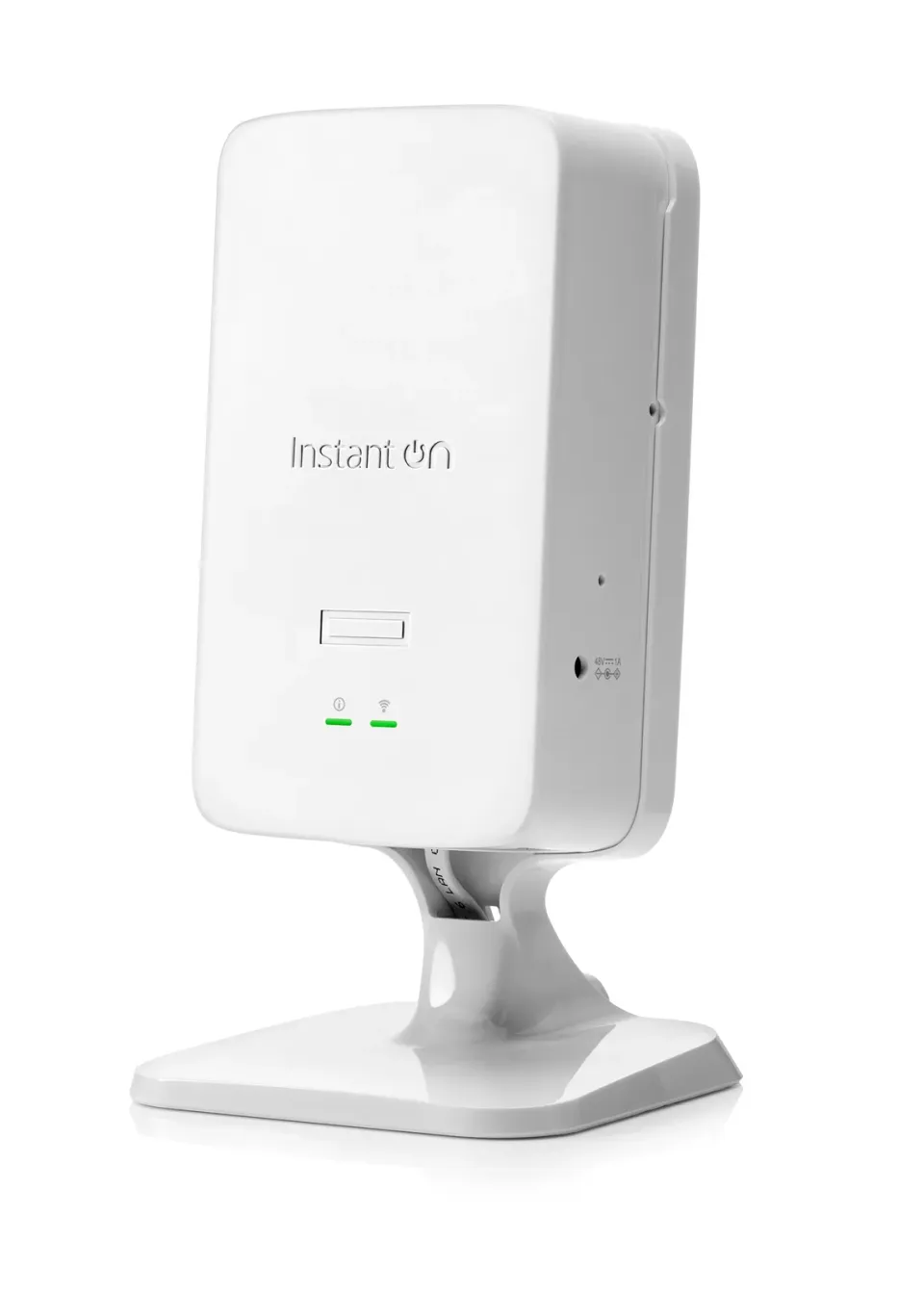

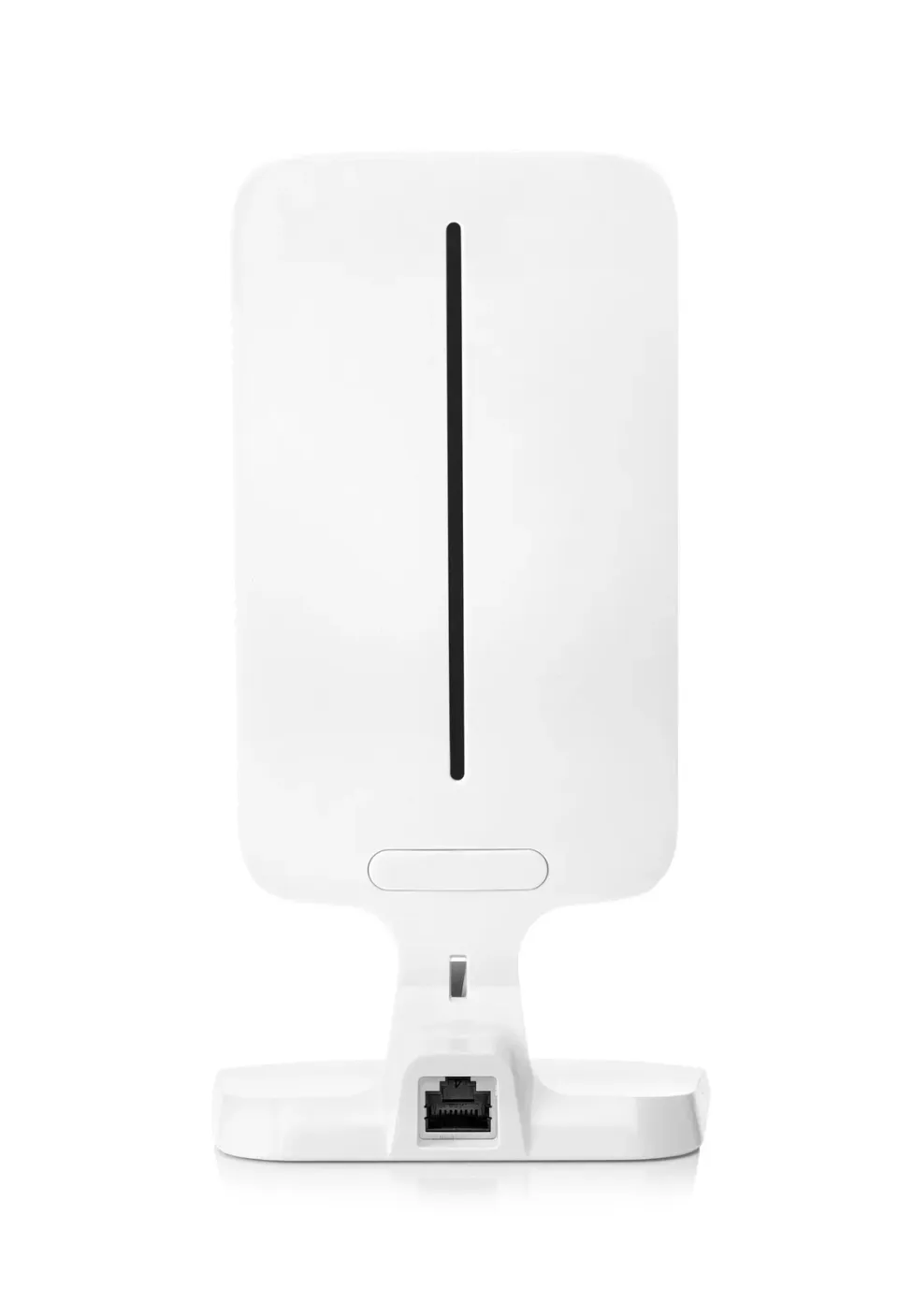

HPE Networking Instant On Access Point AP22D Dual Radio 2x2 Wi-Fi 6

HPE Networking Instant On Access Point AP22D Dual Radio 2x2 Wi-Fi 6 (RW) S1U76A
HPE Networking Instant On AP22D Specifications
Technical Specifications
Product Information

• Product Name: HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP22D
• Product Number: S1U76A
• Differentiator: For use in countries/regions where no specific regulatory domain is required.
  In the Box
• HPE Networking Instant On Access Point
• Quick Start Guide
• Combined ceiling and wall rail mount clip
• Ethernet cable
• Desktop mount
• Add PoE or DC power source (sold separately unless bundle SKU is purchased)
  Certifications
• Wi-Fi Alliance certified (WFA)
• 802.11ax (Wi-Fi 6)
• WPA2, WPA3
  Power and Input Voltage
• PoE Input: 802.3bt (Class 6) full functionality or 802.3at (Class 4) limited functionality
• DC Power: 48V
• PoE In: 802.3at / 802.3bt
• PoE Out: 2x 15W PoE (802.3af)
  Wi-Fi Antenna
• Type: Dual semi-directional 2x2 MIMO
• Antenna Gain: 5.2 dBi (2.4GHz), 5.4 dBi (5GHz)
• Max Transmit Power:
• 5GHz: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)
• 2.4GHz: +20 dBm (+17 dBm per chain, 3 dB MIMO gain)
  Connectivity Standards
  Ultra-fast 802.11ax
  Ports
• 1x 2.5 GbE Base-T PoE (Class 4/6 uplink)
• 2x 1 GbE Base-T PoE (Class 3 downlink)
• 2x 1 GbE Base-T downlink
• DC power connector
• LED status indicators
• Reset/LED control button
• Kensington security slot
  Mounting Options
• Gang wall box-mount kit
• Desk-mount kit
  Power Consumption
• 51W (PoE)
• 50W (DC)
  Radio Coverage
  Dual-radio 802.11ax 2x2 5GHz / 2.4GHz MIMO
  Warranty
  Instant On 2-year warranty includes:
• 24x7 phone support for the first 90 days
• Chat support for the entire warranty period
• Community support for the life of the product

Typ aktivního prvku: AP (Access Point)
Frekvenční pásmo (GHz): 2,4 + 5 (Dual Band)
Podporované standardy: 802.11ax
Zabezpečení: WPA2, WPA3
Typ antény: Integrovaná
USB port
Slot na SIM kartu
Použití: Vnitřní
Typy PoE: PoE - In + PoE - Out
Počet portů LAN: 0
Počet portů LAN: 0
Počet WAN portů: 1
Počet WAN portů: 1
