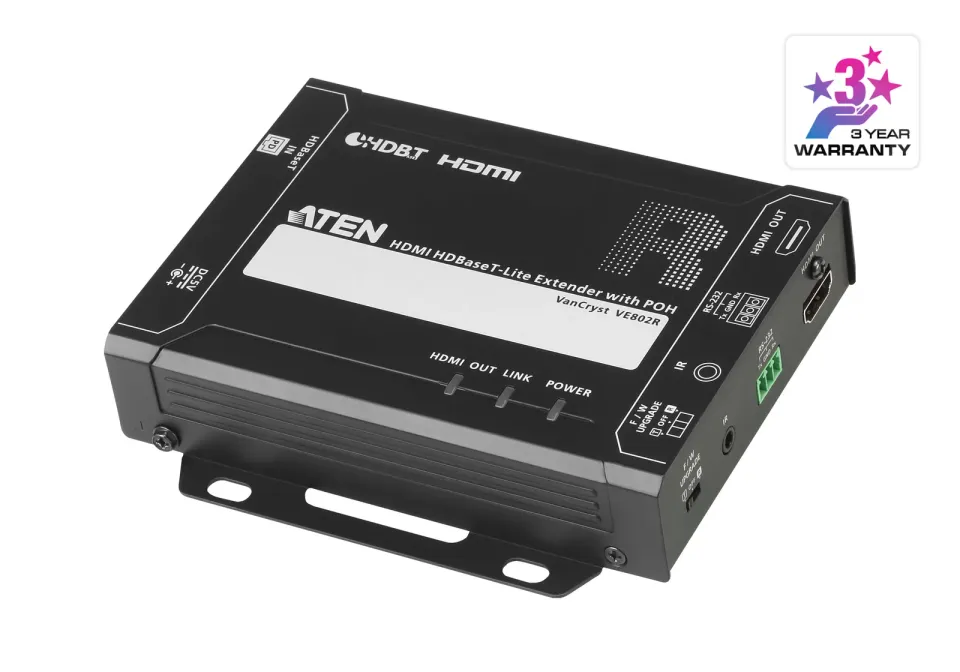

HDMI HDBaseT-Lite Receiver with POH (4K@40m) (HDBaseT Class B) (VE802T-AT-G)

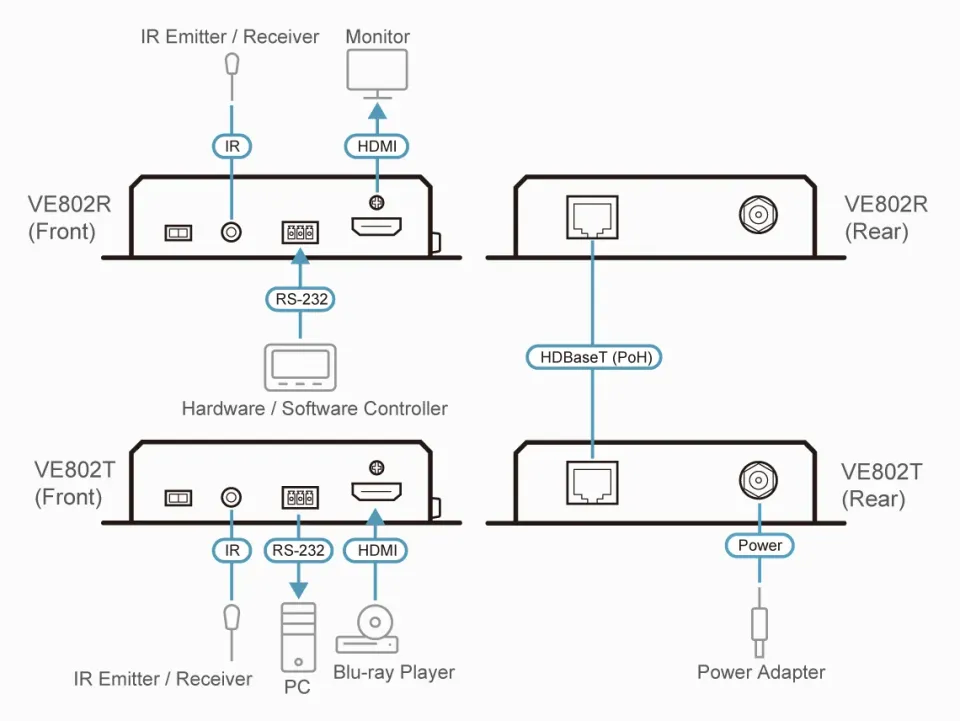

The VE802R HDMI HDBaseT-Lite Receiver connects with HDBaseT transmitters* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802R is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802R is perfect for a digital entertainment center or any installation that requires superior video quality.

• Compatible HDBaseT Transmitter Units: VE802T

Features
¦ HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
¦ HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
¦ POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
¦ Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
¦ Bi-directional IR channel – IR transmission is processed one direction at a time
¦ Rack- Mountable

Package Contents
1x VE802R HDMI HDBaseT-Lite Receiver with POH
1x 0AD6-1F05-26EG Power Adapter
1x 2XRT-0003G IR Receiver
1x JCTN-3401-103G Terminal Block
1x User Instructions
