GIGABYTE MB Sc LGA1700 H610M D3W, Intel H610, 2xDDR5, 1xDP, 1xHDMI, mATX

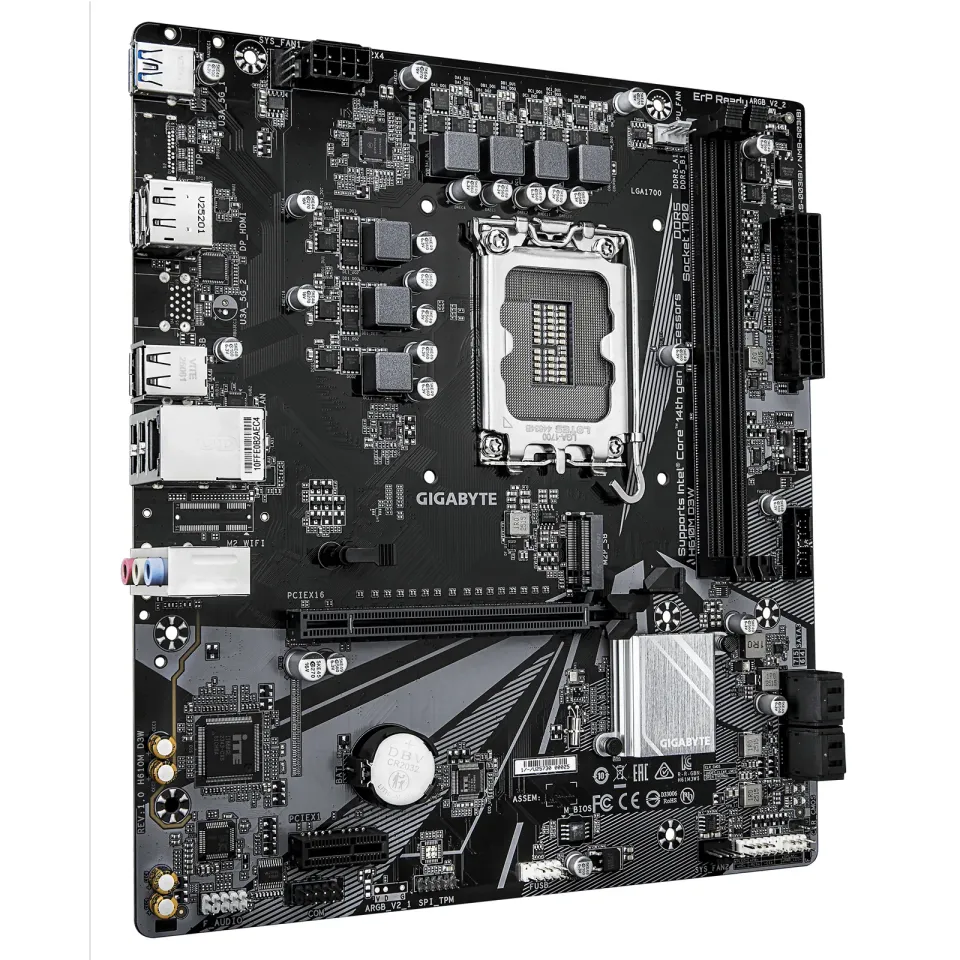

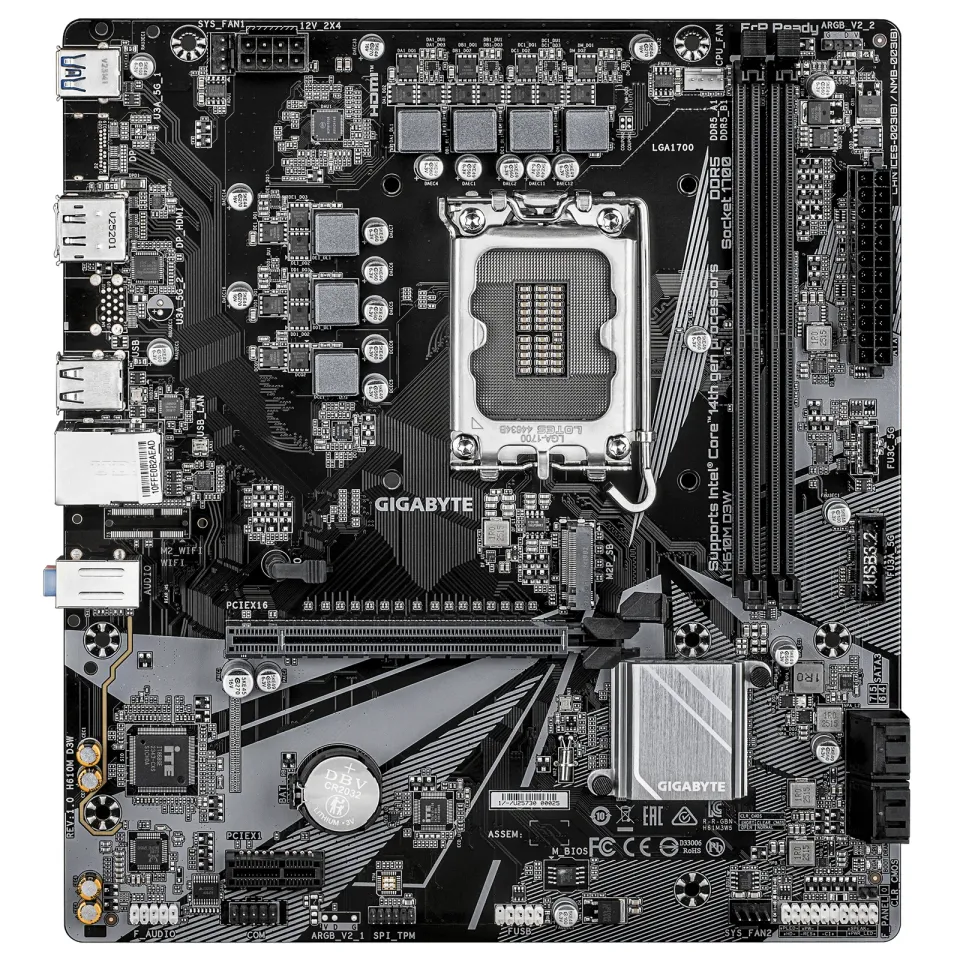

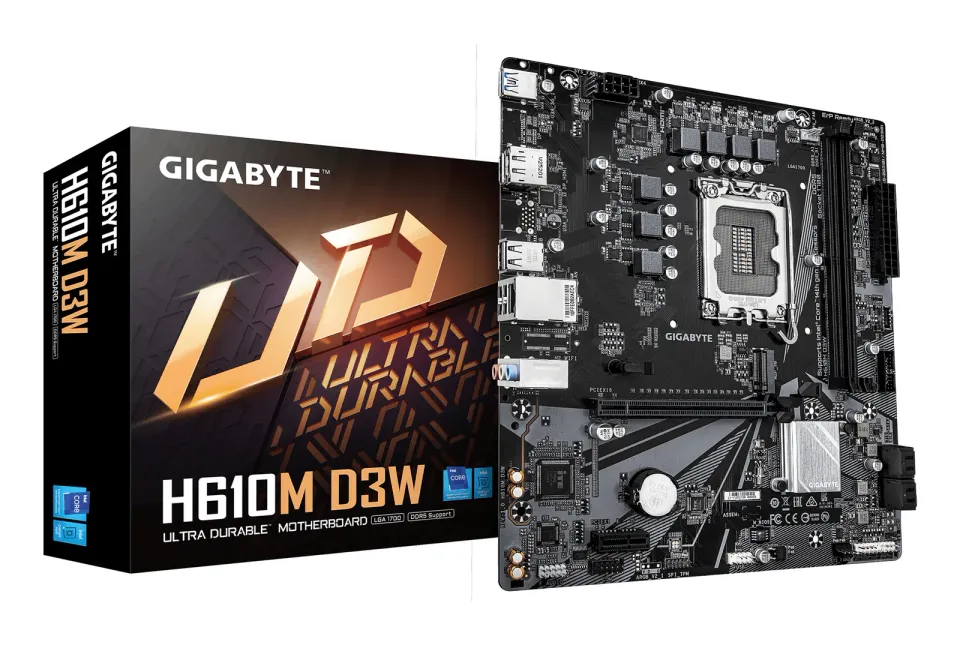

GIGABYTE H610M D3W

• Supports Intel Core™ 14th/ 13th/ 12th processors
• Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
• 5+1+1 Hybrid Digital VRM Design
• Fast Network: GbE LAN
• NVMe PCIe 3.0 x4 M.2
• DisplayPort / HDMI for Multiple Display
• High Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use
• Anti-Sulfur Resistors Design
  CPU
  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™, Pentium Gold and Celeron Processors
  (Go to GIGABYTE's website for the latest CPU support list.)
  L3 cache varies with CPU
  Chipset
  Intel H610 Express Chipset
  Memory
  14th and 13th Generation Intel Core™ i9/i7 Processors:
• Support for DDR5 5600/5200/4800/4400 MT/s memory modules
  13th Generation Intel Core™ i5/i3 and 12th Generation Intel Core™, PentiumGold and Celeron Processors:
• Support for DDR5 4800/4400 MT/s memory modules
  2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  Onboard Graphics
  Integrated Graphics Processor-Intel HD Graphics support:
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

• Support for DisplayPort 1.2 version and HDCP 2.3

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.
  (Graphics specifications may vary depending on CPU support.)
  Audio
  Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
• You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  LAN
  Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
  Expansion Slots
  CPU:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  Storage Interface
  Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
  USB
  Chipset:
• 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
• 3 x USB 3.2 Gen 1 ports (1 ports on the back panel, 2 ports available through the internal USB header)
• 2 x USB 2.0/1.1 ports available through the internal USB header
  Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports on the back panel
  Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  2 x addressable RGB Gen2 LED strip headers
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C header, with USB 3.2 Gen 1 support
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x Clear CMOS jumper

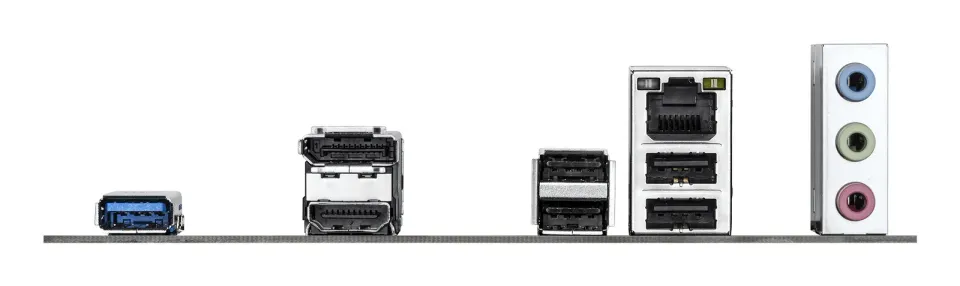

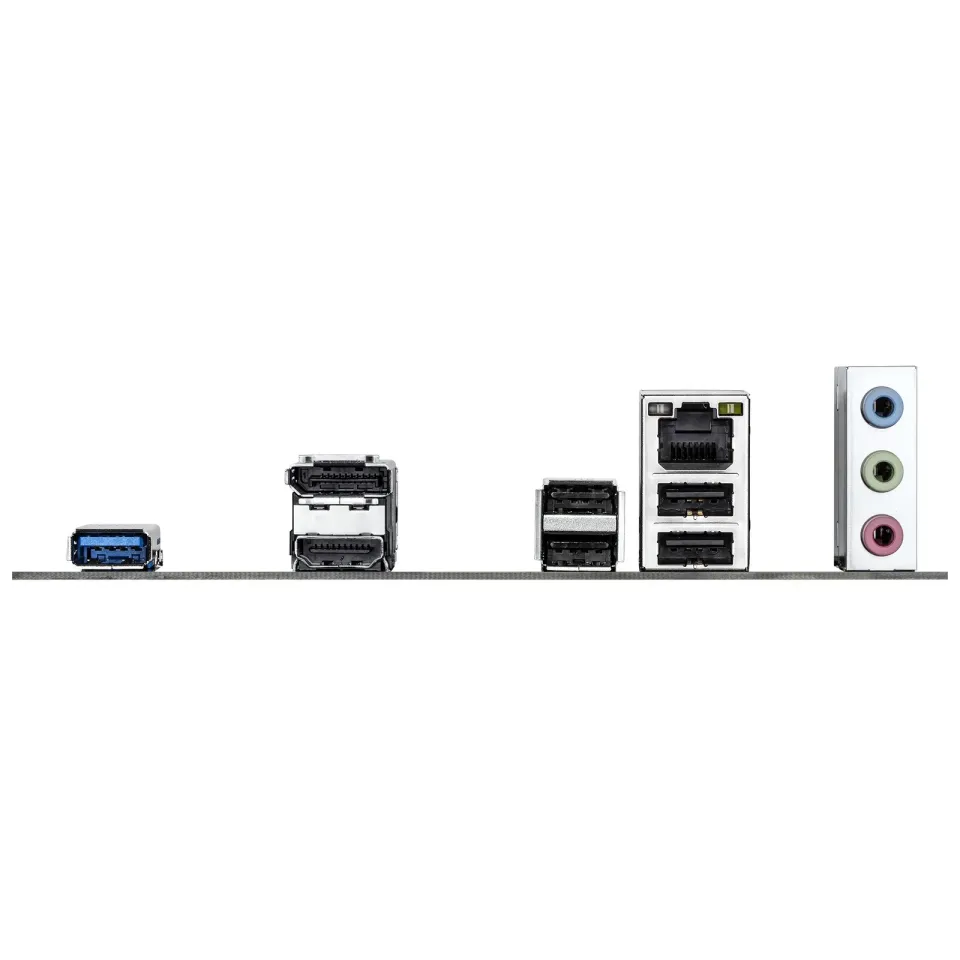

  Back Panel Connectors
  1 x DisplayPort*
  1 x HDMI port*
  1 x USB 3.2 Gen 1 port
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks

• Actual support may vary by CPU.
  I/O Controller
  iTE I/O Controller Chip
  H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control
• Whether the fan speed control function is supported will depend on the fan you install.
  BIOS
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  Unique Features
  Support for GIGABYTE Control Center (GCC)
• Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  Support for Q-Flash
  Support for Smart Backup
  Bundled Software
  Norton Internet Security (OEM version)
  Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
  Form Factor
  Micro ATX Form Factor; 24.4cm x 22.0cm

Formát základní desky: micro ATX
Chipset: Intel H610
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 1
SATA 3: 4
Podpora RAID: Bez RAID podpory
PCI Express x16: 1
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: bez
DisplayPort: 1
HDMI: 1
VGA: 0
DVI: 0
USB 2: 6
USB 3: 3
USB C: 1
