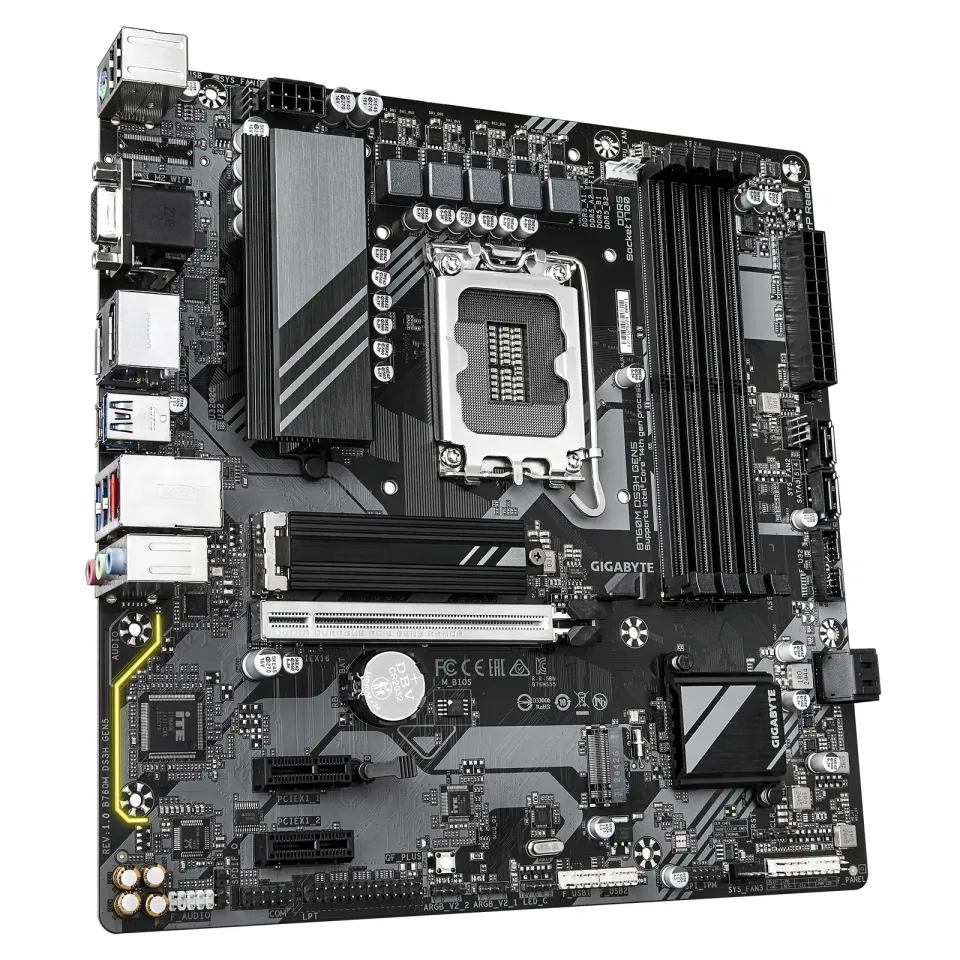

GIGABYTE MB Sc LGA1700 B760M DS3H GEN5, Intel B760, 4xDDR5, 2xDP, 1xHDMI, 1xVGA, mATX

GIGABYTE B760M DS3H GEN5

• PCIe Gen5 Performance : Perfect Sync to Win
• Supports Intel Core™ 14th/ 13th /12th processors
• EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
• PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
• Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
• Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
• Fast Networks : 2.5 GbE LAN
• Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
• Extended Connectivity : Rear USB-C 10Gb/s, DP, HDMI, D-Sub
• Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
  CPU
  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™, Pentium Gold and Celeron Processors
  (Go to GIGABYTE's website for the latest CPU support list.)
  L3 cache varies with CPU
  Chipset
  Intel B760 Express Chipset
  Memory
  14th and 13th Generation Intel Core™ i9/i7 Processors:
• Support for DDR5 5600/5200/4800/4400 MT/s memory modules
  13th Generation Intel Core™ i5/i3 and 12th Generation Intel Core™, PentiumGold and Celeron Processors:
• Support for DDR5 4800/4400 MT/s memory modules
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  Onboard Graphics
  Integrated Graphics Processor-Intel HD Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

• Support for DisplayPort 1.2 version and HDCP 2.3

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

• Support for DisplayPort 1.2 version.
  (Graphics specifications may vary depending on CPU support.)
  Support for up to quad-display at the same time
  Audio
  Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
• You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  Support for S/PDIF Out
  LAN
  Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  Expansion Slots
  CPU:

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

• The PCIEX16 slot can only support a graphics card or an NVMe SSD.
  Chipset:

• 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
  Storage Interface
  CPU:
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  USB
  Chipset:
• 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
• 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• 2 x USB 2.0/1.1 ports on the back panel
  Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports available through the internal USB headers
  Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  3 x system fan headers
  2 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x parallel port header
  1 x S/PDIF Out header
  1 x Q-Flash Plus button
  1 x reset jumper
  1 x Clear CMOS jumper

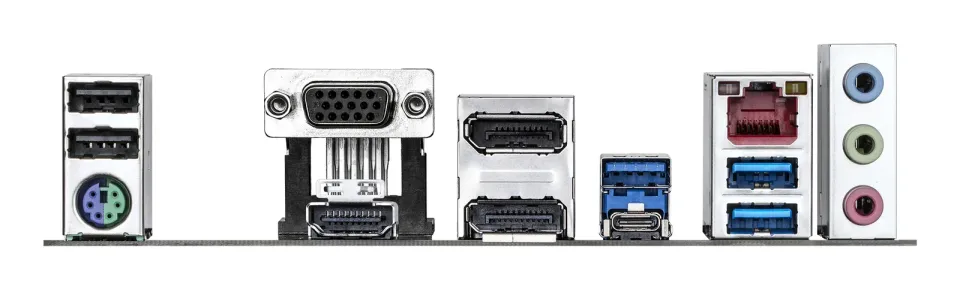

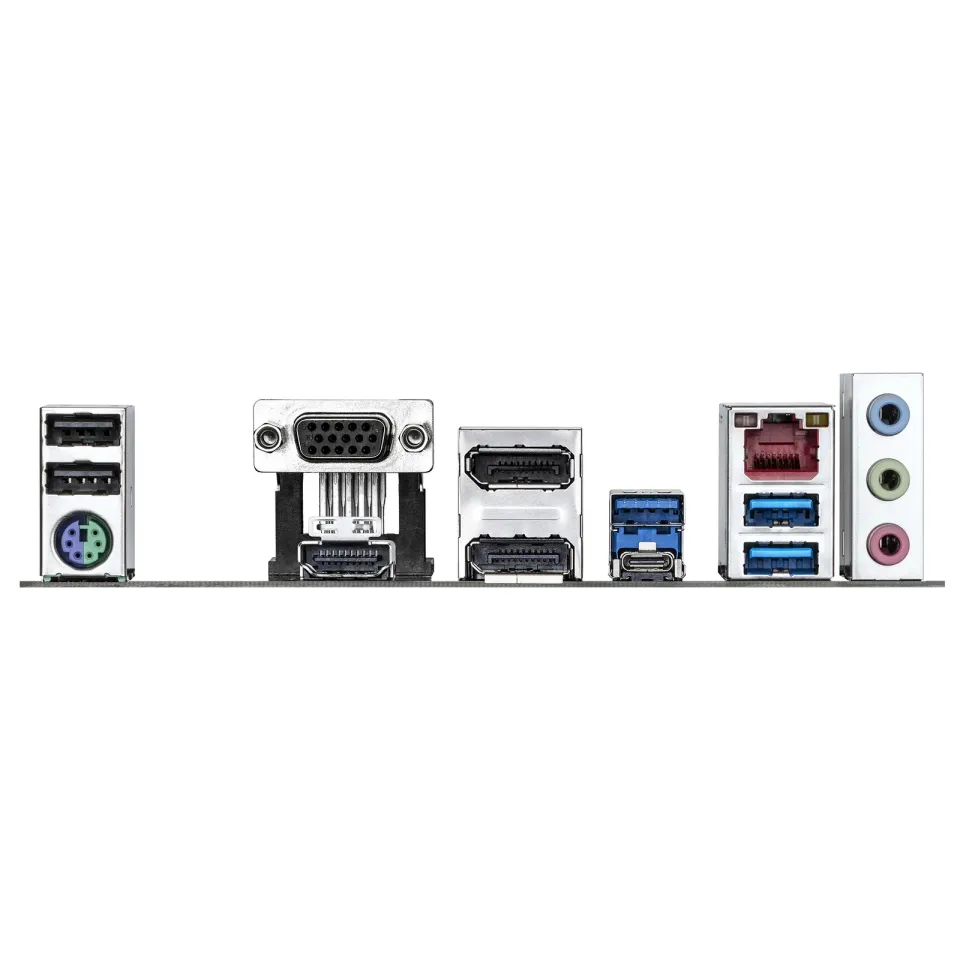

  Back Panel I/O Connectors
  2 x USB 2.0/1.1 ports
  1 x PS/2 keyboard/mouse port
  1 x D-Sub port (Note)
  1 x HDMI port (Note)
  2 x DisplayPorts (Note)
  3 x USB 3.2 Gen 1 ports
  1 x USB Type-C port, with USB 3.2 Gen 2 support
  1 x RJ-45 port
  3 x audio jacks
  (Note) Actual support may vary by CPU.
  I/O Controller
  iTE I/O Controller Chip
  H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control

• Whether the fan speed control function is supported will depend on the fan you install.
  BIOS
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  Unique Features
  Support for GIGABYTE Control Center (GCC)
• Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup
  Bundled Software
  Norton Internet Security (OEM version)
  Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
  Form Factor
  Micro ATX Form Factor; 24.4cm x 24.4cm

Formát základní desky: micro ATX
Chipset: Intel B760, Intel
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 2
SATA 3: 4
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 1
PCI Express x1: 2
PCI: 0
LAN: 2.5Gbit/s
Bezdrátové připojení: bez
DisplayPort: 2
HDMI: 1
VGA: 1
DVI: 0
USB 2: 6
USB 3: 5
