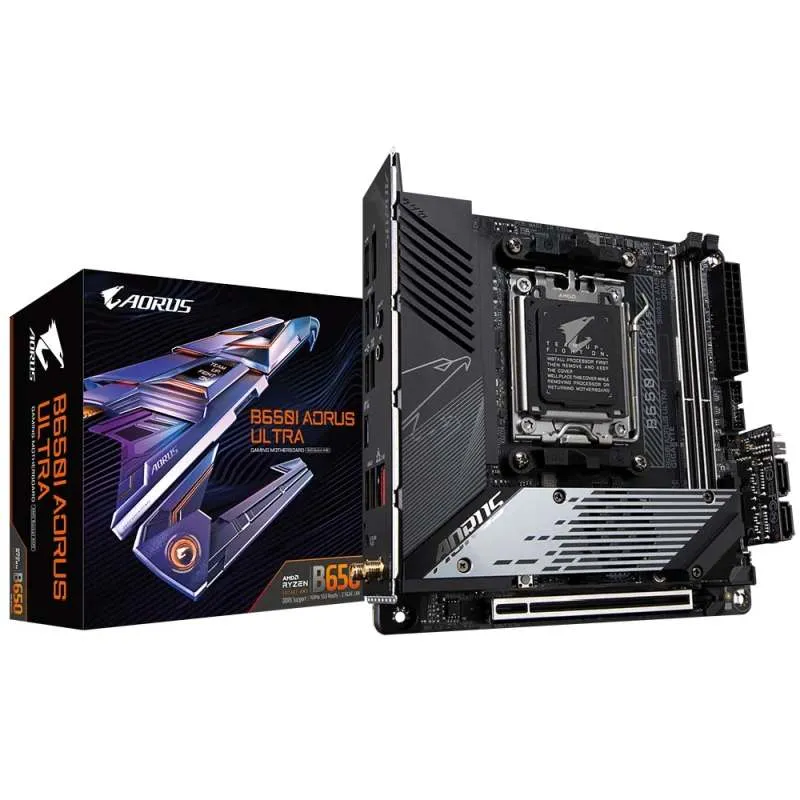

Gigabyte B650I AORUS ULTRA

Procesor
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
(Please refer "CPU Support List" for more information.)
Čipset
AMD B650
Paměť
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Integrovaná grafika
Integrated Graphics Processor:
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

• Support for DisplayPort 1.4 version and HDR.
  1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
• Support for DisplayPort 1.4 version and HDR.
  1 x HDMI port, supporting a maximum resolution of 7680x4320@60 Hz
• Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.
  (Graphics specifications may vary depending on CPU support.)
  Zvuk
  Realtek® ALC4080 CODEC
  High Definition Audio
  2-channel
  LAN
  Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  Bezdrátový komunikační modul
  AMD Wi-Fi 6E RZ616 (MT7922A22M)
  WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  BLUETOOTH 5.2
  Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  (Actual data rate may vary depending on environment and equipment.)
  Rozšiřující sloty
  CPU:
  1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  Rozhraní pro ukládání dat
  CPU:
  1 x M.2 connector on the front of GC-B650I BTB PLUG (Socket 3, M key, type 2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU)
• Actual support may vary by CPU.
  1 x M.2 connector on the back of GC-B650I BTB PLUG (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
  4 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARD
  RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  USB
  CPU:
  1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  CPU + USB 2.0 Hub:
  4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUG
  Chipset:
  1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2 x USB 2.0/1.1 ports on the back panel
  Interní konektory
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  1 x system fan header (SYS_FAN1(Note 1))
  1 x addressable LED strip header(Note 2)
  1 x RGB LED strip header(Note 1)
  3 x M.2 Socket 3 connectors (M2B_CPU(Note 2)/M2A_CPU(Note 3)/M2C_SB(Note 4))
  4 x SATA 6Gb/s connectors(Note 1)
  1 x front panel header(Note 1)
  1 x front panel audio header (routed from the adapter card on the rear panel)
  1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header(Note 2)
  1 x reset button(Note 2)
  1 x reset jumper
  1 x power switch jumper
  1 x Clear CMOS jumper
  (Note 1) The connector is on the front of GC-B650I FRONT CARD.
  (Note 2) The connector is on the front of GC-B650I BTB PLUG.
  (Note 3) The connector is on the back of GC-B650I BTB PLUG.
  (Note 4) The connector is on the back of the motherboard.
  Konektory na zadním panelu
  1 x DisplayPort
  1 x HDMI port
  1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
  2 x USB 3.2 Gen 2 Type-A ports (red)
  2 x USB 3.2 Gen 1 ports
  2 x USB 2.0/1.1 ports
  1 x RJ-45 port
  2 x SMA antenna connectors (2T2R)
  1 x Q-Flash Plus button
  2 x audio jacks
  I / O řadič
  iTE® I/O Controller Chip
  Monitorování HW
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control
• Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
  BIOS
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  Unikátní vlastnosti
  Support for GIGABYTE Control Center (GCC)
• Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  Support for Q-Flash
  Support for Q-Flash Plus
  Přiložený software
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
  Operační systém
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
  Velikost
  Mini-ITX Form Factor; 17.0cm x 17.0cm

Socket/patice: AM5
Typ paměti: DDR5
Výrobce: Gigabyte
