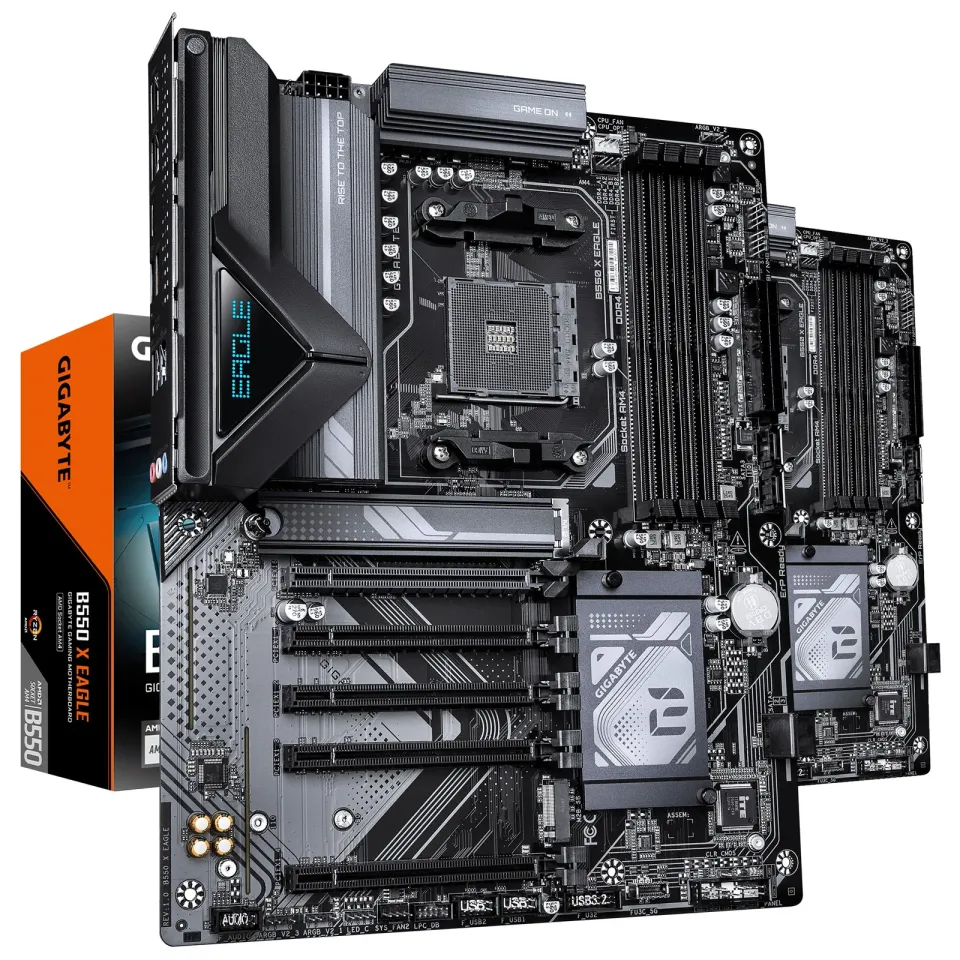

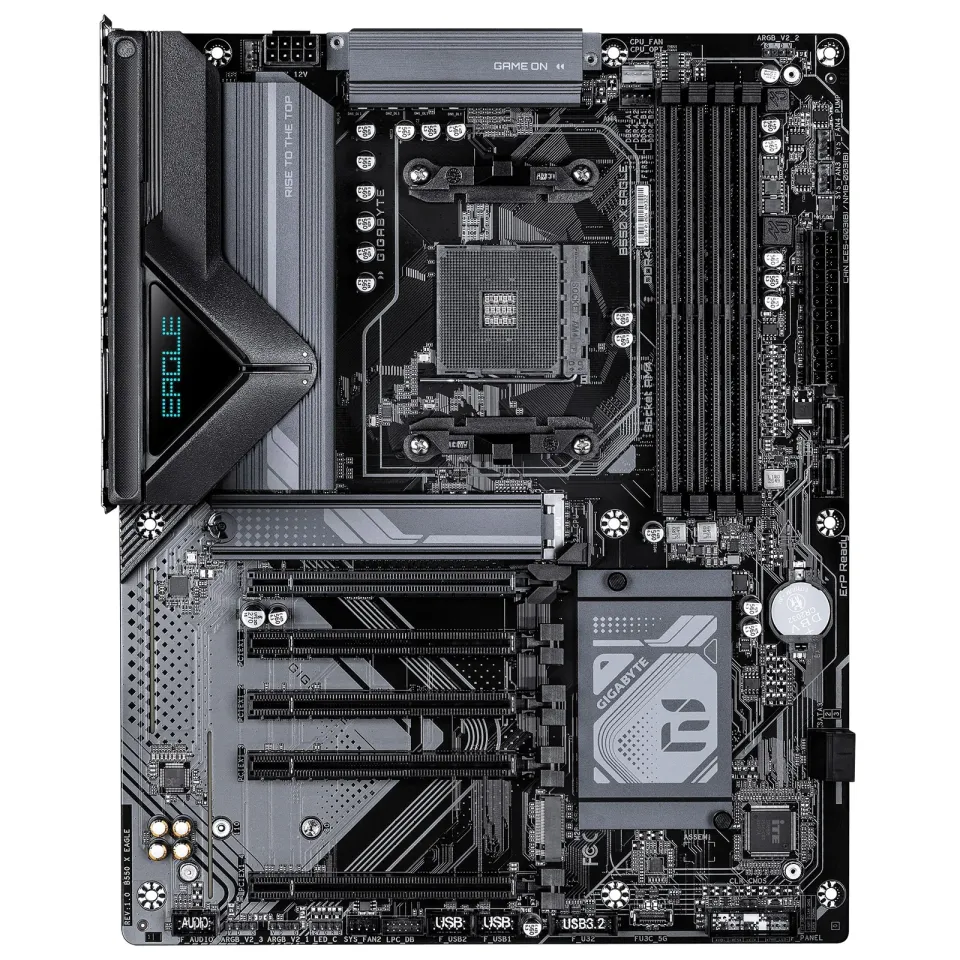

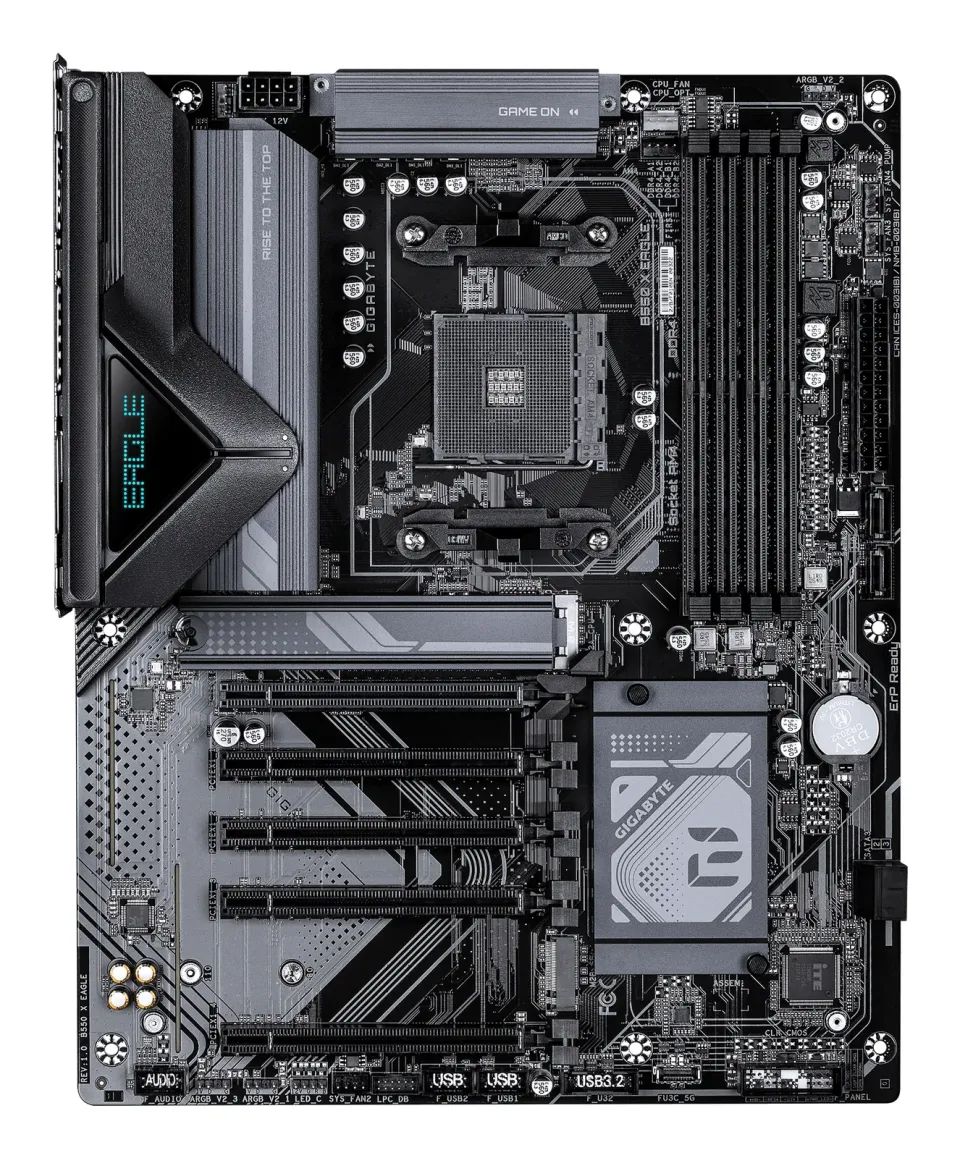

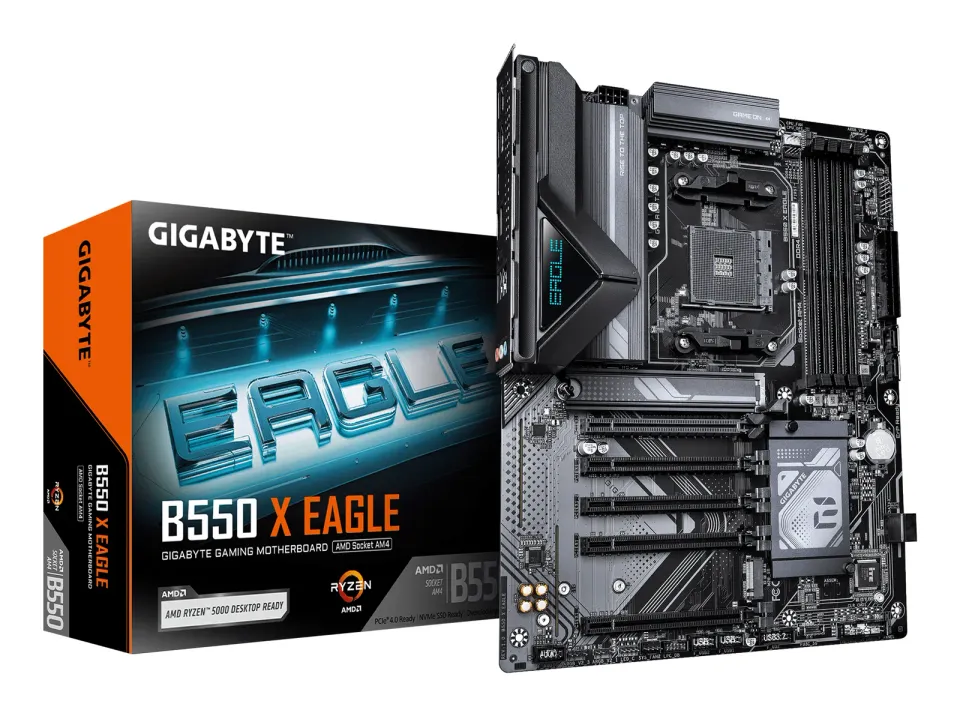

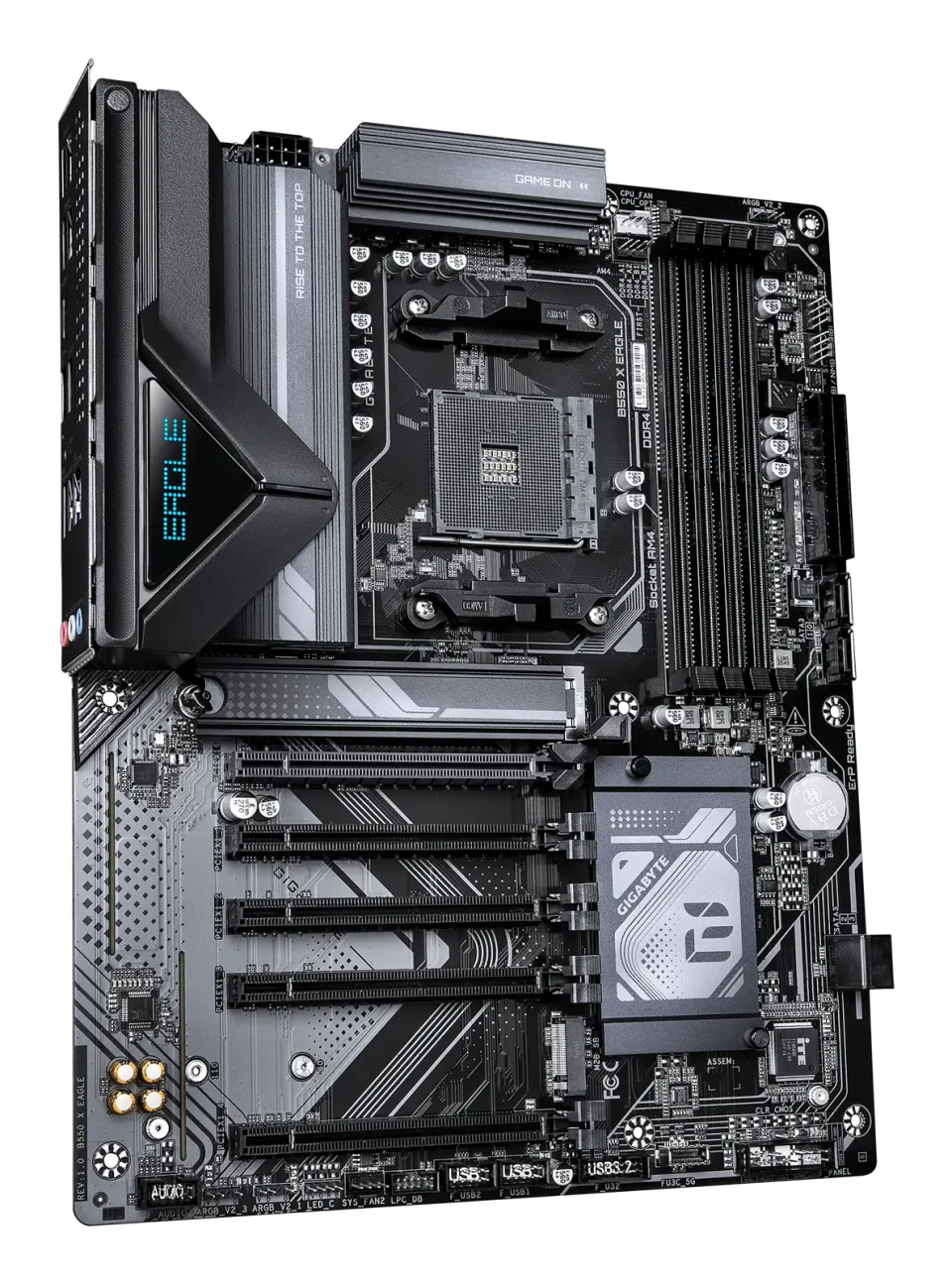

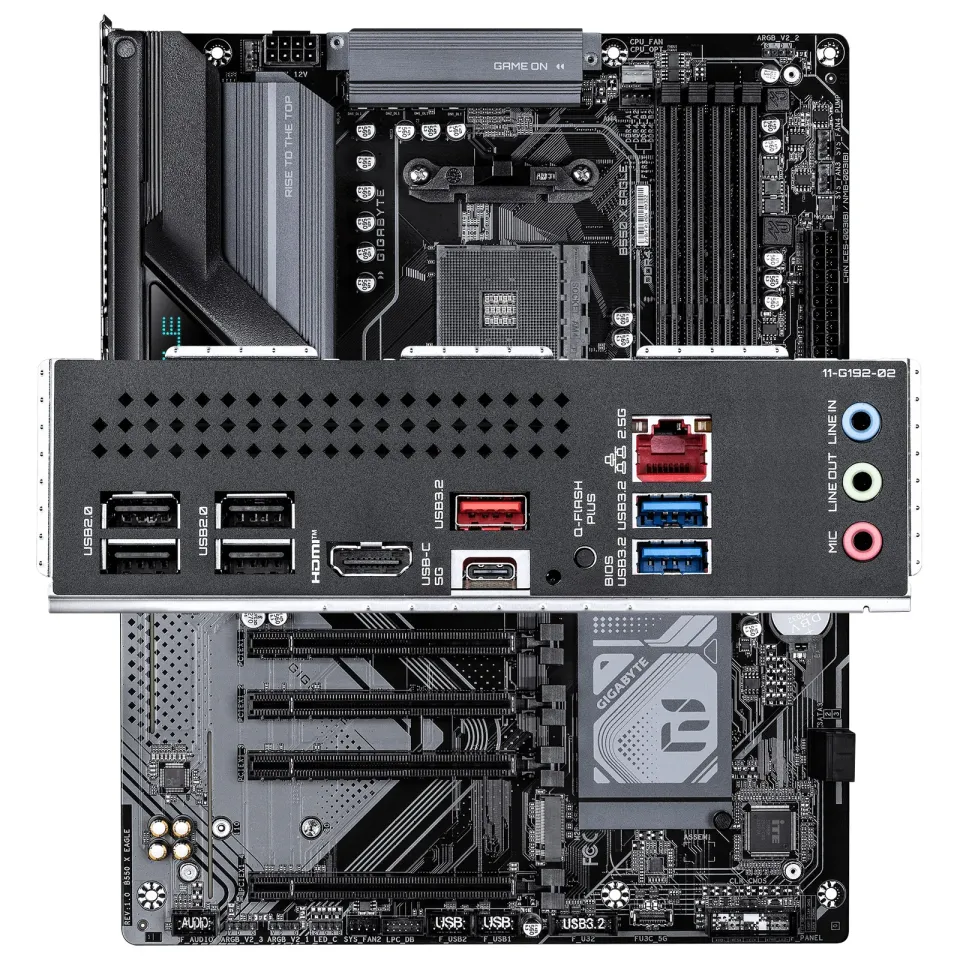

Gigabyte B550 X EAGLE/AM4/ATX

Gigabyte B550 X EAGLE

Chipset: AMD B550
Rozměrový formát: ATX Form Factor; 30.5cm x 24.4cm
Podpora pro procesory:

*AMD Ryzen™ 5000 G-Series Processors
*AMD Ryzen™ 5000 Series Processors
*AMD Ryzen™ 4000 G-Series Processors
*AMD Ryzen™ 3000 G-Series Processors
*AMD Ryzen™ 3000 Series Processors

Patice procesoru: AM4

Paměť:

*4x DDR4 DIMM sloty podporující až 128GB (32GB každý slot) paměti
*Podpora pro DDR 3200/2933/2667/2400/2133 MT/s moduly
*Dual channel memory architecture)
*Podpora pro ECC Un-buffered DIMM 1Rx8/2Rx8 moduly
*Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly
*Podpora pro XMP

Grafické porty:

Integrated Graphics Processor with AMD Radeon™ Graphics support:

*1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Zvuková karta:

*Realtek® Audio CODEC
*High Definition Audio
*2/4/5.1/7.1-channel

Ethernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Rozšiřující sloty:

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

*AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
*AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode

Chipset:

*4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)

RAID řadič: RAID 0, RAID 1, RAID 10

Úložný prostor:

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

*AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
*AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

USB:
CPU:

*AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel
*AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel
*1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
*2 x USB 3.2 Gen 1 ports on the back panel

Chipset:

*1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
*2 x USB 3.2 Gen 1 ports available through the internal USB header
*4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

*4 x USB 2.0/1.1 ports on the back panel

Interní porty:

Napájení

*1× 24-pin ATX main power connector
*1× 8-pin ATX 12V power connector
*1× CPU fan header
*1× CPU fan / water cooling pump header
*3× system fan headers
*1× system fan / water cooling pump header

Související s úložištěm

*2× M.2 Socket 3 connectors
*4× SATA 6Gb/s connectors

USB

*1× USB Type-C header, USB 3.2 Gen 1
*1× USB 3.2 Gen 1 header
*2× USB 2.0/1.1 headers

Ostatní

*3× addressable RGB Gen2 LED strip headers
*1× RGB LED strip header
*1× front panel header
*1× front panel audio header
*1× Clear CMOS jumper

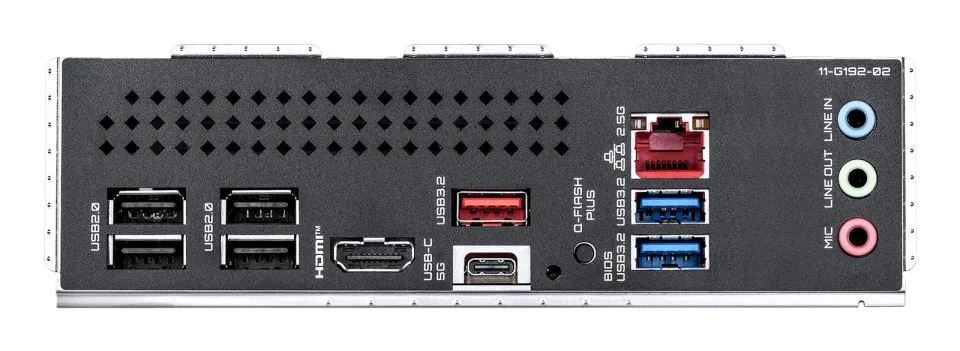

Porty na zadním panelu:

*4 x USB 2.0/1.1 ports
*1 x HDMI port (Note)
*1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red)
*1 x USB Type-C® port, with USB 3.2 Gen 1 support
*1 x Q-Flash Plus button
*1 x RJ-45 port
*2 x USB 3.2 Gen 1 ports
*3 x audio jacks

BIOS:

*1 x 128 Mbit flash
*Use of licensed AMI UEFI BIOS
*PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

H/W Monitorování:

*Voltage detection
*Temperature detection
*Fan speed detection
*Water cooling flow rate detection
*Fan fail warning
*Fan speed control

OS: Podpora pro Windows 11 64-bit a Windows 10 64-bit
