Differential Pressure & Temperature

For environmental monitoring and management, ATEN provides sensor probes that work in tandem with the Power Distribution Units, which enable you to get readings of Differential Pressure & Temperature. Environmental conditions can be monitored with alarms according to customizable minimum/maximum thresholds set for temperature and humidity.

• The Sensor is an optional accessory and you can use the ATEN PDU without environmental sensors. However, if you want to have complete energy management of your data center with the full use of ATEN solutions, a sensor installation is required.

Package Contents

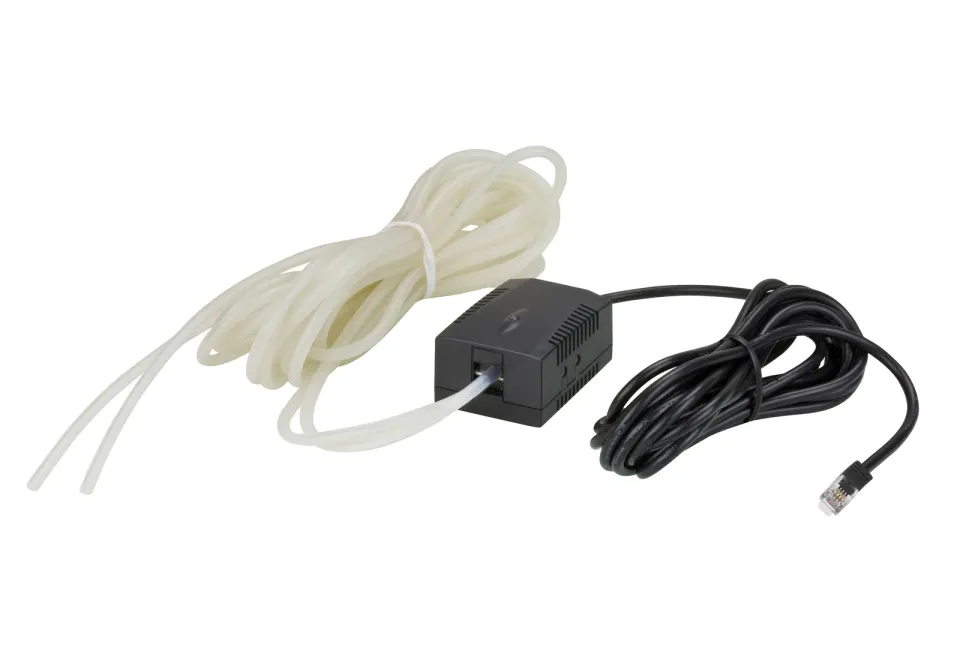

1x Differential Pressure & Temperature Sensor
2x Air Tube

Features:

¦ Measurement range: -19-60°C (Temperature); +-500 Pa (Pressure )
¦ Compact design – built in 3 m cable
¦ High sensitivity
¦ Easy operation

Specification:

Connectors RJ11-4P4C

Measurement

Range Temperature: -19-60°C
Pressure: +-500 Pa
Accuracy Temperature: +-1°C (0-40°C)
Pressure: +-1 % (15-35°C)
T.C: -0.1 Pa/°C

Power

Consumption 5 VDC (Max), 3mA(Typical)

Environmental

Operating Temperature 0-60°C, <95% RH Non-condense
Storage Temperature 0-40°C
Humidity < 90% RH

Physical Properties

Housing Plastic
Weight 0.09 kg
Cable Length 3 m
