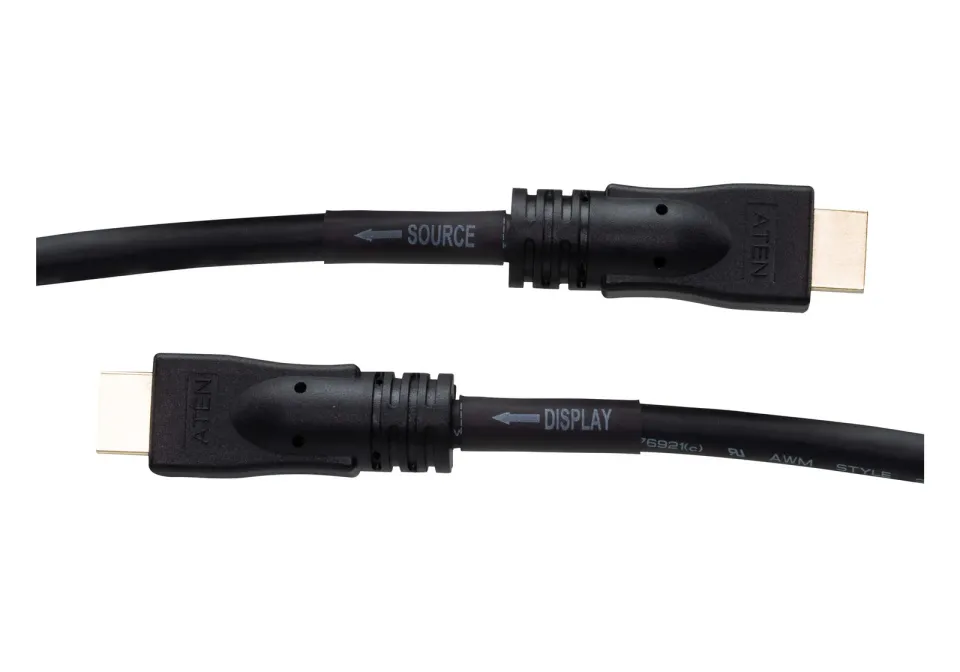

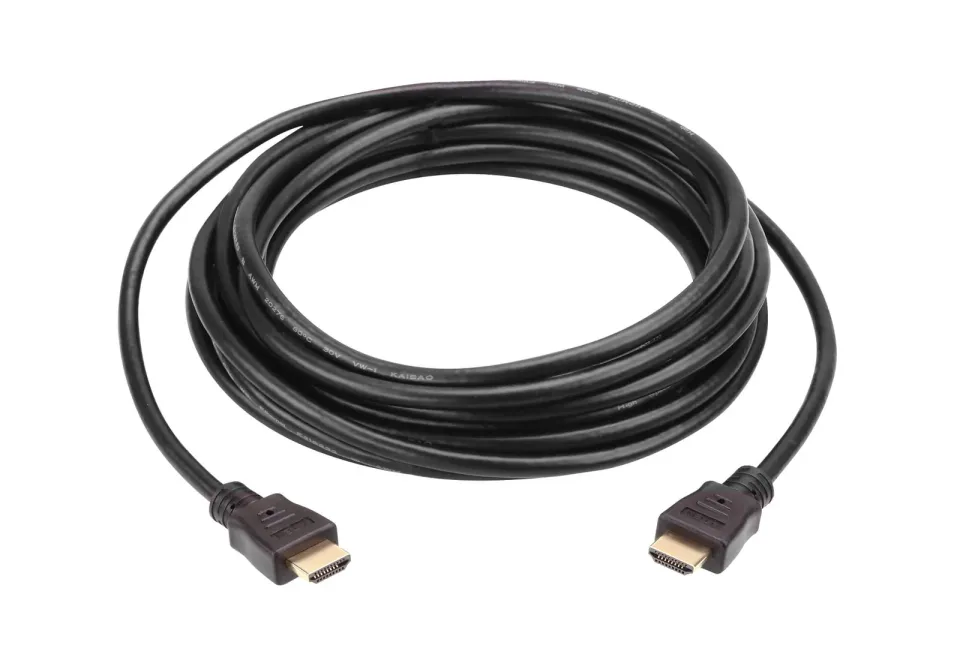

ATEN 20M High Speed HDMI Cable with Ethernet

ATEN High Speed HDMI Cable with Ethernet provides an uncompressed, all-digital interface for both audio and video signals. Our cables infuse high-quality copper wire to resist interference for improved image clarity. We offer HDMI cable at lengths of 1 to 20 meters with resolutions up to 4K (4096 x 2160 @30Hz).

Features:

Superior video quality:
• up to 4K (4096 x 2160 @30Hz)
HDMI Ethernet Channel functionality: additional dedicated data channel supports networking*
HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant
Gold-plated connectors for reliable transmissions
Available in lengths from 1 to 20 m
RoHS compliant
Bend Radius 90°**
Note:

• Feature only available if linked devices are HDMI Ethernet Channel enabled
  ** Swings 100 times between angles of +/- 90 degrees, at a frequency of 13 times per minute

Specification

Video Resolution
Up to 4096X2160 @30Hz

Physical Properties

Cable Length
20m

Cable Color
Black

Cable Outer Dimension
10.0+-0.2mm

Conductor Gauge
26AWG
Conductor Material
Tinned Copper

Connector Plating
Gold

Connector Type
HDMI (19pin) Male to Male

Cable Shield Type
Aluminum Foil

Cable Jacket Type
PVC

Environmental

Operating Temperature
80 st.

Rating
UL VW-1 (Flame rate), CSA

Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Barva: Černá
Délka: 16m - 20m
Konektor 1: HDMI
Konektor 2: HDMI
Opletení: Ne
Provedení konektoru: Rovný
Určení: Propojovací
Výrobce: Aten
