ASUS zdroj TUF Gaming 750W Gold, 750W, 80+ Gold

TUF Gaming 750W Gold
The TUF Gaming 750W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.

• Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• A protective PCB coating protects against moisture, dust, and extreme temperatures.
• An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• Fully modular etched cables keep your rig neat and tidy.
• 10-year warranty included.
  Model
  TUF Gaming 750W Gold
  Intel Form Factor
  ATX12V
  ATX 3.0
  Yes
  Dimensions
  150 x 150 x 86 mm
  Efficiency
  80Plus Gold
  Protection Features
  OPP/OVP/UVP/SCP/OCP/OTP
  Hazardous Materials
  ROHS
  AC Input Range
  100-240Vac
  DC Output Voltage
  +3.3V +5V +12V -12V +5Vsb
  Maximum Load
  25A25A62A 0.8A 3A
  Combined Load
  130W 130W 744W 9.6W 15W
  Total Output
  750W

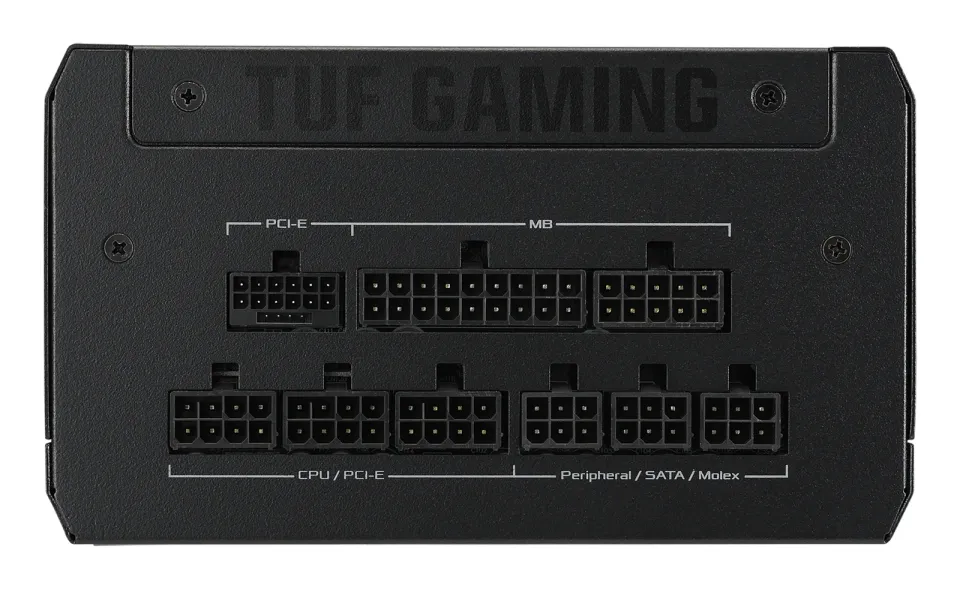

  Connectors
  MB 24/20-pin x 1
  CPU 4+4-pin x 2
  PCI-E 16-pin x 1
  PCI-E 8-pin x 3
  SATA x 5
  PERIPHERAL x 4
  Package Contents
  Power Cord x 1
  Motherboard Power Cable x 1 (610mm)
  CPU Cable x 2 (650mm)
  PCI-E Gen 5 16-pin Cable x 1 (675mm)
  PCI-E 1-to-1 Cable x 1 (675mm)
  PCI-E 1-to-2 Cable x 1 (675mm)
  SATA 1-to-2 Cable x 1 (400+120mm)
  SATA 1-to-3 Cable x 1 (400+120+120mm)
  Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
  TUF Gaming Cable tie x 3
  User Manual x 1
  Weight
  2.38kg (single PSU)
  0dB Fan Button
  No

Výkon zdroje (W): 750
Formát zdroje: ATX
Konektory: 8pin CPU 1x, 8pin CPU 2x, PCIe 6-pin, PCIe 8-pin, PCIe 16-pin Gen5, SATA 15-pin
Konektory pro základní desku: ATX 20-pin, ATX 24-pin, EPS 8-pin
Efektivita zdroje: 80 Plus Gold
Podsvícení: Bez podsvícení
