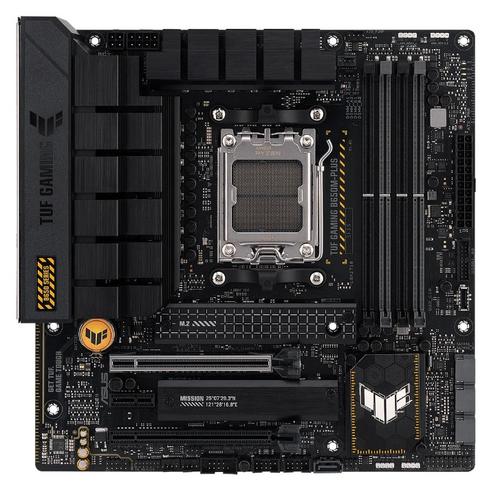

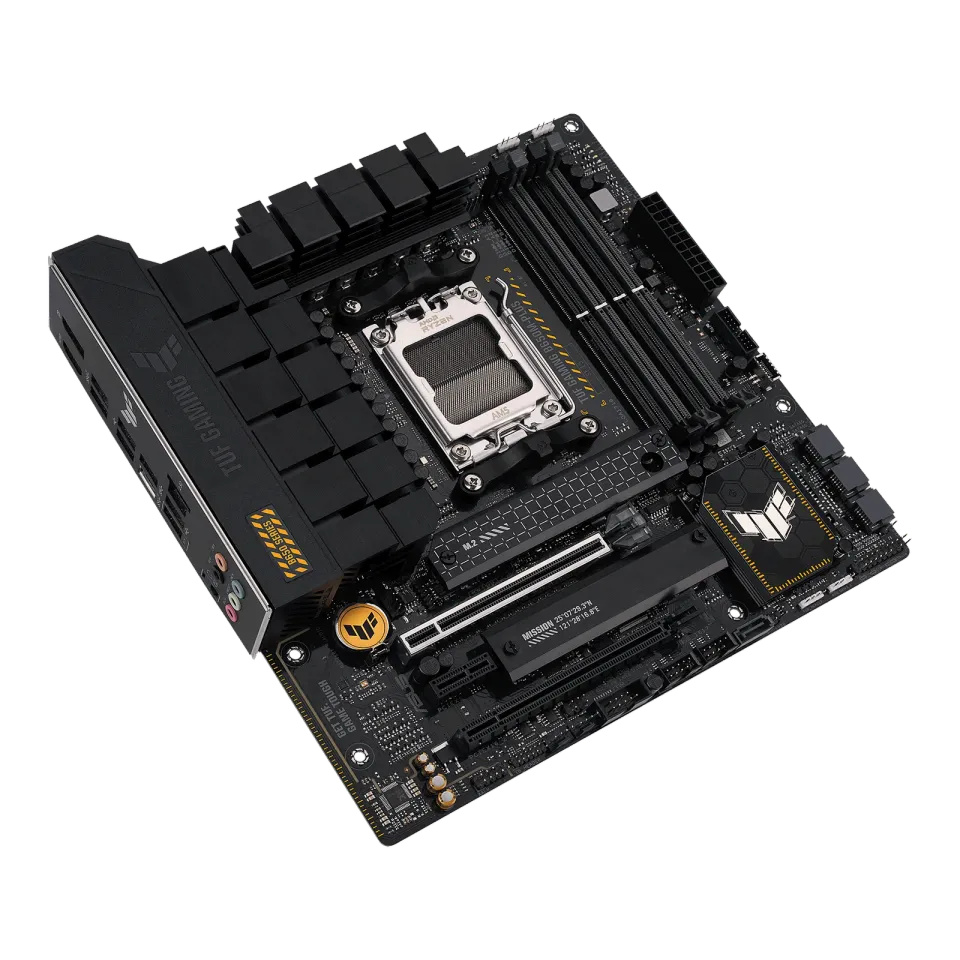

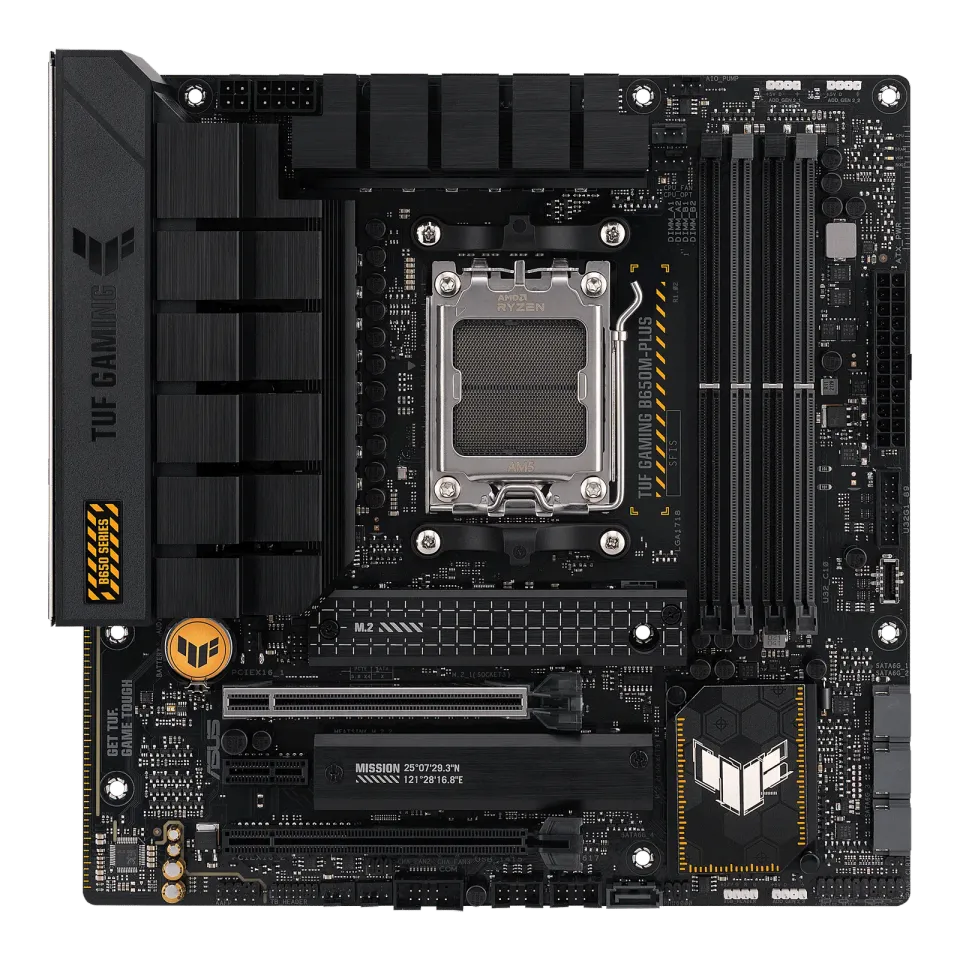

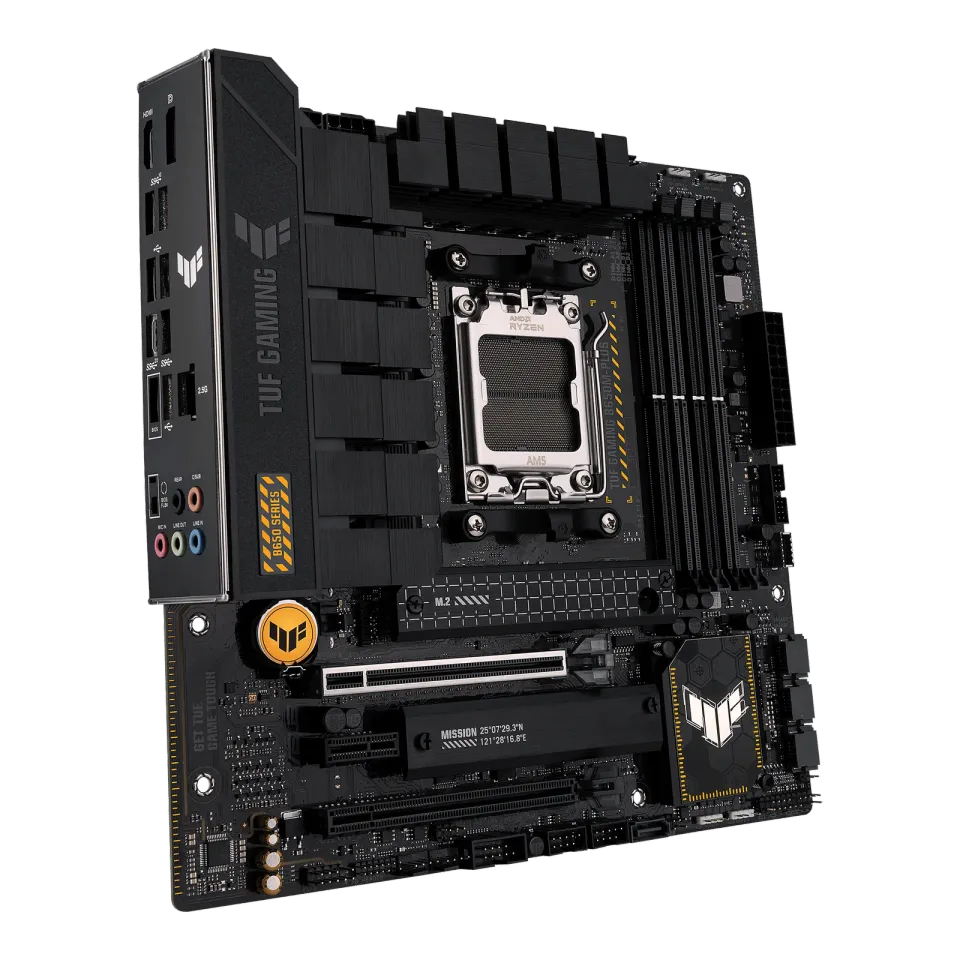

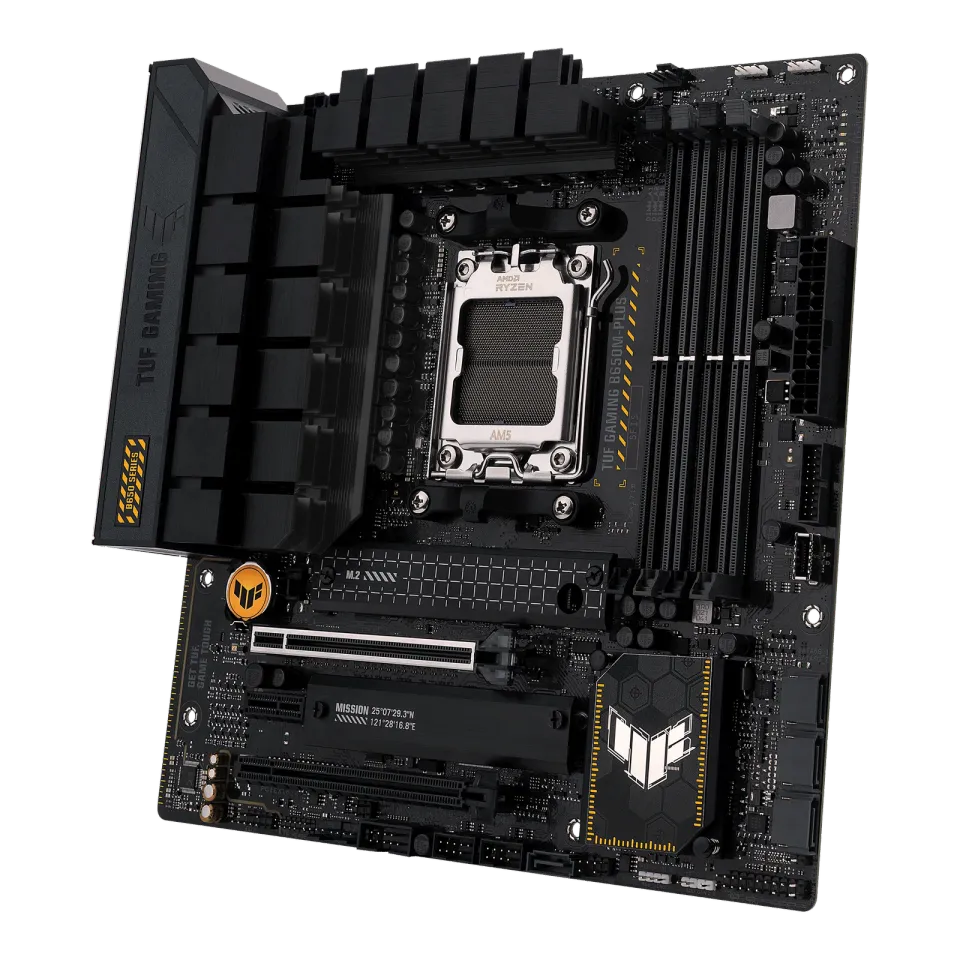

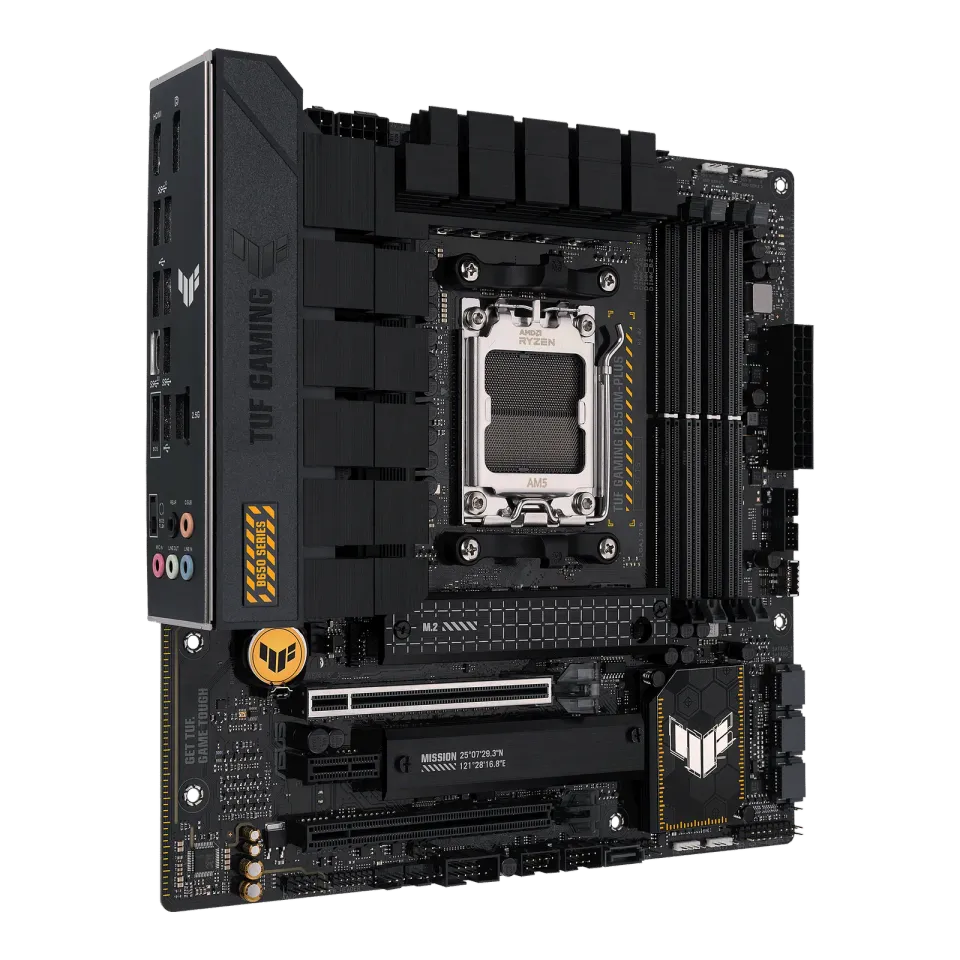

ASUS mb TUF GAMING B650M-PLUS (soc AM5 DDR5 B650 mATX)

TUF GAMING B650M-PLUS
ASUS TUF GAMING B650M-PLUS takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series
Desktop Processors*

• Refer to www.asus.com for CPU support list.
  Chipset
  AMD B650
  Memory
  4 x DIMM, Max. 128GB, DDR5
  6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports AMD EXTended Profiles for Overclocking (EXPO™)
  OptiMem II
• Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
  Graphics
  1 x DisplayPort*
  1 x HDMI port**
• Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  ** Supports 4K@60Hz as specified in HDMI 2.1.
  *** VGA resolution support depends on processors' or graphic cards' resolution.
  Expansion Slots
  AMD Ryzen™ 7000 Series Desktop Processors*
  1 x PCIe 4.0/3.0 x16 slot
  AMD B650 Chipset
  1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
  1 x PCIe 4.0/3.0 x1 slot
• Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
  Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  AMD Ryzen™ 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  AMD B650 Chipset
  4 x SATA 6Gb/s ports
  *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
  Ethernet
  1 x Realtek 2.5Gb Ethernet
  TUF LANGuard
  USB
  Rear USB (Total 8 ports)
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  1 x USB 3.2 Gen 1 port (1 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

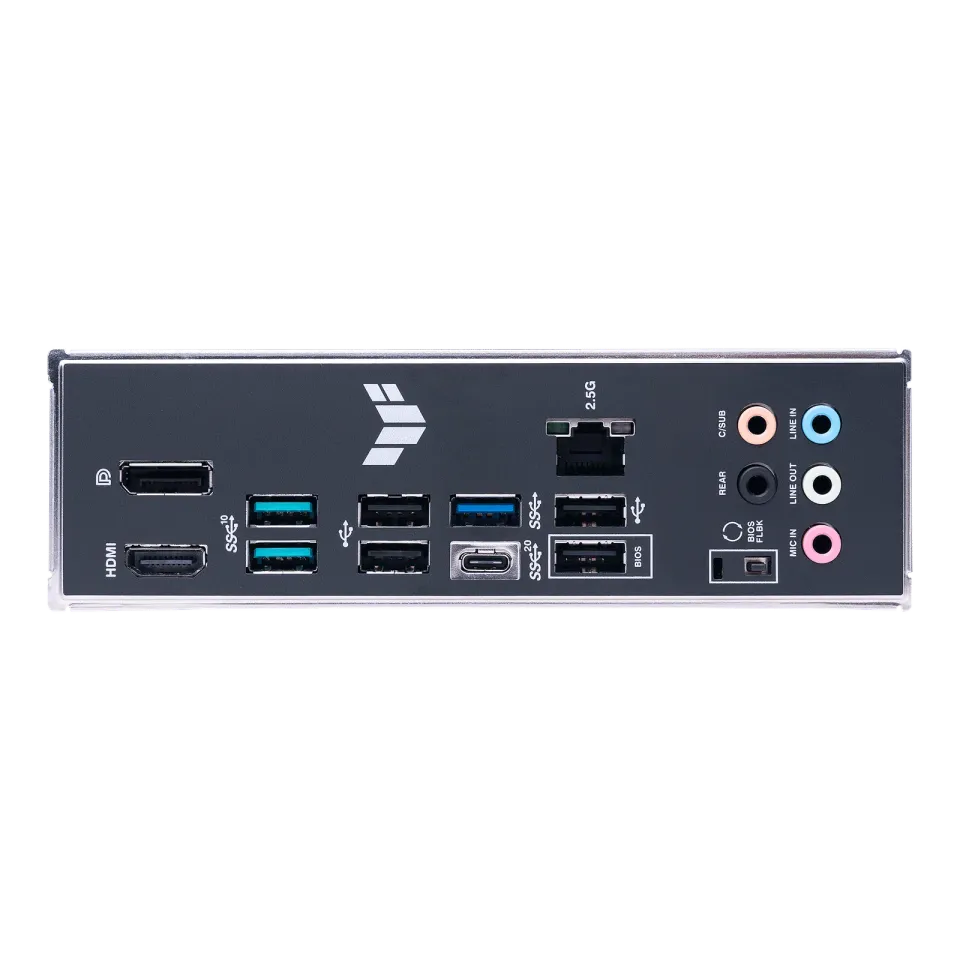

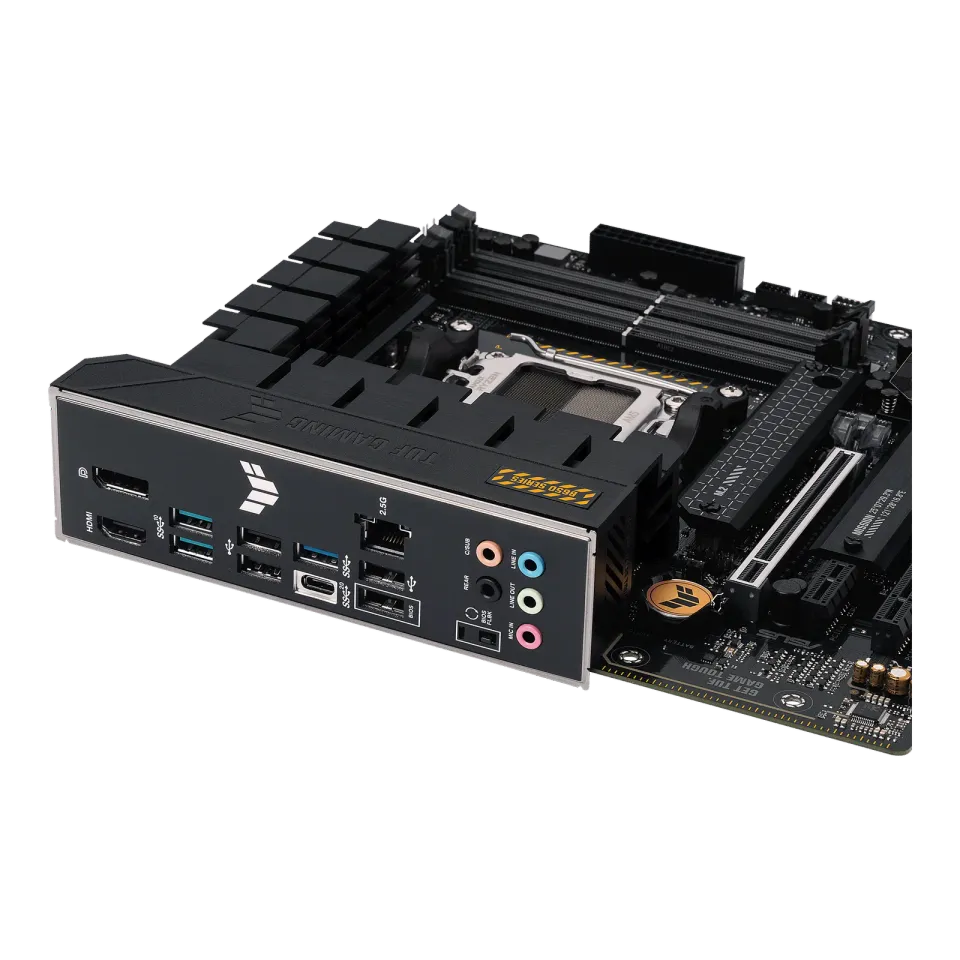

  Back Panel I/O Ports
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  1 x USB 3.2 Gen 1 port (1 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMIport
  1 x Realtek 2.5Gb Ethernet port
  5 x Audio jacks
  1 x BIOS FlashBack™ button
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  3 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  1 x 4-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB Gen 1 connector (supports USB Type-C )
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x 20-3 pin System Panel header with Chassis intrude function
  1 x Thunderbolt™ (USB4) header
  Special Features
  ASUS TUF PROTECTION
• DIGI+ VRM (- Digital power design with DrMOS)
• Enhanced DRAM Overcurrent Protection
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O
  ASUS Q-Design
• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
  ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design
  ASUS EZ DIY
• BIOS FlashBack™ button
• BIOS FlashBack™ LED
• ProCool
• Pre-mounted I/O shield
• SafeDIMM
  Aura Sync
• Aura RGB header
• Addressable Gen 2 headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
• Two-Way AI Noise Cancellation
  AI Suite 3
  -TurboV EVO
  -DIGI+ VRM
  -PC Cleaner
  TUF GAMING CPU-Z
  DTS Audio Processing
  Norton Anti-virus software (Free Trialversion)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Operating System
  Windows11, Windows10 64-bit
  Form Factor
  micro-ATX Form Factor
  9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Formát základní desky: micro ATX
Chipset: AMD B650
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 2
SATA 3: 4
Podpora RAID: 0, 1, 10
PCI Express x16: 2
PCI Express x8: 0
PCI Express x1: 1
PCI: 0
LAN: 2.5Gbit/s
Bezdrátové připojení: bez
DisplayPort: 1
HDMI: 1
VGA: 0
DVI: 0
