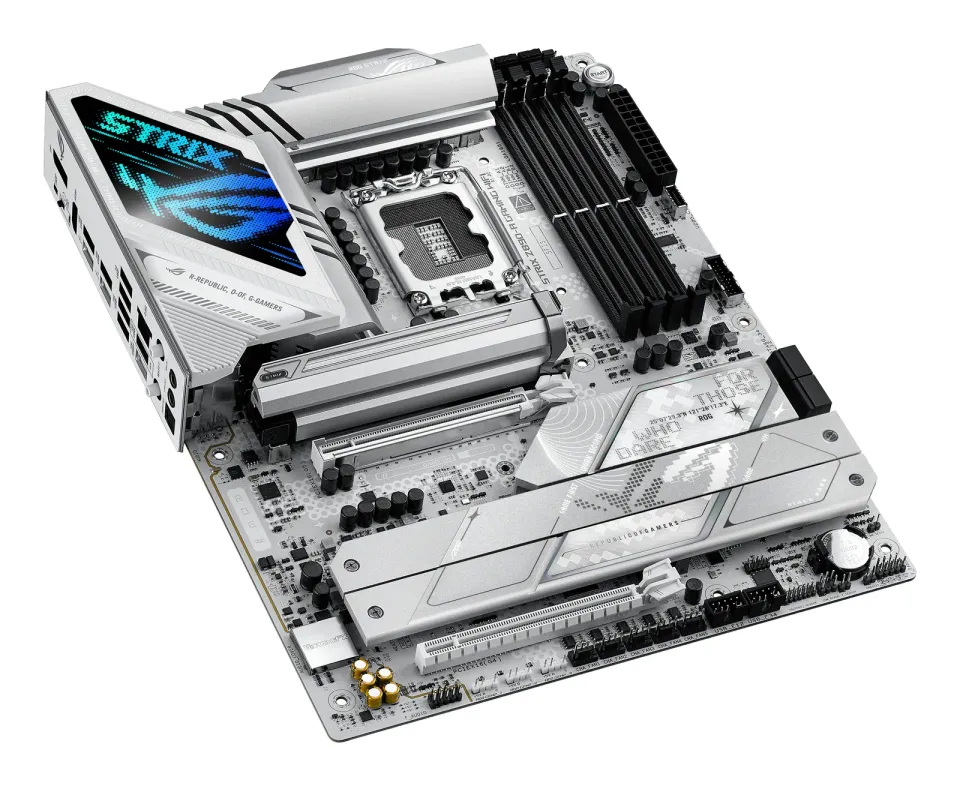

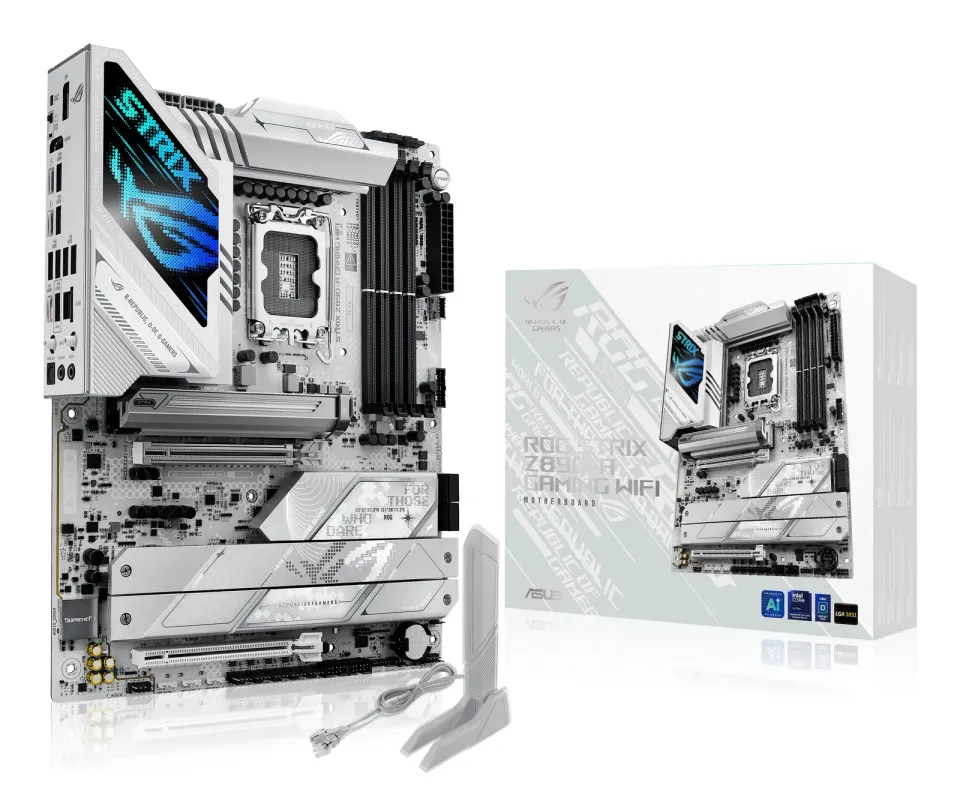

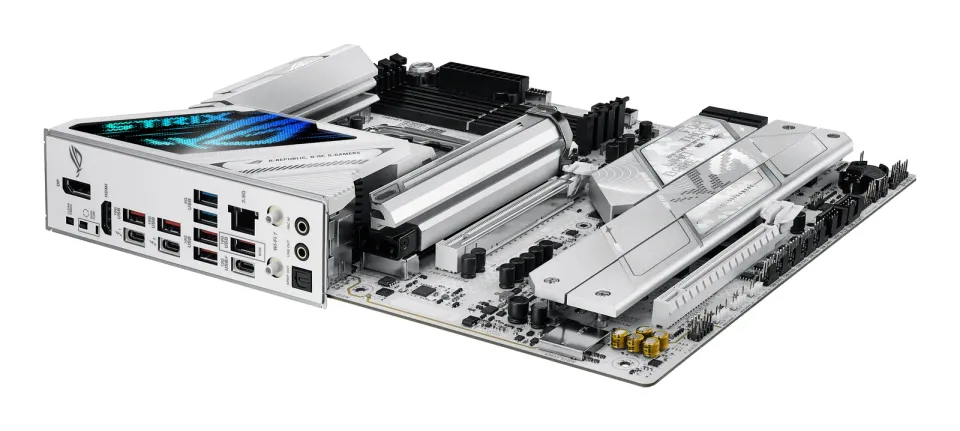

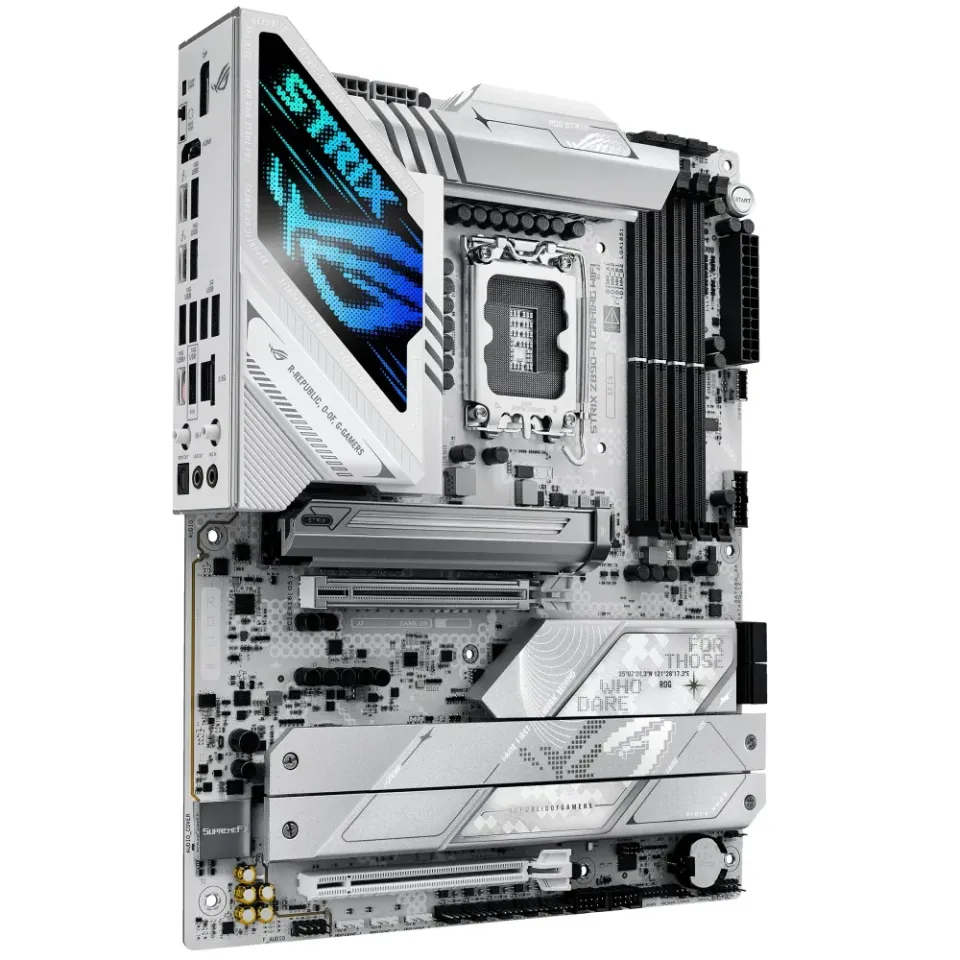

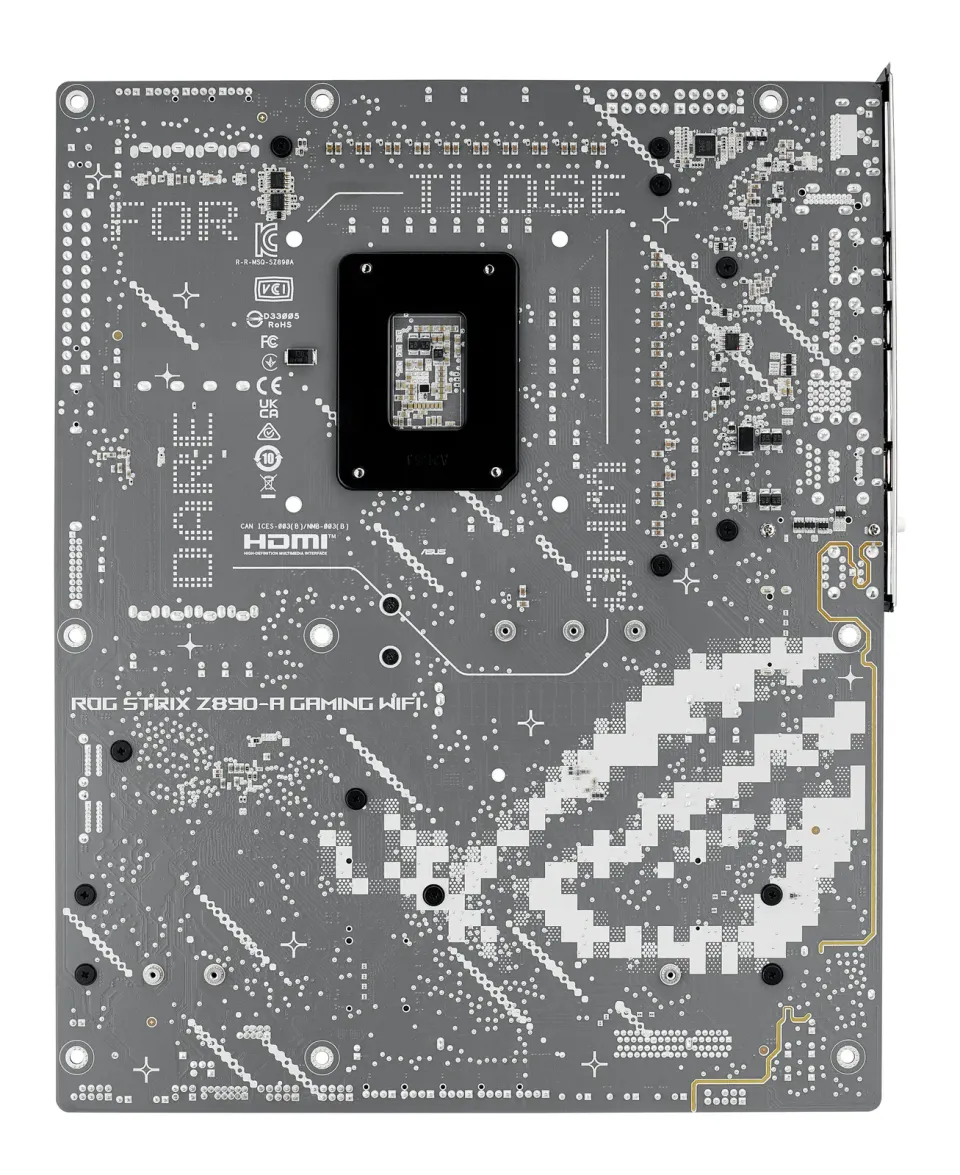

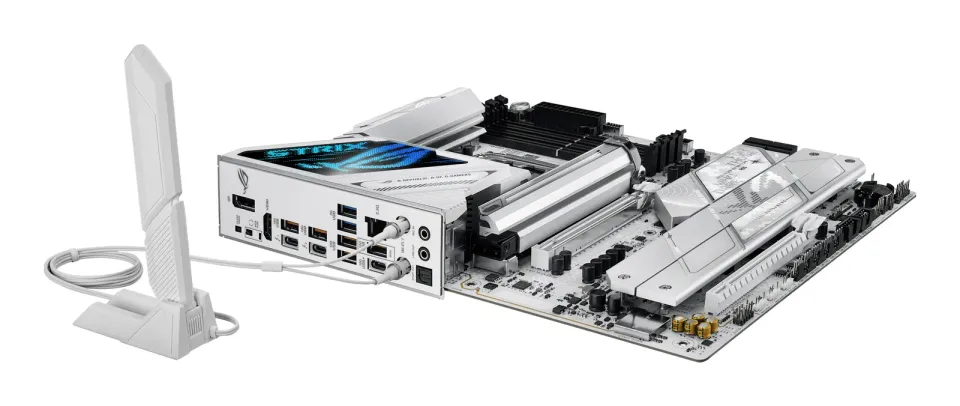

ASUS MB Sc LGA1851 ROG STRIX Z890-A GAMING WIFI

ASUS ROG STRIX Z890-A gaming wifi
With Thunderbolt™ 4, PCIe 5.0, and Polymo lighting, the ROG Strix Z890-A delivers lightning-fast data transfers, exceptional connectivity and a customizable aesthetic that can be subtle or bold. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
CPU
Support Intel Core™ Ultra Processors (Series 2)*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel Z890 Chipset
  Memory
  4 x DIMM slots, max. 192GB, DDR5
  Support up to 8600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
  Dual channel memory architecture
  Supports Intel Extreme Memory Profile (XMP) memory module
  Supports DIMM Flex
  Supports DIMM FIT
  ASUS Enhanced Memory Profile III (AEMPIII)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics
  1 x DisplayPort*
  1 x HDMI™ port**
  2 x Intel Thunderbolt™ 4 support
  DisplayPort and Thunderbolt™ video outputs***

• Graphics specifications may vary between
  CPU types. Please refer to www.intel.com for any updates.

• Supports max. 8K@60Hz as specified in
  DisplayPort 1.4.
  ** Supports 4K@60Hz as specified in HDMI
  2.1.
  *** In Thunderbolt™ 4 mode, supports up to
  8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or
  16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP
  alt mode, supports up to UHBR20.
  **** VGA resolution support depends on
  processors' or graphic cards' resolution.
  ***** While installing the operating
  system, please ensure that your monitor is connected to the HDMI port on the
  back I/O panel or to a discrete graphics card.
  Expansion Slots
  Intel Core™ Ultra Processors (Series 2)
  1 x PCIe 5.0 x16 slot
  Intel Z890 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
  Storage
  Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
  Intel Core™ Ultra Processors (Series 2)*
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  Intel Z890 Chipset
  M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  4 x SATA 6Gb/s ports

• Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
  Ethernet
  1 x Intel 2.5Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
  Bluetooth v5.4***
  Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  For Windows 10, only Wi-Fi 6 is supported.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  USB
  Rear USB (Total 10 ports)
  2 x Thunderbolt™ 4 ports (2 x USB Type-C)
  6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-Cwith up to 30W PD/PPD Fast-charge)**
  2 x USB 5Gbps ports (2 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 20Gbps connector (supports USB Type-C )*
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
• USB Type-C power delivery output: max. 5V/3A
  ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
  Audio
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback on front panel
  Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

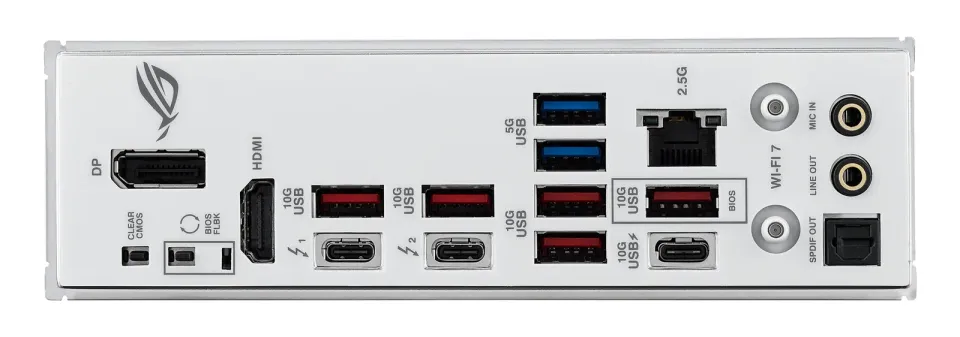

  Back Panel I/O Ports
  2 x Thunderbolt™ 4 ports (2 x USB Type-C)*
  6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-Cwith up to 30W PD/PPD Fast-charge)
  2 x USB 5Gbps ports (2 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Intel 2.5Gb Ethernet port
  2 x Audio jacks
  1 x Optical S/PDIF out port
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  5 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
  Storage Related
  5 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 20Gbps connector (supports USB Type-C )
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Chassis Intrusion header
  1 x CPU Over voltage jumper
  1 x Front Panel Audio header (F_AUDIO)
  1 x Start button
  1 x 10-1 pin…
