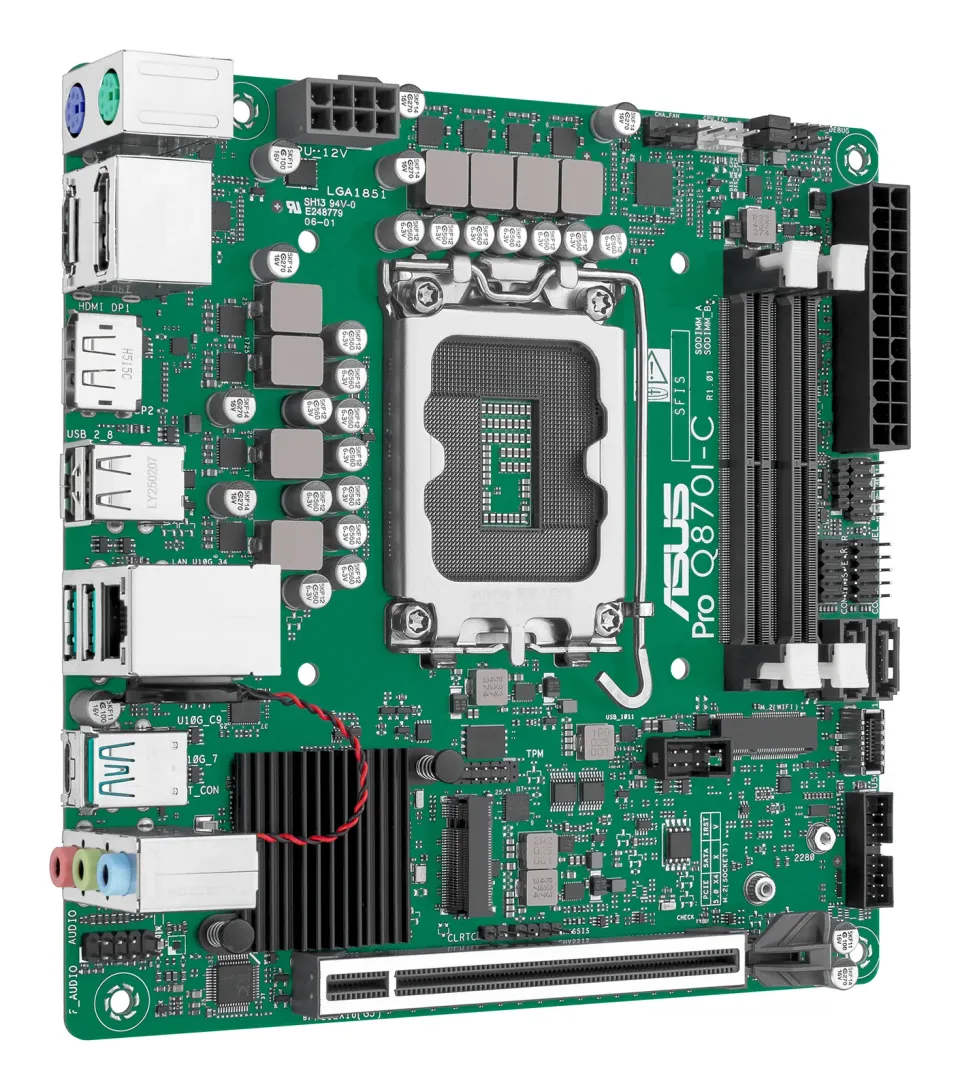

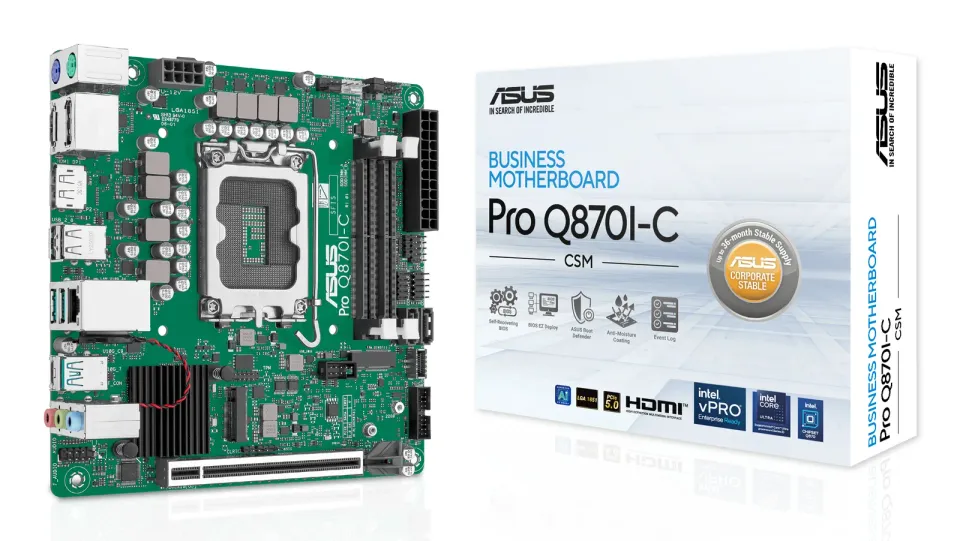

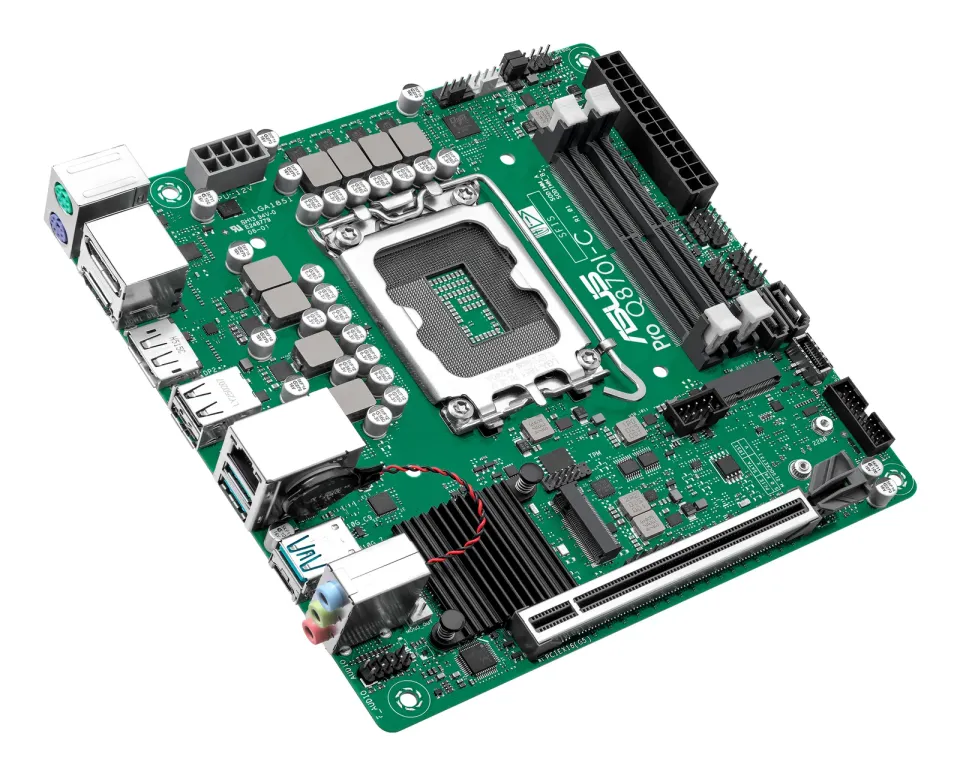

ASUS MB Sc LGA1851 PRO Q870I-C-CSM, Intel Q870, 4xDDR5, 2xDP, 1xHDMI, Mini-ITX

ASUS Pro Q870I-C-CSM

• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA 1851 Socket: Ready for Intel Core™ Ultra Processors (Series 2)
• ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced System Security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
• Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
• Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast Connectivity: PCIe 5.0, DDR5 SO-DIMM slots , rear and front USB 10Gbps Type-C
• DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
  CPU
• Supports Intel Core™ Ultra Processors (Series 2), LGA1851
• Supports Intel Turbo Boost Technology 2.0
• Supports Intel Turbo Boost Max Technology 3.0
• CPU supports up to 65W
• Turbo Boost Max Technology 3.0 support depends on CPU type
  Chipset
  Intel Q870 Chipset
  Memory
• 2 × SO-DIMM slots, max. 128GB
• DDR5 up to 6400 MT/s
• Non-ECC, Un-buffered, Clocked SO-DIMM
• Dual channel memory architecture
• Supports Intel Extreme Memory Profile (XMP)
• On-Die ECC supported (Non-ECC DDR5)
  Graphics
• 2 × DisplayPort (up to 4K @ 60Hz)
• 1 × HDMI™ (up to 4K @ 60Hz)
• Graphics output depends on CPU
  Expansion Slots
• 1 × PCIe 5.0 x16 slot
  Storage
• 1 × M.2 slot (Key M, 2280, PCIe 5.0 x4)
• 2 × SATA 6Gb/s ports
  Ethernet
• Intel I219LM 1Gb Ethernet
• ASUS LANGuard
  Wireless & Bluetooth
• M.2 2230 slot (Key E, CNVi & PCIe)
• Wi-Fi module sold separately
  USB

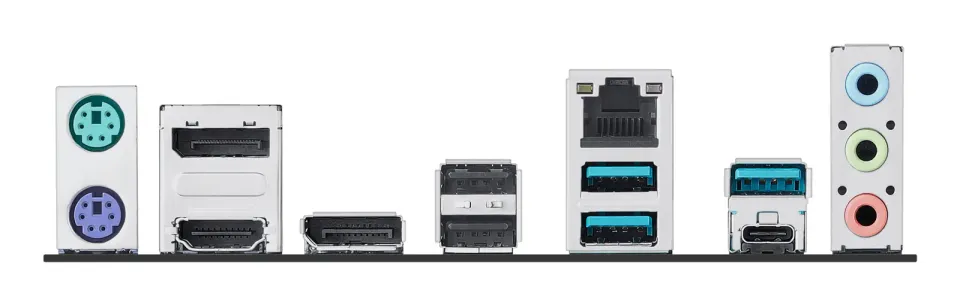

  Rear USB
• 1 × USB 10Gbps Type-C
• 3 × USB 10Gbps Type-A
• 2 × USB 2.0 Type-A
  Front USB
• 1 × USB 10Gbps Type-C connector
• 1 × USB 5Gbps header (supports 2 ports)
• 1 × USB 2.0 header (supports 2 ports)
  Audio
• Realtek 7.1 Surround Sound HD Audio CODEC
• Up to 24-bit / 192 kHz playback
  Form Factor
  Mini-ITX (17 × 17 cm)

Formát základní desky: micro ATX
Chipset: Intel Q870
Socket (patice): Socket 1851
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 2
SATA 3: 4
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 2
PCI Express x8: 0
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 2
HDMI: 1
VGA: 0
DVI: 0
