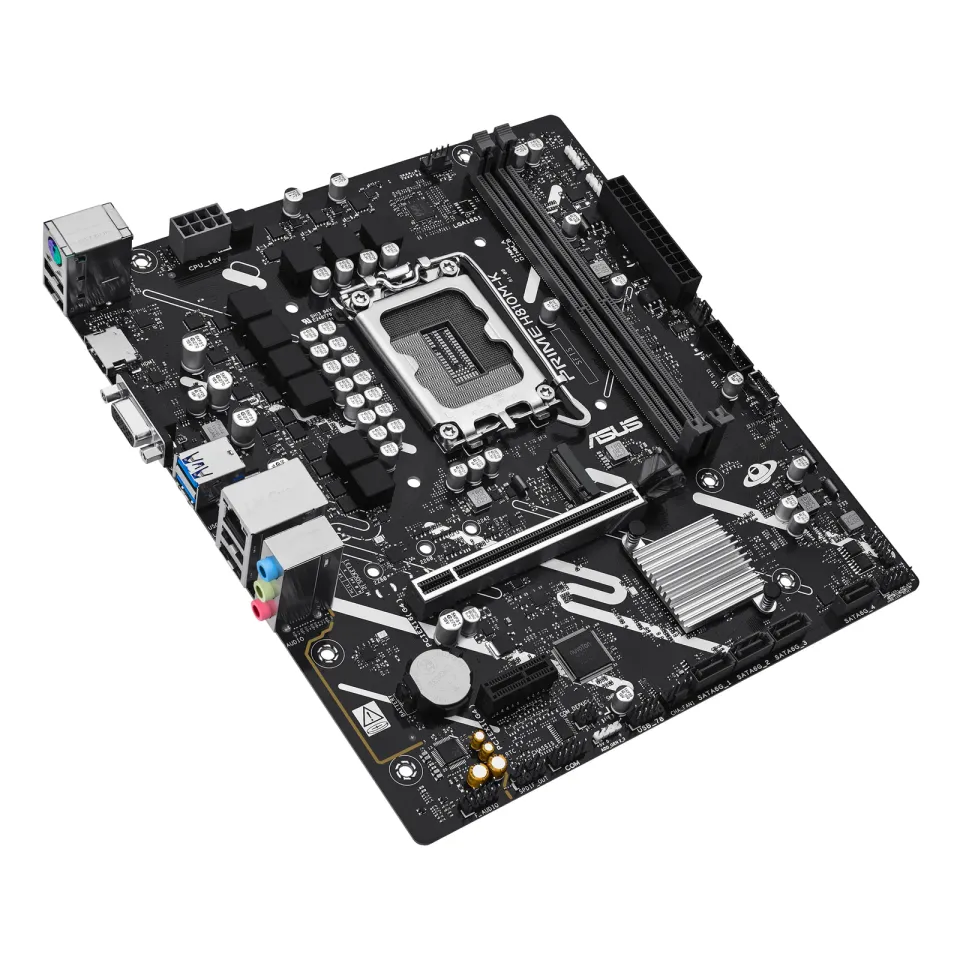

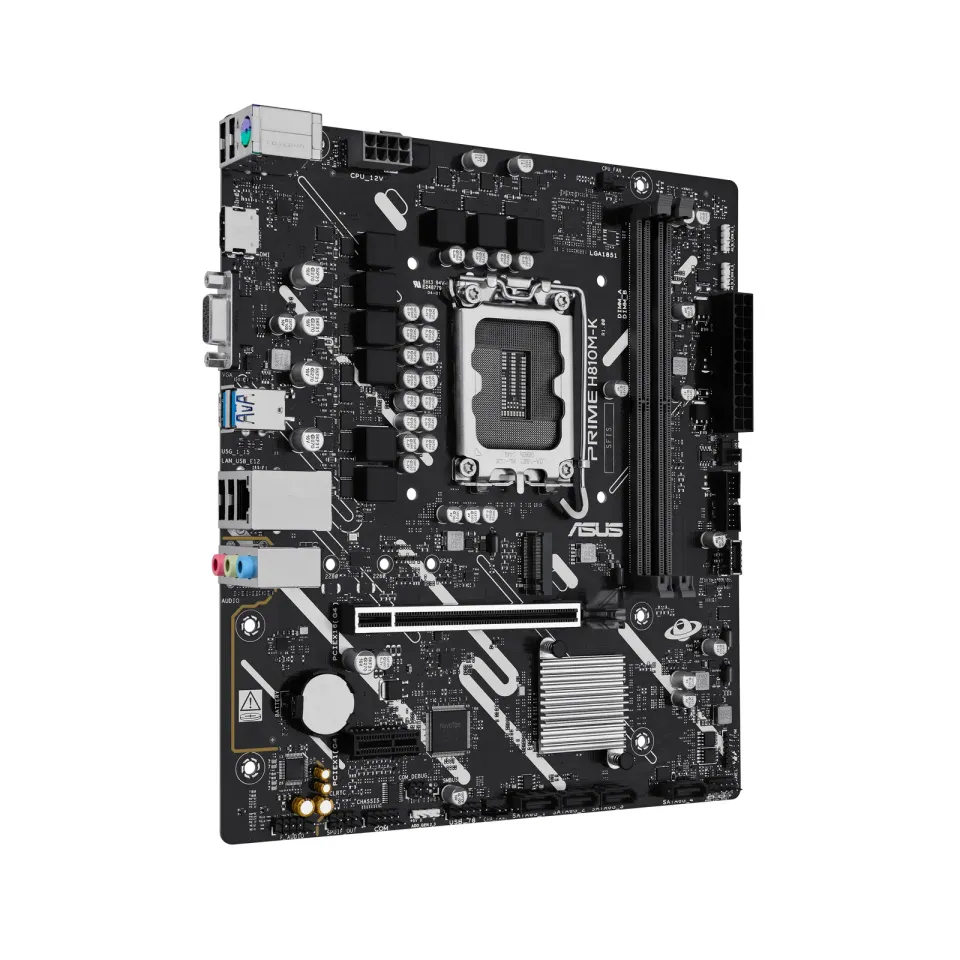

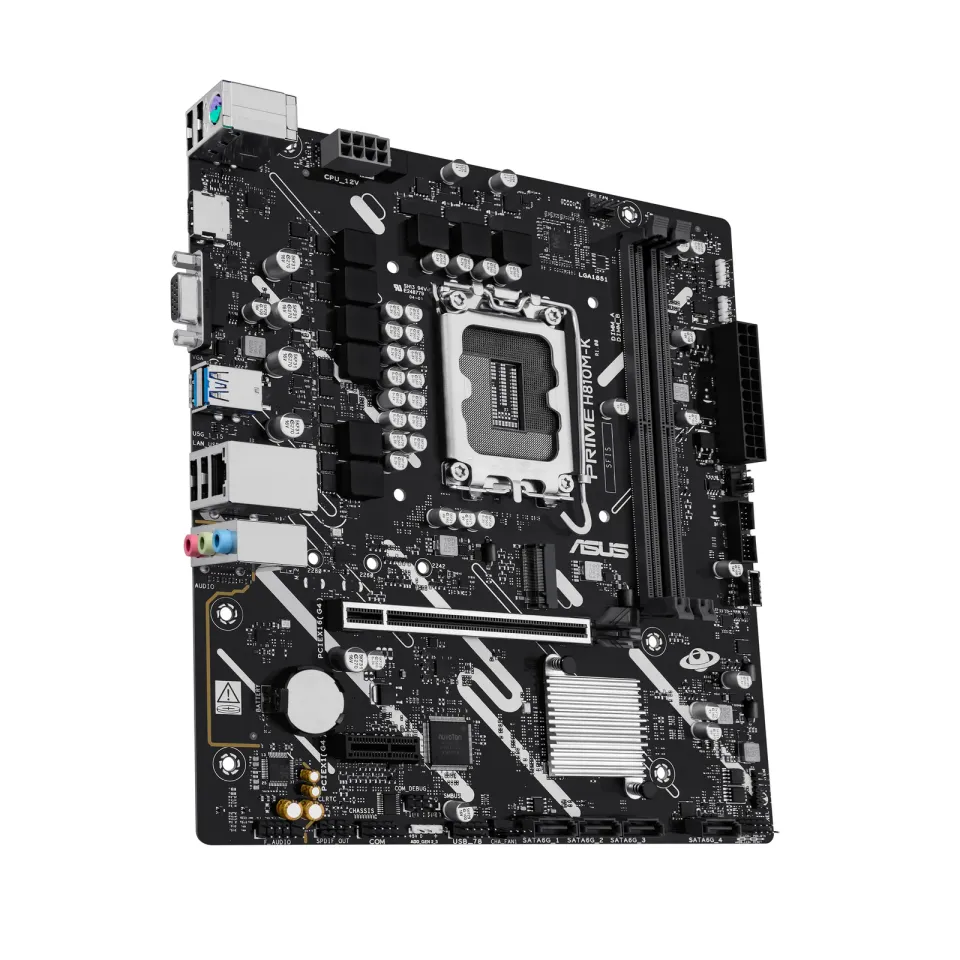

ASUS MB Sc LGA1851 PRIME H810M-K, Intel H810, 2xDDR5, 1xHDMI, 1xVGA, mATX

ASUS PRIME H810M-K
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
CPU
Support Intel Core™ Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0
Supports Intel Turbo Boost Max Technology 3.0

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
• Intel Turbo Boost Max Technology 3.0 support depends on CPU type.
  Chipset
  Intel H810 Chipset
  Memory
  2 x DIMM slots, max. 128GB, DDR5
  Supports up to 6400MT/s
  Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
  Dual channel memory architecture
  Supports DIMM Fit and DIMM Fit Pro
  Supports Intel Extreme Memory Profile (XMP)
  ASUS Enhanced Memory Profile II (AEMP II)
  Graphics
  1 x VGA port
  1 x HDMI™ port
• Graphics specifications may vary between CPU types.
• Supports 4K@60Hz as specified in HDMI 2.1.
• VGA resolution support depends on processor or graphics card.
  Expansion Slots
  Intel Core™ Ultra Processors (Series 2)
  1 x PCIe 4.0 x16 slot
  Intel H810 Chipset
  1 x PCIe 4.0 x1 slot
  Storage
  Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  Intel H810 Chipset
  M.2 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports
  Ethernet
  1 x Realtek 1Gb Ethernet
  ASUS LANGuard
  USB
  Rear USB (Total 6 ports)
  2 x USB 5Gbps (Type-A)
  4 x USB 2.0 (Type-A)
  Front USB (Total 5 ports)
  1 x USB 5Gbps connector (USB Type-C)
  1 x USB 5Gbps header (2 ports)
  1 x USB 2.0 header (2 ports)
• USB Type-C power delivery output max. 5V/3A.
• USB_E1, USB_E2 and USB_E3 share bandwidth.
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC
  Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
  Supports up to 24-Bit/192 kHz playback
  Audio Shielding
  Premium audio capacitors
  Dedicated audio PCB layers
• Front panel HD audio module required for 7.1 output.

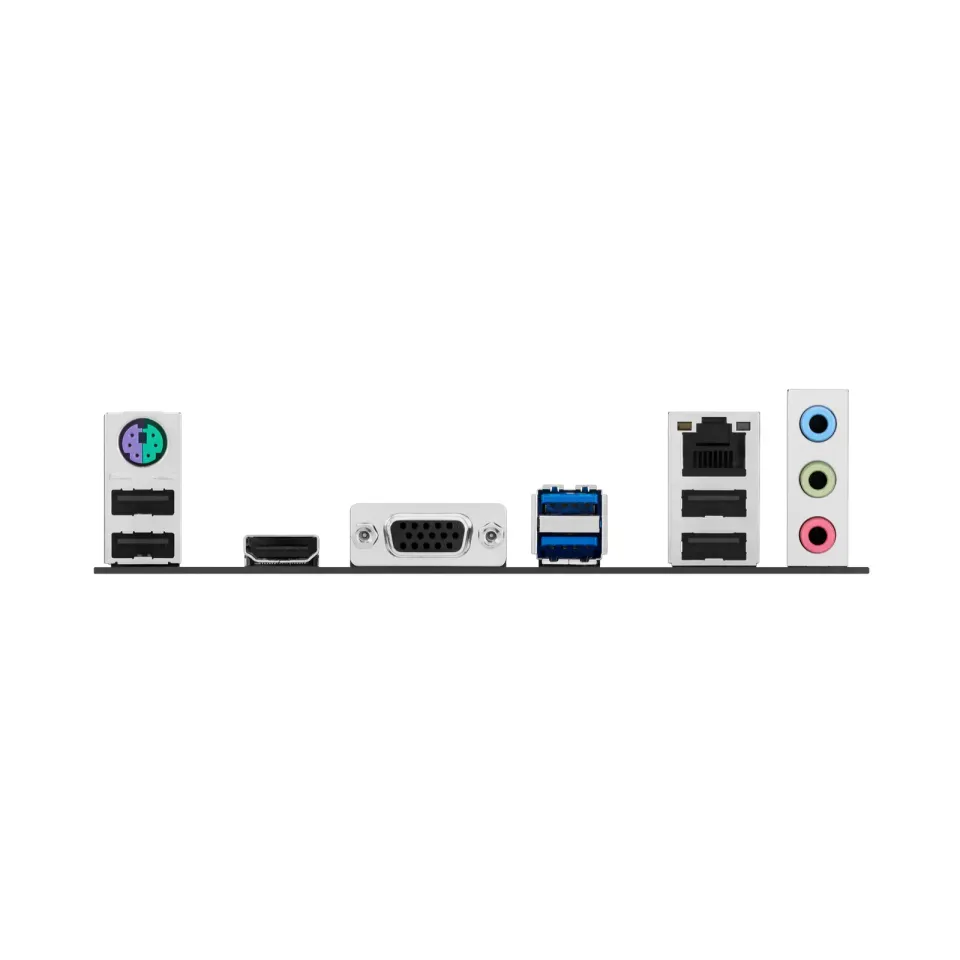

  Back Panel I/O Ports
  2 x USB 5Gbps (Type-A)
  4 x USB 2.0 (Type-A)
  1 x VGA port
  1 x HDMI™ port
  1 x Realtek 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 keyboard/mouse combo port
  Internal I/O Connectors
  CPU and chassis fan headers
  24-pin main power connector
  8-pin +12V CPU power connector
  1 x M.2 slot
  4 x SATA 6Gb/s ports
  USB headers including USB Type-C
  Addressable RGB Gen2 headers
  Clear CMOS header
  Chassis intrusion header
  COM port header
  Front panel audio header
  S/PDIF Out header
  SPI TPM header
  Front panel system header
  Special Features
  ASUS 5X PROTECTION III
  DIGI+ VRM
  LANGuard
  Overvoltage protection
  SafeSlot Core+
  Stainless-steel back I/O
  ASUS Q-Design
  Q-Dashboard
  Q-LED Core
  Q-Slot
  ASUS Thermal Solution
  Aluminum heatsink design
  Aura Sync with Addressable RGB Gen 2 headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
  Aura Creator
  Aura Sync
  Fan Xpert 2+
  ASUS DriverHub
  ASUS CPU-Z
  Adobe Creative Cloud (trial)
  Norton 360 Deluxe (trial)
  WinRAR (trial)
  UEFI BIOS
  ASUS CrashFree BIOS 3
  ASUS EZ Flash
  ASUS UEFI BIOS EZ Mode
  ASUS MyHotkey
  BIOS
  2 x 16MB (2 x 128Mb) Flash ROM
  UEFI AMI BIOS
  Manageability
  WOL by PME
  PXE
  Accessories
  2 x SATA 6Gb/s cables

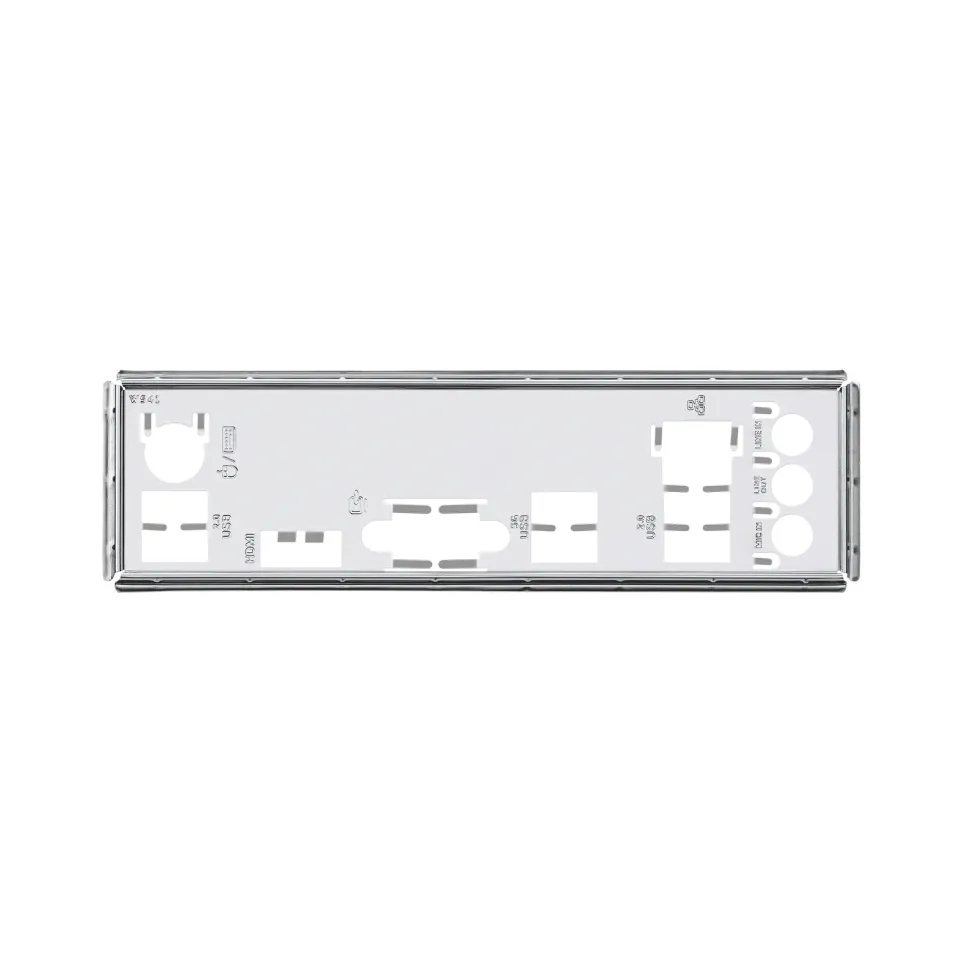

  1 x I/O shield
  1 x M.2 anchor package
  1 x Quick start guide
  Operating System
  Windows 11 (22H2 & later)
  Windows 10 64-bit (21H2 & later)
  Form Factor
  micro-ATX Form Factor
  9.2 inch x 8.3 inch (23.4 cm x 21.1 cm)

Formát základní desky: micro ATX
Chipset: Intel H810
Socket (patice): Socket 1851
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 2
SATA 3: 4
Podpora RAID: Bez RAID podpory
PCI Express x16: 1
PCI Express x8: 0
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 1
HDMI: 1
VGA: 0
