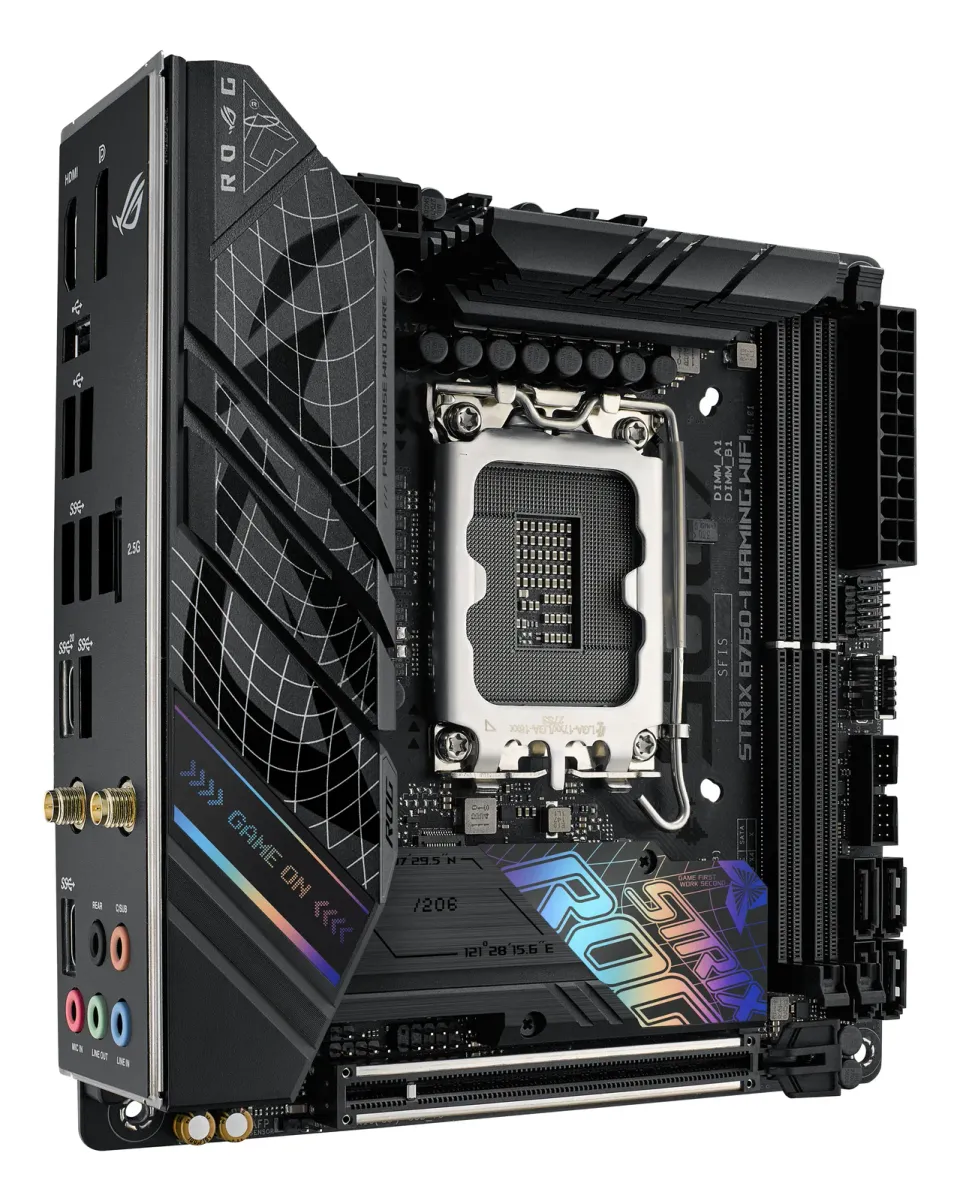

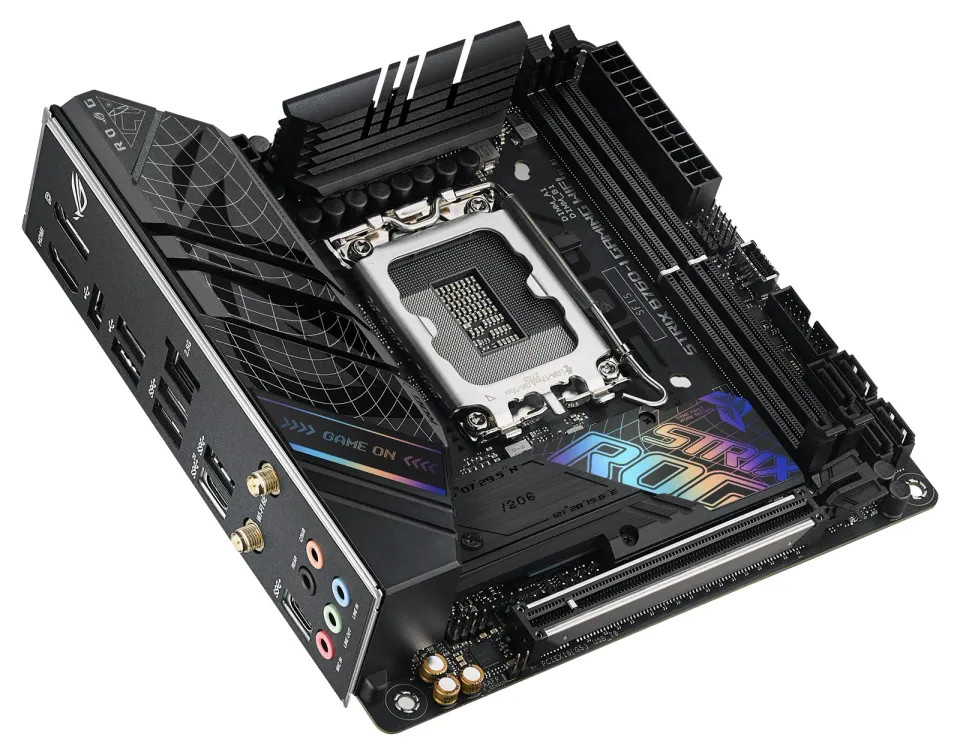

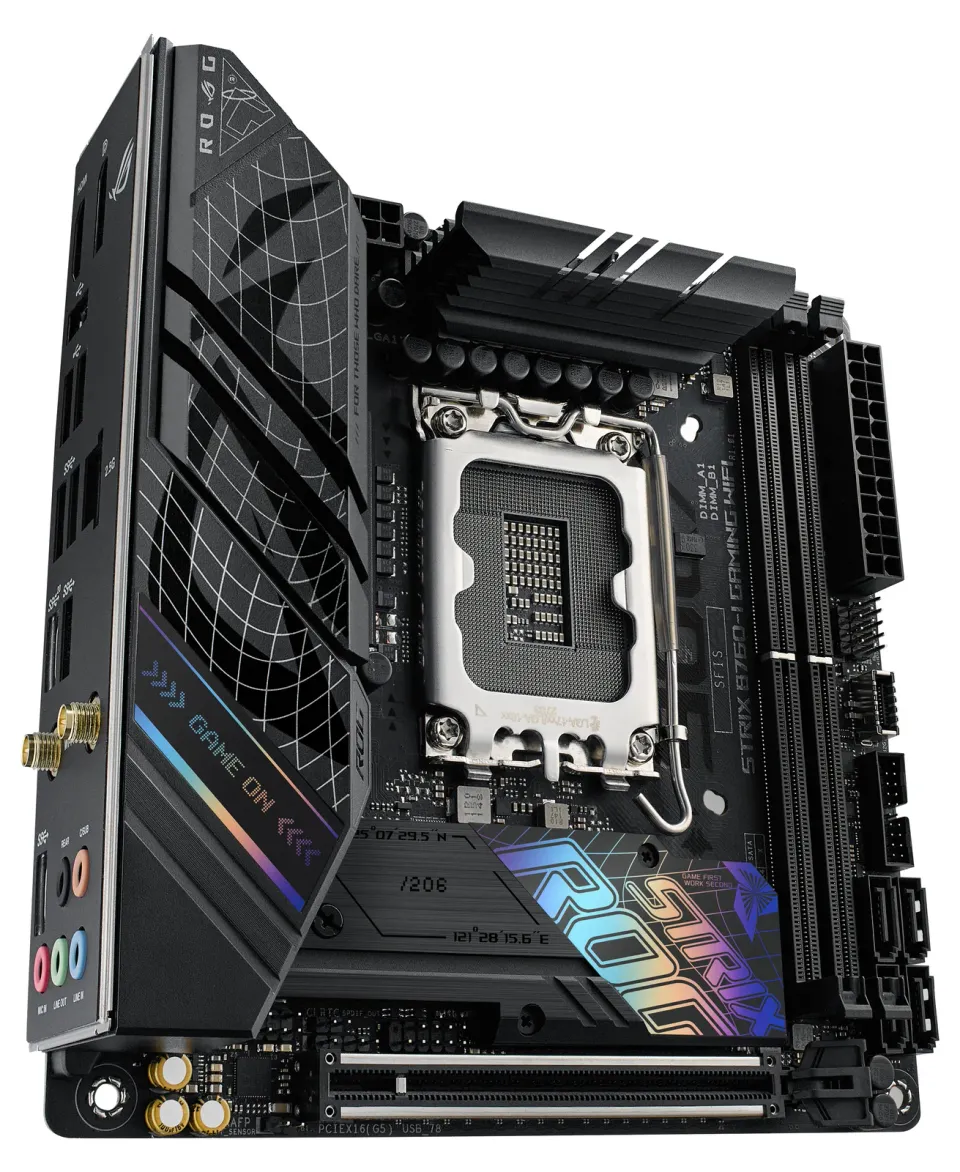

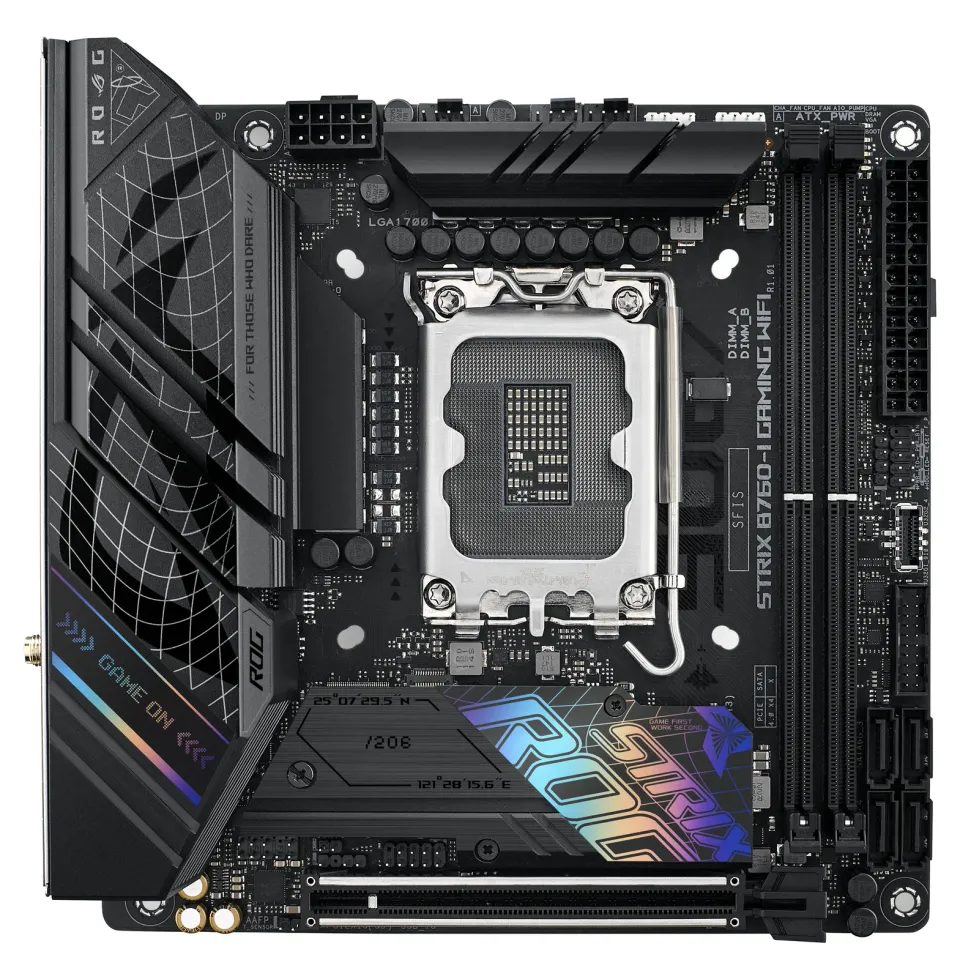

ASUS MB Sc LGA1700 ROG STRIX B760-I GAMING WIFI

ROG STRIX B760-I GAMING WIFI
Let your rig run wild with the ROG Strix B760-I, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency WiFi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 14th Gen support thanks to its powerful VRM and thermal solution.
Supports 14th Gen Intel Core™ Processors
CPU
Intel Socket LGA1700 for 14th Gen Intel Core™ & 13th Gen Intel Core™ & 12th Gen Intel Core™, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel B760 Chipset
  Memory
  2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  OptiMem II
• Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  Graphics
  1 x DisplayPort**
  1 x HDMI***
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Support 4K@60Hz as specified in DisplayPort 1.4
  *** Support 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  Intel 14th & 13th & 12th Gen Processors*
  1 x PCIe 5.0 x16 slot

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel 14th & 13th & 12th Gen Processors
  M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
  Intel B760 Chipset**
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports

• Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
  Ethernet
  1 x Intel 2.5Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band*
  Bluetooth v5.3
• WiFi 6E 6GHz regulatory may vary between countries.
  USB
  Rear USB (Total 8 ports)
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C)
  3 x USB 2.0 ports (3 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 3.2 Gen 2 connector (supports USB Type-C)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports additional 2 USB 2.0 ports
  Audio
  ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback*
  Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Premium audio capacitors

• Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
  Back Panel I/O Ports
  1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C)
  3 x USB 2.0 ports (3 x Type-A)
  1 x HDMI port
  1 x DisplayPort
  1 x Wi-Fi Module
  1 x Intel 2.5Gb Ethernet
  5 x Audio jacks
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chasis Fan header
  1 x 4-pin AIO Pump header
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2 connector (supports USB Type-C)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 headers support additional 2 USB 2.0 ports
  Miscellaneous
  1 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x 10-1 pin System Panel header
  1 x Thermal Sensor header
  Special Features
  Extreme Engine Digi+

• 5K Black Metallic Capacitors
  ASUS Q-Design
• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
  ASUS Thermal Solution
• M.2 heatsink backplate
  ASUS EZ DIY
  -CPU Socket lever protector
• ProCool
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
  AURA Sync
• Aura RGB header
• Addressable Gen 2 header
  Software Features
  ROG Exclusive Software
• GameFirst VI
• ROG CPU-Z
• Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
• Sonic Radar III
• DTS Sound Unbound
  ASUS Exclusive Software
  Armoury Crate
• AIDA64 Extreme (60 days free trial)
• AURA Creator
• AURA Sync
• Fan Xpert 4
• Two-Way AI Noise Cancelation
• Power Saving
  AI Suite 3
• Performance And Power Saving Utility
  PC Cleaner
  DIGI+ VRM
  MyAsus
  Norton 360 for Gamers
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  MemTest86
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

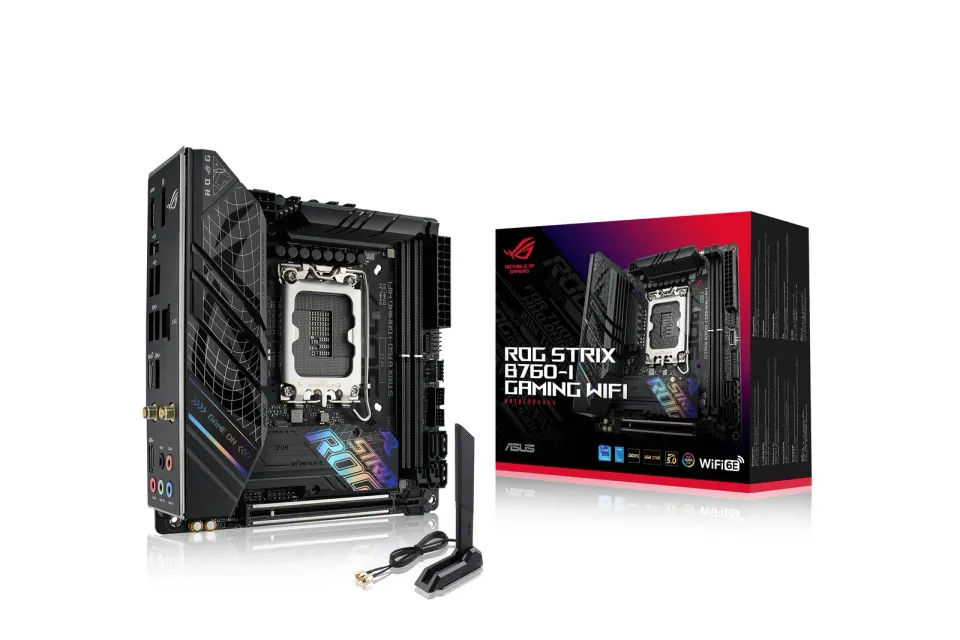

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  1 x ROG USB2.0 splitter cable
  1 x Panel cable
  Additional Cooling Kit
  1 x Thermal pad for M.2
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties package
  1 x M.2 Rubber Package
  2 x Screw packages for M.2 SSD
  1 x M.2 bracket
  1 x ROG key chain
  1 x ROG STRIX stickers
  1 x ROG STRIX thank you card
  Documentation
  1 x User manual
  Operating System
  Windows 11 64-bit, Windows 10 64-bit
  Form Factor
  Mini-ITX Form Factor
  17 cm x 17 cm

Formát základní desky: Mini-ITX
Chipset: Intel B760
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 2
SATA 3: 4
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 1
PCI Express x8: 0
PCI Express x1: 0
PCI: 0
LAN: 2.5Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 1
HDMI: 1
VGA: 0
DVI: 0
