ASUS MB Sc LGA1700 PROART B760-CREATOR WIFI, Intel B760, 4xDDR5, 1xDP, 1xHDMI, ATX

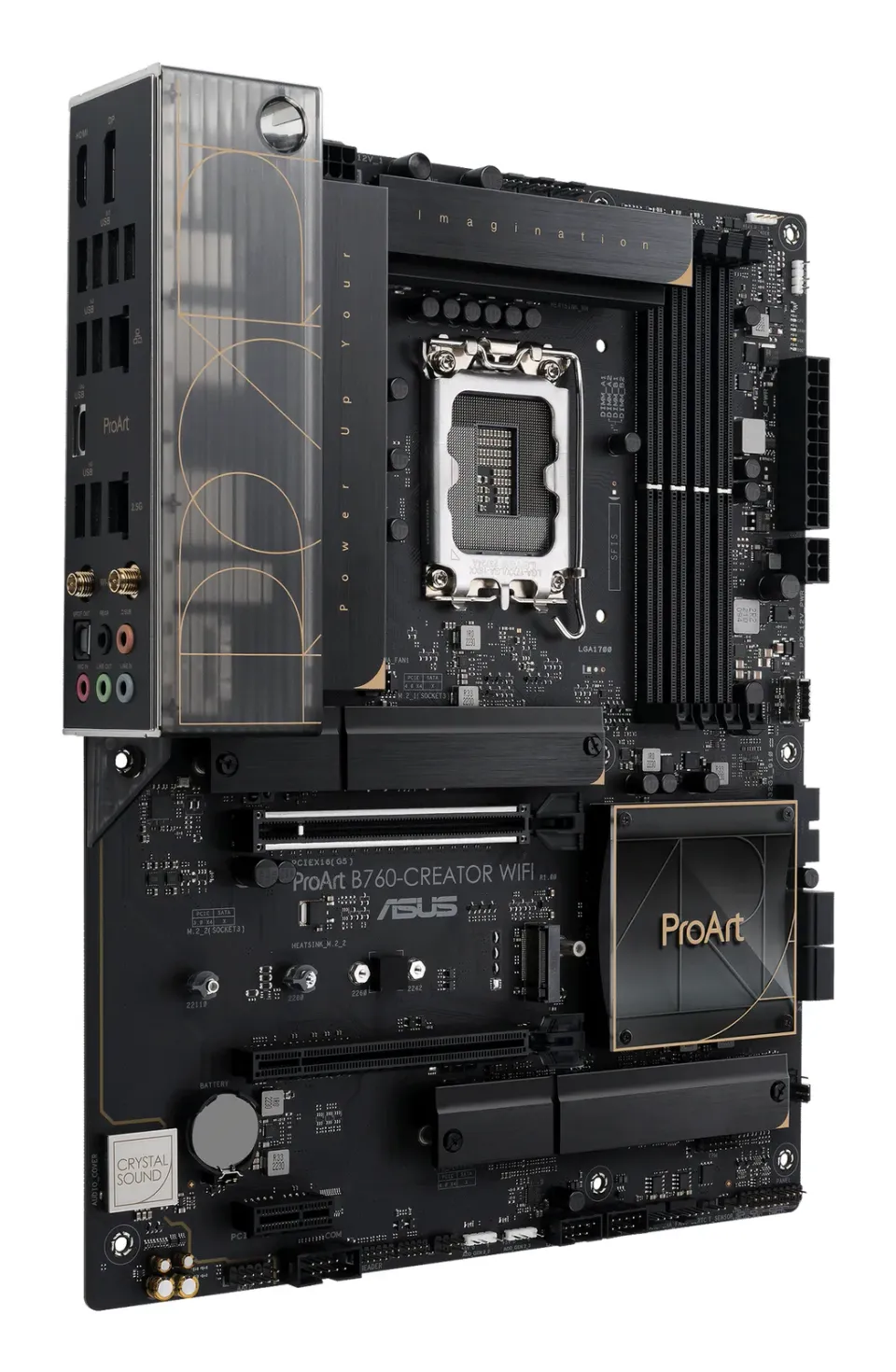

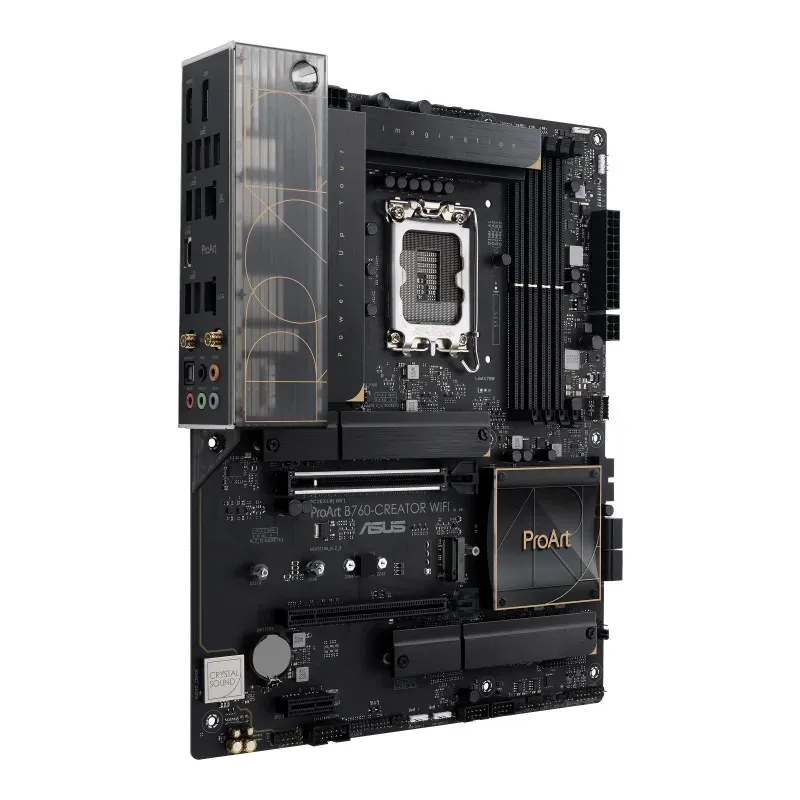

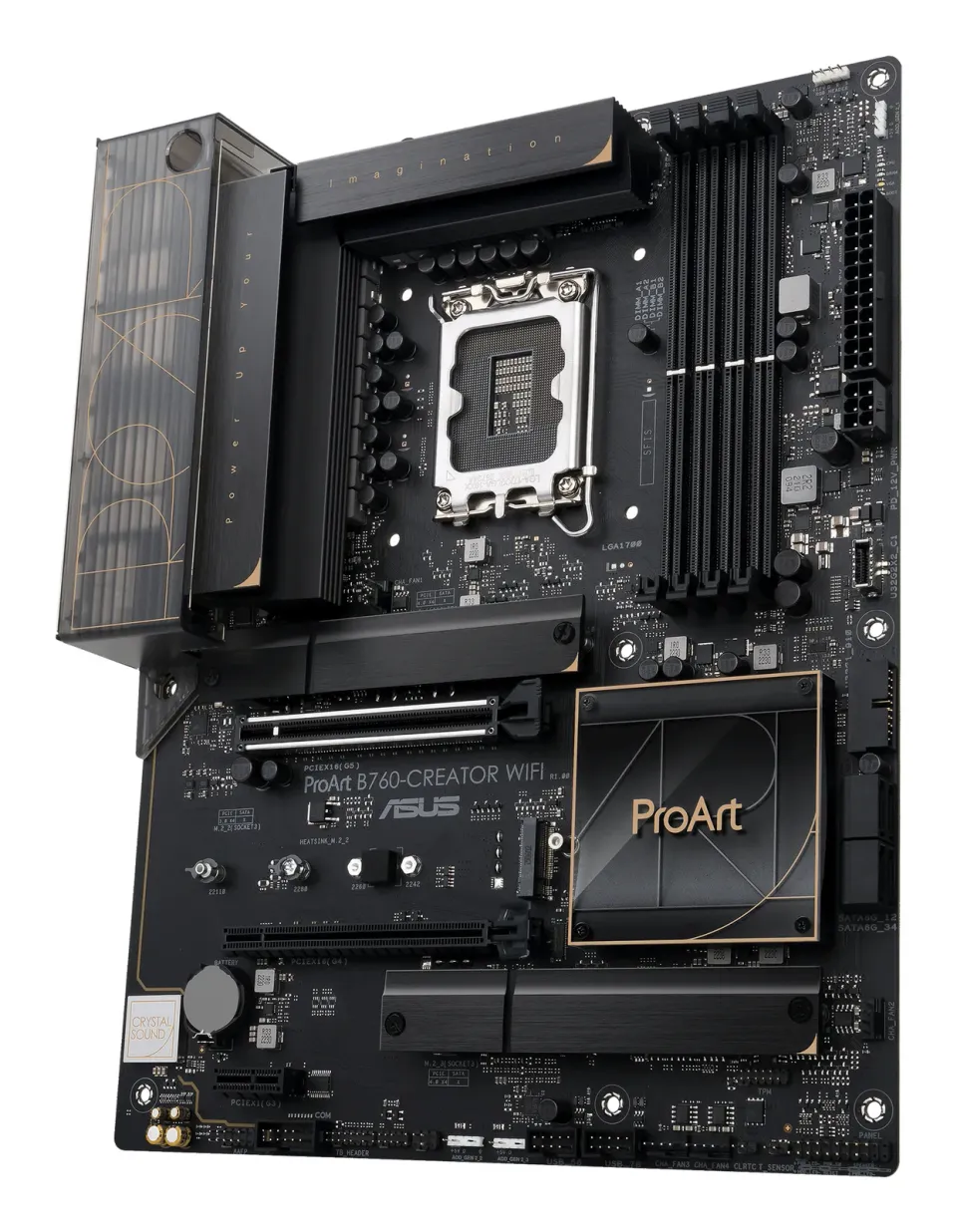

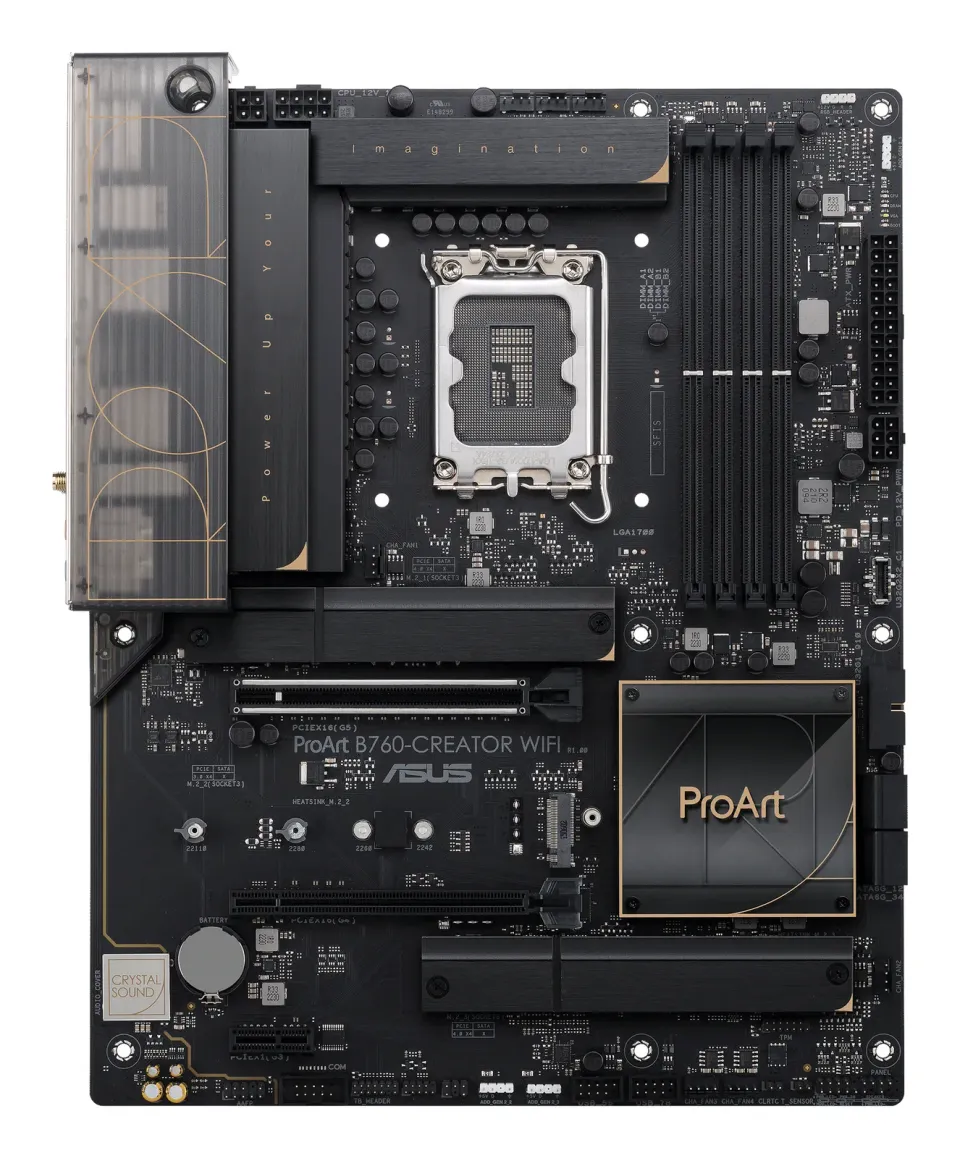

ASUS ProArt B760-CREATOR WIFI
ProArt B760-Creator WiFi is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 14th & 13th & 12th Gen Intel Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, WiFi 6, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™ 4 header.
Supports 14th Gen Intel Core™ Processors
CPU
Intel Socket LGA1700 for 14th Gen Intel Core™ & 13th Gen Intel Core™ & 12th Gen Intel Core™, Pentium Gold and Celeron Processors
Supports Intel 10 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel B760 Chipset
  Memory
  4 x DIMM slots, Max. 192GB, DDR5 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  OptiMem II
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
  Graphics
  1 x HDMI port**
  1 x DisplayPort port***
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Support 4K@60Hz as specified in HDMI 2.1.
  *** Support max. 8K@60Hz as specified in DisplayPort 1.4.
  Expansion Slots
  Intel 14th & 13th & 12th Gen Processors
  1 x PCIe 5.0/4.0/3.0 x16 slot
  Intel B760 Chipset*
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  1 x PCIe 3.0 x1 slot**
  ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 will be disable when M.2_2 runs at PCIe x4 mode by manually enabled.
  Storage
  Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports*
  Intel 14th & 13th & 12th Gen Processors
  M.2_1 slot (Key M), type 2242/2260/2280/22110

• Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode.
  Intel B760 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)**
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports

• Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
  ** M.2_2 slot shares bandwidth with PCIe X1 and WiFi module and will run at PCIe 3.0 x2 by default. You need to set M.2_2 running at PCIe 3.0 x4 by manually enabled in BIOS.
  Ethernet
  1 x Realtek 2.5Gb Ethernet
  1 x Intel 1Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  Wi-Fi 6
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.2*
  The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications
  USB
  Rear USB (Total 9 ports)
  1 x USB 3.2 Gen 2 (10G) Type-C port
  4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 7 ports)
  1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C with 60W PD/QC4+)
  1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
  Audio Features
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit

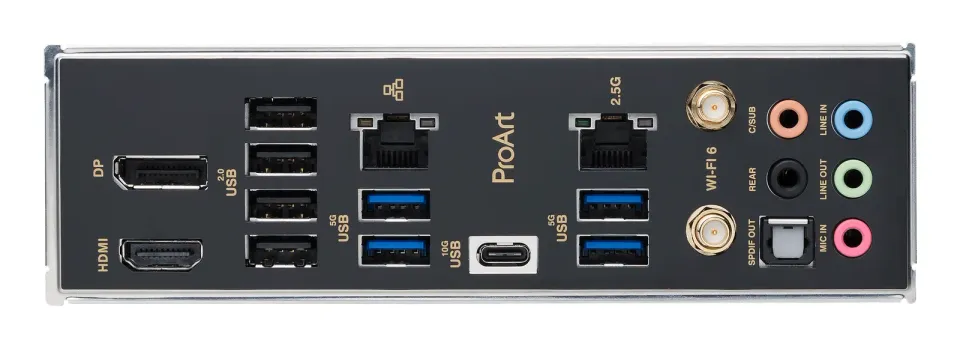

  Back Panel I/O Ports
  1 x USB 3.2 Gen 2 port (1 x USB Type-C)
  4 x USB 3.2 Gen 1 ports (4 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMITM port
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet port
  1 x Intel 1Gb Ethernet port
  5 x Audio jacks
  1 x Optical S/PDIF out port
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  1 x 4-pin +12V Power connector
  1 x 6-pin PD_12V Power connector
  Storage related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C with 60W PD/QC4+)
  1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  1 x AURA RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x SPI TPM header (14-1pin)
  1 x 20-5 pin System Panel header
  1 x Thermal Sensor header
  1 x Thunderbolt™ header
  Special Features
  ASUS 5X PROTECTION III
• DIGI+ VRM (- Digital power design with DrMOS)
• Enhanced DRAM Overcurrent Protection
• ESD Guards
• LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-Steel Back I/O
  ASUS Q-Design
• M.2 Q-Latch
• Q-Connector
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
  ASUS Thermal Solution
• Flexible M.2 heatsink
• VRM heatsink design
  ASUS EZ DIY
• ProCool
• Pre-mounted I/O shield
  AURA Sync
• AURA RGB header
• Addressable Gen 2 headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• AURA Creator
• AURA Sync
• Fan Xpert 4
• Power Saving
• Two-Way AI Noise Cancelation
  AI Suite 3
• Performance And Power Saving Utility
  DIGI+ VRM
  Turbo app
  ASUS CPU-Z
  IT Management software supported
• ASUS Control Center Express(ACCE)
  ProArt Creator Hub
  CreationFirst
  MyASUS
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  BIOS
  128 Mb
  Manageability
  WOL by PME, PXE

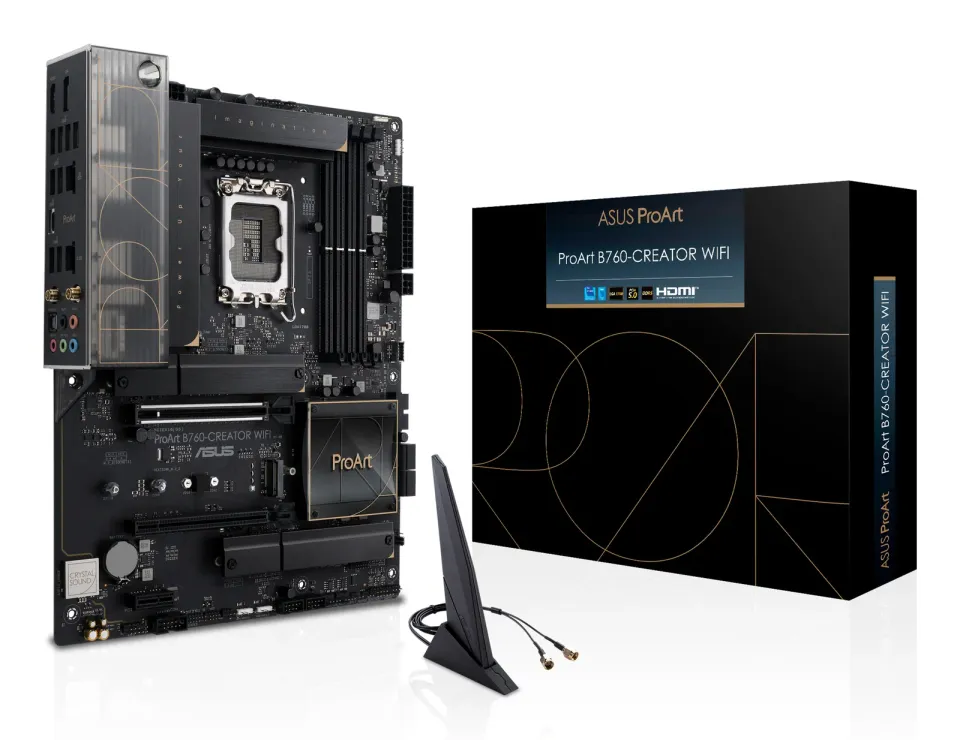

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  2 x M.2 Rubber packages
  1 x ProArt ruler
  1 x Q-connector
  Documentation
  1 x ACC Express Activation Key Card
  1 x User guide
  Operating System
  Windows 11 64-bit, Windows 10 64-bit
  Form Factor
  ATX Form Factor
  12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
