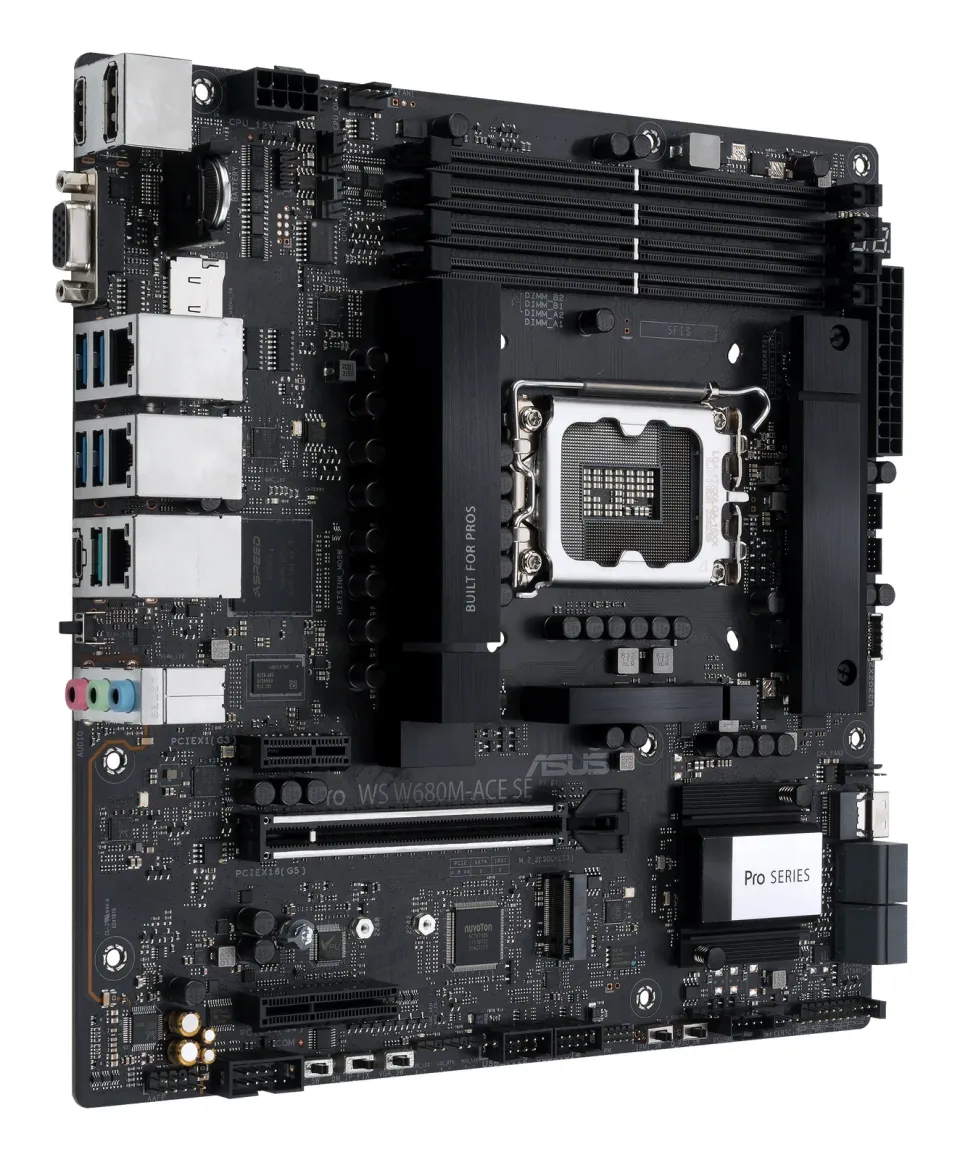

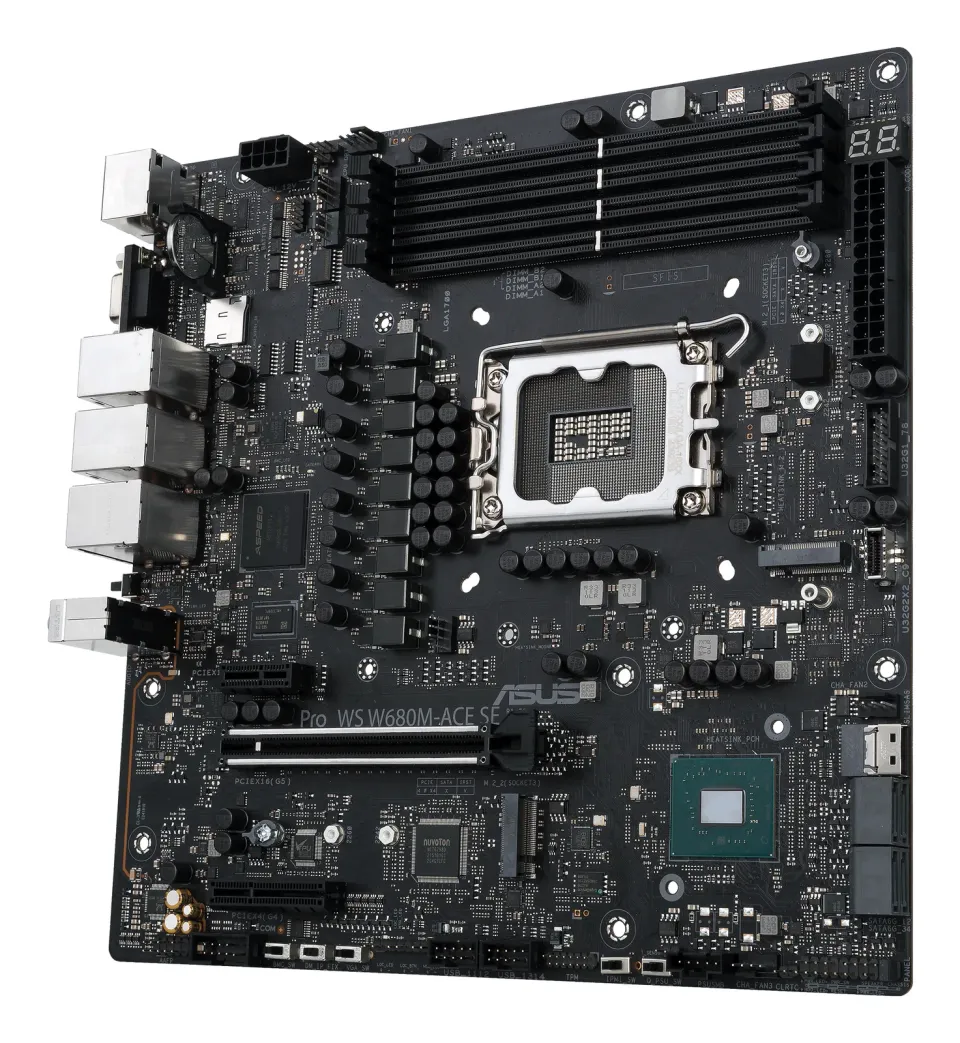

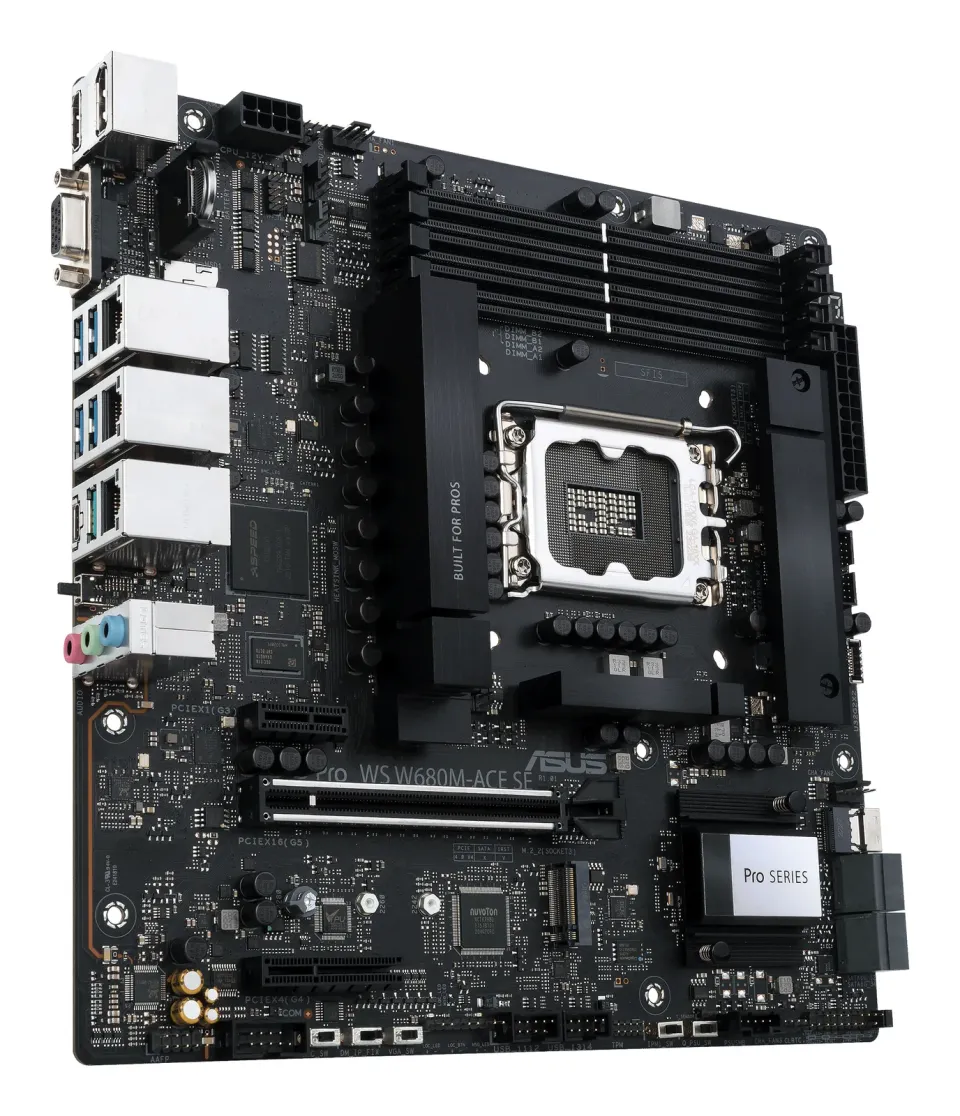

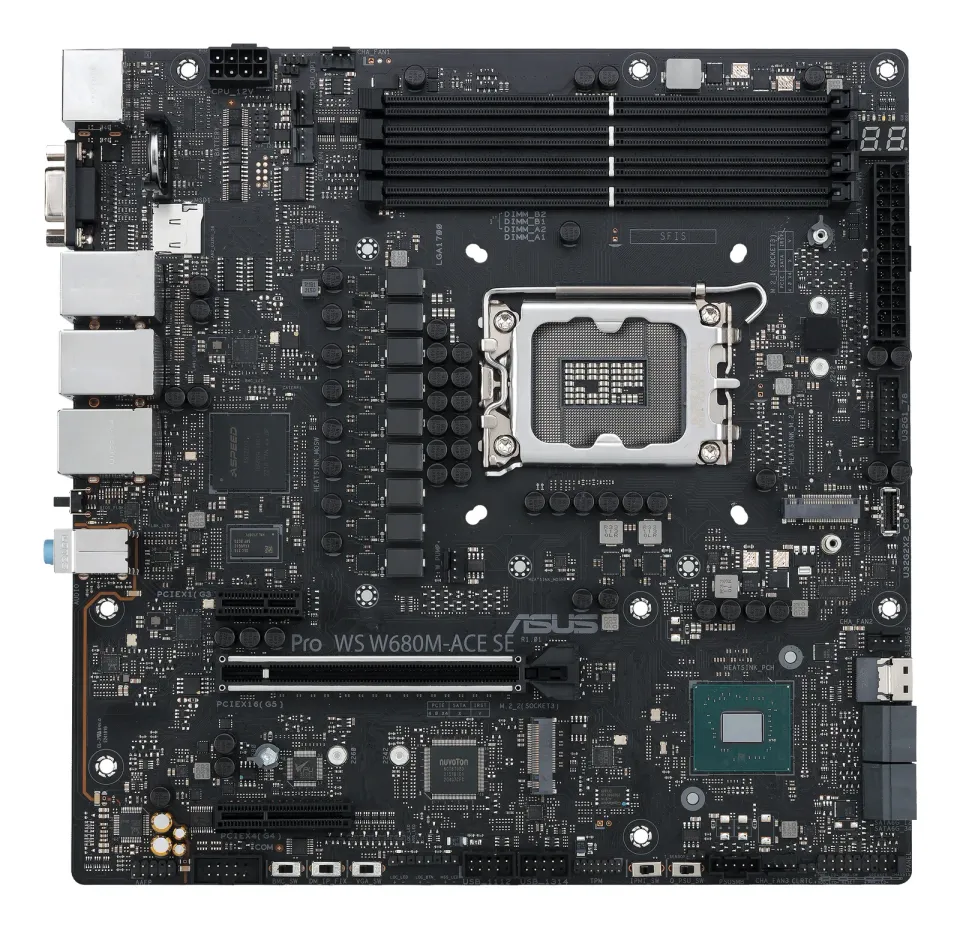

ASUS Pro WS W680M-ACE SE
Intel W680 LGA 1700 Micro-ATX motherboard with BMC AST2600 onboard , PCIe 5.0, DDR5 support, dual Intel 2.5 Gb Ethernet, 2 x PCIe 4.0 M.2 slots, plus a USB 3.2 Gen 2x2 front panel connector, SlimSAS, SATA 6 Gbps, HDMI™, DisplayPort and VGA(dedicated for BMC)

• Intel LGA 1700 socket: Ready for 13th Gen Intel Core™ processors & 12th Gen Intel Core™ Processors
• Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
• Next-gen connectivity: PCIe 5.0 Safeslot, 2 x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, TPM header
• Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Center Express
• Comprehensive cooling: VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
• Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
  CPU
  Intel Socket LGA1700 for 13th Gen Intel Core™ Processors & 12th Gen Intel Core™

• Refer to www.asus.com for CPU support list.
  Chipset
  Intel W680 Chipset
  Memory
  4 x DIMM, Max. 192GB, DDR5 ECC and Non-ECC Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  OptiMem II
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Onboard Graphics
  1 x DisplayPort**
  1 x HDMI port***
  1 x VGA port from AST2600
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  **Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  ***Supports 4K@60Hz as specified in HDMI 2.1.
  Audio
  Realtek Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
• You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  LAN
  Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Unique de-pop circuit
  Wireless & Bluetooth
  M.2 slot only (Key E, CNVi & PCIe)*
  Wi-Fi module is sold separately.
  Expansion Slots
  Intel 13th & 12th Gen Processors
• 1 x PCIe 5.0 x16 slot
  Intel W680 Chipset
• 1 x PCIe 4.0 x4 slot
• 1 x PCIe 3.0 x1 slot
  Storage Interface
  Total supports 2 x M.2 slots and 8 x SATA 6Gb/s ports*
  Intel 13th & 12th Gen Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel W680 Chipset**
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)***

• Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
  ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
  *** SlimSAS slot can support up to 4 SATA devices via a transfer cable. the cable is purchased separately.
  USB
  Rear USB (Total 6 ports)

• 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin W_PUMP+ header
  3 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  1 x SlimSAS port
  USB
  1 x USB 3.2 Gen 2x2 connector (supports USB Type-C )
  1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  1 x LPT header
  1 x T-sensor
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x SPI TPM header (14-1pin)
  1 x 20-3 pin System Panel header with Chassis intrude function
  BMC Related
  1 x BMC LED and switch
  1 x VGA switch1 x BMC LAN fixed IP switch
  1 x IPMI switch
  1 x Q_PSU switch
  1 x PSU SMBus header
  1 x VPP_I2C header
  1 x Micro SD card socket
  1 x BMC_T_SENSOR header
  1 x Location button header
  1 x Location LED and header
  1 x Message LED and header
  Back Panel Connectors
  -2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C)
  -4 x USB 3.2 Gen 1 ports (4 x Type-A)
  -1 x DisplayPort
  -1 x HDMI port
  -1 x VGA port from AST2600
  -2 x Intel 2.5Gb Ethernet ports
  -1 x Realtek 1Gb Ethernet dedicated for AST2600
  -3 x Audio jacks
  -1 x BIOS FlashbackTM button
  -2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C)
  -4 x USB 3.2 Gen 1 ports (4 x Type-A)
  -1 x DisplayPort
  -1 x HDMI port
  -1 x VGA port from AST2600
  -2 x Intel 2.5Gb Ethernet ports
  -1 x Realtek 1Gb Ethernet dedicated for AST2600
  -5 x Audio jacks
  -1 x BIOS FlashbackTM button
  Special Features
  ASUS 5X PROTECTION III
• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards
• LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-Steel Back I/O
  ASUS Q-Design
• Q-Code
• M.2 Q-Latch
• Q-Connector
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
  ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design
  ASUS EZ DIY
• CPU Socket lever protector
• SafeDIMM
• SafeSlot
• BIOS FlashBack™ button
• BIOS FlashBack™ LED
  Bespoke Motherboard Design & Business Focused Features
• 24/7 Reliability
  H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection…
