ASUS MB Sc LGA1700 PRO Q670M-C-CSM, Intel Q670, 4xDDR5, 2xDP, 1xHDMI, mATX

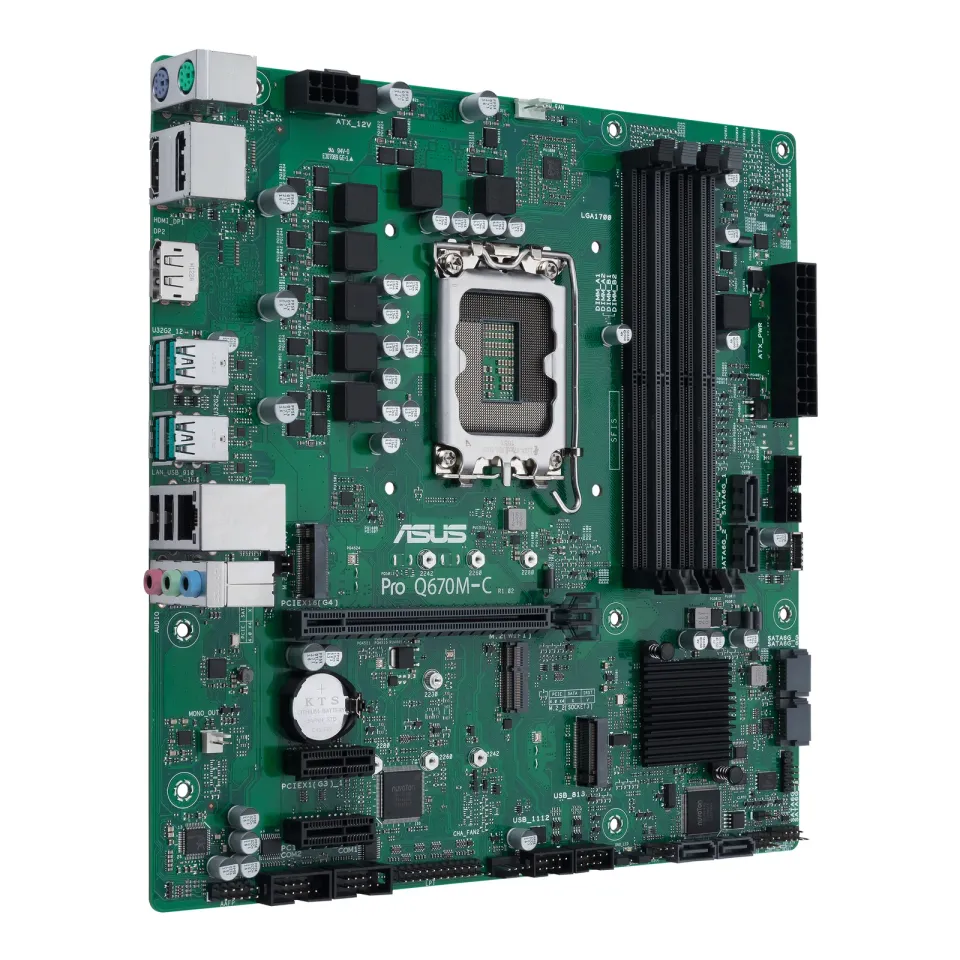

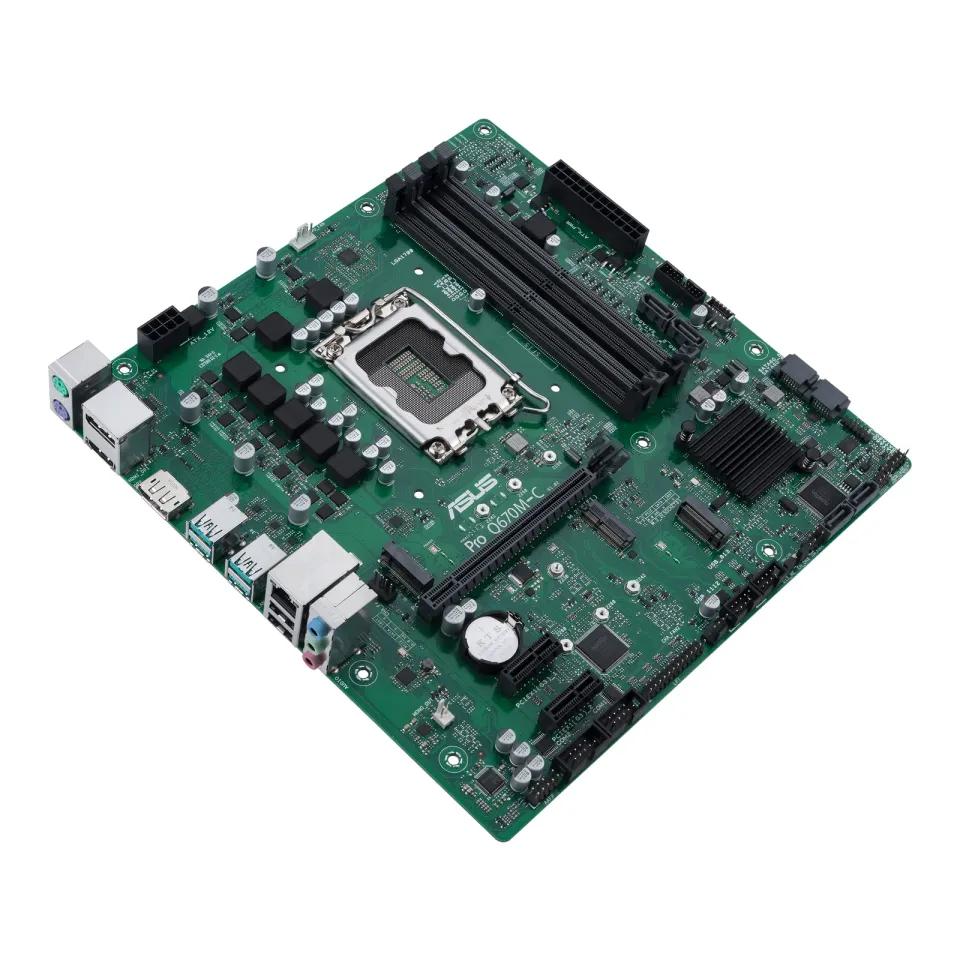

Pro Q670M-C-CSM
Micro-ATX Q670 business motherboard with Intel vPro support and enhanced security, reliability, manageability and serviceability

• Intel LGA 1700 socket: Ready for 14th and 13th Gen Intel Core™ processors
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
  Supports 14th Gen Intel Core™ Processors
  CPU
  Intel Socket LGA1700 for Intel Core™ 14th & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron ProcessorsSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel Q670 Chipset
  Memory
  4 x DIMM, Max. 128GB, DDR5 4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  Optimem II
  Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  Graphics
  1 x HDMI 2.0
  2 x DisplayPort*
  1 x HDMI***
• Graphics specifications may vary between CPU types.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  **** VGA resolution support depends on processors' or graphic cards' resolution.
  Expansion Slots
  Intel Core™ Processors (14th & 13th & 12th Gen)*
  1 x PCIe 4.0/3.0 x16 slot
  Intel Q670 Chipset
  2 x PCIe 3.0 x1 slots
• Please check PCIe bifurcation table in support site.
  Storage
  Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports*
  Intel 14th & 13th & 12th Gen Processors
  M.2_1 slot (Key M), type 2242/2260/2280

• Intel 12th Gen processors support PCIe 4.0 x4 mode
  Intel Q670 Chipset**
  M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
  6 x SATA 6Gb/s ports

• Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
  ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
  Ethernet
  1 x Intel 1Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  Wi-Fi module is sold separately.
  USB
  Rear USB:Total 6 ports
  4 x USB 3.2 Gen 2 ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB:Total 7 ports
  1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports: Jack-detection, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback "

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

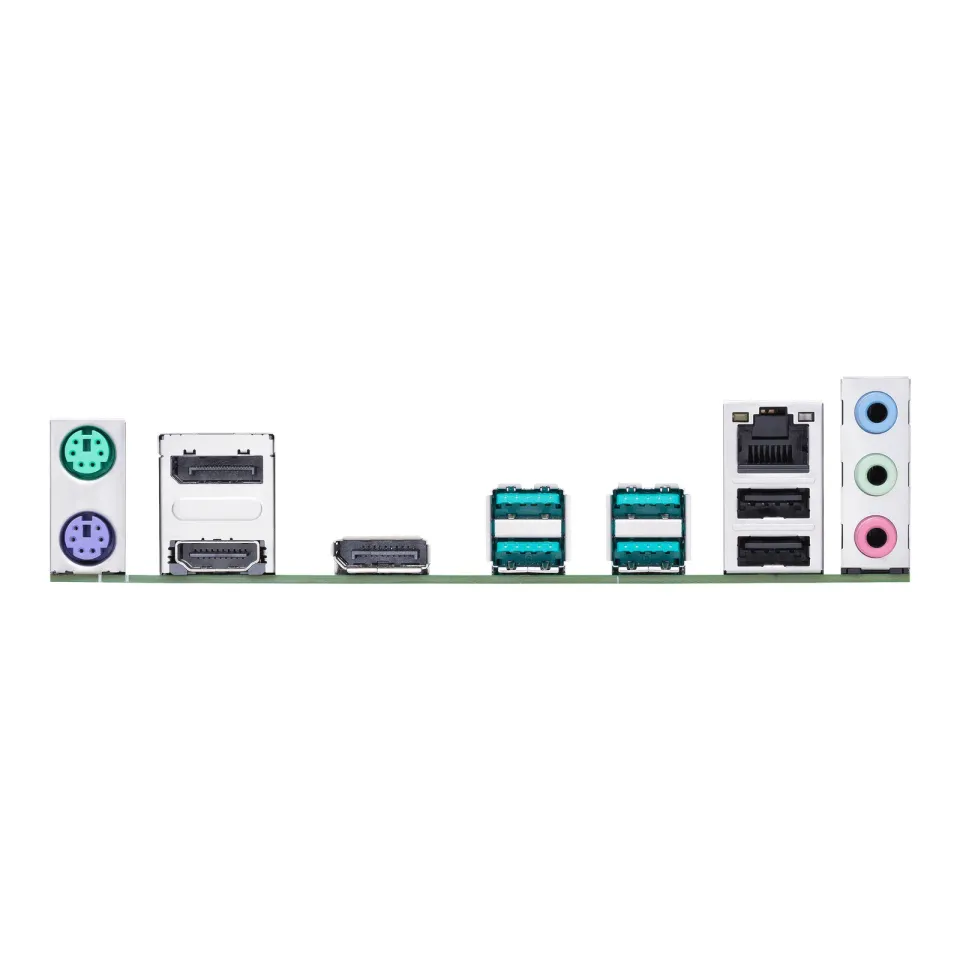

  Back Panel I/O Ports
  4 x USB 3.2 Gen 2 ports (4 x Type-A)
  2x USB 2.0 ports (2 x Type-A)
  2 x DisplayPort
  1 x HDMI port
  3 x Audio jacks
  1 x Intel 1Gb Ethernet
  1 x PS/2 keyboard (purple) port
  1 x PS/2 mouse (green) port
  Internal I/O Connectors
  Fan and cooling related
  1 x 4-pin CPU Fan header
  2 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  6 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 4 USB 2.0 ports
  Miscellaneous
  1 x Clear CMOS header
  1 x Chassis Intrude header
  2 x COM Port headers
  1 x Front Panel Audio header (AAFP)
  1 x COM debug header
  1 x DIS ME jumper
  1 x LPT header
  1 x Mono-out header(with Amp IC)
  1 x M.2 slot (Key E)
  1 x Speaker header
  1 x 10-1 System Panel header
  Special Features
  ASUS EZ DIY

• Box Headers
  Bespoke Motherboard Design & Business Focused Features
• ASUS Boot Defender
• Q-LED Core
• ASUS Self Recovering BIOS
• ASUS Event Log
• ASUS Commercial BIOS kit
• Anti-Moisture
• 24/7 Reliability
• Overcurrent Protection
  TPM 2.0 IC onboard
  Software Features
  ASUS Exclusive Software
  IT Management software supported
• ASUS Control Center Express(ACCE)
  BIOS
  256 Mb Flash ROM
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O Shield
  1 x M.2 SSD screw package
  1 x M.2 Key E screw package
  Installation Media
  1 x Support DVD
  Documentation
  1 x ACC Express Activation Key Card
  1 x User guide
  Operating System
  Windows 11, Windows 10 64-bit
  Form Factor
  mATX Form Factor
  24.4 cm x 24.4 cm

Formát základní desky: micro ATX
Chipset: Intel Q670
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 2
SATA 3: 6
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 1
PCI Express x8: 0
PCI Express x1: 2
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: bez
DisplayPort: 2
HDMI: 1
VGA: 0
DVI: 0
