ASUS MB Sc LGA1700 PRIME H610M-D, Intel H610, 2xDDR5, 1xHDMI, 1xVGA, mATX

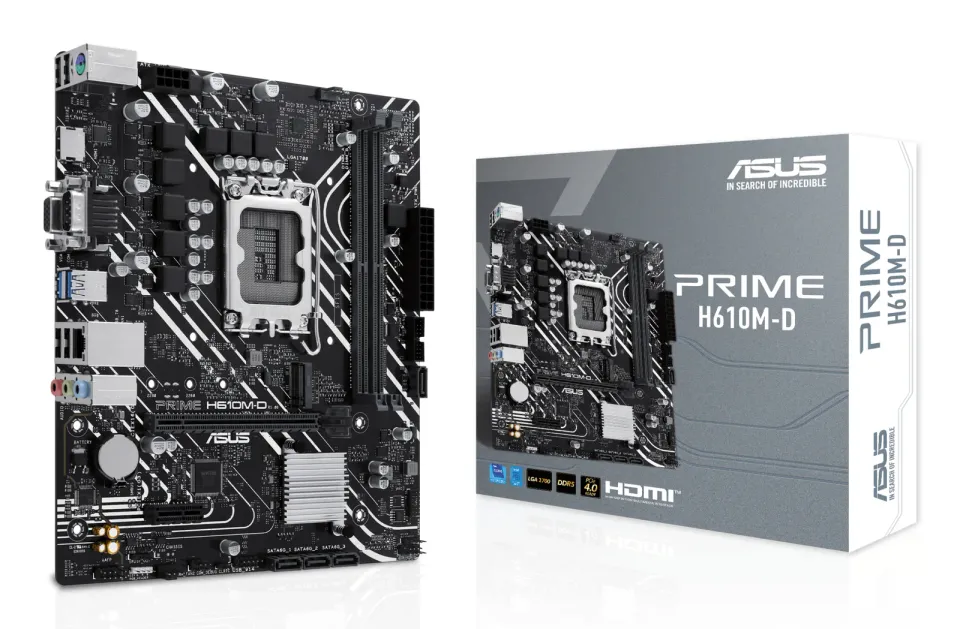

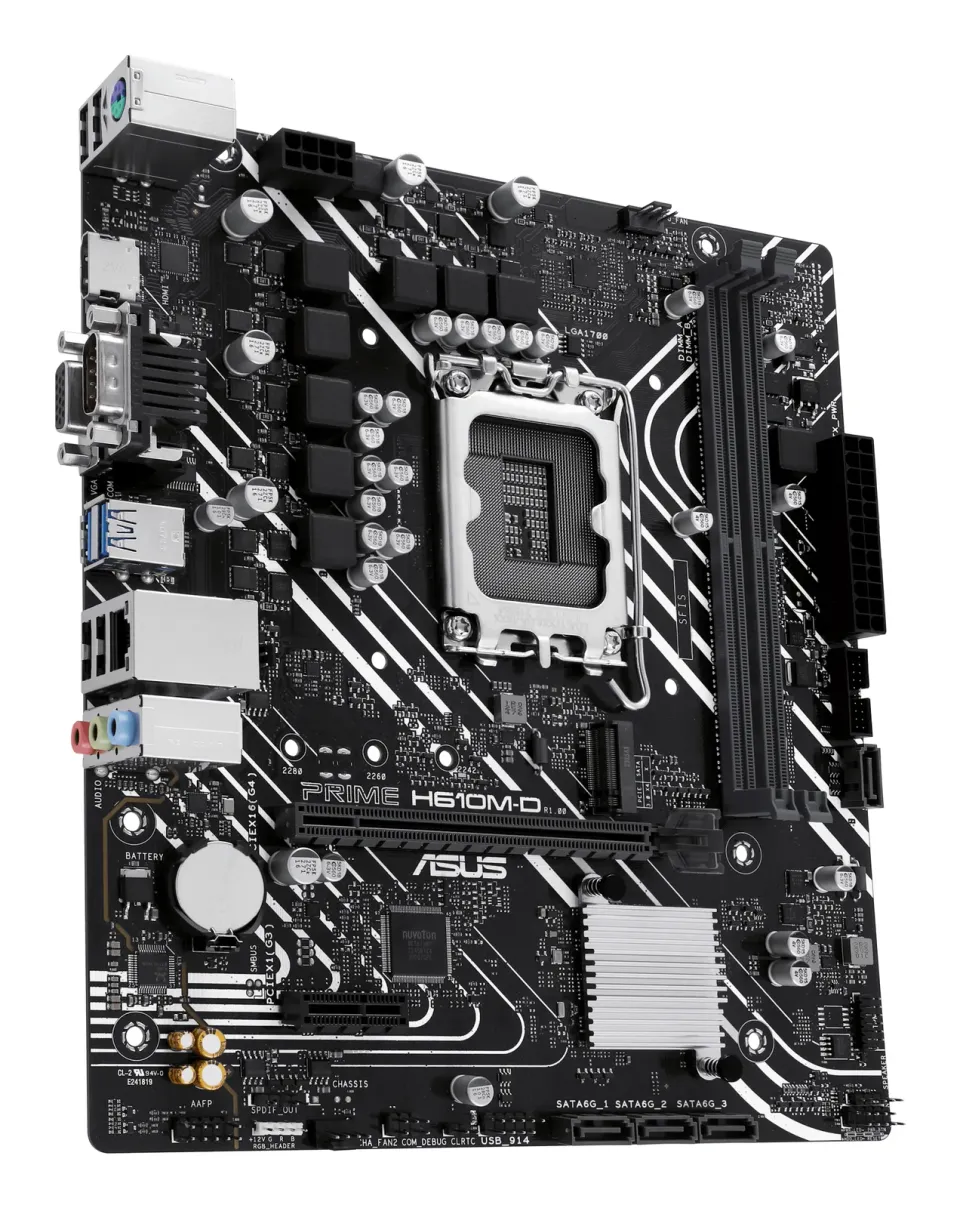

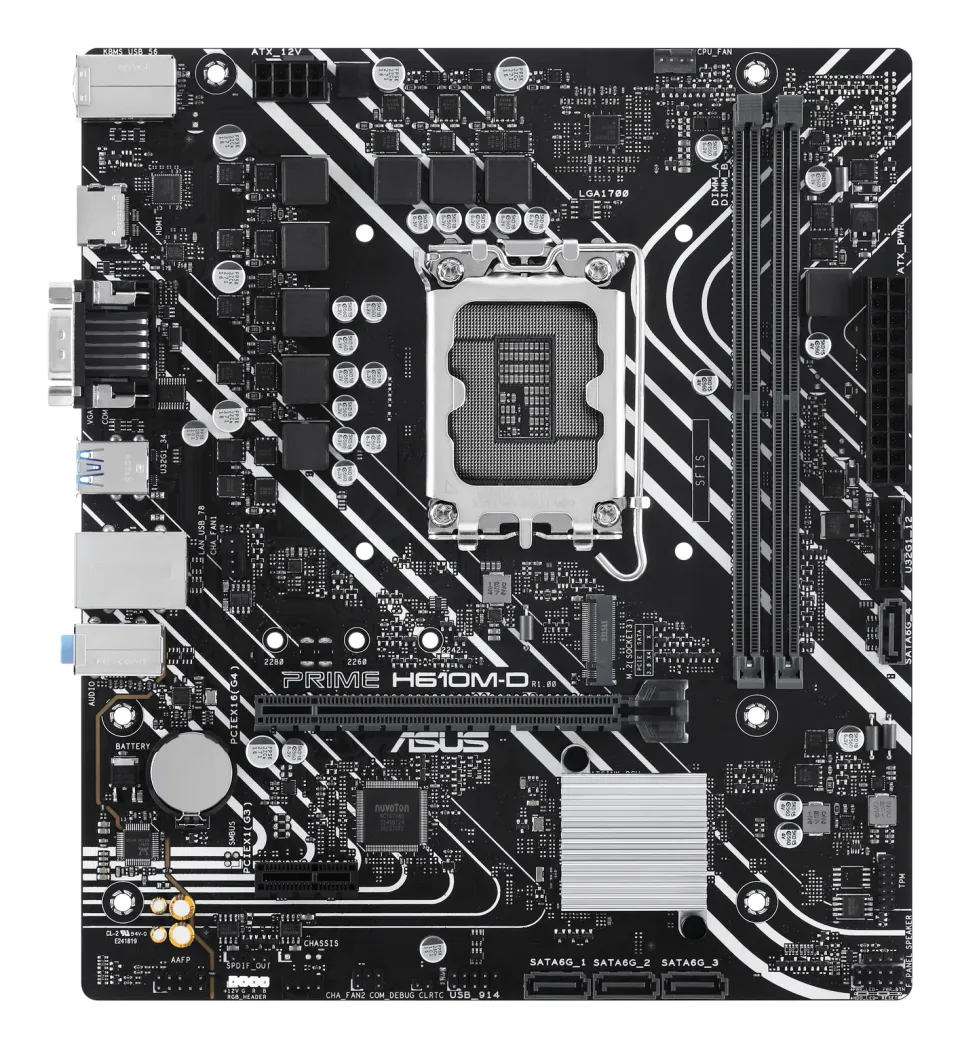

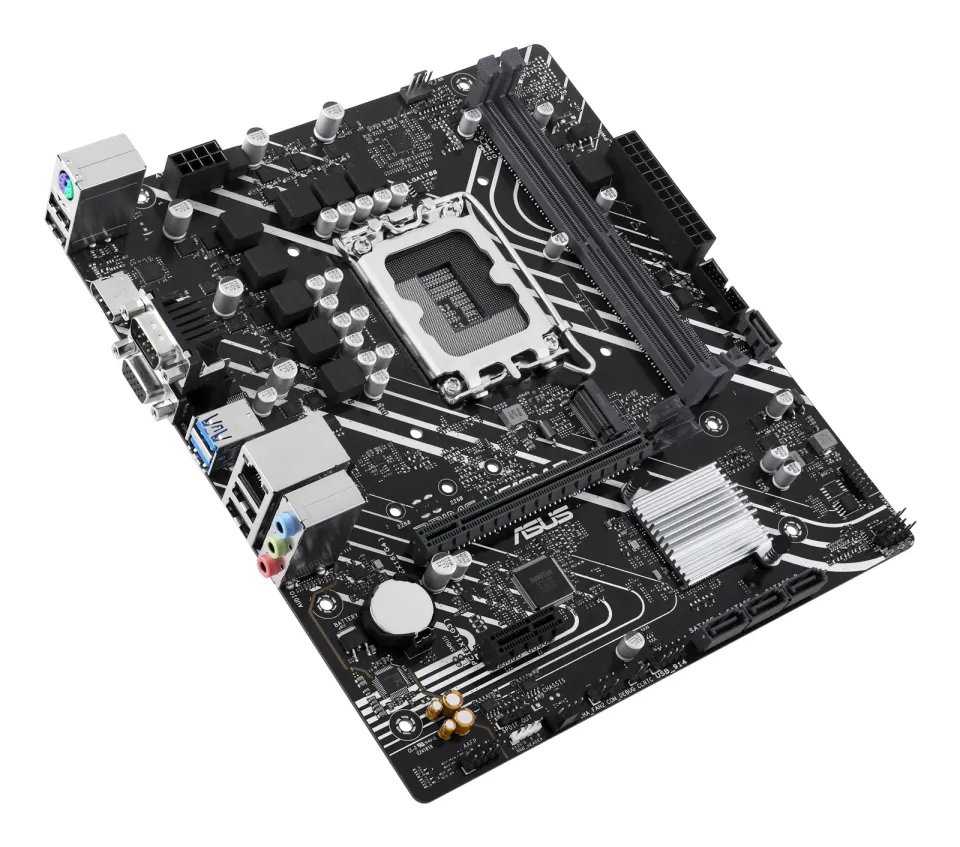

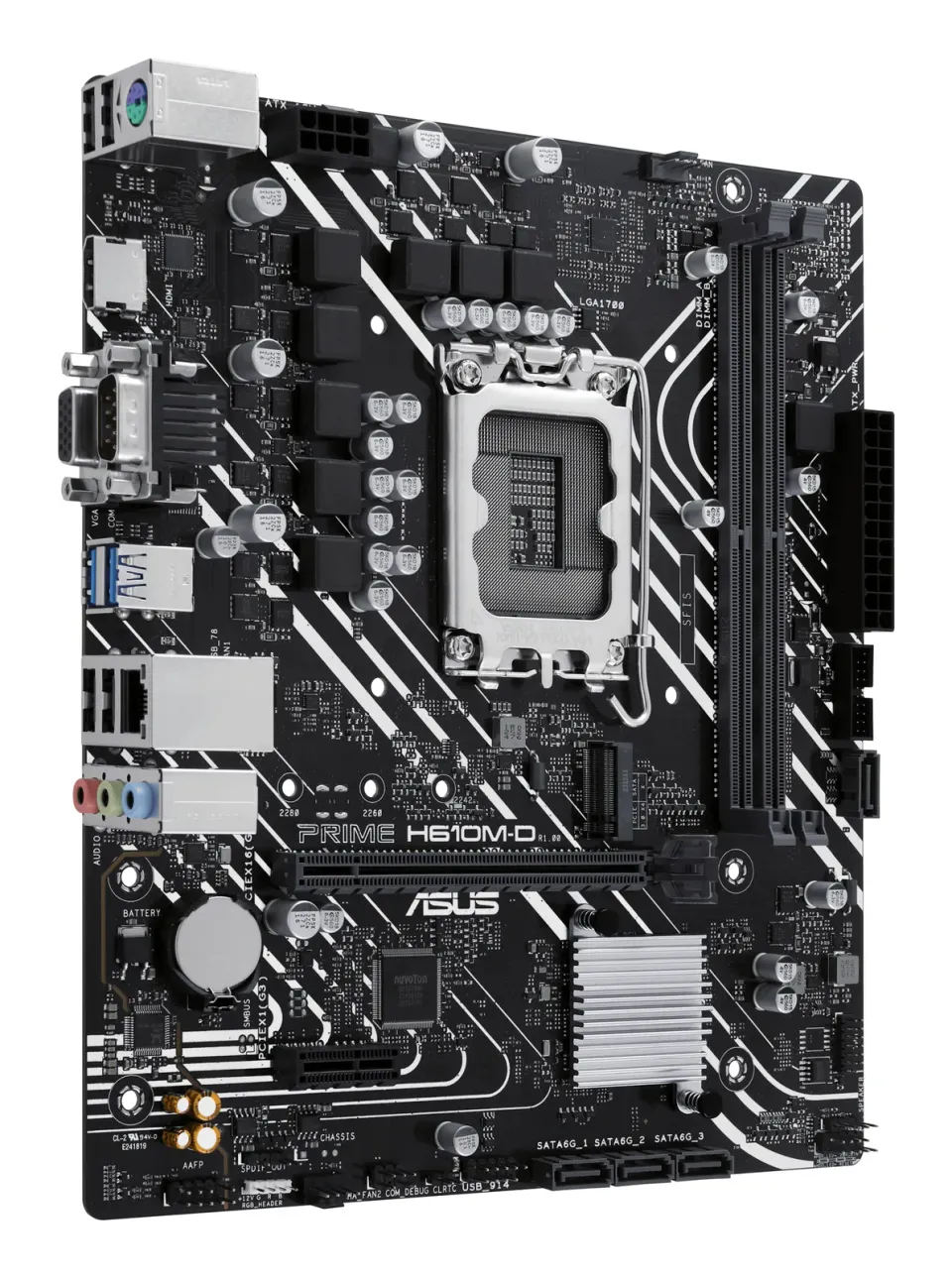

ASUS PRIME H610M-D
Intel H610 (LGA 1700) mic-ATX motherboard with DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM port, LPT header, RGB header

• Intel LGA 1700 socket: Ready for 13th & 12th Gen Intel processors
• Comprehensive cooling: PCH heatsink and Fan Xpert
• Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
• 5X Protection III: Multiple hardware safeguards for all-round protection
  CPU
  Intel Socket LGA1700 for 13th Gen Intel Core™ Processors & 12th Gen Intel Core™, Pentium Gold and Celeron Processors*
  Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel H610 Chipset
  Memory
  2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics
  1 x D-Sub port
  1 x HDMI port**
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  Intel 13th & 12th Gen Processors
  1 x PCIe 4.0 x16 slot
  Intel H610 Chipset
  1 x PCIe 3.0 x1 slot
  Storage
  Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  Intel H610 Chipset
  M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  4 x SATA 6Gb/s ports
• The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.
  USB
  Rear USB (Total 6 ports)
  2 x USB 3.2 Gen 1 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 4 ports)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports additional 2 USB 2.0 ports
  Ethernet
  1 x Realtek 1Gb Ethernet
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan header
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  1 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports additional 2 USB 2.0 ports
  Miscellaneous
  1 x RGB header
  1 x Clear CMOS header
  1 x Front Panel Audio header (AAFP)
  1 x LPT header
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header

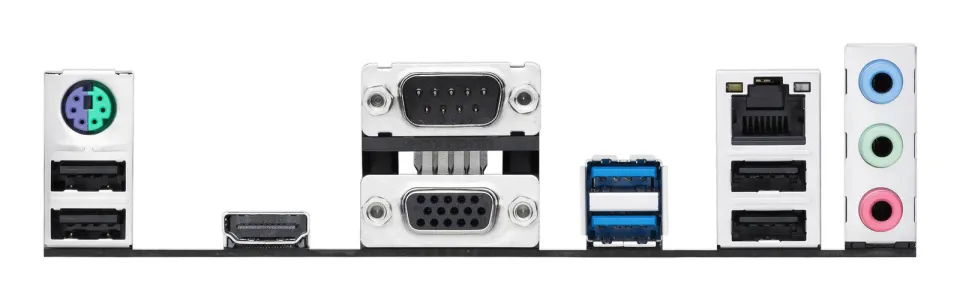

  Back Panel I/O Ports
  2 x USB 3.2 Gen 1 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x D-Sub port
  1 x HDMI port
  1 x Realtek 1Gb Ethernet port
  3 x Audio jacks
  1 x COM port
  1 x PS/2 Keyboard/Mouse combo port
  Special Features
  ASUS 5X PROTECTION III

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O
  ASUS Q-Design
• Q-DIMM
• Q-Slot
  ASUS Thermal Solution
• Aluminum heatsink design
  ASUS Lighting Control
• RGB header
  Software Features
  ASUS Exclusive Software
  Armoury Crate
  AI Suite 3
• Performance And Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  Fan Xpert
  ASUS CPU-Z
  Norton Anti-virus software (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous

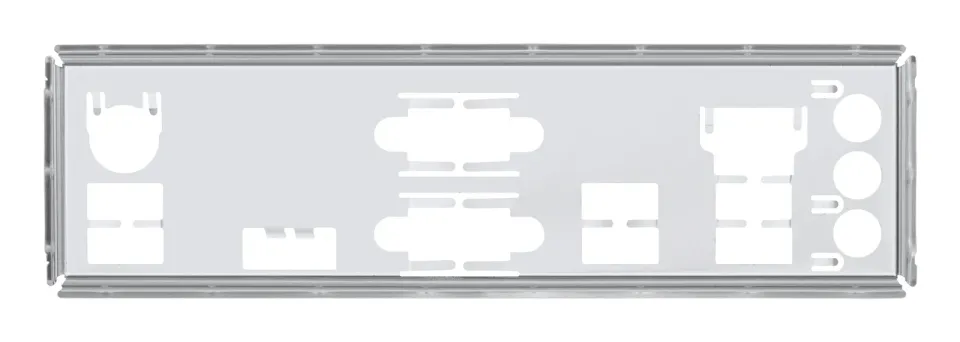

  1 x I/O Shield
  1 x M.2 ANCHOR
  Installation Media
  1 x Support DVD
  Documentation
  1 x User Guide
  Operating System
  Windows 11, Windows 10 64-bit
  Form Factor
  micro-ATX Form Factor
  23.4 cm x 20.3 cm

Formát základní desky: micro ATX
Chipset: Intel H610
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 1
SATA 3: 4
Podpora RAID: Bez RAID podpory
PCI Express x16: 1
PCI Express x8: 0
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: bez
DisplayPort: 0
HDMI: 1
VGA: 1
DVI: 0
