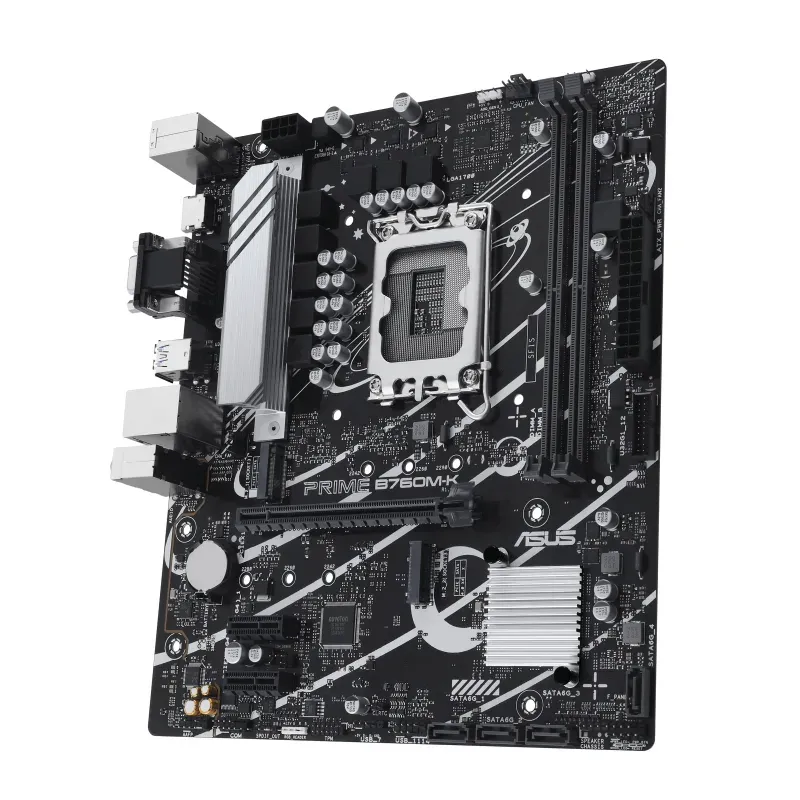

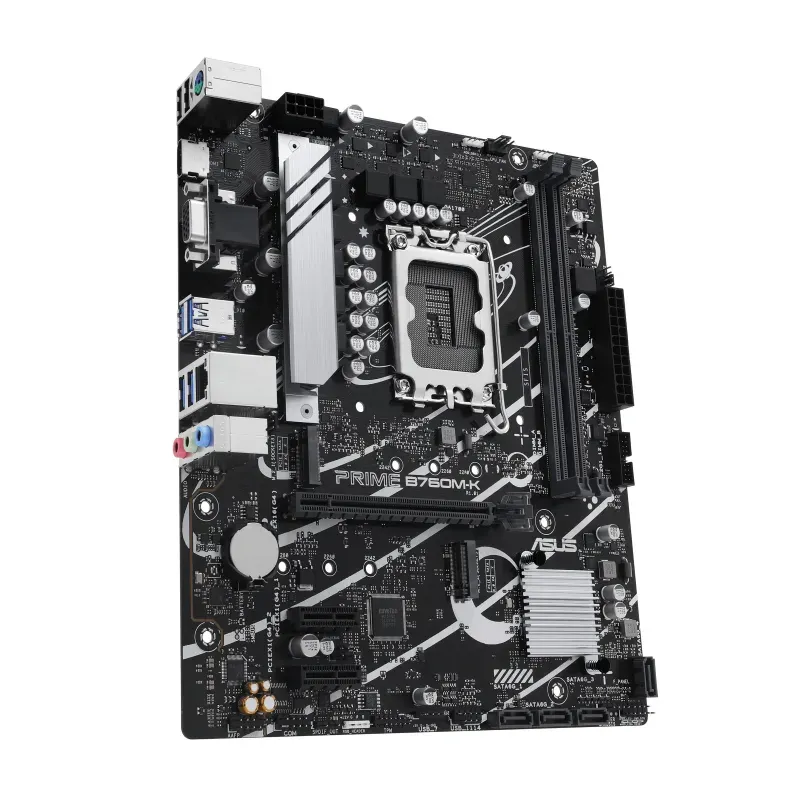

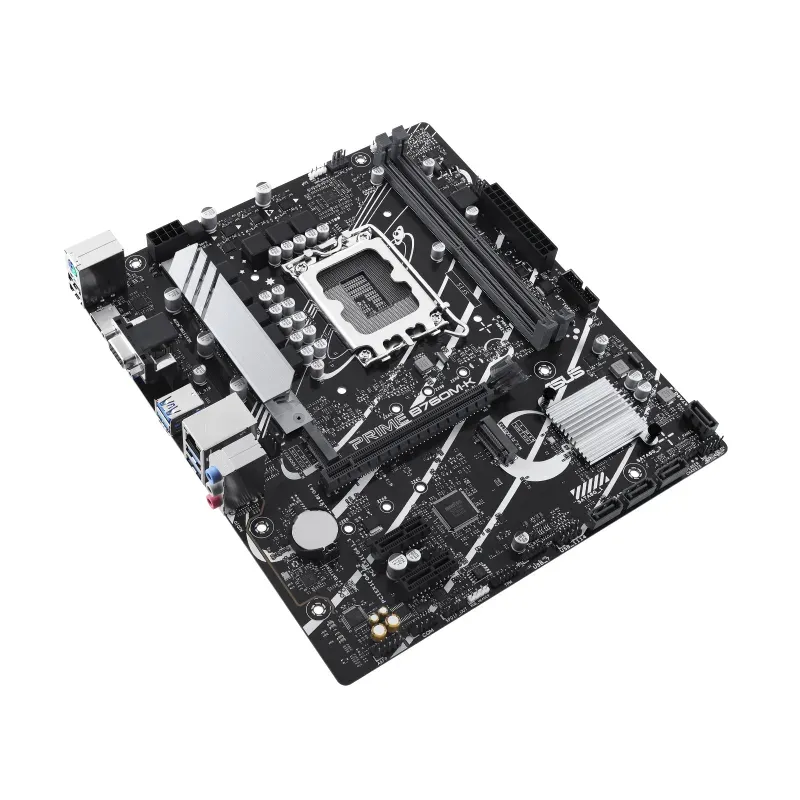

ASUS MB Sc LGA1700 PRIME B760M-K, Intel B760, 2xDDR5, 1xHDMI, 1xVGA, mATX

ASUS Základní deska PRIME B760M-K
ASUS Prime B760M-K, an Intel B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, VGA, HDMI™, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync
Intel LGA 1700 Socket: Ready for 14th and 13th and 12th Gen Intel processors

• Ultrafast Connectivity:PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
• Comprehensive Cooling:VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Aura Sync RGB Lighting:Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
  Supports 14th Gen Intel Core™ Processors
  CPU
  Intel Socket LGA1700 for 14th Gen Intel Core™ & 13th Gen Intel Core™ & 12th Gen Intel Core™, Pentium Gold and Celeron Processors*
  Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel B760 Chipset
  Memory
  2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics
  1 x VGA port
  1 x HDMITM port**
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports 4K@60Hz as specified in HDMITM 2.1.
  Expansion Slots
  Intel 14th & 13th & 12th Gen Processors
  1 x PCIe 4.0 x16 slot
  Intel B760 Chipset
  2 x PCIe 4.0 x1 slots

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
  Intel 14th & 13th & 12th Gen Processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  Intel B760 Chipset
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports

• Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
  Ethernet
  1 x Realtek 2.5Gb Ethernet
  USB
  Rear USB (Total 6 ports)
  4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

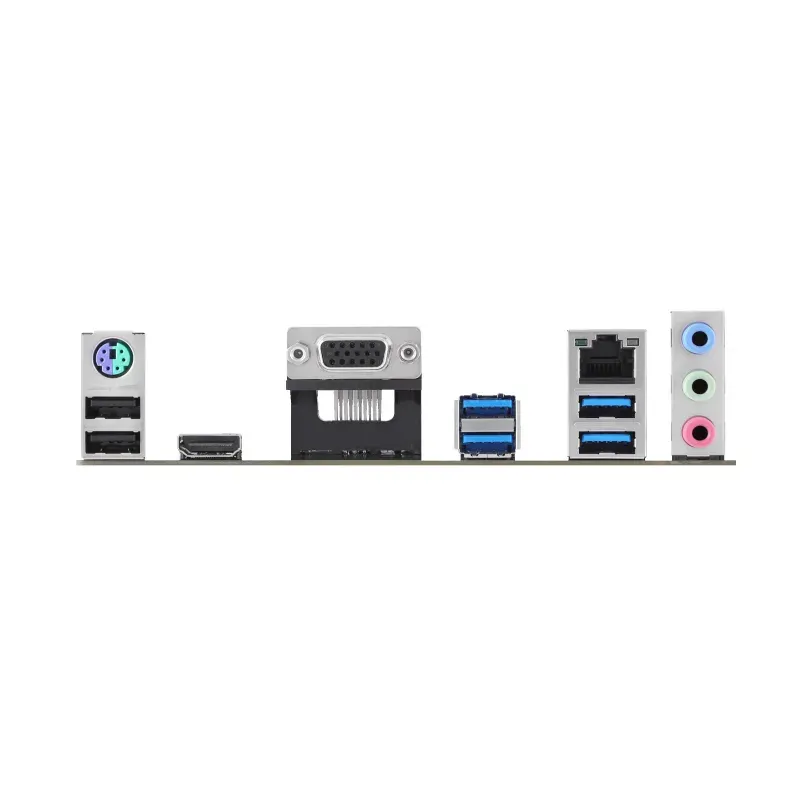

  Back Panel I/O Ports
  4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x VGA port
  1 x HDMITM port
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  2 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support 3 additional USB 2.0 ports
  Miscellaneous
  2 x Addressable Gen 2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header
  Special Features
  ASUS 5X PROTECTION III

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O
  ASUS Q-Design
• Q-DIMM
• Q-LED Core
• Q-Slot
  ASUS EZ DIY
• ProCool
  ASUS Thermal Solution
• VRM heatsink design
  Aura Sync
• Aura RGB header
• Addressable Gen 2 headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• Aura Sync
• Fan Xpert 2+
• Power Saving
• Two-Way AI Noise Cancellation
  AI Suite 3
• DIGI+ VRM
• PC Cleaner
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous

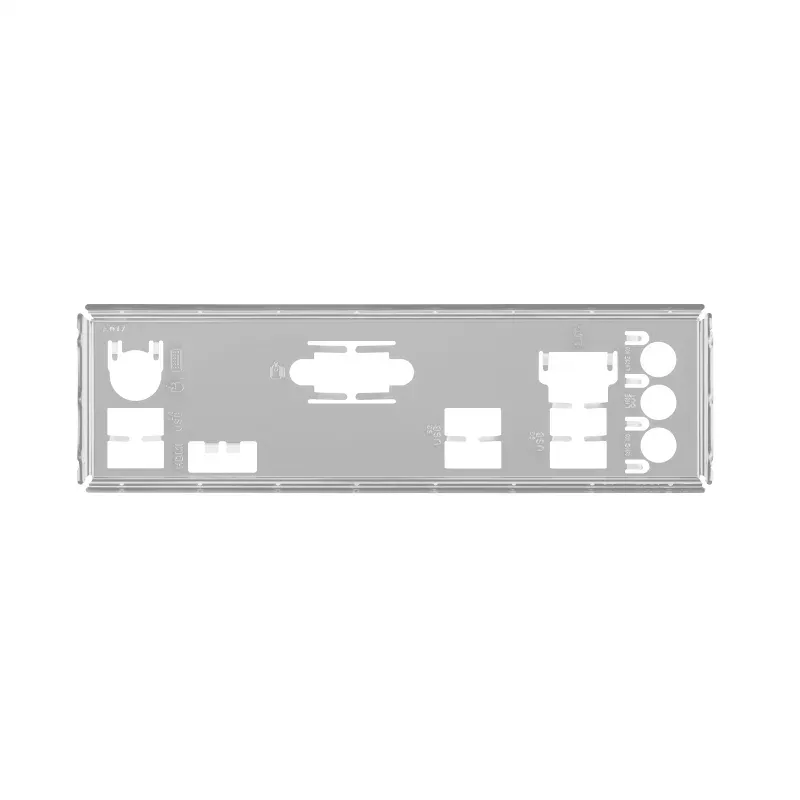

  1 x I/O Shield
  2 x M.2 anchors
  Documentation
  1 x User guide
  Operating System
  Windows 11, Windows 10 64-bit
  Form Factor
  mATX Form Factor
  24.4cm x 21.1cm

Formát základní desky: micro ATX
Chipset: Intel B760
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 2
SATA 3: 4
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 1
PCI Express x8: 0
PCI Express x1: 2
PCI: 0
LAN: 2.5Gbit/s
Bezdrátové připojení: bez
DisplayPort: 0
HDMI: 1
VGA: 1
DVI: 0
