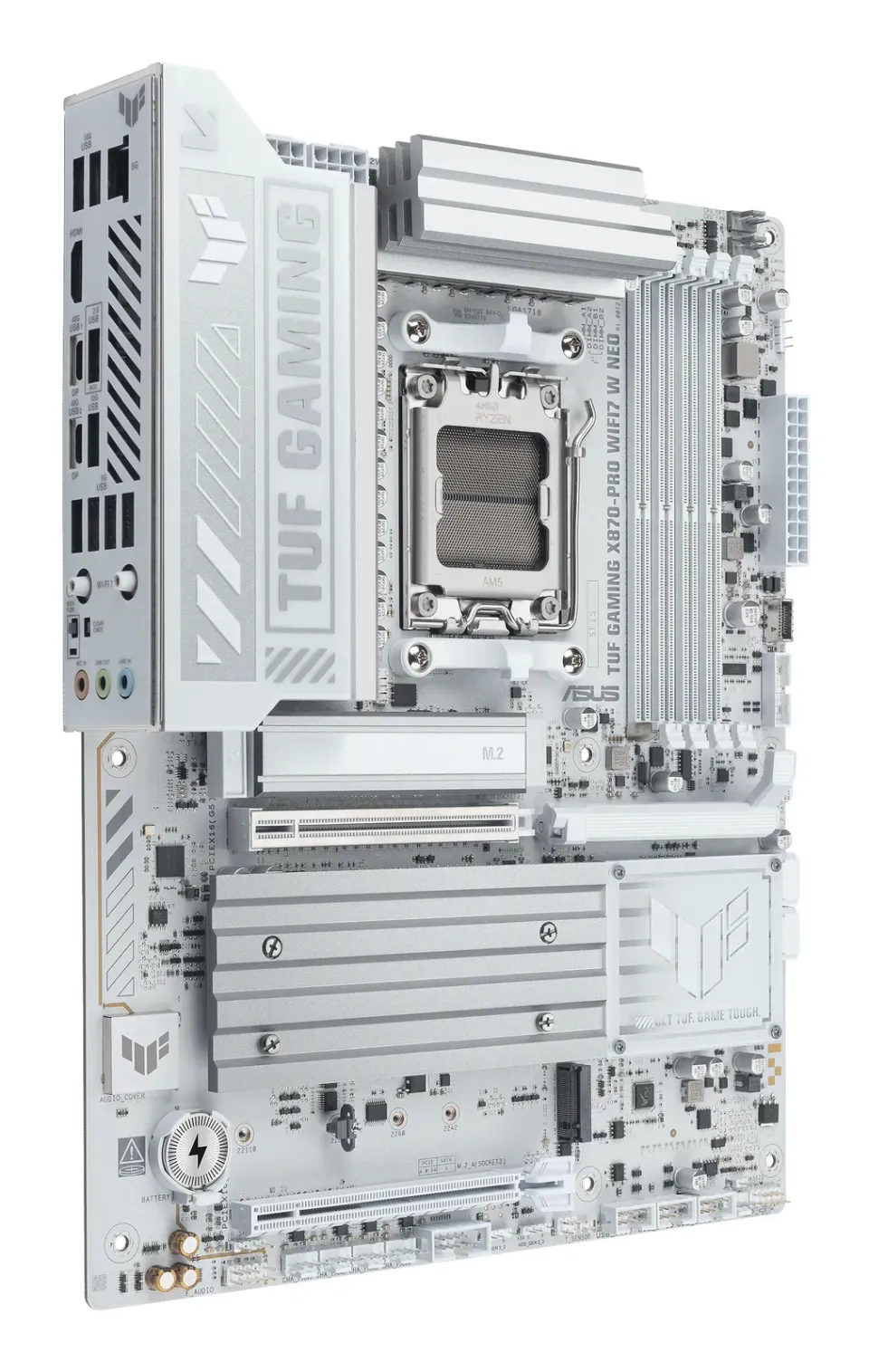

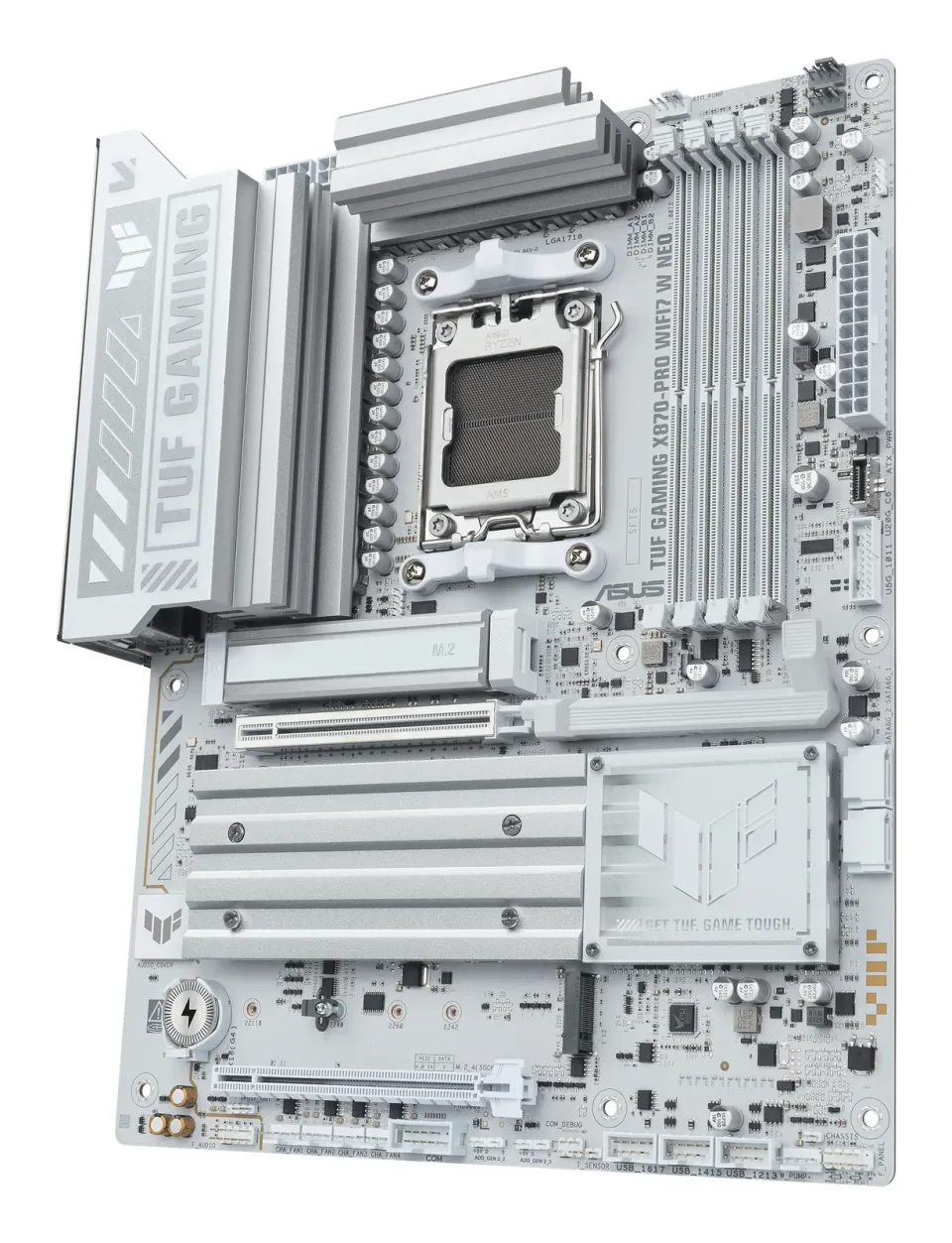

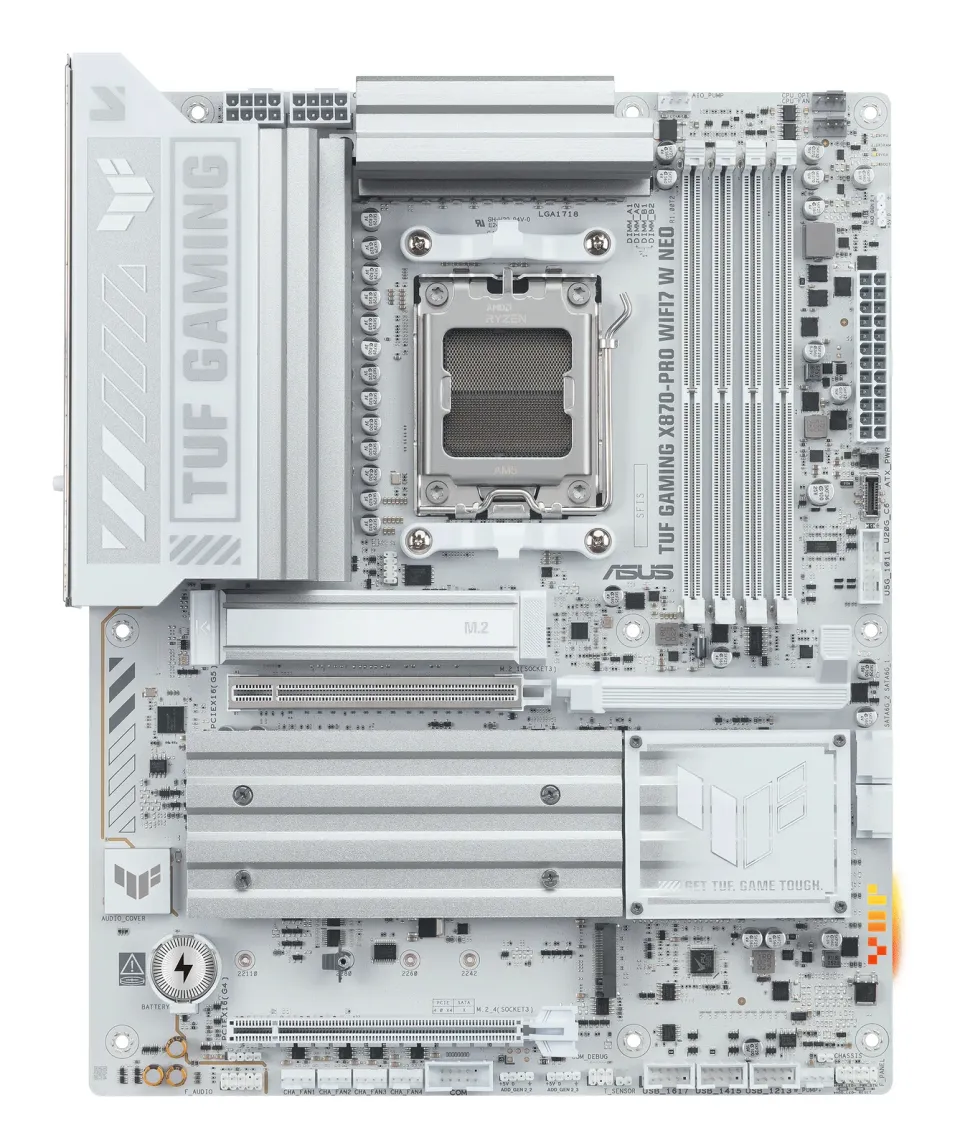

ASUS MB Sc AM5 TUF GAMING X870-PRO WIFI7 W NEO, AMD X870, 4xDDR5, 2xUSB4, 1xHDMI

ASUS TUF GAMING X870-PRO WIFI7 W NEO
ASUS TUF GAMING X870-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  Chipset
  AMD X870 Chipset
  Memory
  4 x DIMM slots, max. 256GB, DDR5
  Supports up to
  8600+MT/s(OC)/8200+MT/s(OC)* with Ryzen™ 9000 Series Processors,
  9600+MT/s(OC)/9000+MT/s(OC)* with Ryzen™ 8000 Series Processors,
  8000+MT/s(OC)/8000+MT/s(OC)* with Ryzen™ 7000 Series Processors,
  ECC and Non-ECC Un-buffered DIMM***
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  Supports DIMM Fit and DIMM Fit Pro
  NitroPath DRAM Technology
  ASUS Enhanced Memory Profile (AEMP)
• Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
  ** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For profile settings visit https://rog.asus.com/support/faq/1042256/.
  *** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  *** Supported memory types, data rate and number of DRAM modules vary depending on the CPU and memory configuration.
  Graphics
  1 x HDMI™ port**
  2 x USB4 (40Gbps) ports support USB Type-C display outputs***
• Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types.
  ** Supports 4K@60Hz as specified in HDMI 2.1.
  *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  1 x PCIe 5.0 x16 slot (supports x16 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
  AMD X870 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)***
• Please check the PCIe bifurcation table on the support site.
  ** Specifications vary by CPU types.
  *** Slot shares bandwidth with M.2_4 slot.
  Storage
  Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
  AMD X870 Chipset
  M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
  2 x SATA 6Gb/s ports
  RAID Support
  AMD RAIDXpert2 Technology
  Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10
  Ethernet
  1 x Realtek 5Gb Ethernet
  TUF LANGuard
  Wireless & Bluetooth
  Wi-Fi 7 (Realtek RTL8922AE)
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band
  Supports Wi-Fi 7 160MHz bandwidth
  Bluetooth v5.4 (supports LE Audio)
  USB
  Rear USB total 10 ports
  Front USB total 9 ports
  USB Type-C power delivery supported
  Audio
  Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
  Supports up to 32-Bit/192 kHz playback
  Audio Shielding, premium capacitors, dedicated PCB layers
  Back Panel I/O Ports
  USB4, USB 10Gbps, USB 5Gbps, USB 2.0, HDMI™, Wi-Fi module, Ethernet, Audio jacks, BIOS FlashBack™, Clear CMOS
  Internal I/O Connectors
  Fan headers, power connectors, M.2 slots, SATA ports, USB headers, RGB headers, front panel headers
  Special Features
  ASUS TUF PROTECTION
  ASUS Q-Design
  ASUS Thermal Solution
  ASUS EZ DIY
  Aura Sync
  Front Panel USB 20Gbps with PD Fast Charge Support
  Software Features
  Armoury Crate
  ASUS DriverHub
  DTS Audio Processing
  Adobe Creative Cloud Trial
  UEFI BIOS features
  BIOS
  64MB Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  2 x SATA cables
  WiFi Q-Antenna
  TUF Gaming sticker
  M.2 accessories
  Quick start guide
  Operating System
  Windows 11
  Form Factor
  ATX Form Factor
  12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Formát základní desky: ATX
Chipset: AMD X870
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 4
SATA 3: 2
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 3
PCI Express x8: 0
PCI Express x1: 0
PCI: 0
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 0
HDMI: 1
VGA: 0
DVI: 0
