ASUS MB Sc AM5 TUF GAMING B850-PRO WIFI7 W NEO, AMD B850, 4xDDR5, 1xHDMI, 1xDP

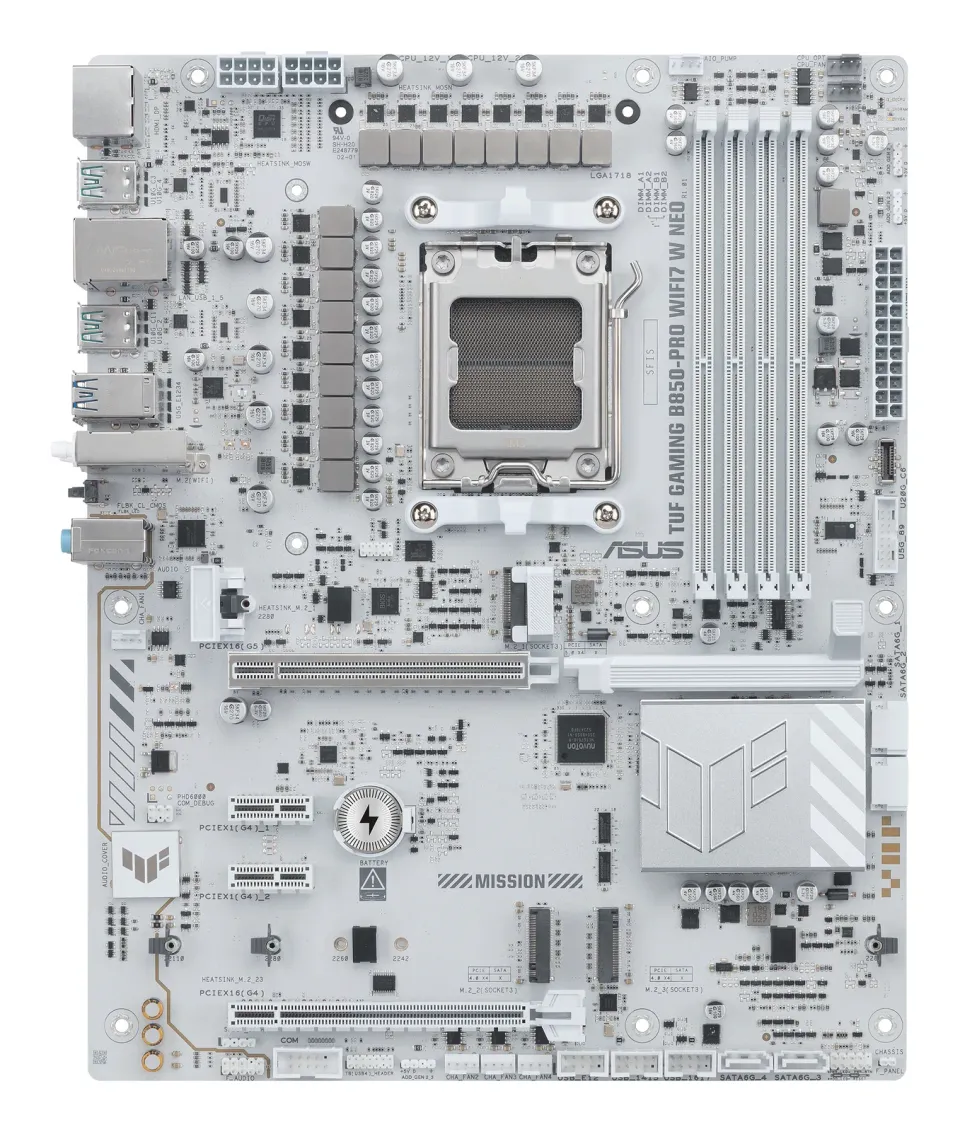

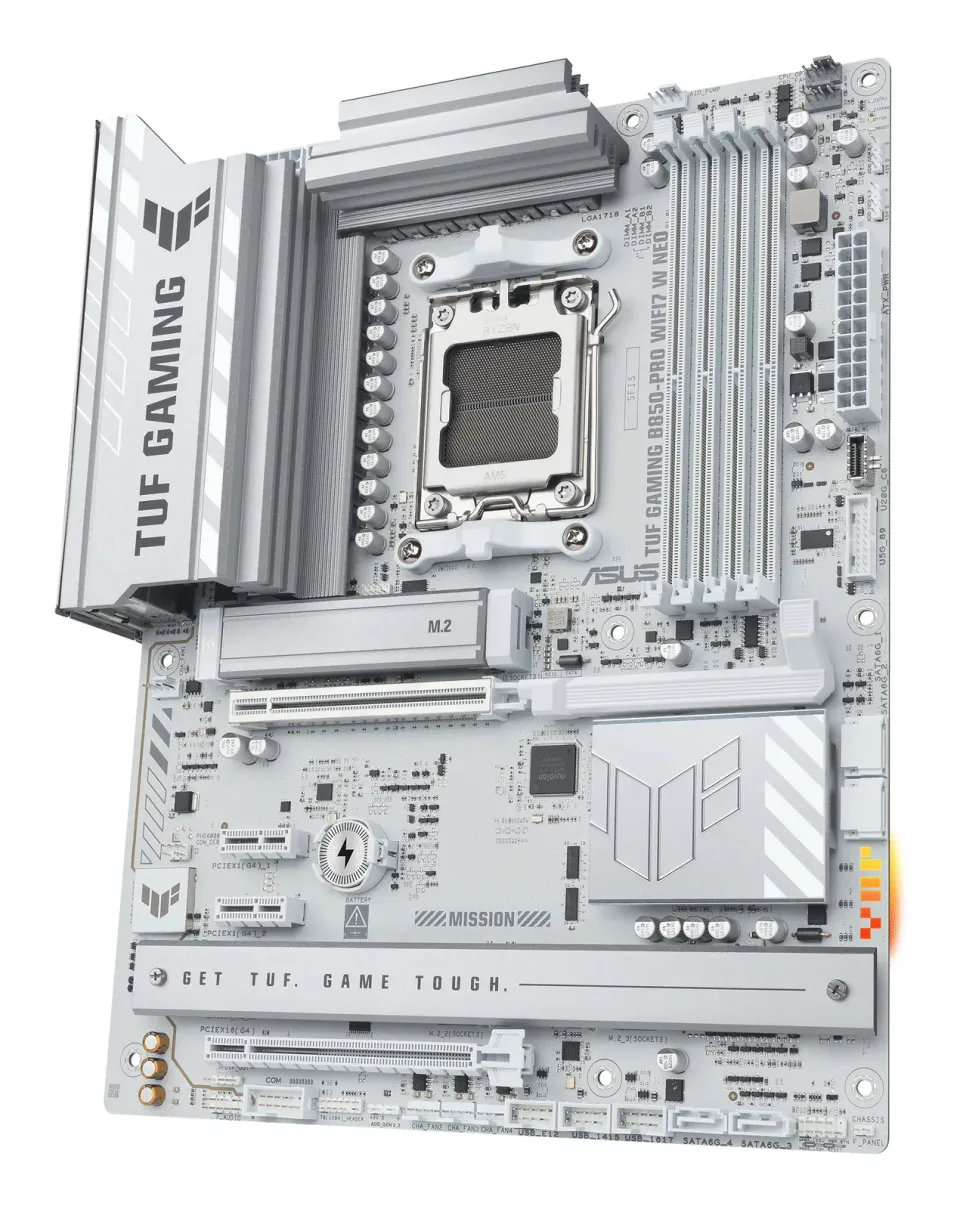

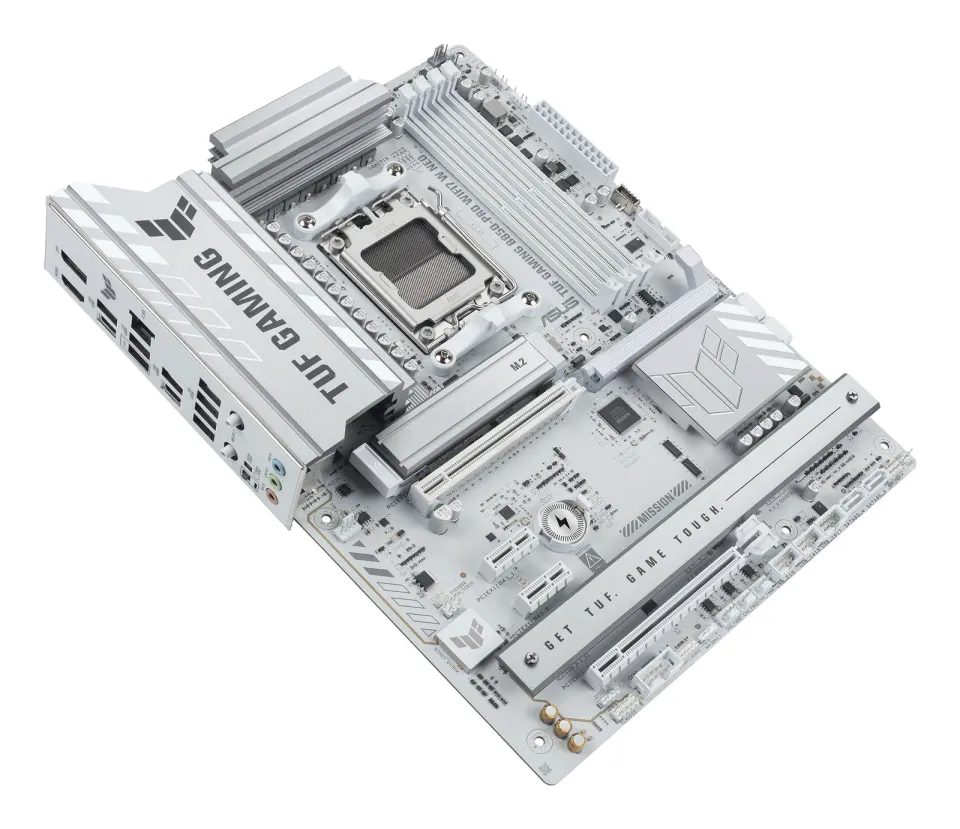

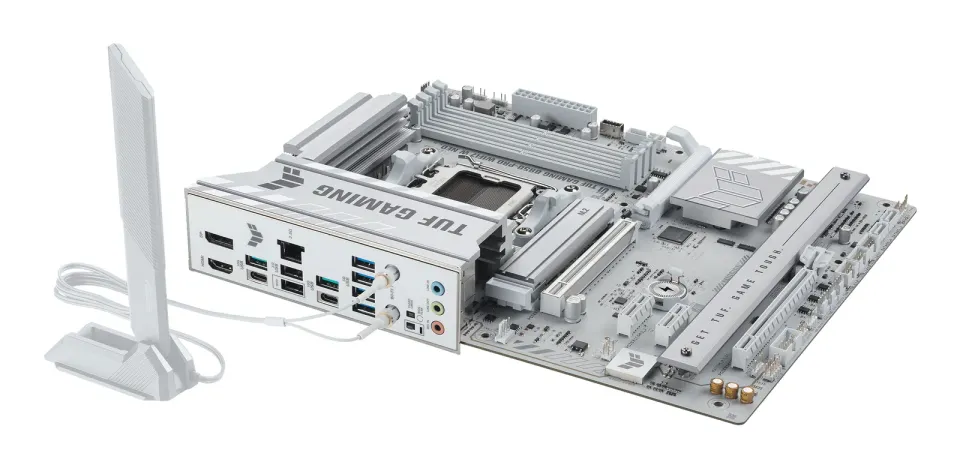

ASUS TUF GAMING B850-PRO WIFI7 W NEO
ASUS TUF GAMING B850-PRO WIFI7 W NEO takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  Chipset
  AMD B850 Chipset
  Memory
  4 x DIMM slots, max. 256GB, DDR5
  Supports up to
  8400+MT/s(OC)/8200+MT/s(OC)* with Ryzen™ 9000 Series Processors,
  9000+MT/s(OC)/8600+MT/s(OC)* with Ryzen™ 8000 Series Processors,
  8000+MT/s(OC)/8000+MT/s(OC)* with Ryzen™ 7000 Series Processors,
  ECC and Non-ECC Un-buffered DIMM***
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  ASUS Enhanced Memory Profile (AEMP)
  Graphics
  1 x DisplayPort**
  1 x HDMI™ port***
• Available only on processors featuring integrated graphics.
  ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  1 x PCIe 5.0 x16 slot (supports x16 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  AMD B850 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  2 x PCIe 4.0 x1 slots
  Storage
  Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  AMD Ryzen™ 9000 & 7000 Series Processors
  M.2_1 slot (Key M), type 2280 (PCIe 5.0 x4)
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (PCIe 4.0 x4)
  AMD Ryzen™ 8000 Series Processors
  M.2_1 slot (Key M), type 2280 (PCIe 4.0 x4)
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (PCIe 4.0 x4/x2)
  AMD B850 Chipset
  M.2_3 slot (Key M), type 2280 (PCIe 4.0 x4)
  4 x SATA 6Gb/s ports
  RAID Support
  AMD RAIDXpert2 Technology
  RAID 0/1/5/10
  Ethernet
  1 x Realtek 2.5Gb Ethernet
  TUF LANGuard
  Wireless & Bluetooth
  Wi-Fi 7 (Realtek RTL8922AE)
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.4 (supports LE Audio)
  USB
  Rear USB (Total 10 ports)
  4 x USB 10Gbps (2 x Type-A + 2 x USB Type-C)
  4 x USB 5Gbps (Type-A)
  2 x USB 2.0
  Front USB (Total 9 ports)
  1 x USB 20Gbps Type-C
  1 x USB 5Gbps header (2 ports)
  3 x USB 2.0 headers (6 ports)
  Audio
  Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
  120 dB SNR playback / 113 dB SNR recording
  Supports up to 32-Bit/192 kHz playback

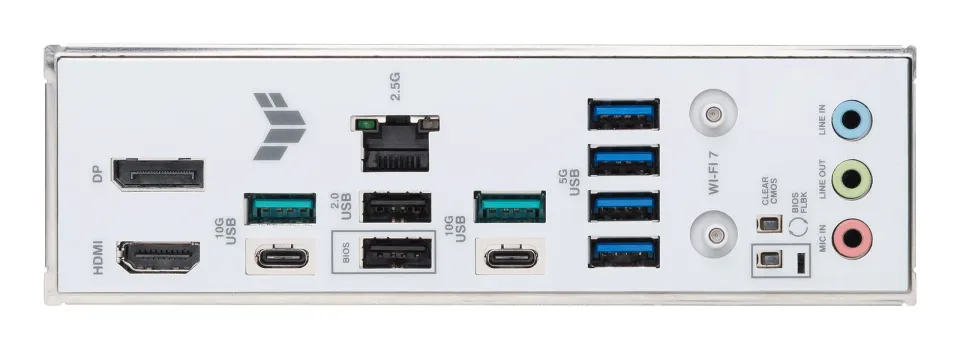

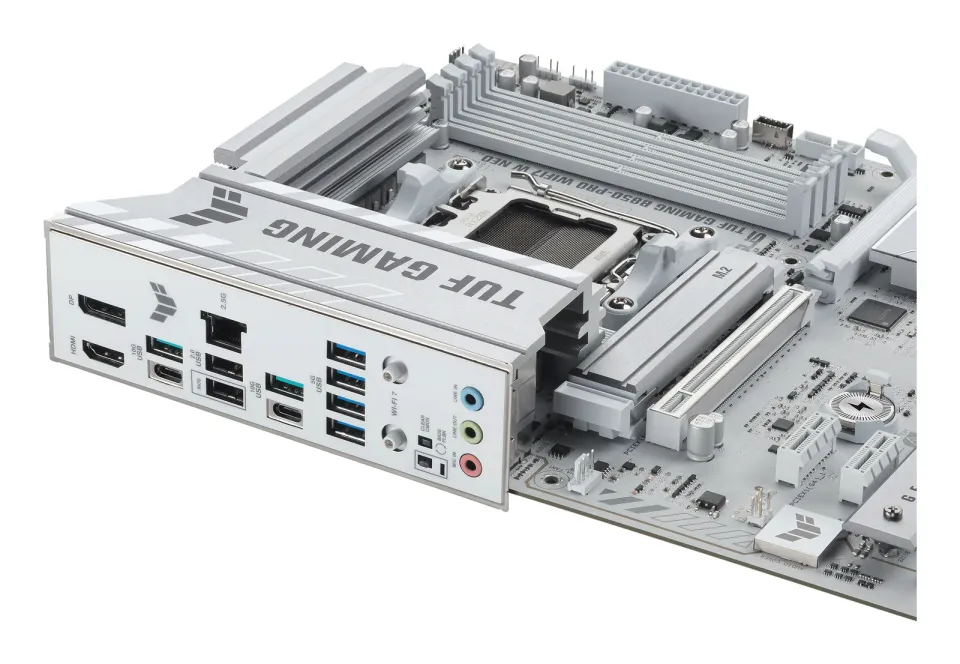

  Back Panel I/O Ports
  USB Type-C and Type-A ports
  DisplayPort
  HDMI™
  Wi-Fi module
  Realtek 2.5Gb Ethernet
  3 x Audio jacks
  BIOS FlashBack™ button
  Clear CMOS button
  Internal I/O Connectors
  CPU / Chassis / AIO fan headers
  M.2 and SATA connectors
  USB headers
  RGB headers
  Front panel connectors
  Special Features
  ASUS TUF Protection
  ASUS Q-Design
  ASUS Thermal Solution
  ASUS EZ DIY
  Aura Sync
  Software Features
  Armoury Crate
  Fan Xpert 4
  ASUS AI Advisor
  TUF GAMING CPU-Z
  Norton 360 for Gamers (trial)
  WinRAR (trial)
  BIOS
  64MB Flash ROM, UEFI AMI BIOS
  Operating System
  Windows 11
  Form Factor
  ATX Form Factor
  12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Formát základní desky: ATX
Chipset: AMD B850
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR5
Počet paměťových slotů: 4
M.2 slot: 3
SATA 3: 4
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 2
PCI Express x8: 0
PCI Express x1: 1
PCI: 0
LAN: 2.5Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 1
HDMI: 1
VGA: 0
DVI: 0
