ASUS MB Sc AM5 ROG CROSSHAIR X870E HERO, AMD X870, 4xDDR5, 1xHDMI, 2xUSB4, WiFi

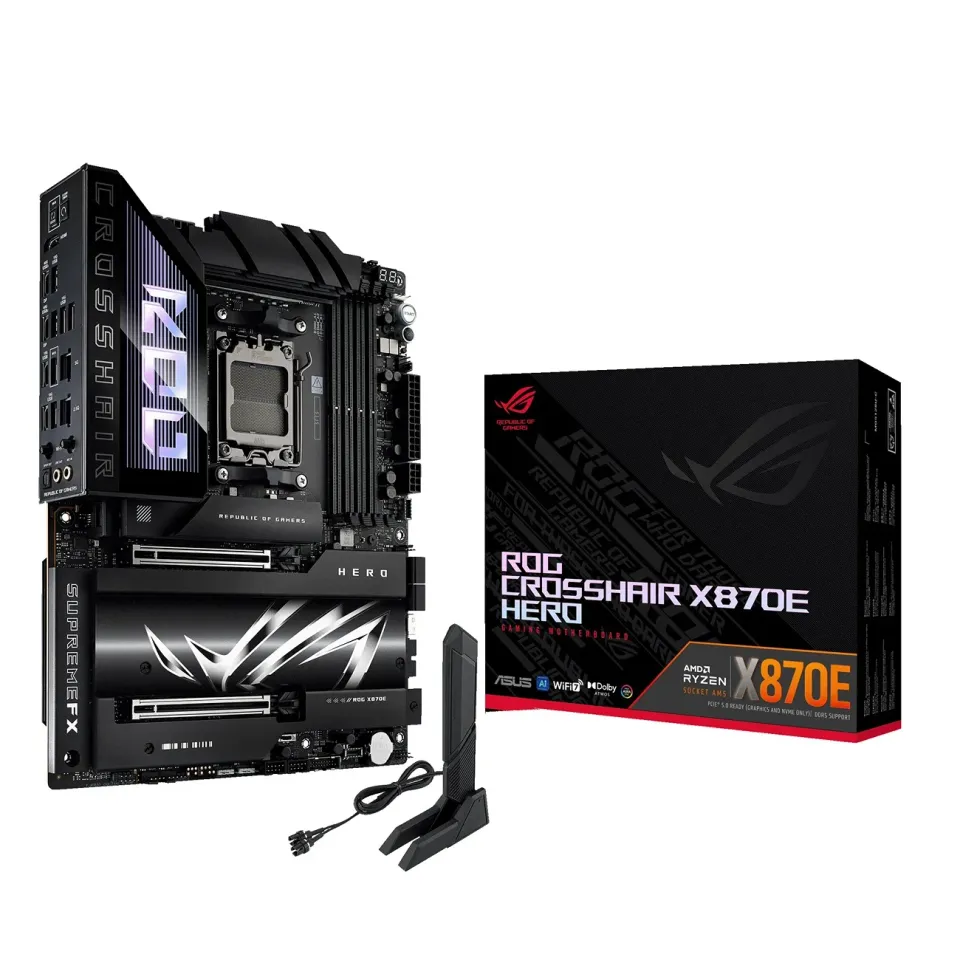

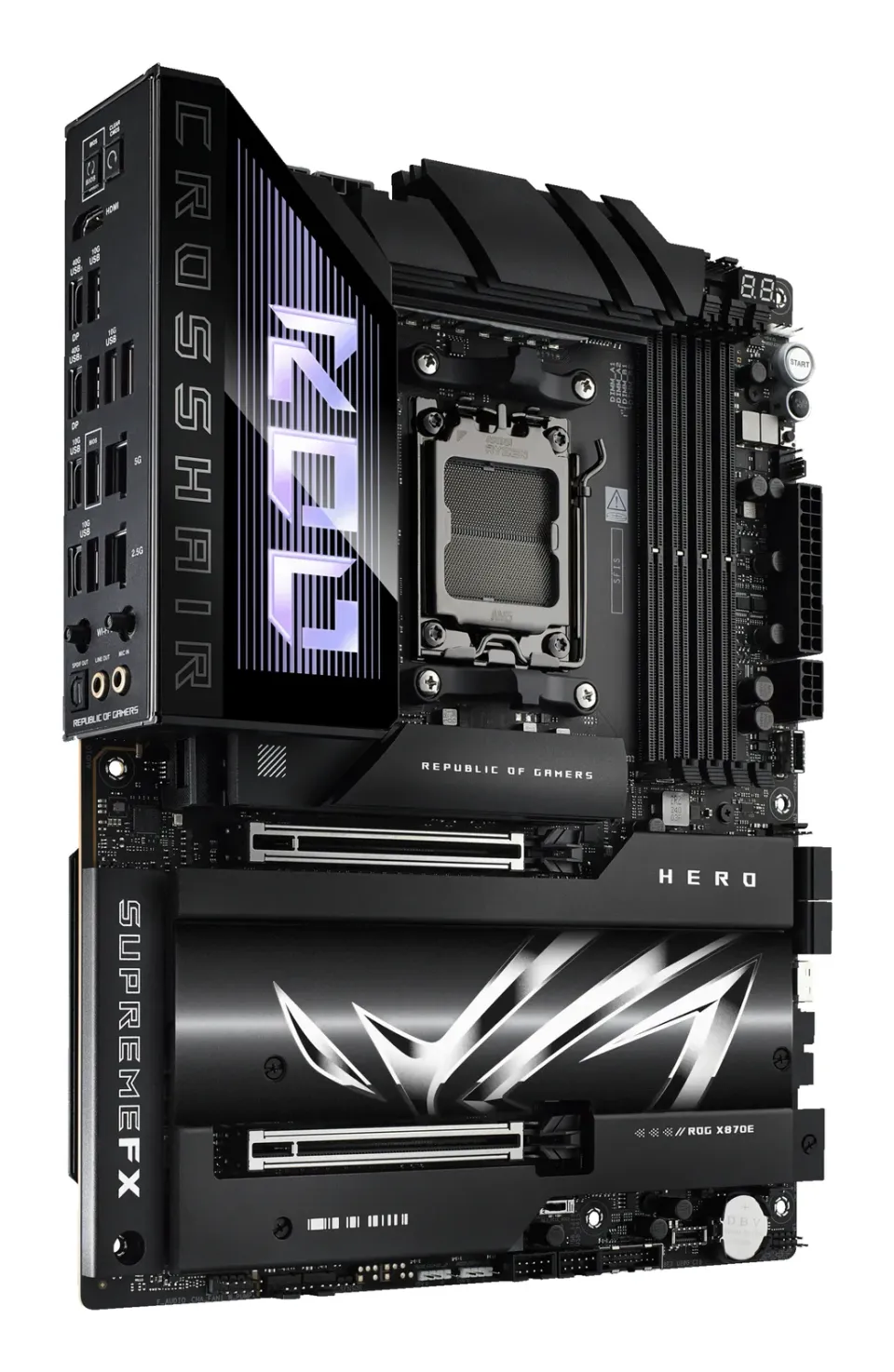

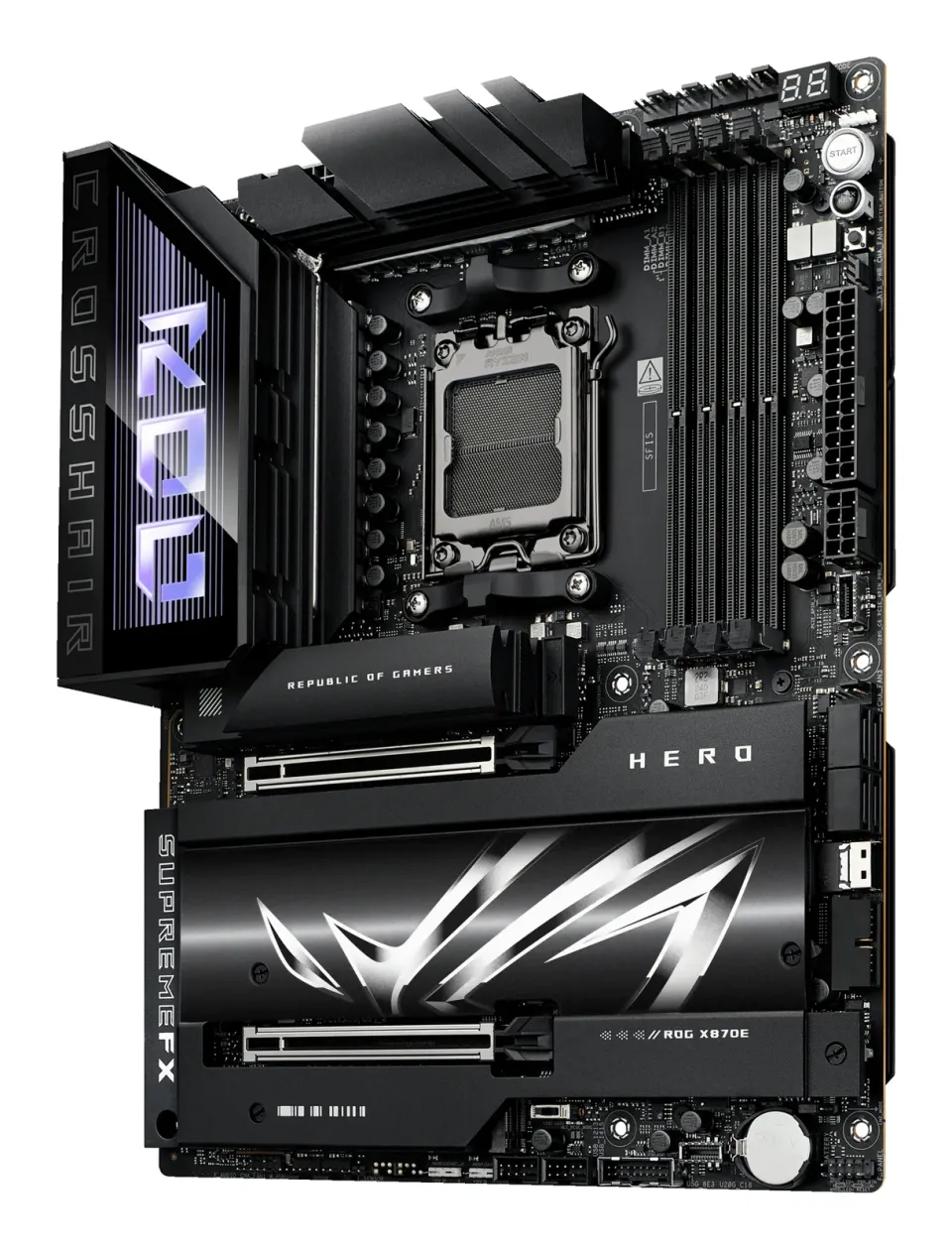

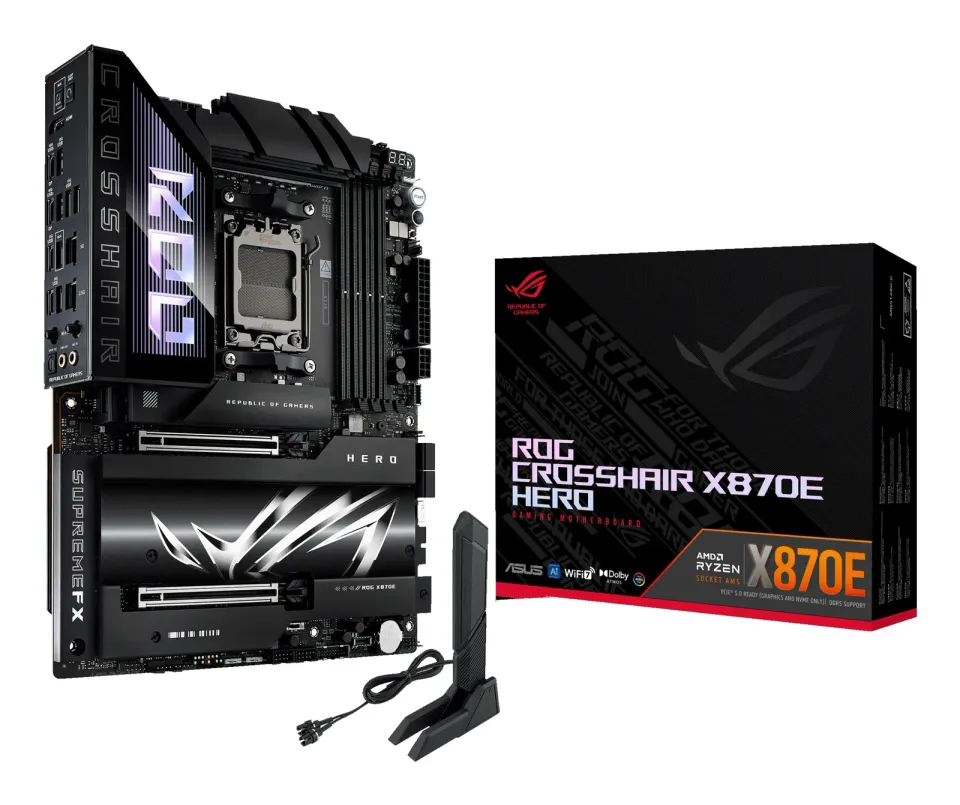

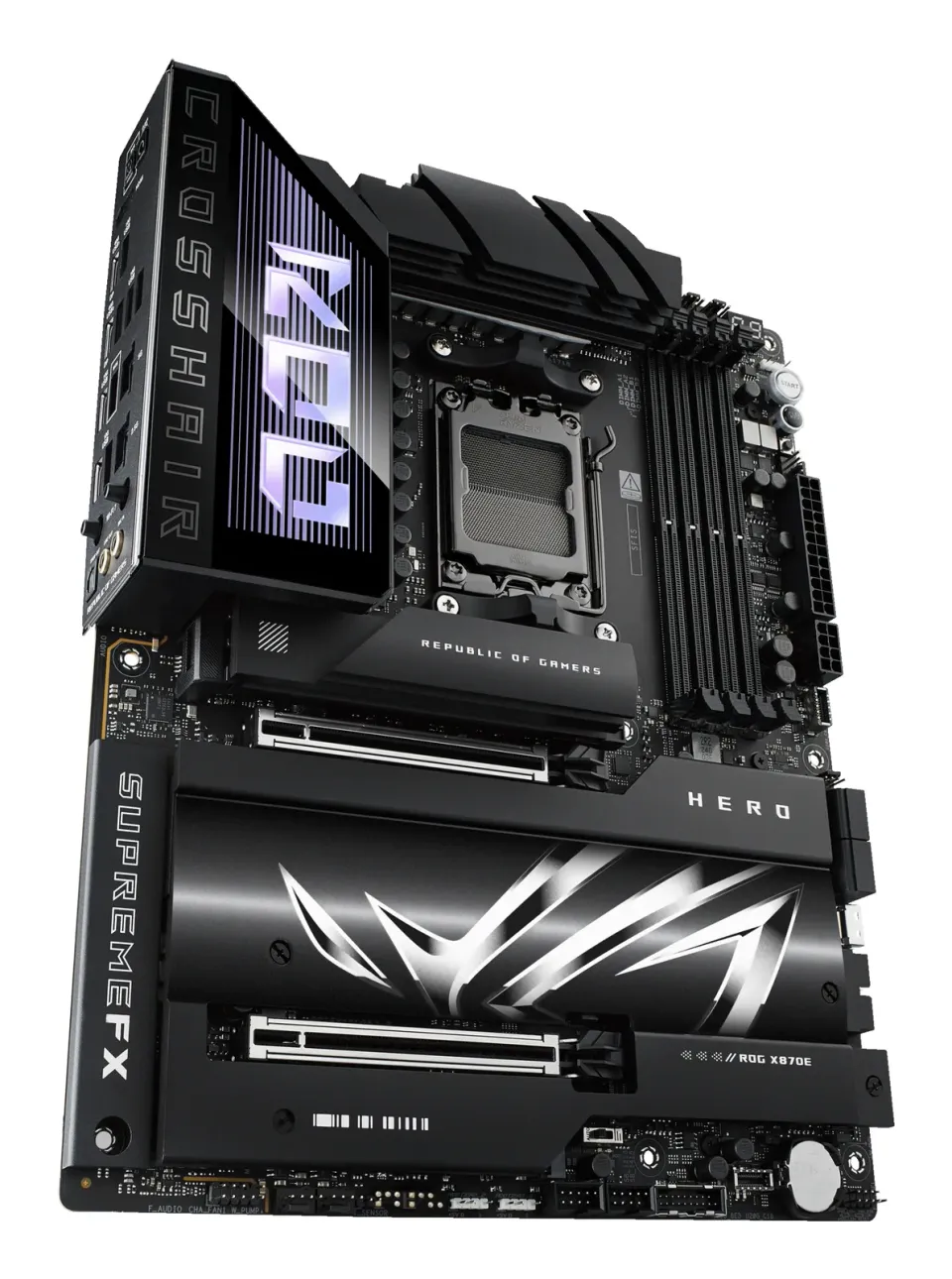

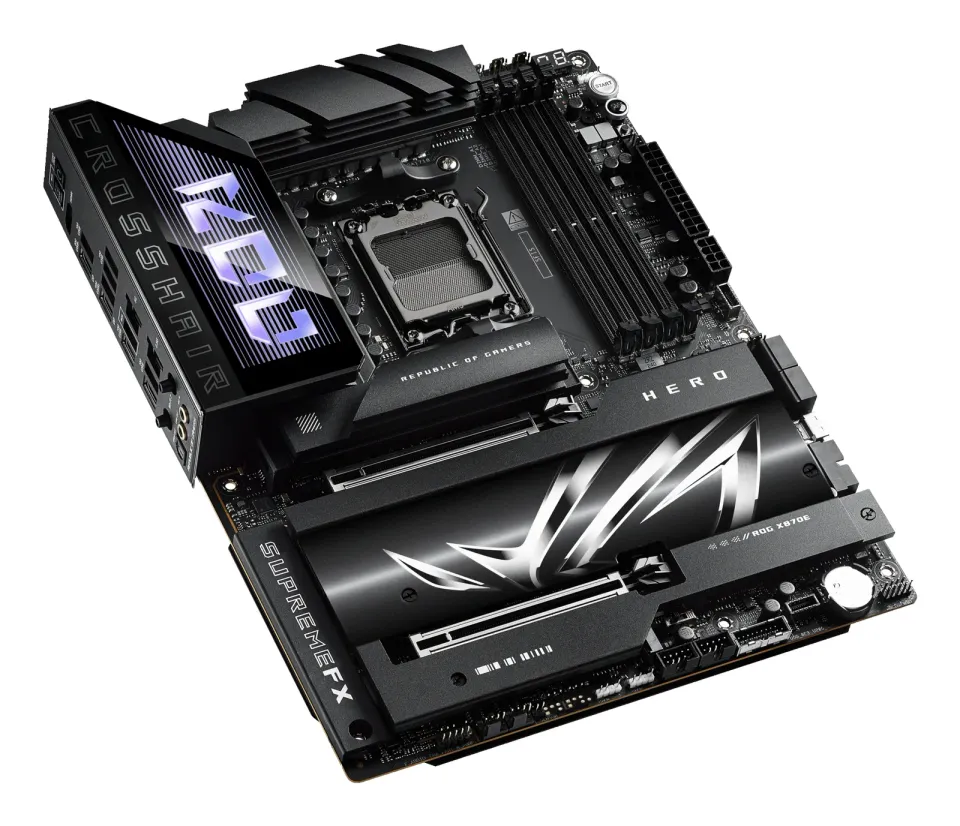

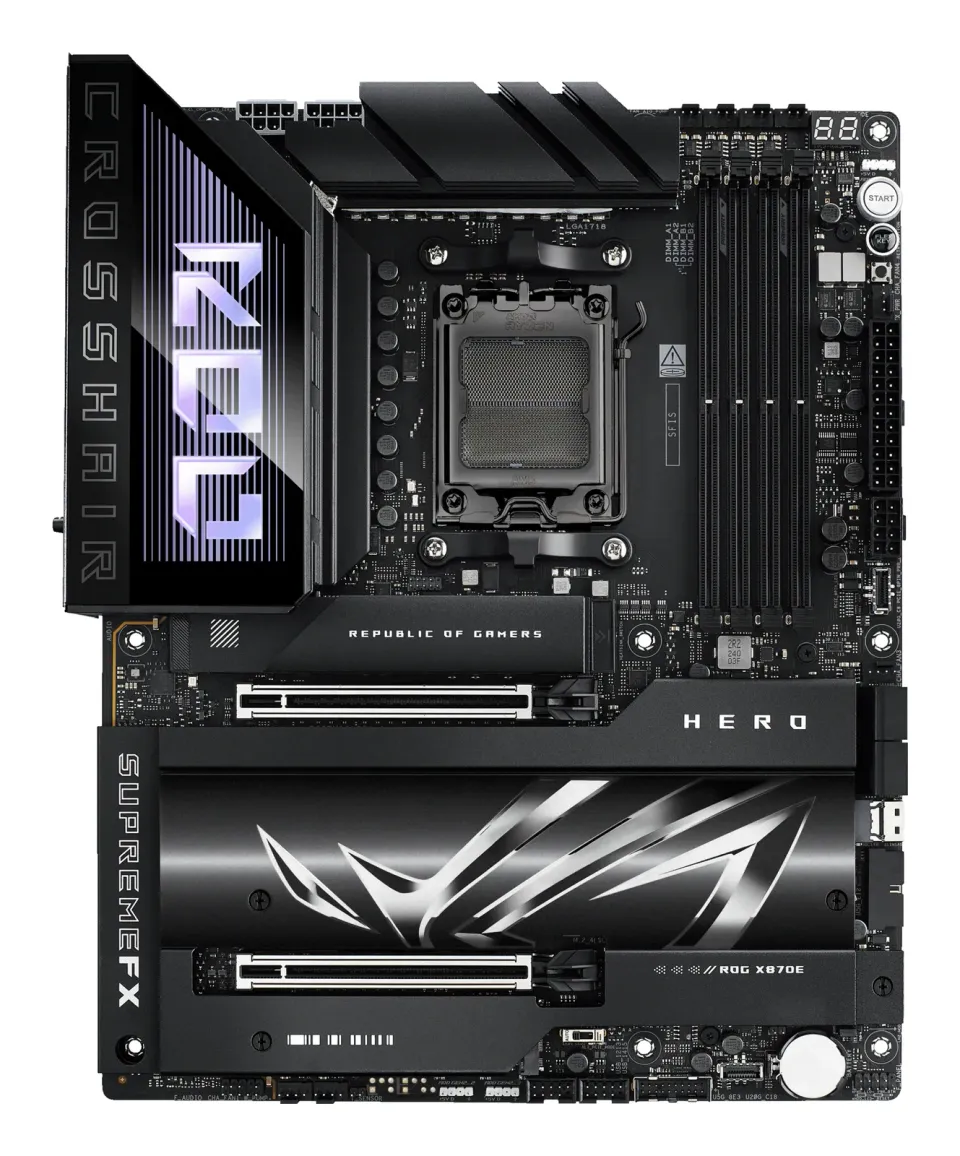

ASUS ROG CROSSHAIR X870E HERO
When only the fastest will do, ROG X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ROG X870E/X870 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  Chipset
  AMD X870E
  Memory
  4 x DIMM slots, max.192GB, DDR5
  Supports up to
  8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
  8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
  8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
  ECC and Non-ECC, Un-buffered Memory*
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  NitroPath DRAM Technology
  ASUS Enhanced Memory Profile (AEMP)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics
  1 x HDMI™ port*
  2 x USB4 (40Gbps) ports support USB Type-C display outputs**
  Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  VGA resolution support depends on processors' or graphic cards' resolution.
  Supports 4K@60Hz as specified in HDMI 2.1.
  Supports max. 4K@60Hz as specified in DisplayPort 1.4a
  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes***)
  ** When you use both PCIEX16_1 and PCIEX16_2, PCIEX16_1 and PCIEX16_2 will run x8.
  *When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4.
  AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors
  2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
  AMD Ryzen™ 8500 & 8300 Series Desktop Processors
  2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported
  Storage
  Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
  M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
  AMD X870E Chipset
  M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  SlimSAS slot supports PCIe 4.0 x4 mode.
  4 x SATA 6Gb/s ports
  AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
  ** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16_2 will be disabled.
  When M.2_3 are enabled, PCIEX16_1 will run x8, and PCIEX16_2 will run x4, M.2_2 will be disabled.
  Ethernet
  1 x Intel 2.5Gb Ethernet
  1 x Realtek 5Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  Wi-Fi 7
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band
  Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
  Bluetooth v5.4**
  Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  USB
  Rear USB (Total 10 ports)
  2 x USB4 (40Gbps) ports (2 x USB Type-C)
  8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
  Front USB (Total 10 ports)
  1 x USB 20Gbps (supports USB Type-C with up to 60W PD/QC4+)
  1 x USB 20Gbps connector (supports USB Type-C)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  USB Type-C power delivery output: max. 5V/3A
  USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
  Audio
  ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback on front panel
  Audio Features
• SupremeFX Shielding Technology
• ESS ES9219 QUAD DAC
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
  Back Panel I/O Ports
  2 x USB4 (40Gbps) ports (2 x USB Type-C)
  8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Intel 2.5Gb Ethernet port
  1 x Realtek 5Gb Ethernet …
