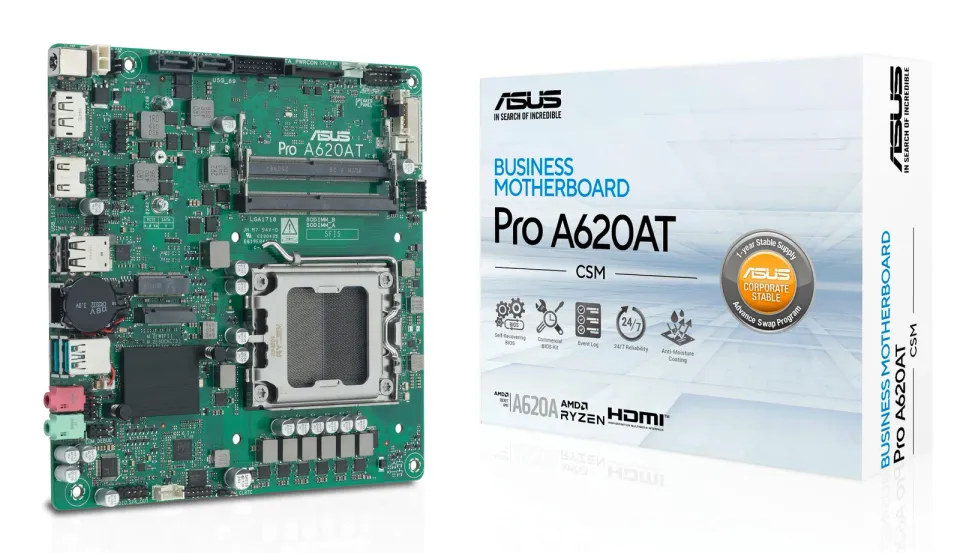

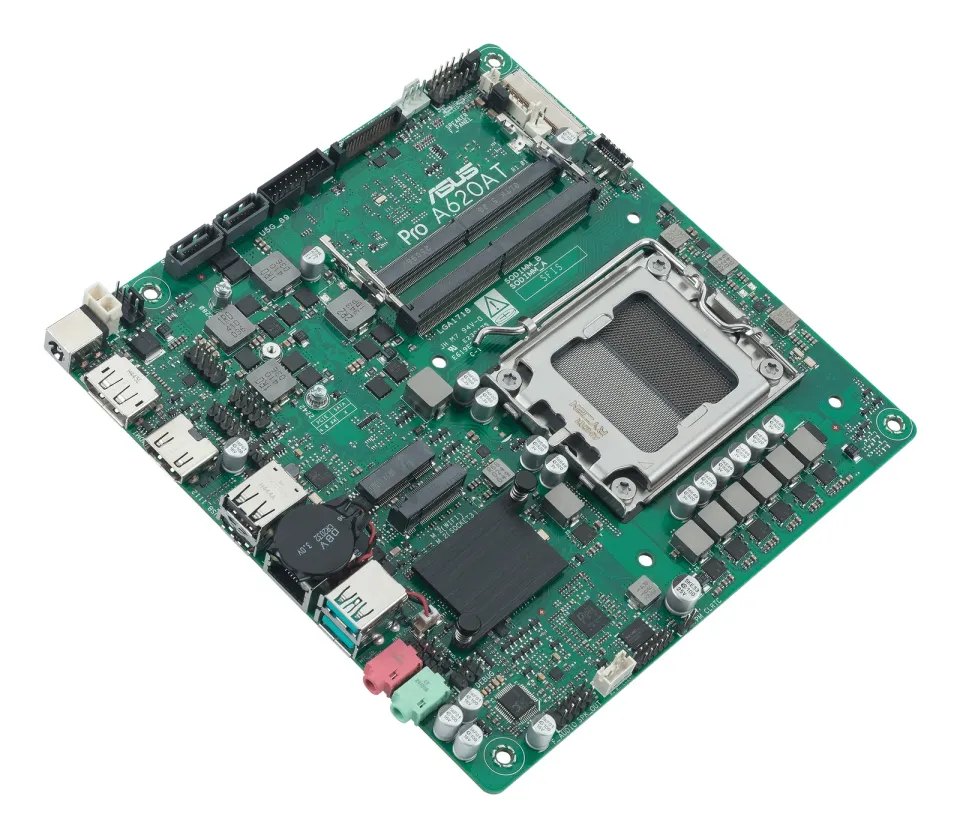

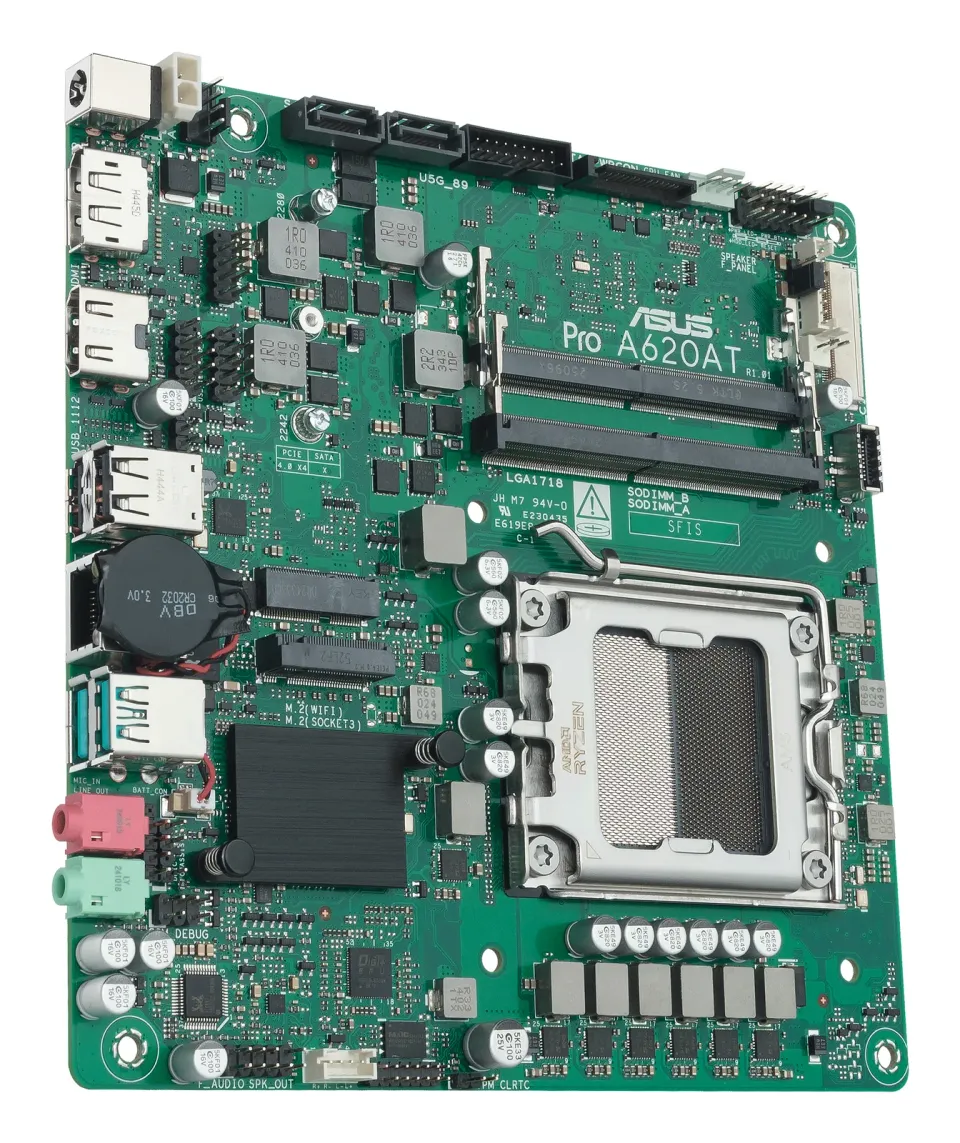

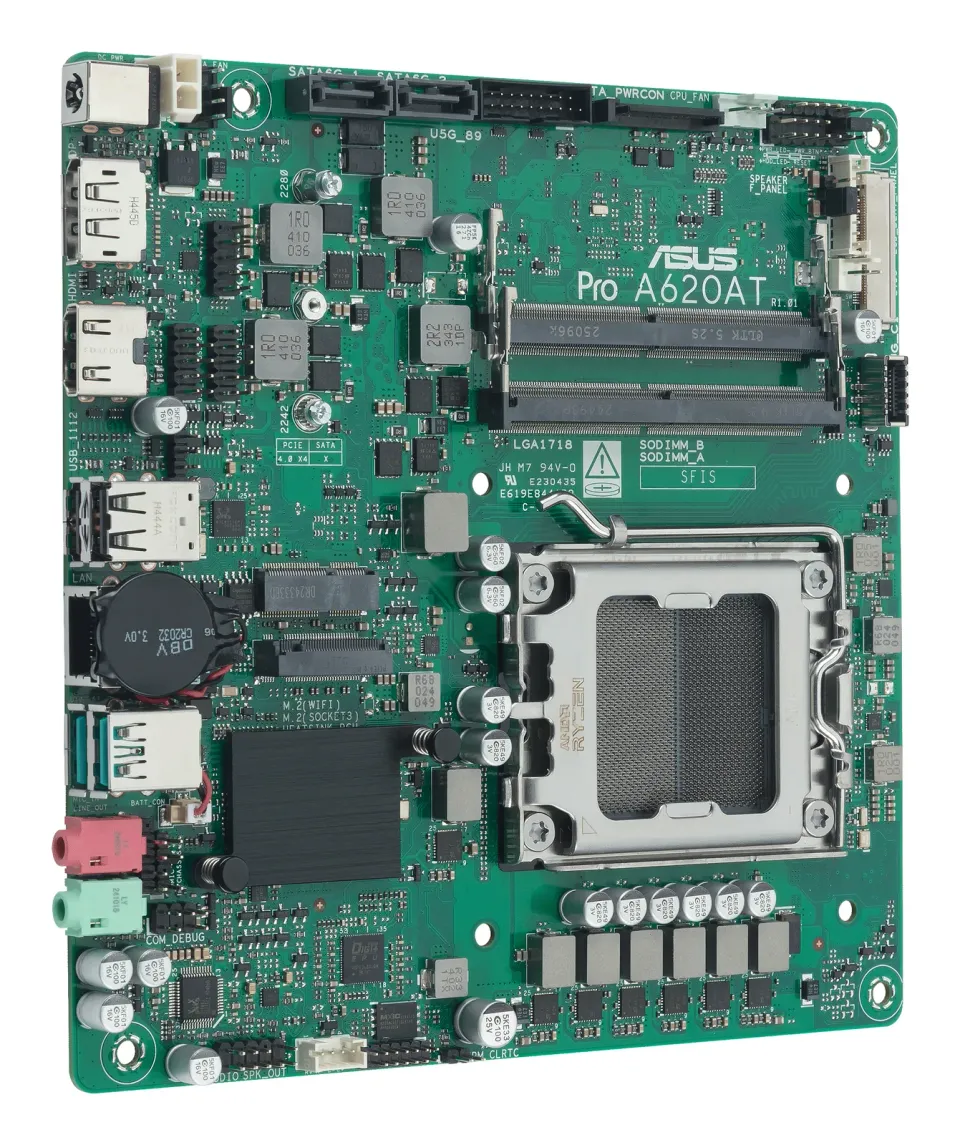

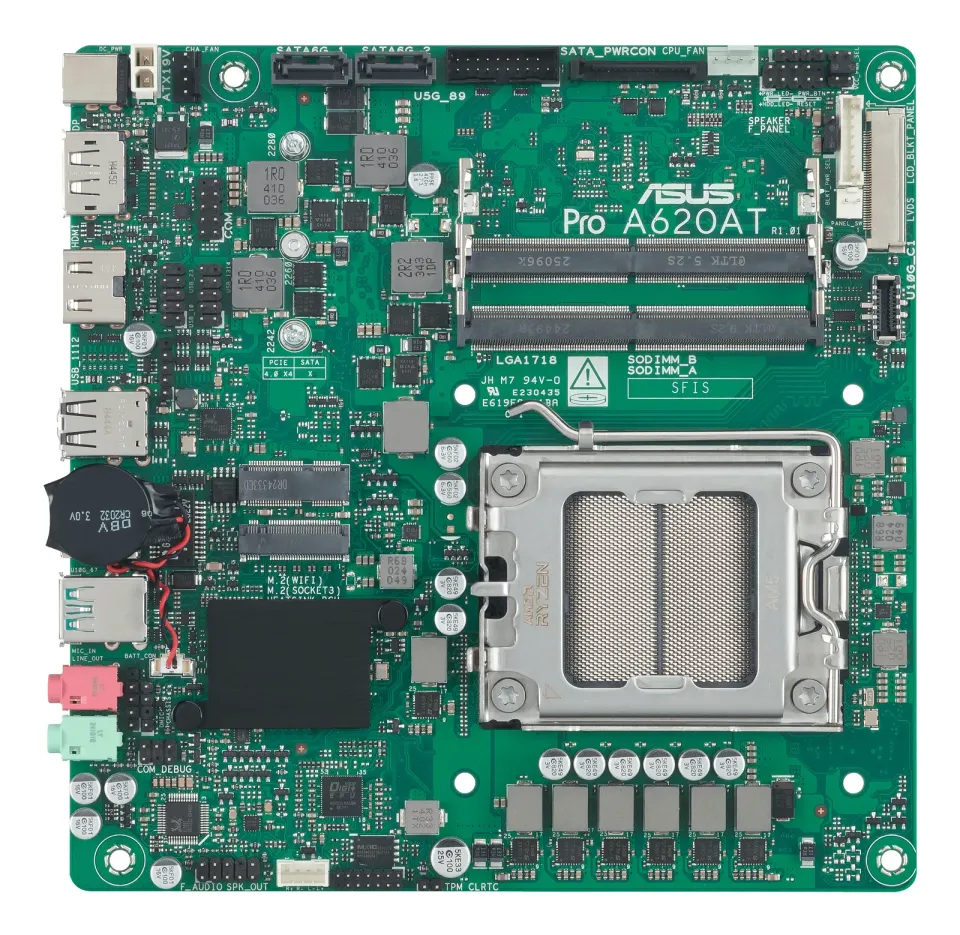

ASUS MB Sc AM5 PRO A620AT-CSM

ASUS Pro A620AT-CSM
Thin mini-ITX A620A business motherboard with enhanced security, reliability, manageability, and efficiency.
AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Remote IT management: DASH hardware ready for capable of DASH software
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
Ultrafast Connectivity: PCIe 4.0 M.2 slot, DDR5 SO-DIMM slots, Front USB 10Gbps Type-C and rear USB 10Gbps Type-A
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
CPU only support up to 65W
** Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD A620A Chipset
Memory
2 x SO-DIMM slots, max. 128GB, DDR5, ECC and Non-ECC, Un-buffered Memory
Dual channel memory architecture
ASUS Enhanced Memory Profile (AEMP)

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
  Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics
  1 x DisplayPort
  1 x HDMI™ port***
  1 x LVDS connector
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  Storage
  Total supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
  AMD A620A Chipset
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  2 x SATA 6Gb/s ports
  Ethernet
  1 x RTL8111EPV-CG Ethernet(DASH LAN)
  ASUS LANGuard
  Wireless & Bluetooth
  M.2 slot only (Key E, CNVi & PCIe)*
• Wi-Fi module is sold separately.
  USB
  Rear USB (Total 4 ports)
  2 x USB 10Gbps ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 8 ports)
  1 x USB 10Gbps connector (supports USB Type-C)*
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  1 x USB 2.0 header support 1 additional USB 2.0 port
• USB Type-C power delivery output: max. 5V/3A
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  Back Panel I/O Ports
  2 x USB 10Gbps ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x RTL8111EPV-CG Ethernet (DASH LAN)
  2 x Audio jacks
  1 x DC power connector (supports 19V)
  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan header
  Power Related
  1 x 2-pin +19V Power connector
  1 x SATA power connector
  Storage Related
  1 x M.2 slot (Key M)
  2 x SATA 6Gb/s ports
  USB
  1 x USB 10Gbps connector (supports USB Type-C)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  1 x USB 2.0 header supports 1 additional USB 2.0 port
  AIO System Related
  1 x Stereo Speaker header
  1 x DMIC header
  Flat Panel Display Related
  1 x Backlight Inverter Voltage Selection header
  1 x FPD Brightness header
  1 x Panel Voltage Selection header
  1 x Panel Off header
  Miscellaneous
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x COM Debug header
  1 x LVDS connector
  1 x M.2 slot (Key E)
  1 x Speaker header
  1 x SPI TPM header (14-1 pin)
  1 x 10-1 pin Front Panel System header
  Special Features
  ASUS Q-Design

• Q-LED Core
  ASUS Thermal Solution
• Aluminum heatsink design
  ASUS EZ DIY
• Box headers
  Bespoke Motherboard Design & Business Focused Features
• ASUS Self-Recovering BIOS
• ASUS Event Log
• ASUS Commercial BIOS Kit*
• BIOS EZ Deploy
• Anti-moisture coating
• 24/7 reliability
• Overcurrent protection
• G-sensor

• Please contact local FAE for Commercial BIOS kit.
  Software Features
  ASUS Exclusive Software
  ASUS DriverHub
  UEFI BIOS
  ASUS EZ DIY

• ASUS CrashFree BIOS 3
• ASUS EZ Flash
• ASUS MyHotkey
  Remote Management Features
  IT Management software supported
• ASUS Control Center Express(ACCE)
  Realtek 8111EPV Gigabit Ethernet
  Desktop and mobile Architecture for System Hardware(DASH)
  BIOS
  256Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

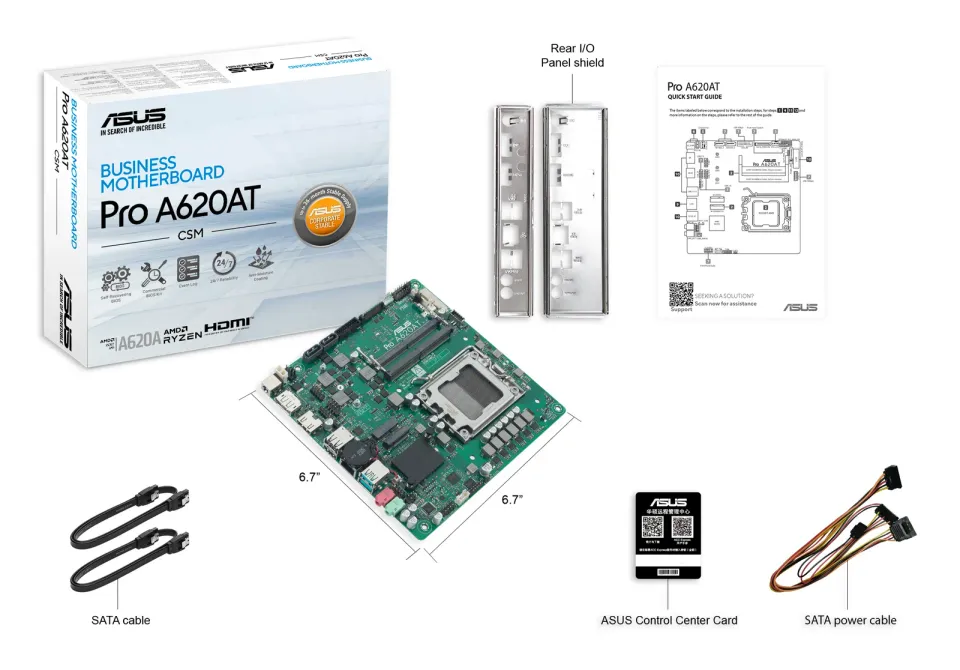

  Accessories
  Cables
  2 x SATA 6Gb/s cables
  1 x SATA power cable
  Miscellaneous
  2 x I/O shields
  Documentation
  1 x ACC Express activation key card
  1 x Quick start guide
  Operating System
  Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
  Form Factor
  Thin Mini-ITX Form Factor
  6.7”x 6.7” (17.0cm x 17.0cm)
