ASUS MB Sc AM5 PRIME B850M-F WIFI, AMD B850, 2x DDR5, WiFi, 1xHDMI, mATX

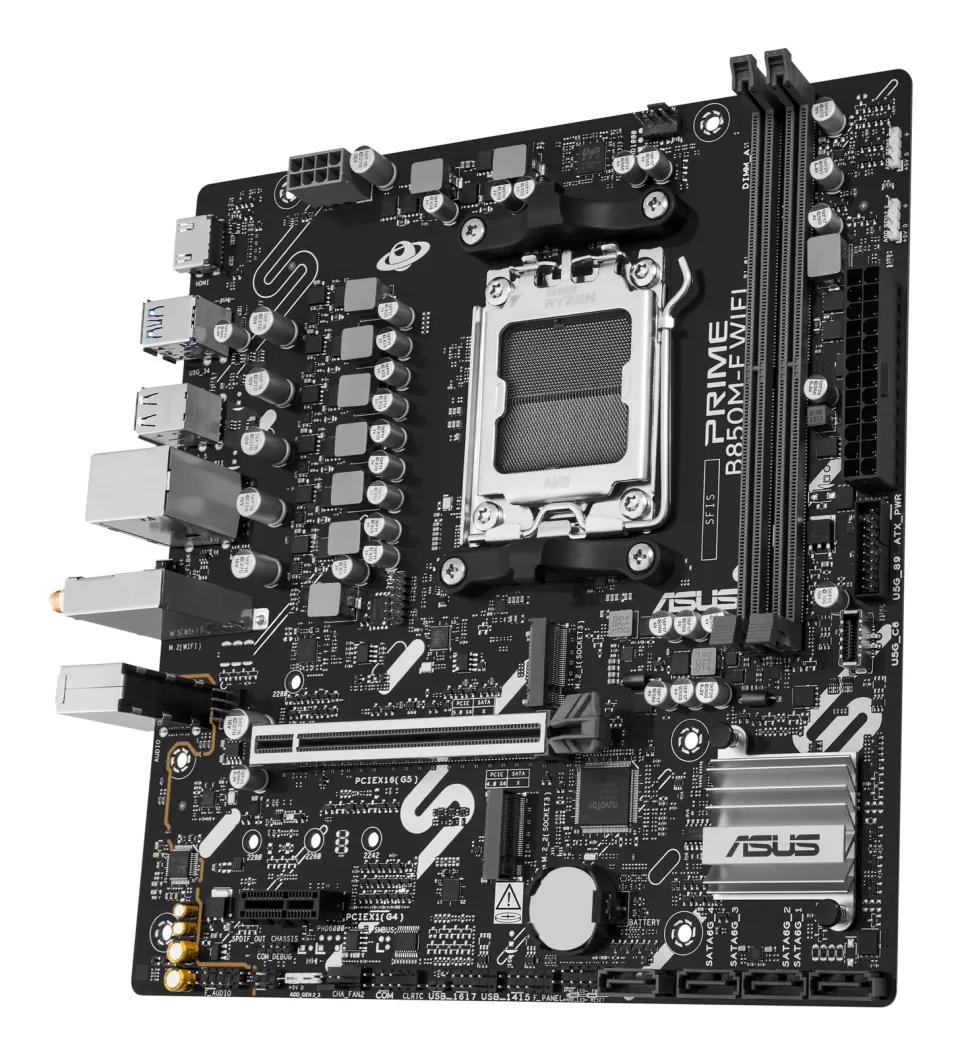

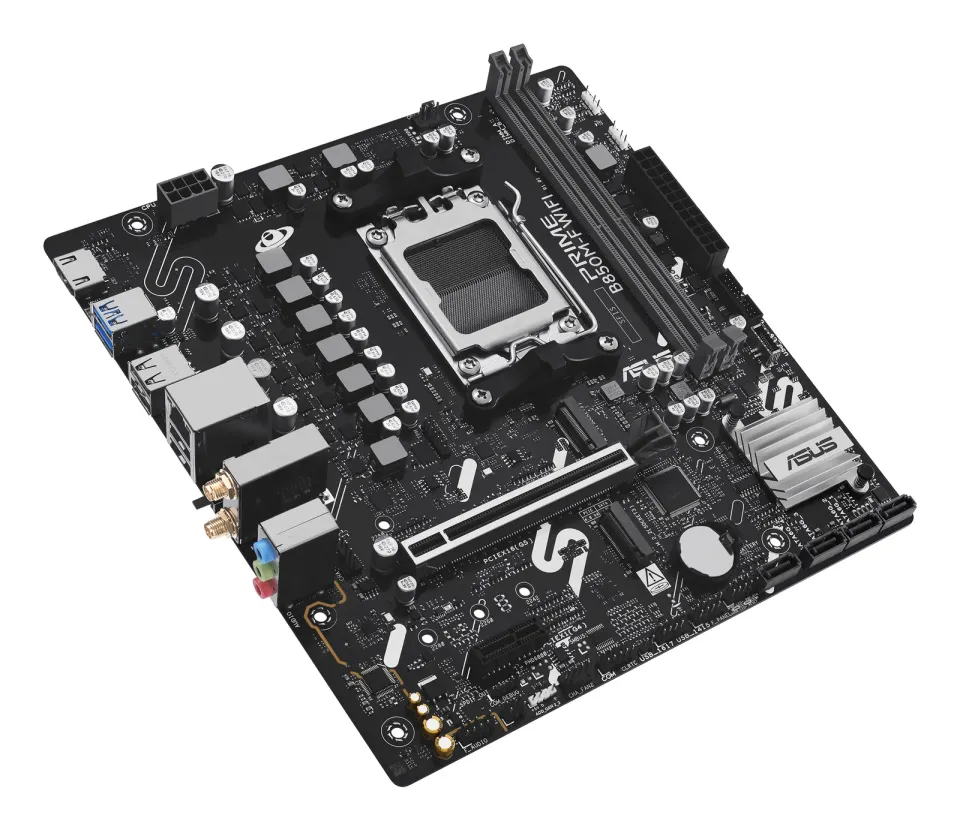

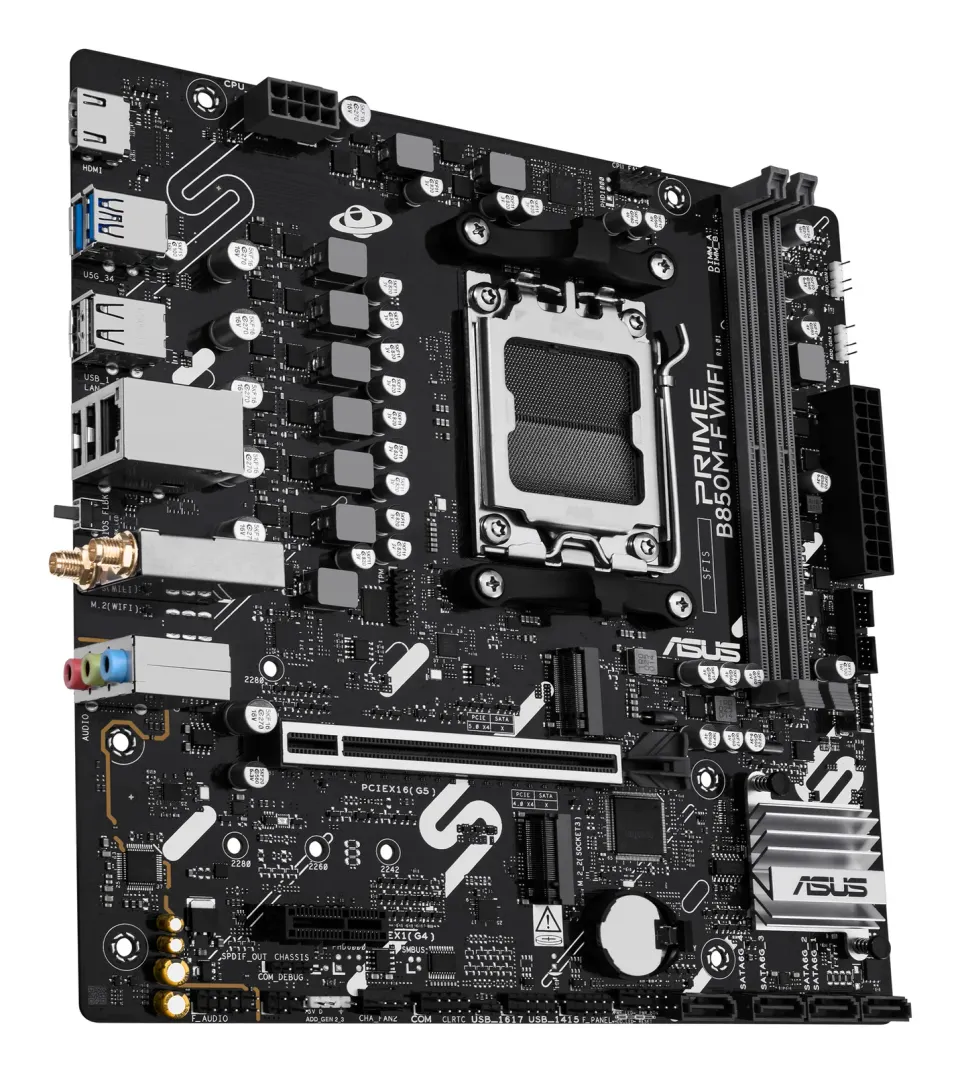

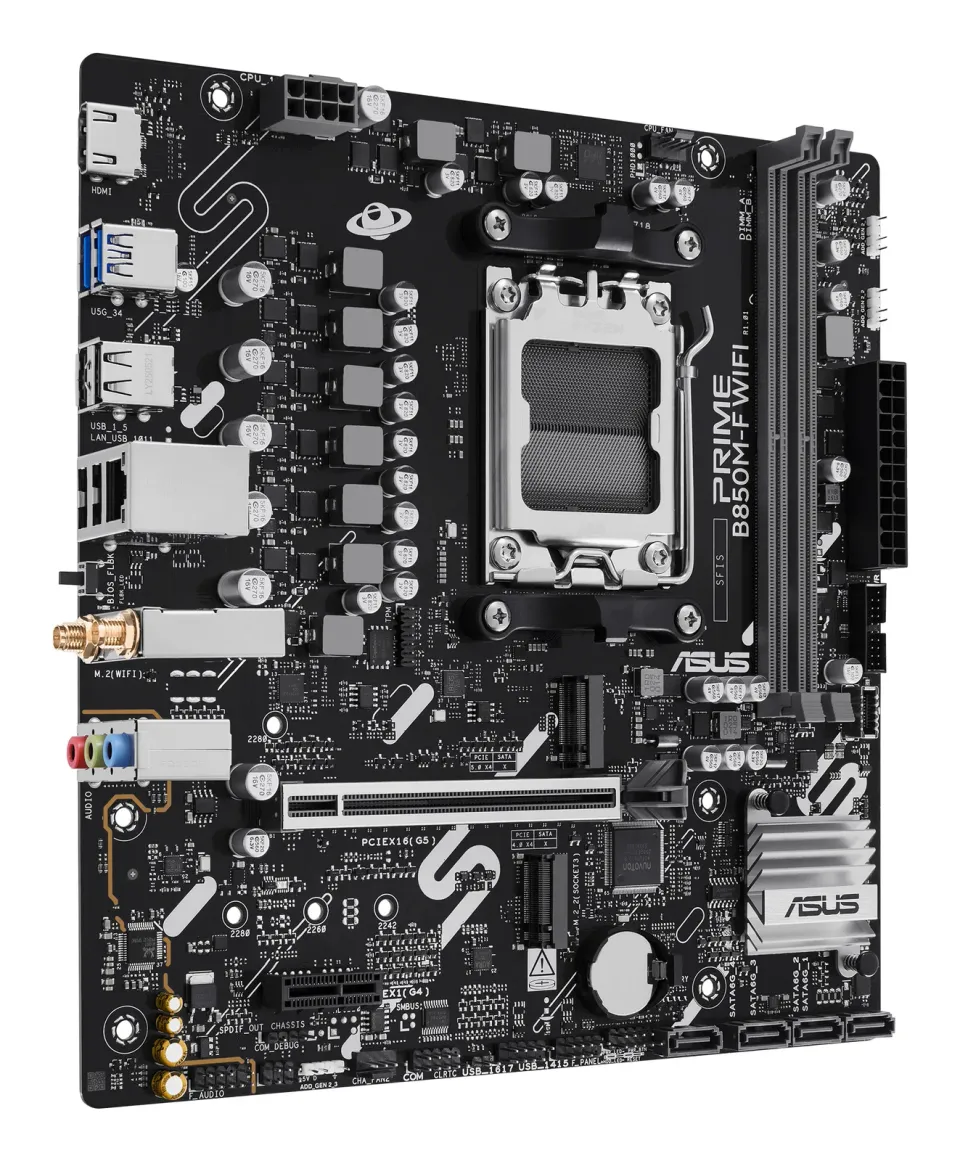

ASUS PRIME B850M-F WIFI
Based on the AMD B850 chipset, the ASUS PRIME B850M-F WIFI motherboard is designed to accommodate AMD Ryzen 7000/8000/9000 processors on socket AM5. It is ideal for assembling a gaming or multimedia configuration. More affordable than the X870 chipset, it supports DDR5, PCI-Express 5.0 graphics cards and PCIe 5.0 M.2 SSDs.
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Supports up to AMD 120W CPU

• Refer to https://www.asus.com/support/download-center/ for CPU support list.
  Chipset
  AMD B850 Chipset
  Memory
  2 x DIMM slots, max. 128GB, DDR5
  Supports up to
  8200+MT/s(OC) with Ryzen™ 9000 Series Processors,
  8400+MT/s(OC) with Ryzen™ 8000 Series Processors,
  8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
  ECC and Non-ECC, Un-buffered DIMM*
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
  ASUS Enhanced Memory Profile (AEMP)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list or visit https://www.asus.com/support/download-center/.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Graphics
  1 x HDMI™ port**
• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
  1 x PCIe 5.0 x16 slot (supports x16 mode)
  AMD Ryzen™ 8000 Series Desktop Processors
  1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
  AMD B850 Chipset
  1 x PCIe 4.0 x1 slot
• Please check the PCIe bifurcation table on https://www.asus.com/support/FAQ/1037507/.
  ** Specifications vary by CPU types.

• For compatibility details, visit https://www.asus.com/support/download-center/.
  Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (PCIe 5.0 x4)
  M.2_2 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4)
  AMD Ryzen™ 8000 Series Desktop Processors
  M.2_1 slot (Key M), type 2280 (PCIe 4.0 x4)
  M.2_2 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4/x2)*
  AMD B850 Chipset
  4 x SATA 6Gb/s ports

• Specifications vary by CPU type.
  RAID Support
  AMD RAIDXpert2 Technology*
  Ryzen™ 9000 Series: RAID 0/1/5/10
  Ryzen™ 8000 Series: RAID 0/1
  Ryzen™ 7000 Series: RAID 0/1/10
• Specifications vary by CPU types.
  Ethernet
  1 x Realtek 1Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  Wi-Fi 6
  1x1 Wi-Fi 6 (802.11ax)
  Supports 2.4/5GHz bands
  Bluetooth v5.3*
• Version may vary depending on module.
  USB
  Rear USB (Total 6 ports)
  2 x USB 5Gbps (Type-A)
  4 x USB 2.0 (Type-A)
  Front USB (Total 7 ports)
  1 x USB 5Gbps connector (USB Type-C)
  1 x USB 5Gbps header (2 additional ports)
  2 x USB 2.0 headers (4 additional ports)
• USB-C power delivery: max 5V/3A.
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Jack detection, Multi-streaming, Front Panel Jack-retasking
• Up to 24-bit/192 kHz playback
  Audio Features
• Audio shielding
• Premium capacitors
• Dedicated audio PCB layers

• HD audio front panel module required for 7.1 output.

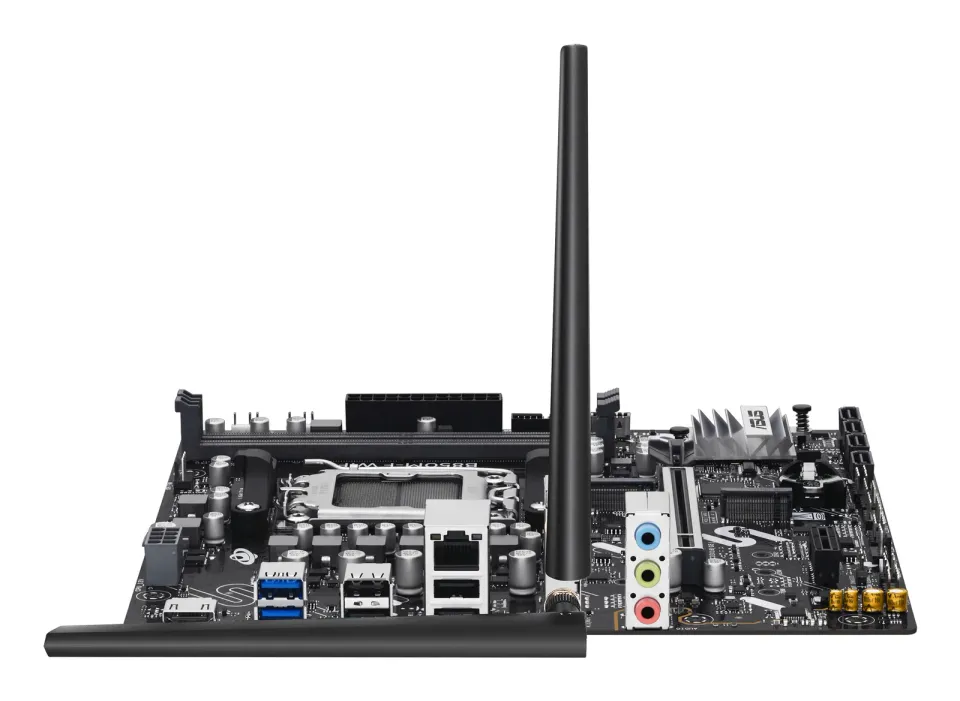

  Back Panel I/O Ports
  2 x USB 5Gbps (Type-A)
  4 x USB 2.0 (Type-A)
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Realtek 1Gb Ethernet
  3 x Audio jacks
  1 x BIOS FlashBack™ button
  Internal I/O Connectors
  Fan & Cooling:
  1 x CPU Fan header
  2 x Chassis Fan headers
  Power:
  1 x 24-pin Main Power
  1 x 8-pin CPU Power
  Storage:
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB:
  1 x USB 5Gbps connector (Type-C)
  1 x USB 5Gbps header (2 ports)
  2 x USB 2.0 headers (4 ports)
  Misc:
  3 x ARGB Gen 2 headers
  1 x Clear CMOS
  1 x COM port
  1 x Front Panel Audio (F_AUDIO)
  1 x S/PDIF Out
  1 x SPI TPM (14-1 pin)
  1 x Front Panel header
  Special Features
  ASUS 5X PROTECTION III

• DIGI+ VRM
• LANGuard
• Overvoltage protection
• SafeSlot
• Stainless-steel back I/O
  ASUS Q-Design
• Q-Dashboard
• Q-DIMM
• Q-LED Core
• Q-Slot
  ASUS Thermal Solution
• Aluminum heatsink
  ASUS EZ DIY
• BIOS FlashBack™ button
• BIOS FlashBack™ LED
  Aura Sync
• ARGB Gen 2 headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
  ASUS AI Advisor
  ASUS DriverHub
  ASUS CPU-Z
  ASUS GlideX
  TurboV Core
  Adobe Creative Cloud (Trial)**
  Norton 360 Deluxe (60-day Trial)
  WinRAR (40-day Trial)
  UEFI BIOS:
  AI Cache Boost
  ASUS EZ DIY:
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey

• More info at www.asus.com/support
  ** Region restrictions apply.
  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE

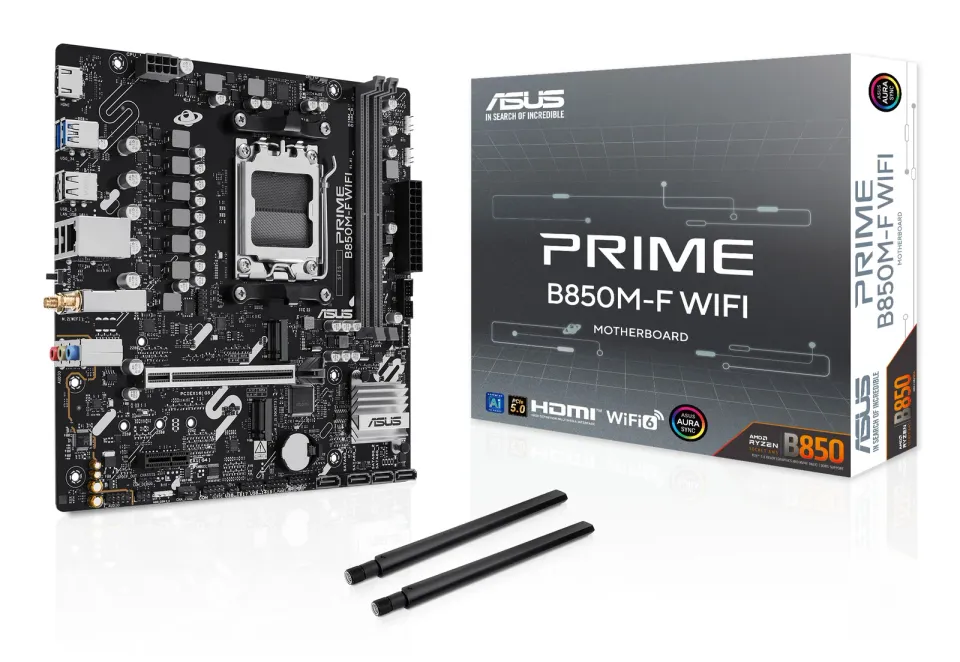

  Accessories
  Cables:
  2 x SATA 6Gb/s cables
  Misc:
  1 x ASUS Wi-Fi antenna

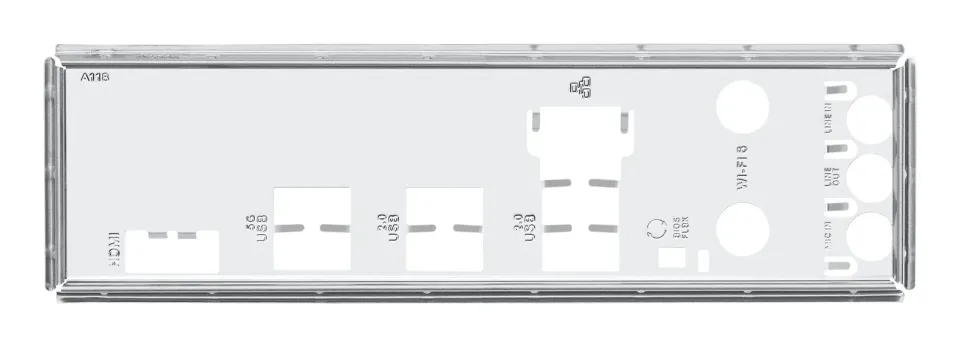

  1 x I/O shield
  1 x M.2 anchor package
  Documentation:
  1 x Quick start guide
  Operating System
  Windows 11, Windows 10 64-bit
  Form Factor
  micro-ATX
  8.9 in x 8.75 in (22.6 cm x 22.2 cm)

Formát základní desky: micro ATX
Chipset: AMD B850
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 2
SATA 3: 4
Podpora RAID: 0, 1, 5, 10
PCI Express x16: 1
PCI Express x8: 0
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 0
HDMI: 1
VGA: 0
