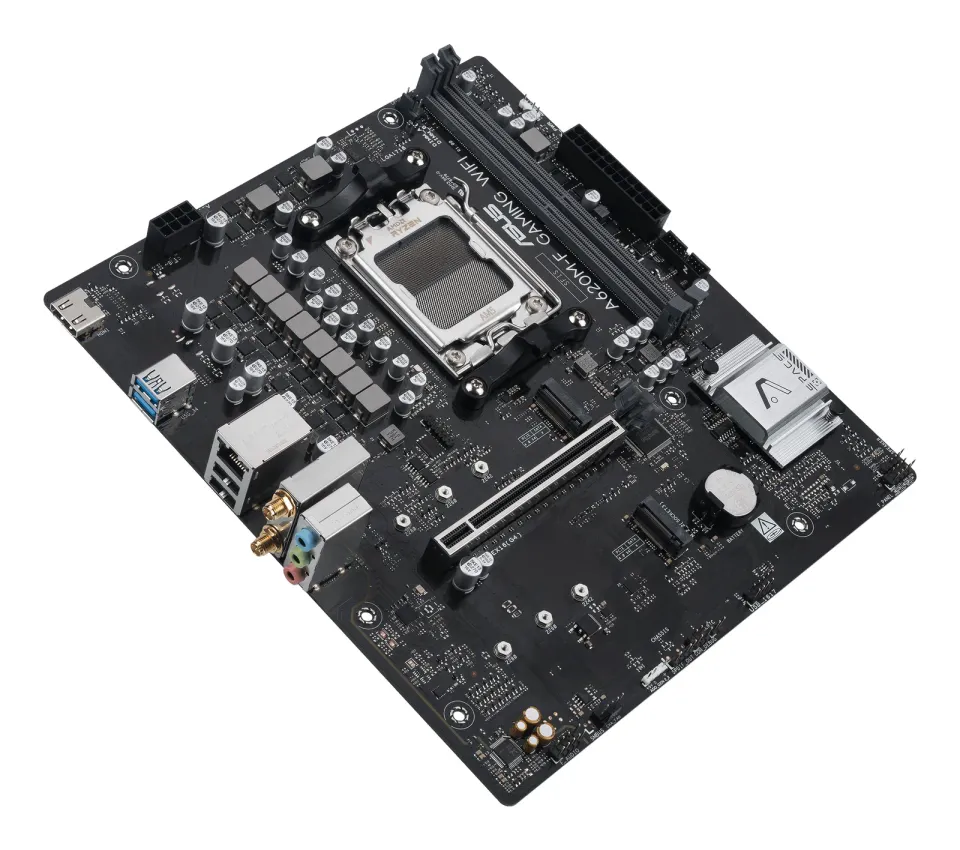

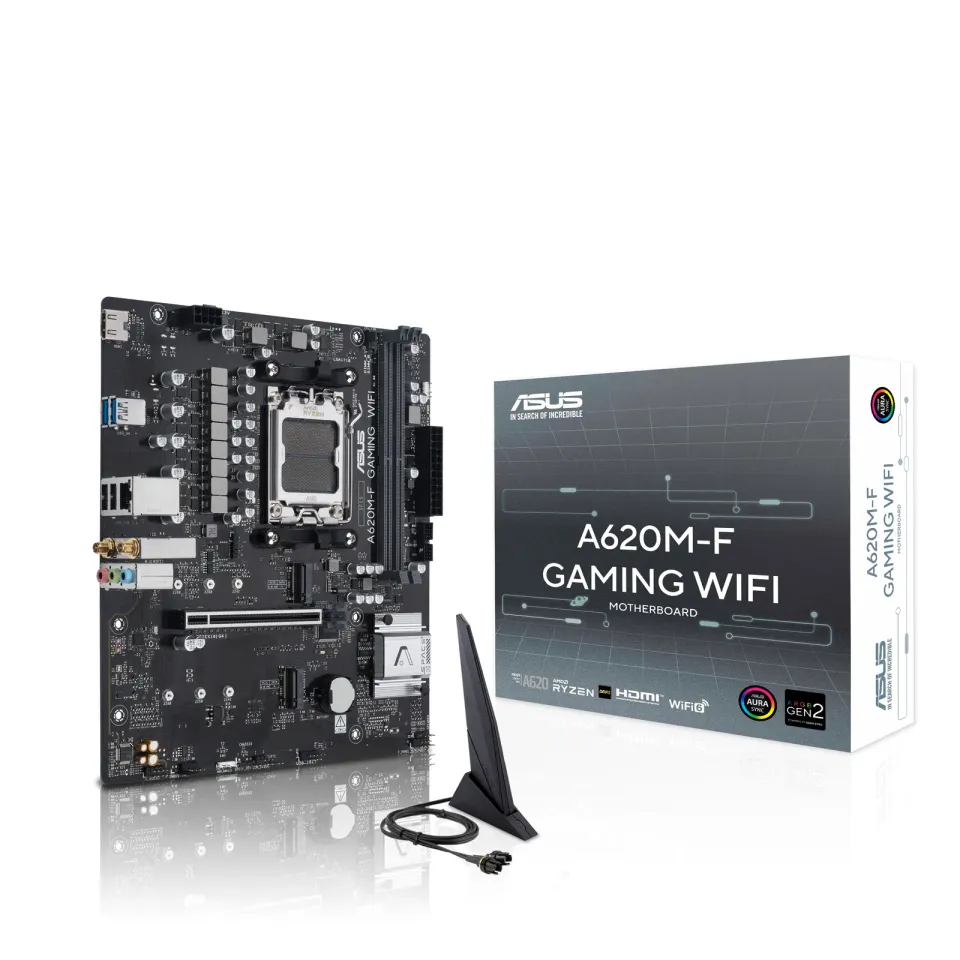

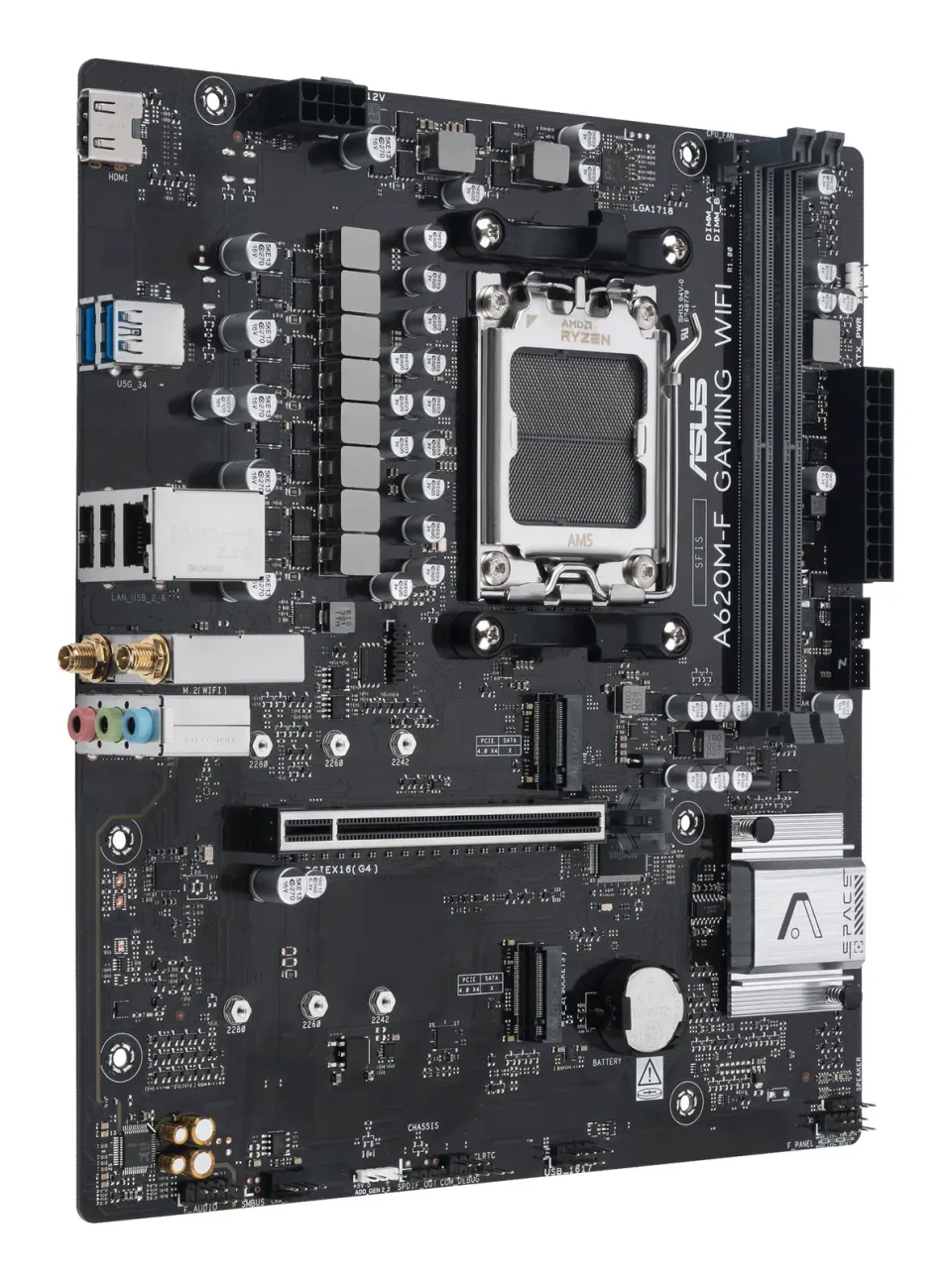

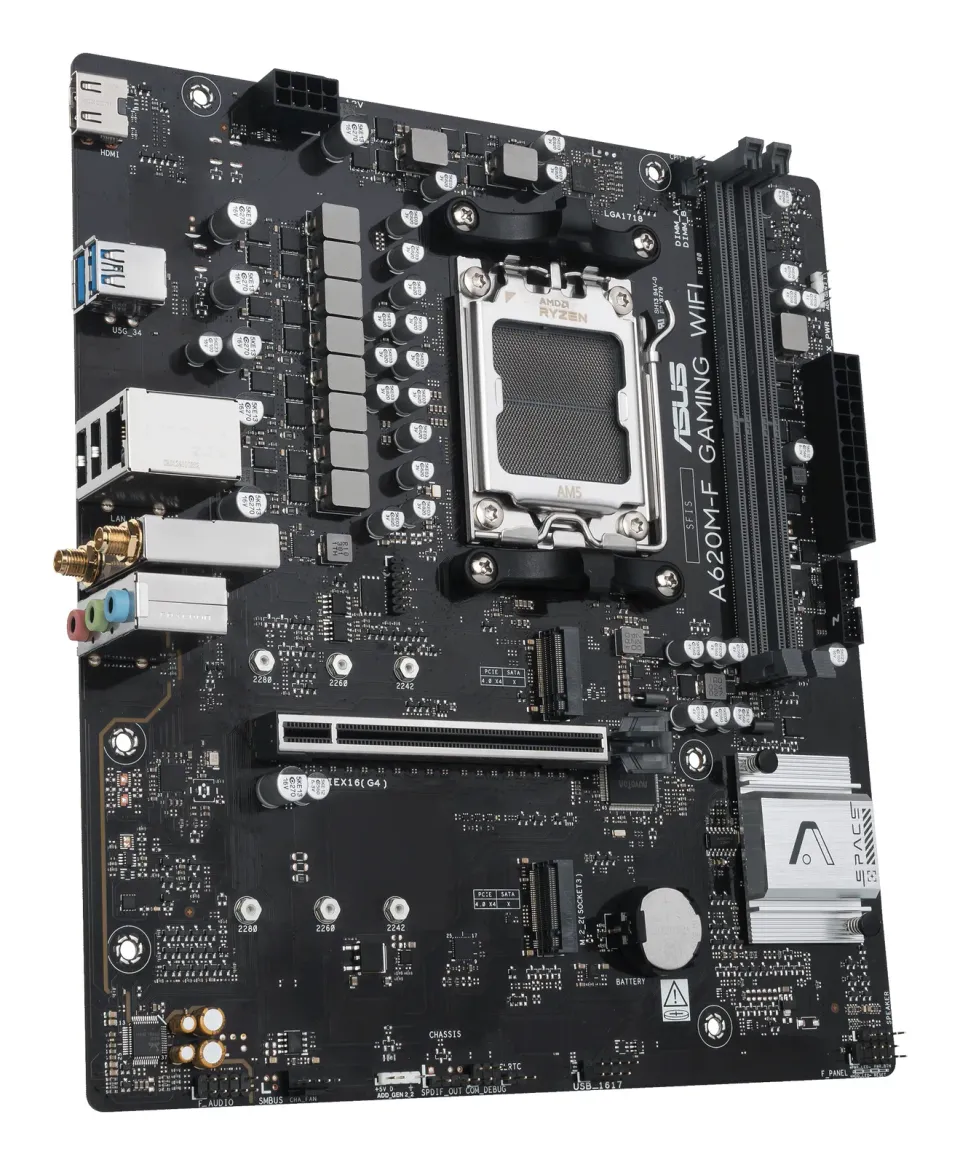

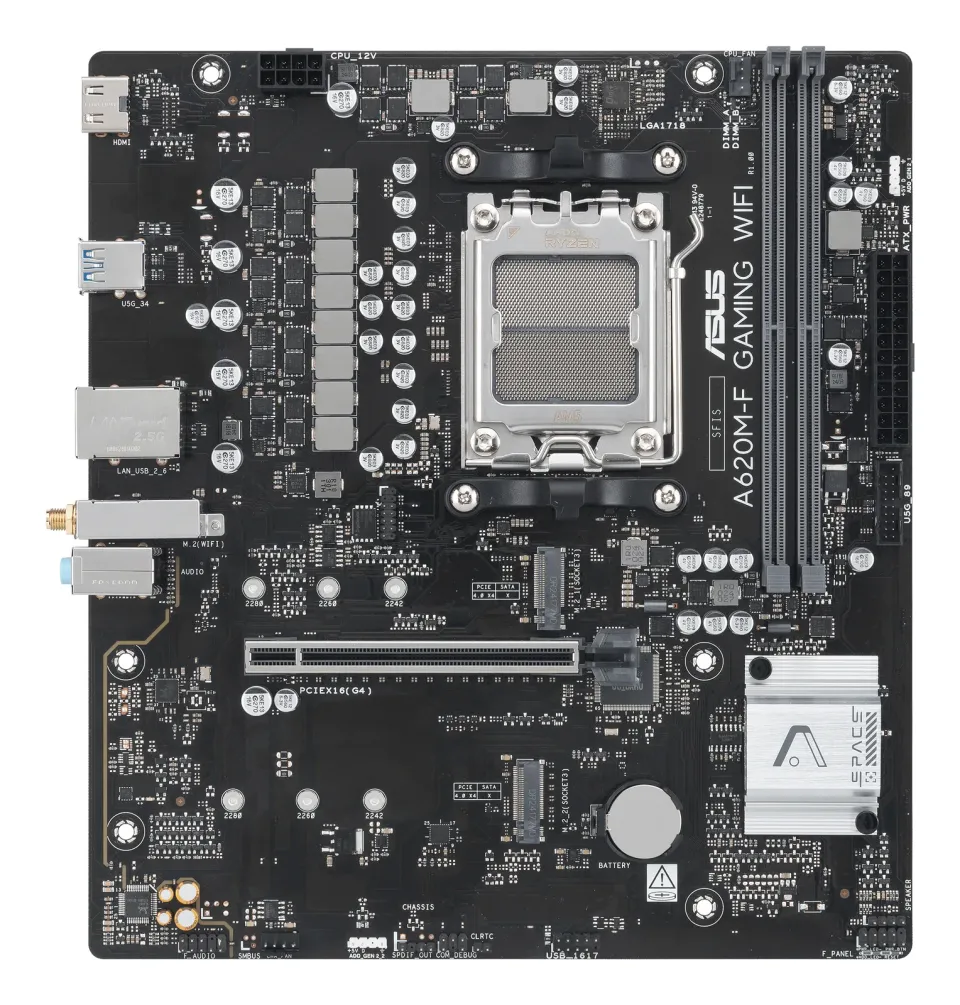

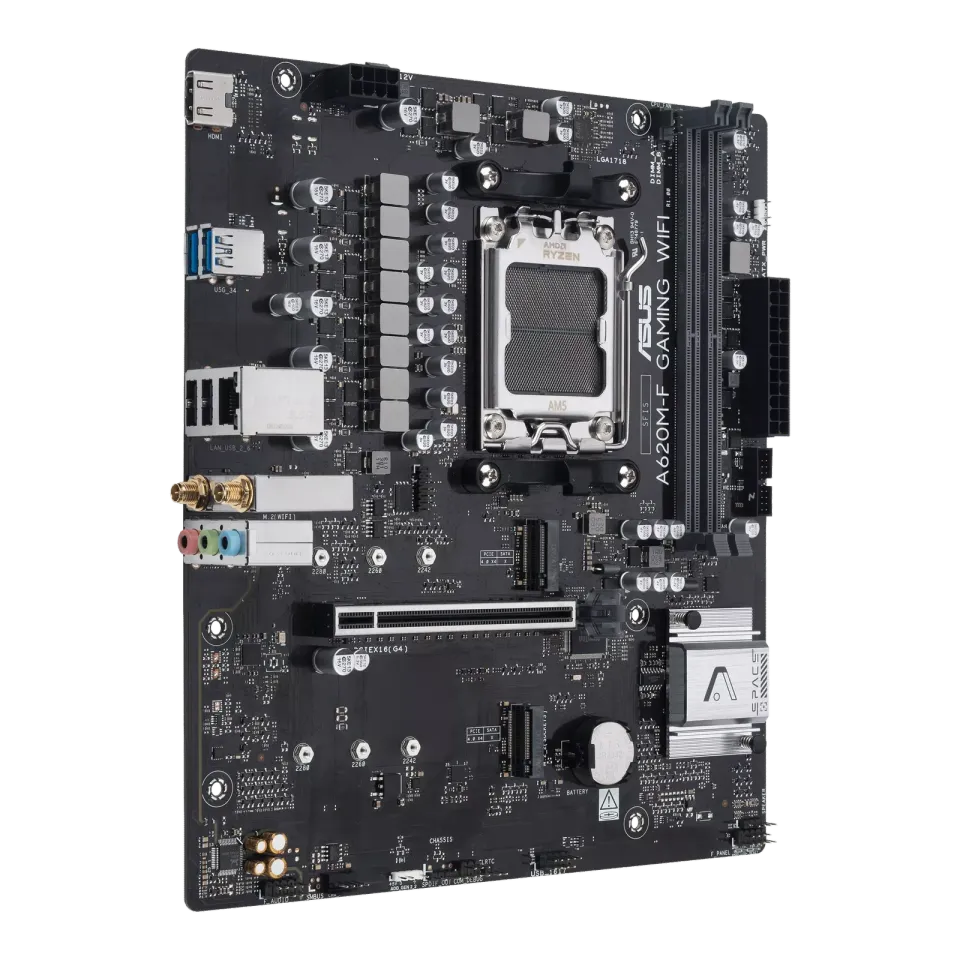

ASUS MB Sc AM5 A620M-F GAMING WIFI, AMD A620, 2xDDR5, 1xHDMI, mATX

ASUS A620M-F GAMING WIFI
AMD A620 (Ryzen AM5) mATX motherboard with DDR5, PCIe 4.0 support, dual M.2 slots, HDMI™, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 5Gb/s ports, Aura Sync

• AI PC Ready: Designed for the future of AI computing, providing the performance and connectivity required for demanding AI applications
• AMD AM5 socket: Ready for AMD Ryzen™ desktop processors
• Ultrafast connectivity: PCIe 4.0, 64Gb/s M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 5Gb/s, front USB 5Gb/s Type-A
• Comprehensive cooling: PCH heatsink, hybrid fan headers, and Fan Xpert 2+
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
  CPU
  AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
  Supports up to AMD 120W CPU

• Refer to www.asus.com for CPU support list.
  Chipset
  AMD A620 Chipset
  Memory
  2 x DIMM slots, max. 128GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory*
  Dual channel memory architecture
  Supports AMD Extended Profiles for Overclocking (EXPO™)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  Onboard Graphics
  1 x HDMI™ port*
• Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
  1 x PCIe 4.0 x16 slot
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  Storage Interface
  Supports 2 x M.2 slots*
  AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
  M.2_1 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode)
  AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
  Ethernet
  1 x Realtek RTL8125D 2.5Gb
  Wireless and Bluetooth
  Wi-Fi 6
  1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.3
  USB
  Rear USB (Total 4 ports)
  2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 4 ports)
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

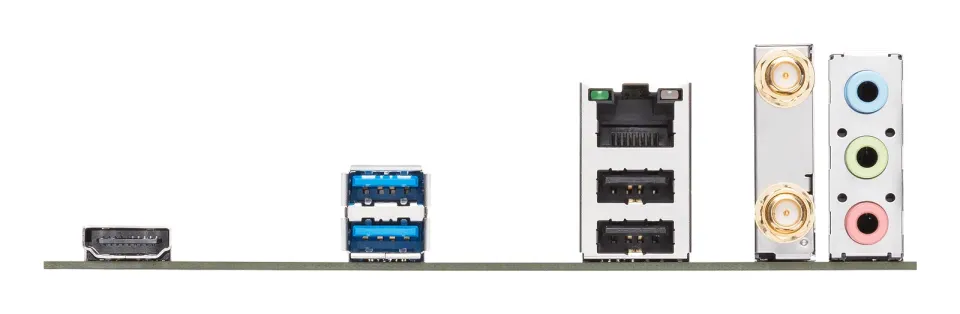

  Back Panel Connectors
  2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x HDMI™ port
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet port
  3 x Audio jacks
  Internal I/O Connectors
  Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan headers
  Power Related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage Related
  2 x M.2 slots (Key M)
  USB
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports
  Miscellaneous
  2 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x 10-1 pin System Panel header
  Unique Features
  ASUS 5X PROTECTION III

• DIGI+ VRM
• LANGuard
• Overvoltage protection
• SafeSlot Core+
• Stainless-steel back I/O
  ASUS Q-Design
• Q-DIMM
• Q-LED Core
• Q-Slot
  Aura Sync
• Addressable Gen 2 headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
  AI Suite 3
• TurboV EVO
• DIGI+ VRM
• PC Cleaner
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Miscellaneous

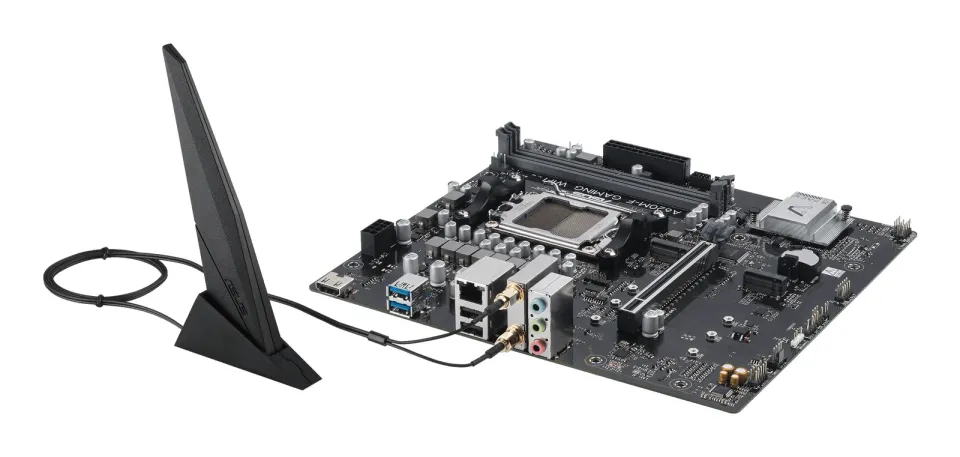

  1 x ASUS Wi-Fi moving antenna
  1 x I/O Shield
  1 x Screw package for M.2 SSD
  Documentation
  1 x Quick start guide
  Operating System
  Windows 11, Windows 10 64-bit
  Form Factor
  9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )

Formát základní desky: micro ATX
Chipset: AMD A620
Socket (patice): Socket AM5 (LGA 1718)
Pro procesory: AMD
Technologie paměti RAM: DDR5
Počet paměťových slotů: 2
M.2 slot: 1
SATA 3: 4
Podpora RAID: 0, 1, 10
PCI Express x16: 1
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: bez
DisplayPort: 0
HDMI: 1
VGA: 1
DVI: 0
USB 2: 6
USB 3: 6
USB C: 0
