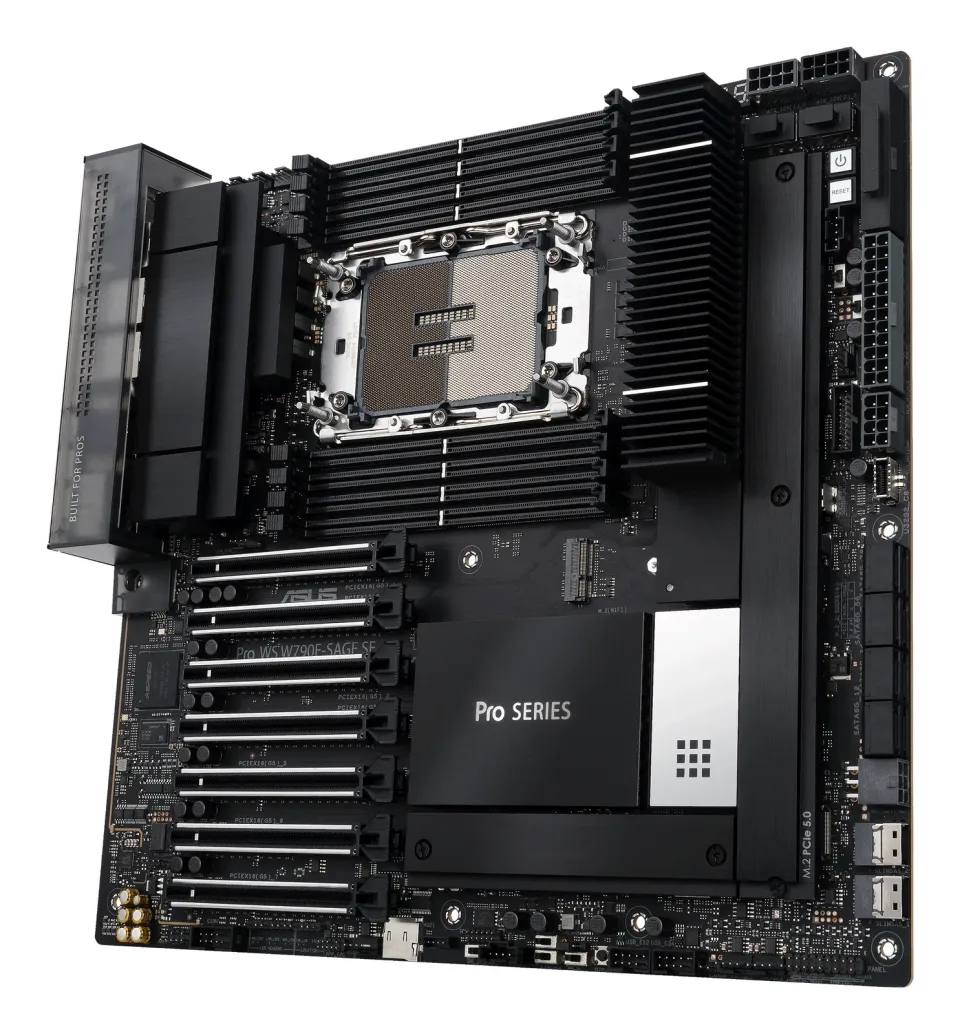

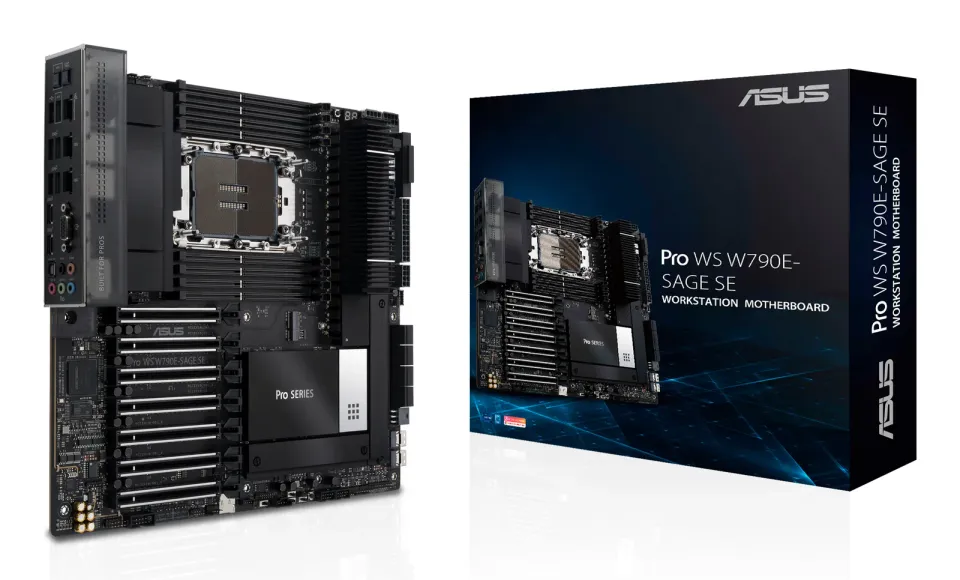

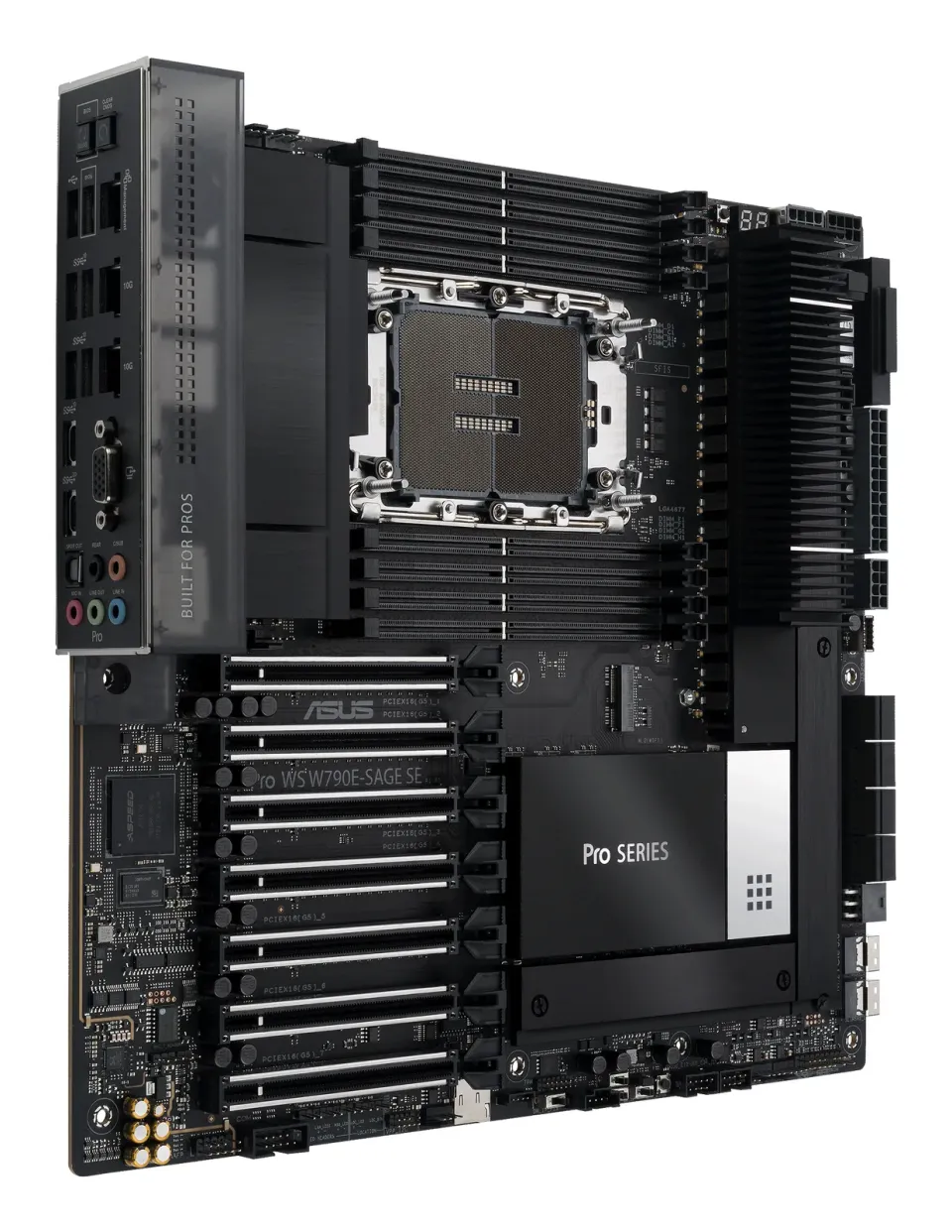

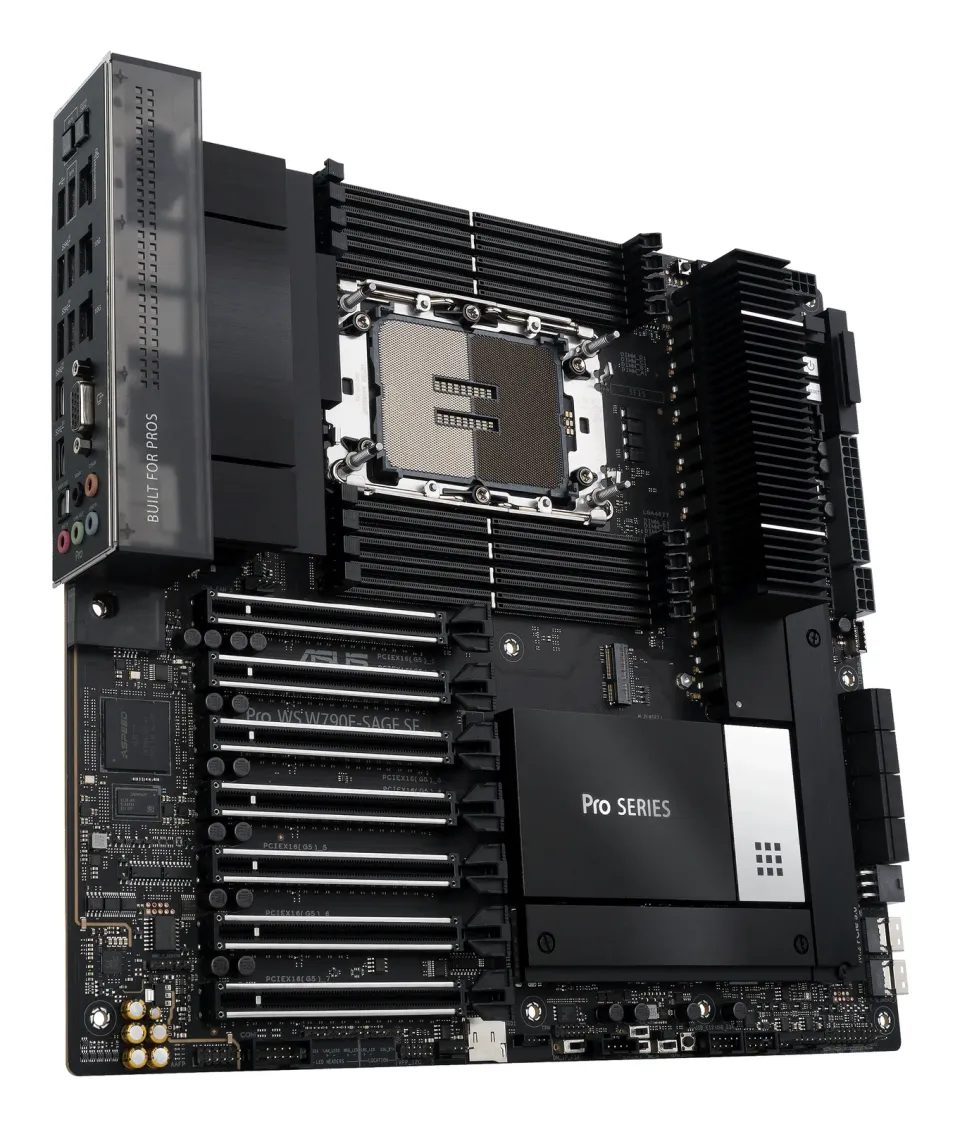

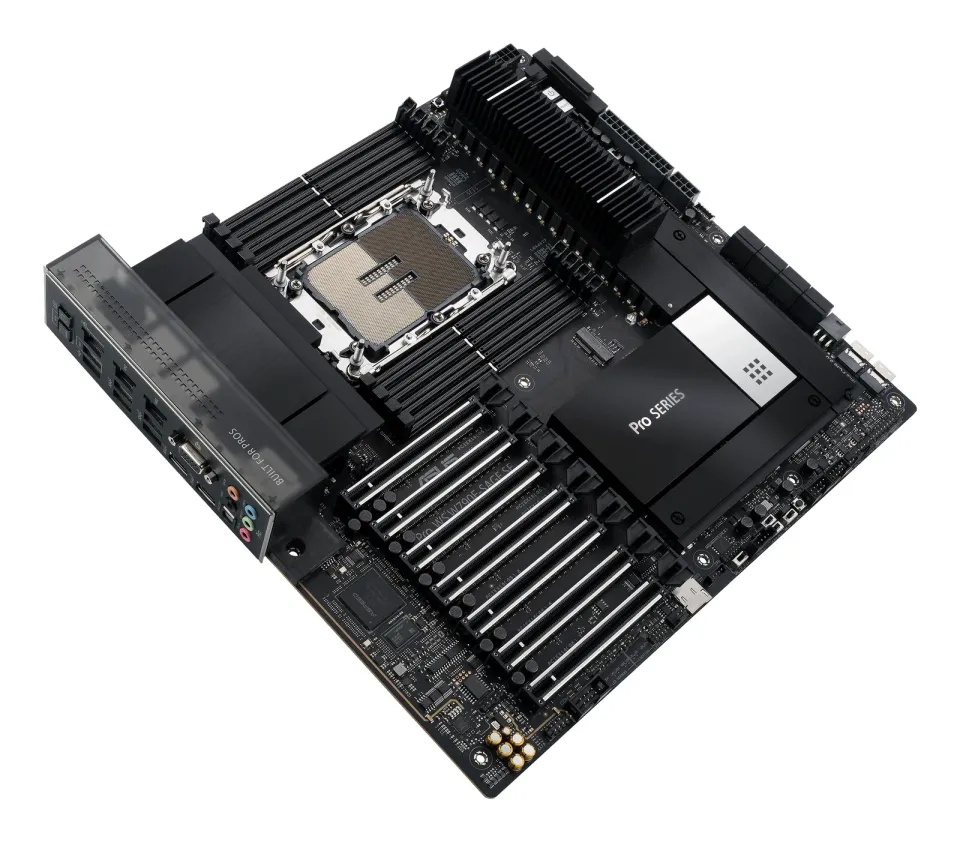

ASUS MB PRO WS W790E-SAGE SE, Intel W790, 8xDDR5, 1xVGA, EEB

ASUS Pro WS W790E-SAGE SE

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA 4677 socket: Ready for Intel Xeon W-3400 & W-2400 processors
• CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC)
• Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C and 2 SlimSAS
• Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Center Express
• Robust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates
• Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
  CPU
  Intel Socket LGA4677 for Xeon W-3400 and W-2400 Series Processors*
  Supports Intel Turbo Boost Max Technology 3.0

• Refer to www.asus.com for CPU support list.
  Chipset
  Intel W790 Chipset
  Memory
  8 x DIMM slots, Max. 2048GB, DDR5
  6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory*
  8-Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
  Graphics
  1 x VGA port from AST2600
  Expansion Slots
  Intel Xeon W-3400 Series Processors*
  7 x PCIe 5.0 slots (x16/x16/x16/x16/x16/x8/x16)
  Intel Xeon W-2400 Series Processors*
  4 x PCIe 5.0 slots (x16/x16/x16/x16)
• Please check the PCIe bifurcation table on the support site.
  ** Please refer to the block diagrams in the Appendix for more details.
  Storage
  Total supports 3 x M.2 slots, 2 x SlimSAS slots and 8 x SATA 6Gb/s ports
  Intel Xeon W-3400 Series Processors
  M.2_1 slot (Key M), type 2242/2260/2280/22110 (PCIe 5.0 x4)
  M.2_2 slot (Key M), type 2242/2260/2280/22110 (PCIe 5.0 x4)
  Intel W790 Chipset
  M.2_3 slot (Key M), type 2242/2260/2280/22110 (PCIe 4.0 x4)
  SlimSAS_1 supports PCIe 4.0 x4 NVMe
  SlimSAS_2 supports PCIe 4.0 x4 NVMe
  8 x SATA 6Gb/s ports
  Ethernet
  1 x Intel dual 10Gb Ethernet
  1 x Realtek 1Gb Ethernet
  ASUS LANGuard
  USB
  Rear USB (Total 8 ports)
  1 x USB 3.2 Gen 2x2 (USB Type-C)
  5 x USB 3.2 Gen 2 (4 x Type-A + 1 x Type-C)
  2 x USB 2.0 (Type-A)
  Front USB (Total 7 ports)
  1 x USB 3.2 Gen 2 connector (Type-C)
  1 x USB 3.2 Gen 1 header (2 ports)
  2 x USB 2.0 headers (4 ports)
  Audio
  Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
  Impedance sense for front and rear headphone outputs
  Internal amplifier for headphones and speakers
  Supports jack-detection, multi-streaming, front panel jack-retasking
  120 dB SNR playback / 113 dB SNR recording
  Supports up to 32-Bit/192 kHz playback

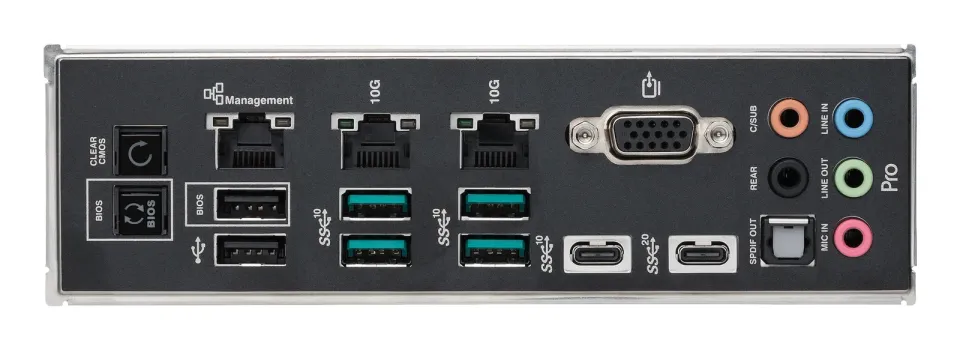

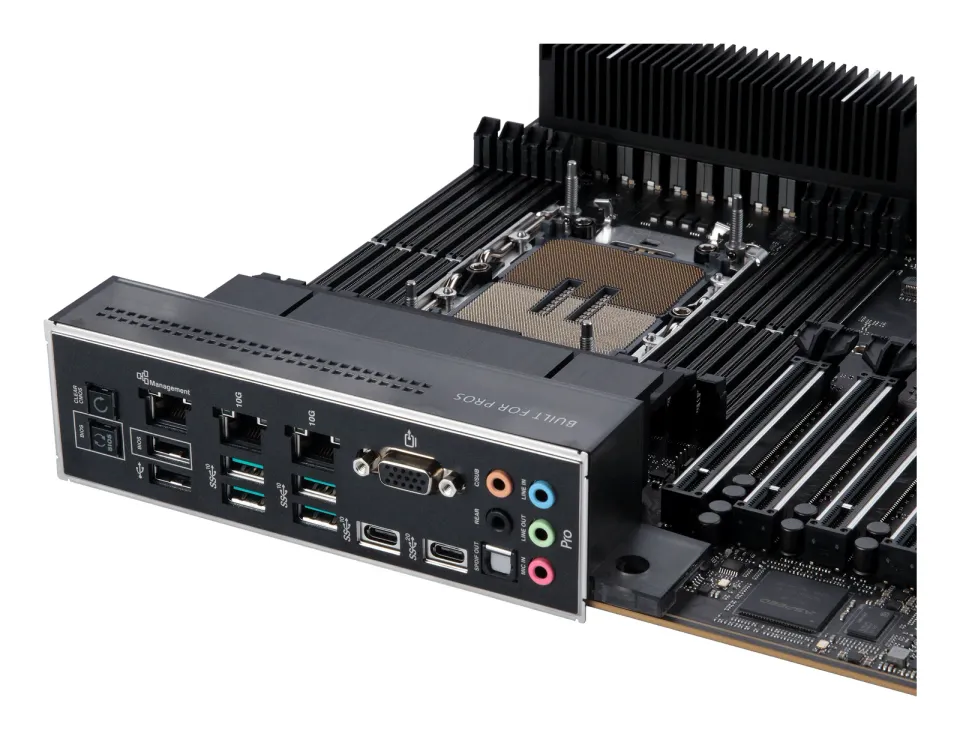

  Back Panel I/O Ports
  1 x USB 3.2 Gen 2x2 (Type-C)
  5 x USB 3.2 Gen 2 (Type-A + Type-C)
  2 x USB 2.0
  1 x VGA port
  2 x Intel 10Gb Ethernet
  1 x Realtek 1Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack™ button
  1 x Clear CMOS button
  Internal I/O Connectors
  1 x CPU Fan header
  1 x CPU OPT Fan header
  5 x Chassis Fan headers
  1 x W_PUMP+ header
  2 x 24-pin Main Power connectors
  4 x 8-pin +12V Power connectors
  1 x 8-pin PCIe Power connector
  1 x 6-pin PCIe Power connector
  3 x M.2 slots
  2 x SlimSAS connectors
  8 x SATA ports
  USB headers and additional internal connectors
  Special Features
  Extreme OC Kit
  ASUS 5X PROTECTION III
  ASUS Q-Design
  ASUS Thermal Solution
  ASUS EZ DIY
  24/7 reliability and overcurrent protection
  Software Features
  Armoury Crate
  AI Suite 3
  ASUS CPU-Z
  ASUS Control Center Express
  Adobe Creative Cloud (trial)
  Norton 360 Deluxe (trial)
  WinRAR
  UEFI BIOS tools
  BIOS
  512 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE (UEFI mode)
  Accessories
  4 x SATA cables
  Thermistor cable pack
  Mounting and M.2 accessories
  Documentation
  Operating System
  Windows 11, Windows 10 64-bit
  Form Factor
  EEB Form Factor
  12 inch x 13 inch (30.5 cm x 33 cm)

Formát základní desky: EEB
Chipset: Intel W790
Socket (patice): Socket E (LGA4677)
Pro procesory: Intel
Technologie paměti RAM: DDR5
Počet paměťových slotů: 8
M.2 slot: 3
SATA 3: 8
PCI Express x16: 7
DisplayPort: 0
HDMI: 0
VGA: 1
DVI: 0
USB 2: 6
USB 3: 6
USB C: 3
COM port
TPM
