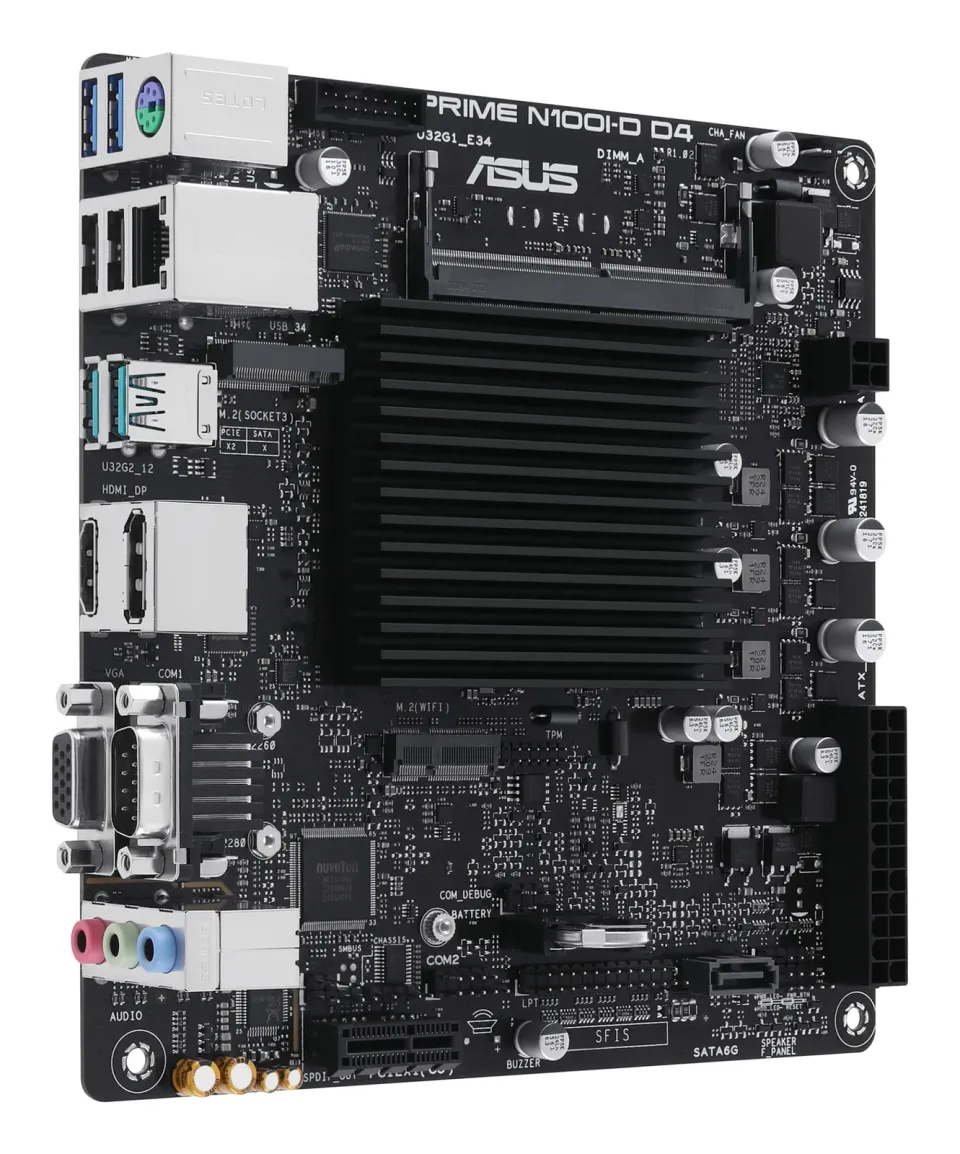

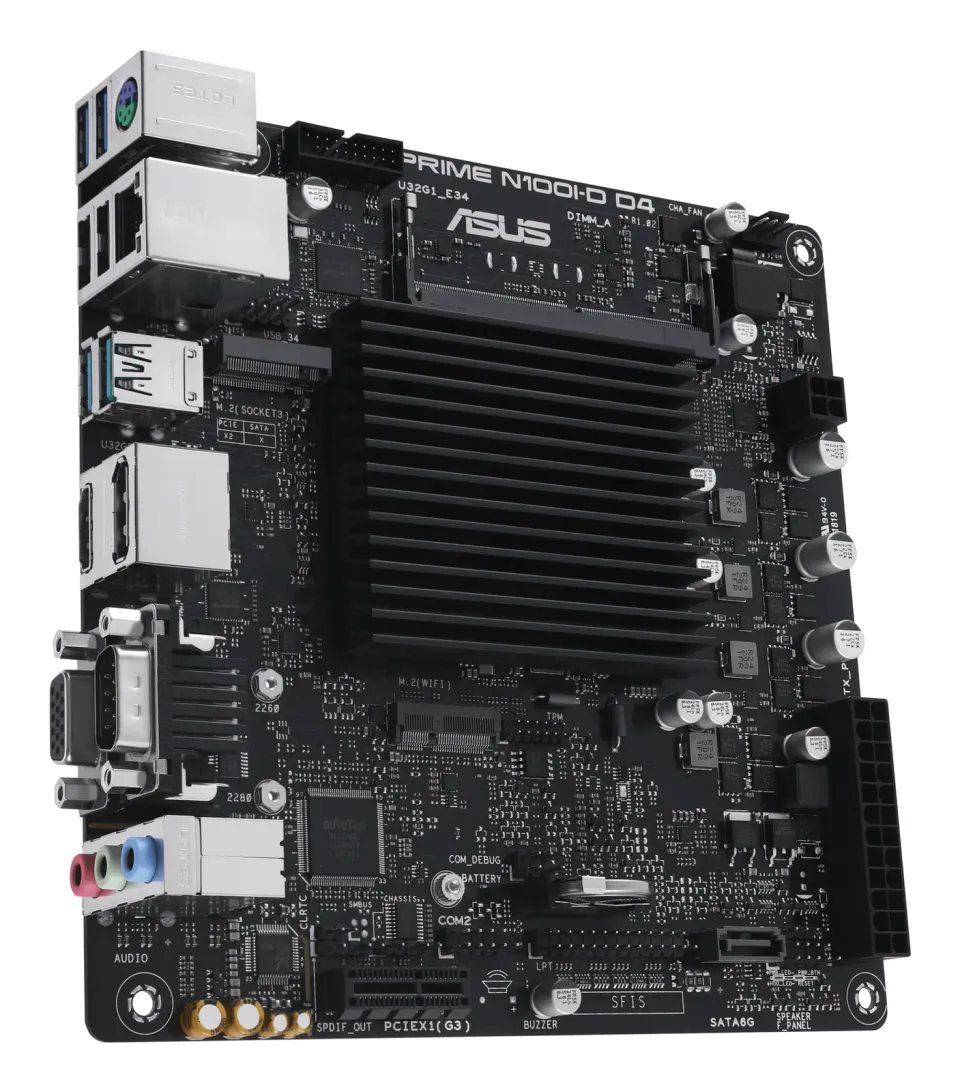

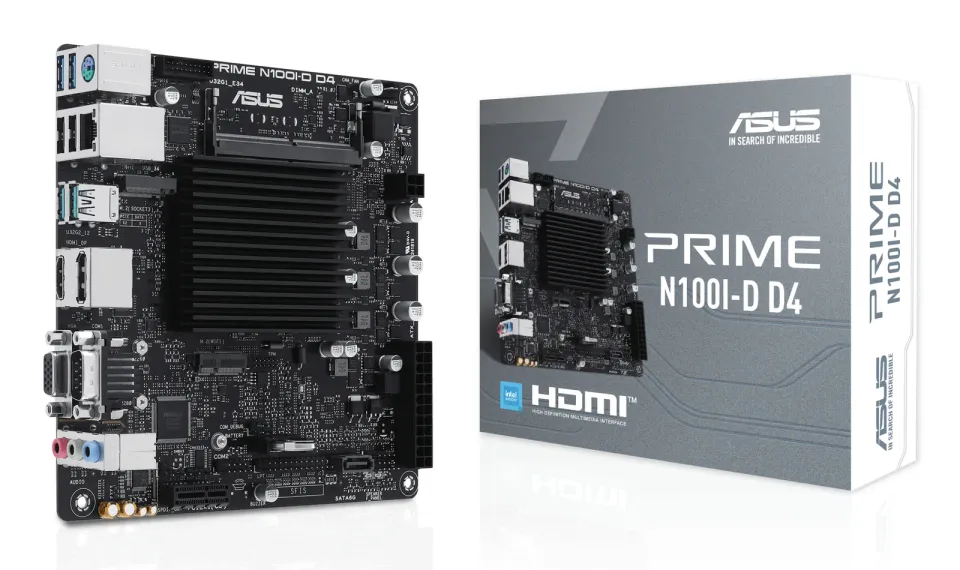

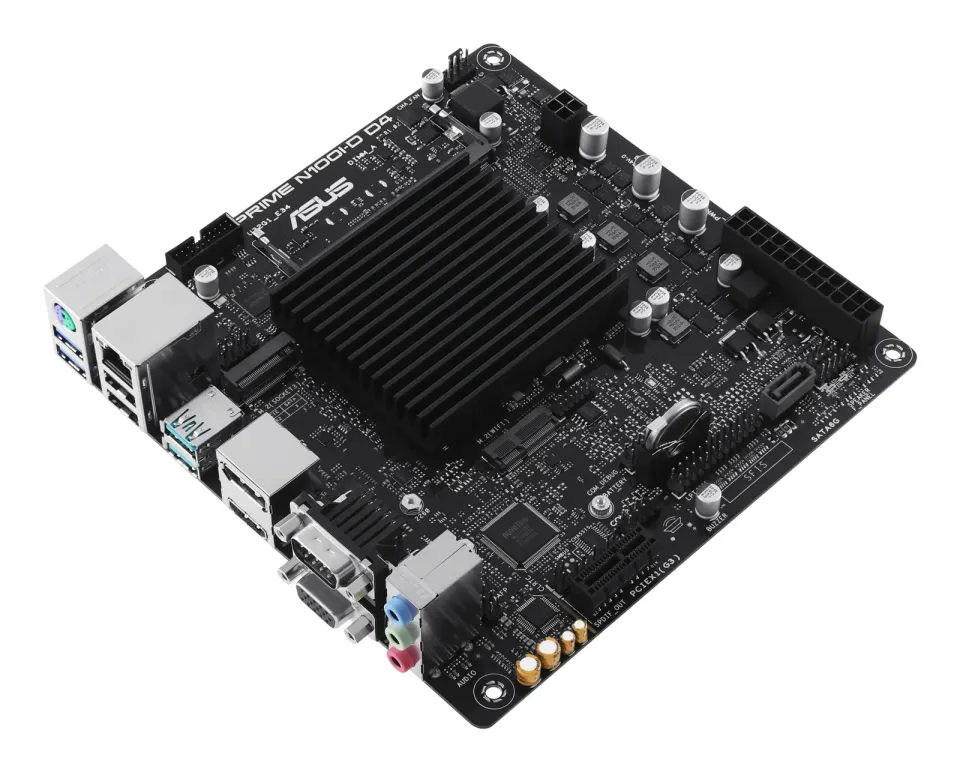

ASUS MB PRIME N100I-D D4-CSM, Intel® Processor N100, 1xDDR4, 1xHDMI, 1xDP, 1xVGA, Mini-ITX

ASUS PRIME N100I-D D4-CSM
Low-power, fan-less motherboard for Intel Processor N100, with PCIe 3.0, DisplayPort/HDMI™/VGA, USB 3.2 Gen 2 port, M.2 WIFI slot, SATA 6 Gbps, LPT header, COM Port, COM Header, Q-LED Core

• Ultrafast Connectivity: PCIe 3.0 x1 slot, 16Gbps M.2 support, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 and 1Gb Ethernet
• Better serviceability: COM debug header to facilitate building and support processes
• ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
  CPU
  Onboard Intel Processor N100
  Supports Intel Turbo Boost Technology 2.0
  Memory
  1 x SO-DIMM, Max. 16GB, DDR4 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

• We recommend that you use 16GB or less memory module.
• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
  Graphics
  1 x DisplayPort**
  1 x VGA port
  1 x HDMITM port***
  *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  **Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  ***Supports 4K@60Hz as specified in HDMITM 2.1.
  Expansion Slots
  1 x PCIe 3.0 x1 slot

• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  Storage
  Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port
  1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode)
  1 x SATA 6Gb/s port
  Ethernet
  1 x Realtek 1Gb Ethernet
  ASUS LANGuard
  Wireless & Bluetooth
  M.2 slot only (Key E, CNVi & PCIe)*

• Wi-Fi module is sold separately.
  USB
  Rear USB (Total 6 ports)
  2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
  2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)*
  2 x USB 2.0 ports (2 x Type-A)
  Front USB (Total 4 ports)
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports*
  1 x USB 2.0 header supports 2 additional USB 2.0 ports
• U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"
  Audio Features
• Audio Shielding
• Premium audio capacitors

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

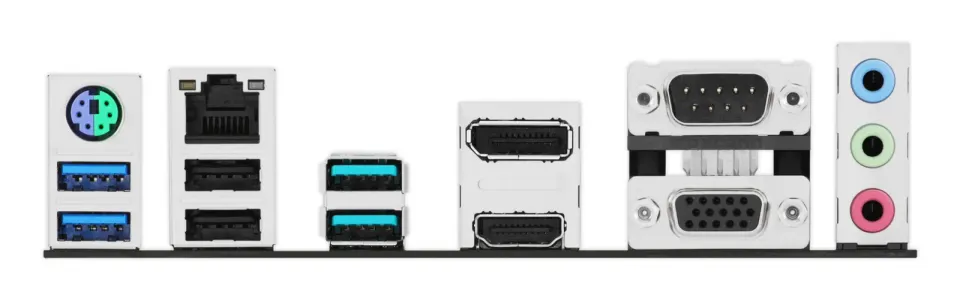

  Back Panel I/O Ports
  2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A)
  2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x DisplayPort
  1 x VGA port
  1 x HDMITM Port
  1 x COM port
  1 x Realtek 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port
  Internal I/O Connectors
  Fan and cooling related
  1 x 4-pin Chassis Fan header
  Power related
  1 x 24-pin Main Power connector
  1 x 4-pin +12V Power connector
  Storage related
  1 x M.2 slot (Key M)
  1 x SATA 6Gb/s port
  USB
  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports 2 additional USB 2.0 ports
  Miscellaneous
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x M.2 slot (Key E)
  1 x Chassis Intrude header
  1 x LPT header
  1 x S/PDIF out header
  1 x SPI TPM header (14-1pin)
  1 x Speaker Header
  1 x System Panel connector
  Special Features
  Proven Quality

• ESD Guards
• LANGuard
• Overvoltage Protection
• Stainless-Steel Back I/O
  ASUS Q-Design
• Q-LED Core
  ASUS Thermal Solution
• CPU heatsink design
  Software Features
  ASUS Exclusive Software
  ASUS CPU-Z
  Norton 360 Deluxe (60 Days Free Trial)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous

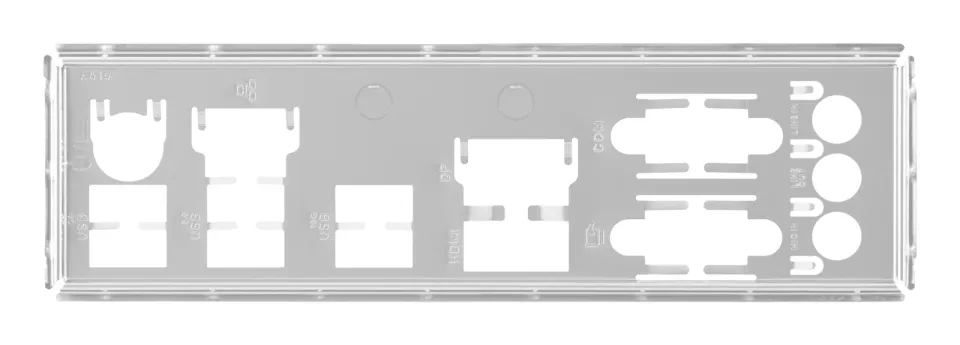

  1 x I/O Shield
  1 x Screw package for M.2 SSD
  1 x Screw package for M.2 Key E
  Documentation
  1 x User guide
  1 x ACC Express Activation Key Card
  Operating System
  Windows 11(Version 22'H2 and later), Windows 10 64-bit
  Form Factor
  Mini-ITX Form Factor 17cm x 17cm

Formát základní desky: Mini-ITX
Chipset: Intel
Socket (patice): Integrovaný procesor
Pro procesory: Integrovaný procesor
Technologie paměti RAM: SODIMM DDR4
Počet paměťových slotů: 1
M.2 slot: 1
SATA 3: 1
Podpora RAID: Bez RAID podpory
PCI Express x16: 0
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: bez
DisplayPort: 1
HDMI: 1
VGA: 1
DVI: 0
