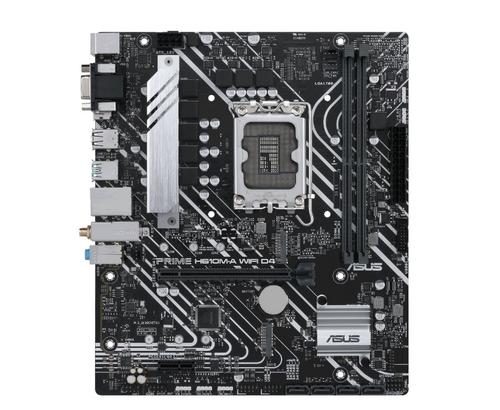

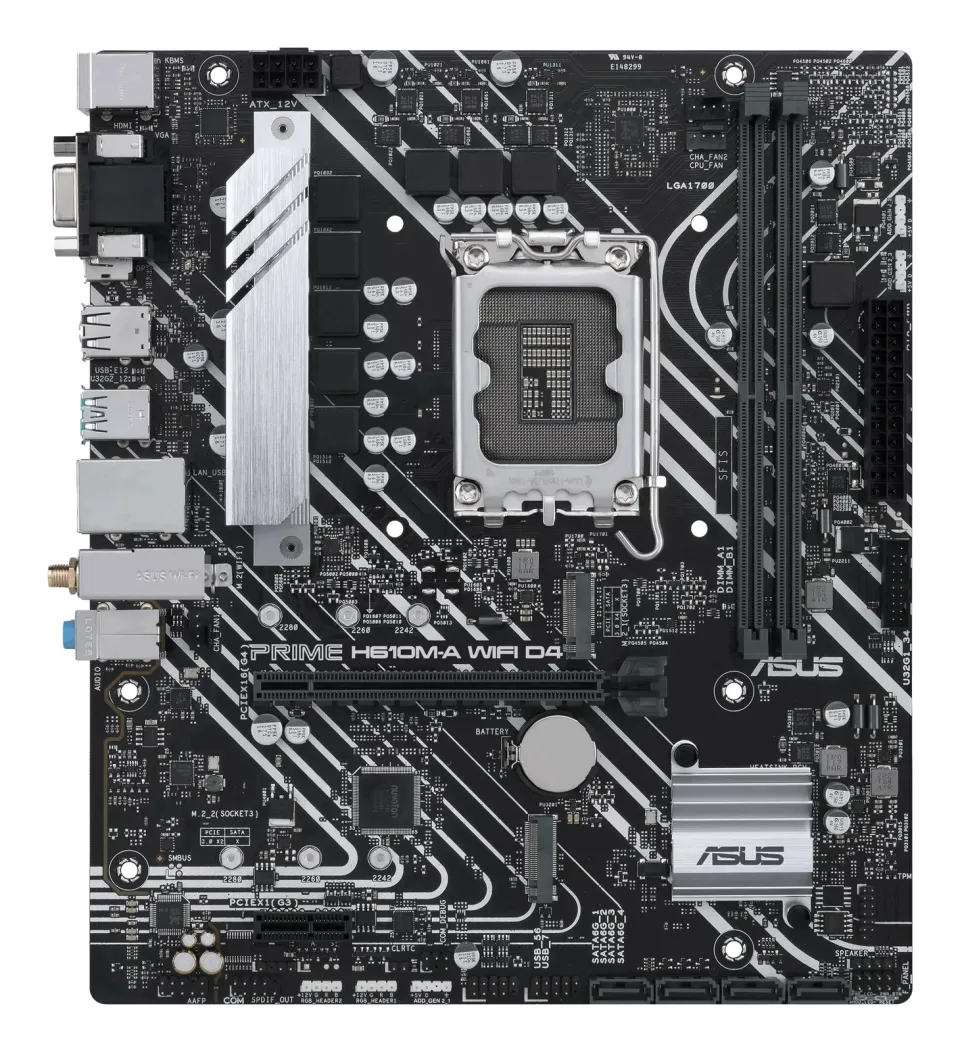

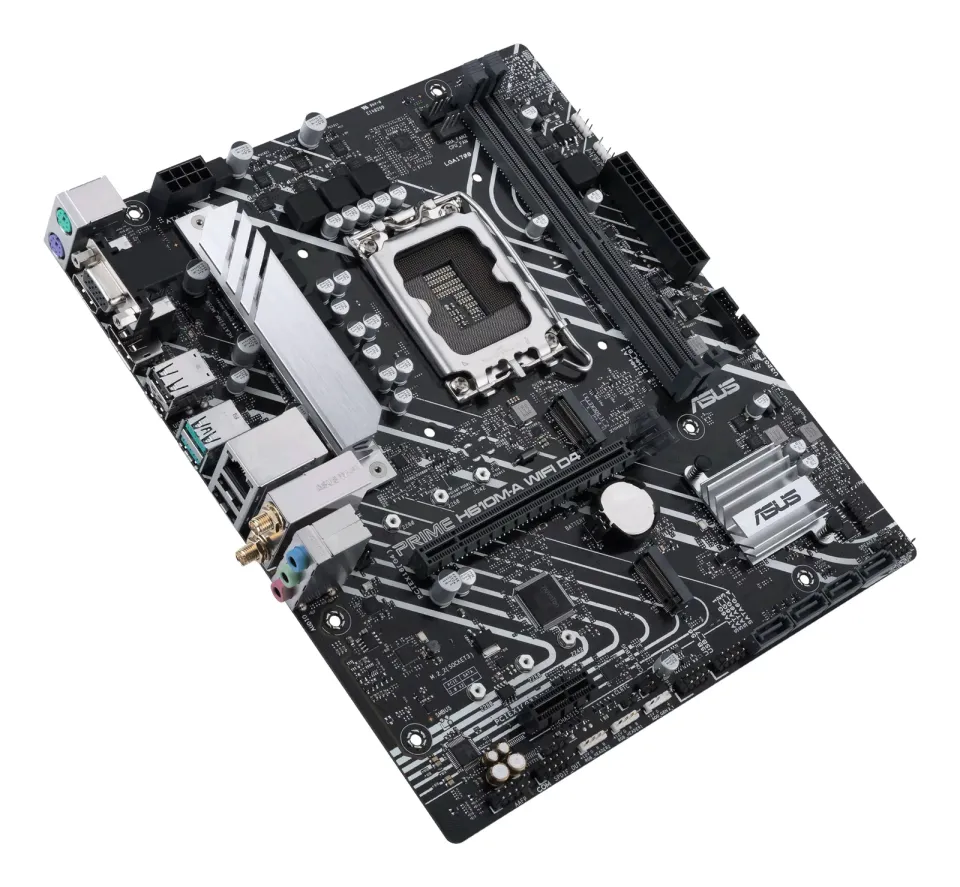

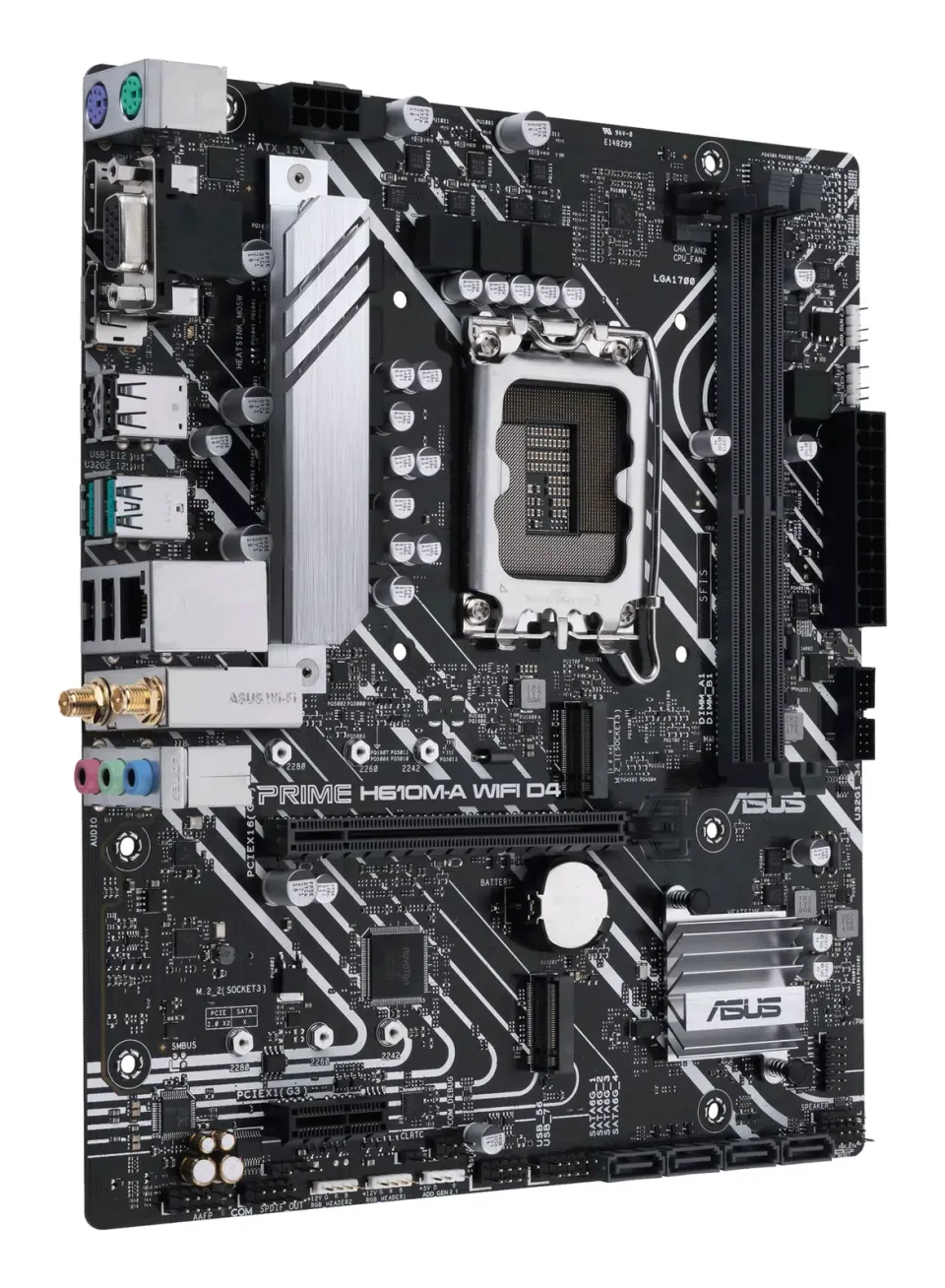

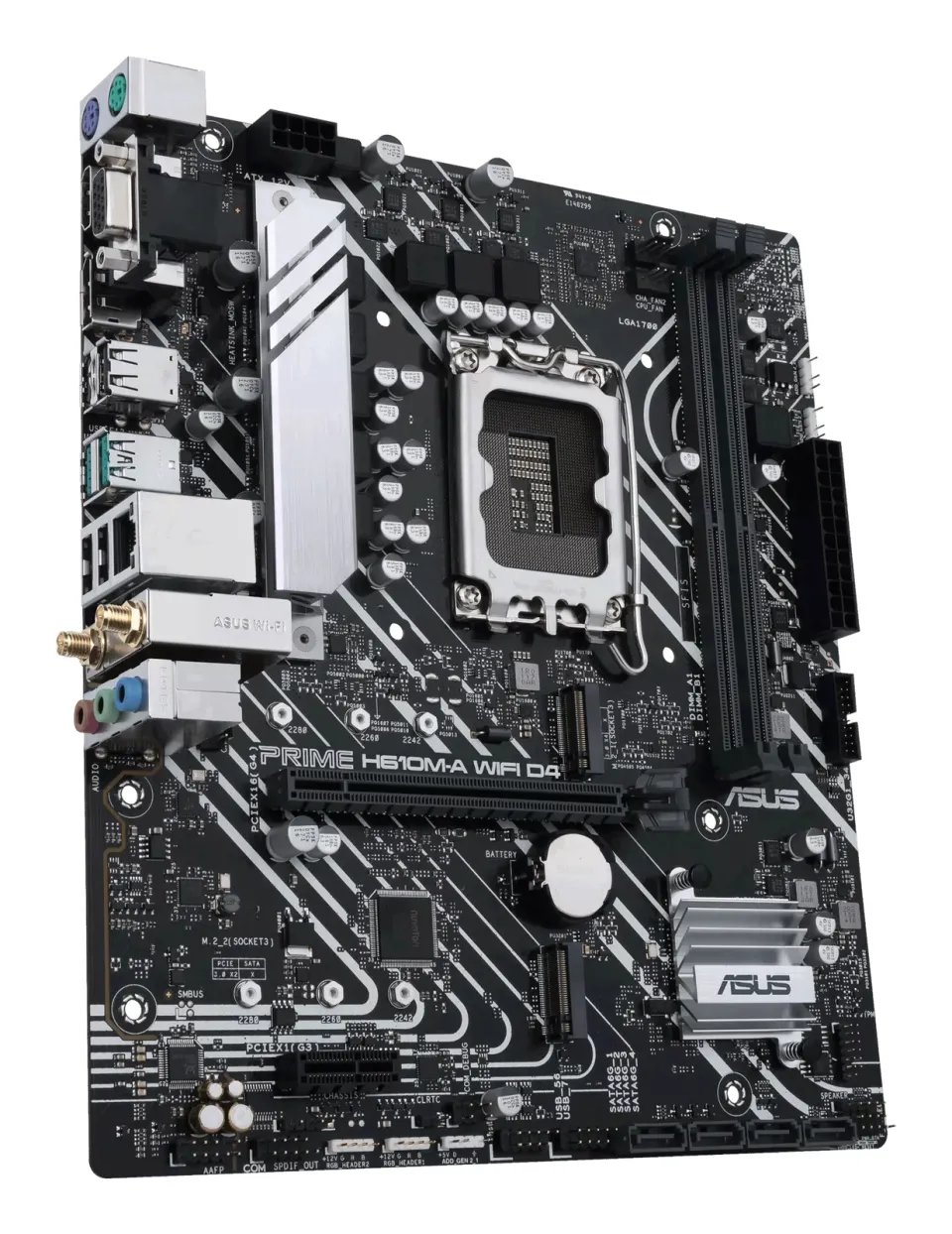

ASUS MB PRIME H610M-A WIFI D4 soc 1700 H610 DDR4 mATX M.2 HDMI D-Sub DP

PRIME H610M-A WIFI D4
Intel H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Intel 1 Gb Ethernet, WIFI 5, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Arua Sync

• Intel LGA 1700 socket: Ready for 12th Gen Intel processors
• Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+
• Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 ports
• Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
  CPU
  Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors*
  Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
  Chipset
  Intel H610 Chipset
  Memory
  2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel Extreme Memory Profile (XMP)
  Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
  Graphics
  1 x DisplayPort*
  1 x D-Sub port
  1 x HDMI port***
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.
  Expansion Slots
  Intel 12th Gen Processors
  1 x PCIe 4.0 x16 slot
  Intel H610 Chipset
  1 x PCIe 3.0 x1 slot
  Storage
  Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
  Intel H610 Chipset
  M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
  4 x SATA 6Gb/s ports
  Ethernet
  1 x Intel 1Gb Ethernet
  Wireless & Bluetooth
  Wi-Fi 5
  Wi-Fi 5 (802.11 a/b/g/n/ac)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.0
  USB
  Rear USB (Total 6 ports)
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 5 ports)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 3 USB 2.0 ports
  Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
  Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

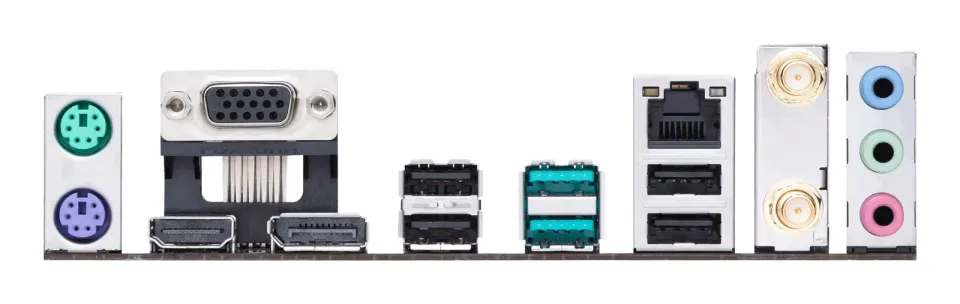

  Back Panel I/O Ports
  2 x USB 3.2 Gen 2 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x DisplayPort
  1 x HDMI port
  1 x D-Sub port
  1 x Wi-Fi Module
  1 x Intel 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard (purple) port
  1 x PS/2 Mouse (green) port
  Internal I/O Connectors
  Fan and Cooling related
  1 x 4-pin CPU Fan header
  2 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V Power connector
  Storage related
  2 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
  USB
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  2 x USB 2.0 headers support additional 3 USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen 2 headers
  2 x AURA RGB headers
  1 x Clear CMOS header
  1 x Front Panel Audio header (AAFP)
  1 x COM Port header
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header
  Special Features
  ASUS 5X PROTECTION III

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O
  ASUS Q-Design
• Q-DIMM
• Q-Slot
  ASUS Thermal Solution
• VRM heatsink design
  AURA Sync
• AURA RGB headers
• Addressable Gen 2 headers
  Software Features
  ASUS Exclusive Software
  Armoury Crate
• AURA Creator
• AURA Sync
• Fan Xpert 2+
  AI Suite 3
• Performance And Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  ASUS CPU-Z
  MyASUS
  Norton Anti-virus software (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  BIOS
  128 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS Wi-Fi moving antennas
  1 x I/O Shield
  1 x M.2 SSD screw package
  Installation Media
  1 x Support DVD
  Documentation
  1 x User guide
  Operating System
  Windows 11 64-bit, Windows 10 64-bit
  Form Factor
  mATX Form Factor
  9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )

Formát základní desky: micro ATX
Chipset: Intel H610
Socket (patice): Socket 1700
Pro procesory: Intel
Technologie paměti RAM: DDR4
Počet paměťových slotů: 2
M.2 slot: 2
SATA 3: 4
Podpora RAID: Bez RAID podpory
PCI Express x16: 1
PCI Express x8: 0
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: WiFi + Bluetooth
DisplayPort: 1
HDMI: 1
VGA: 1
