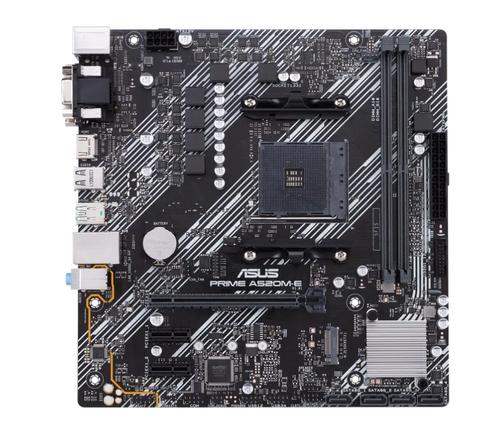

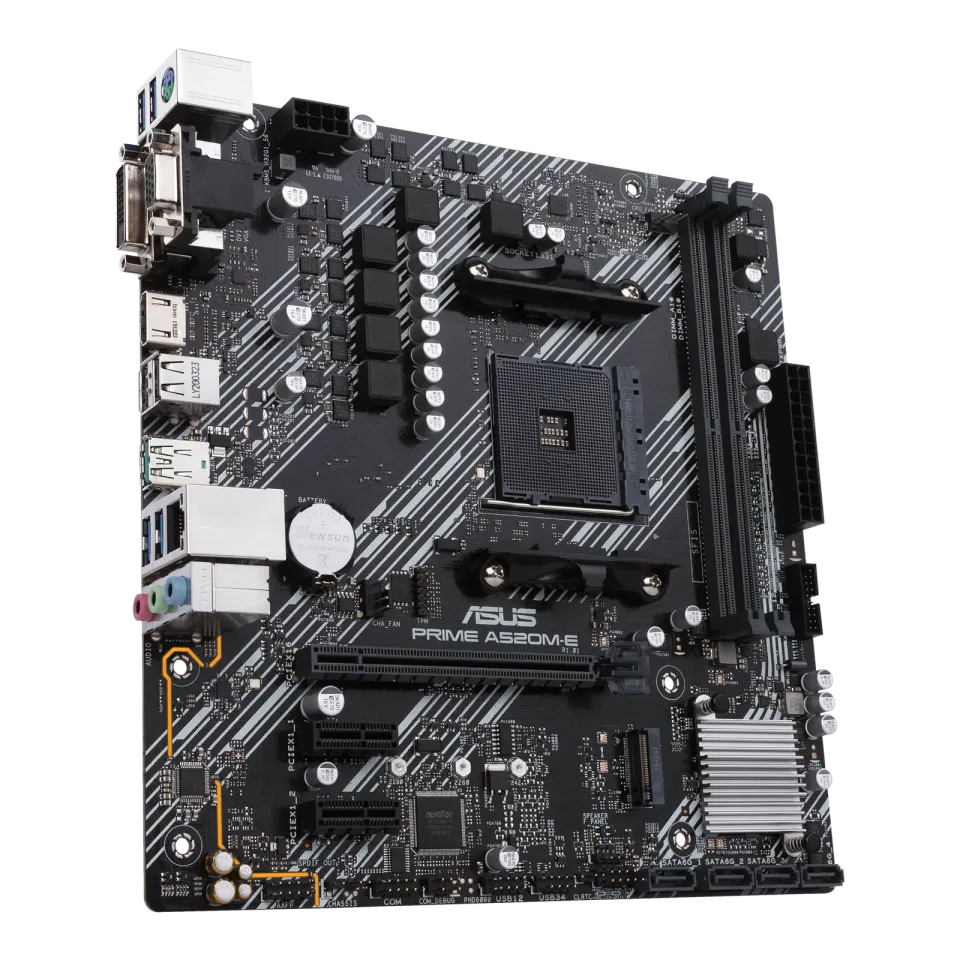

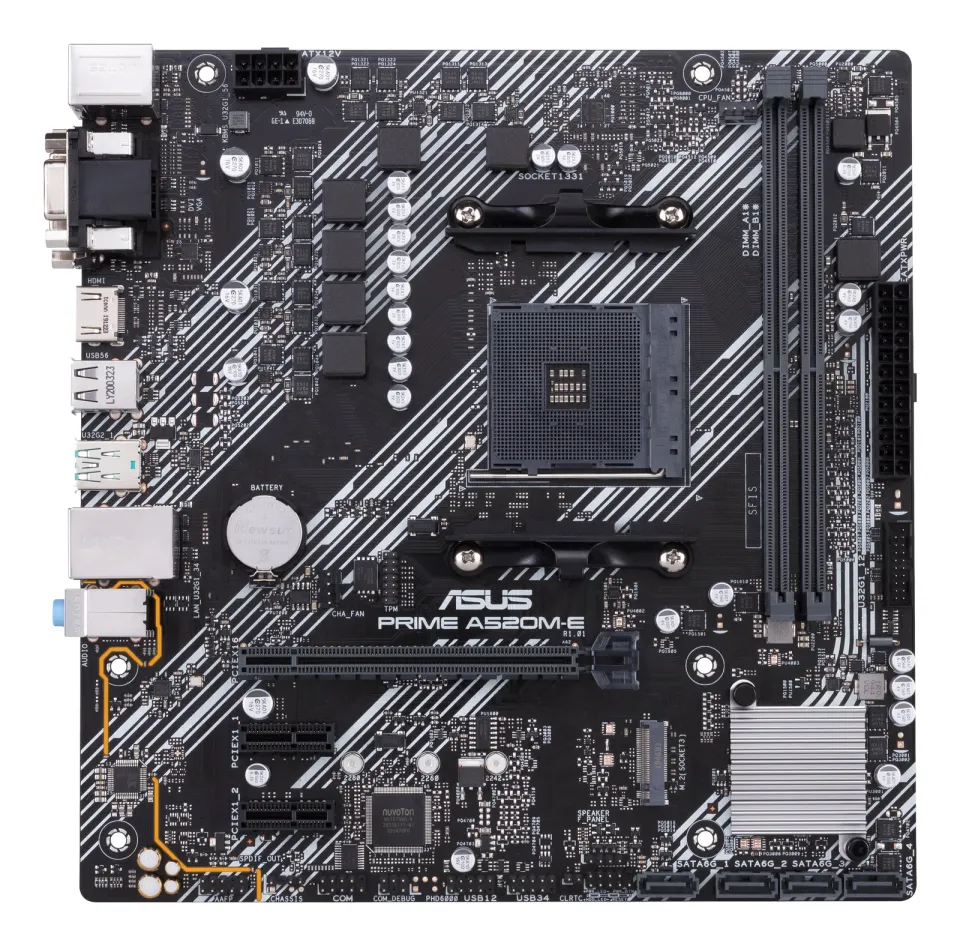

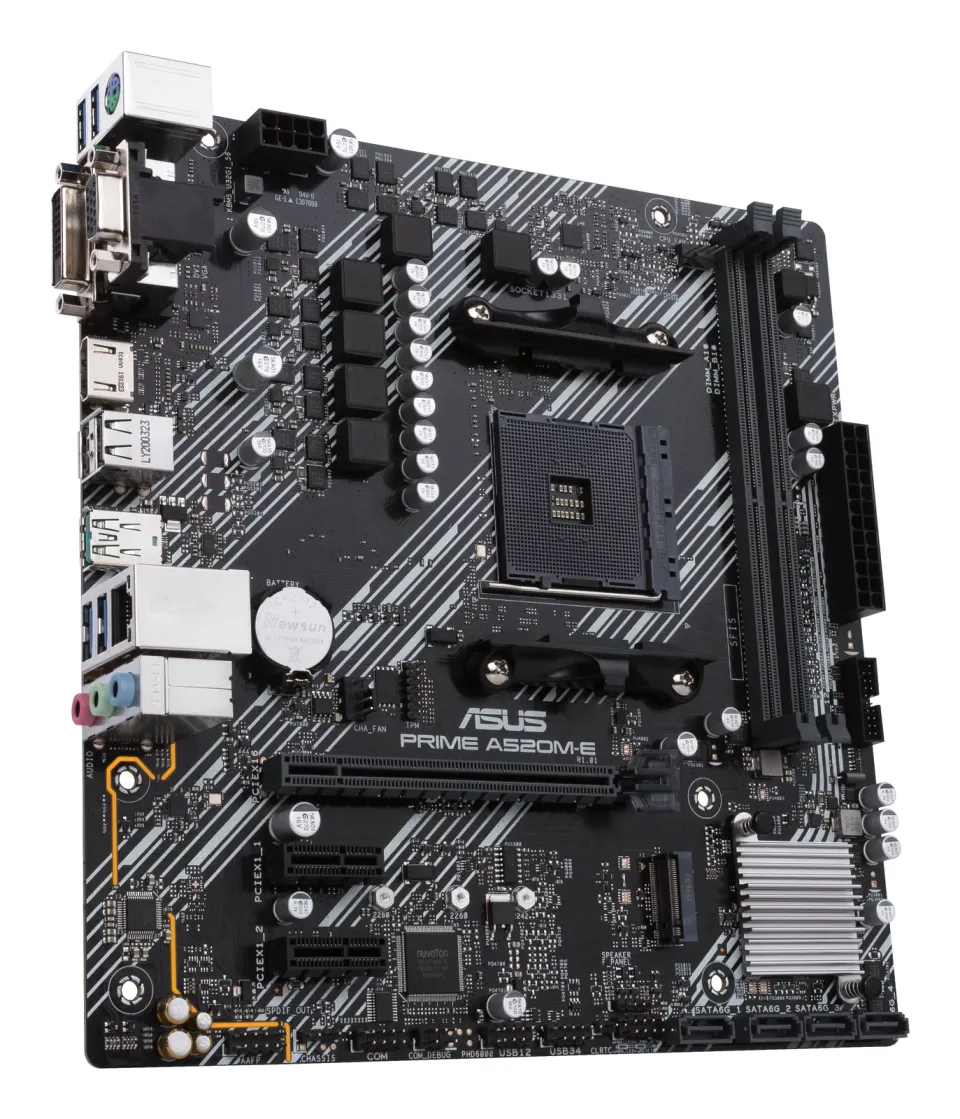

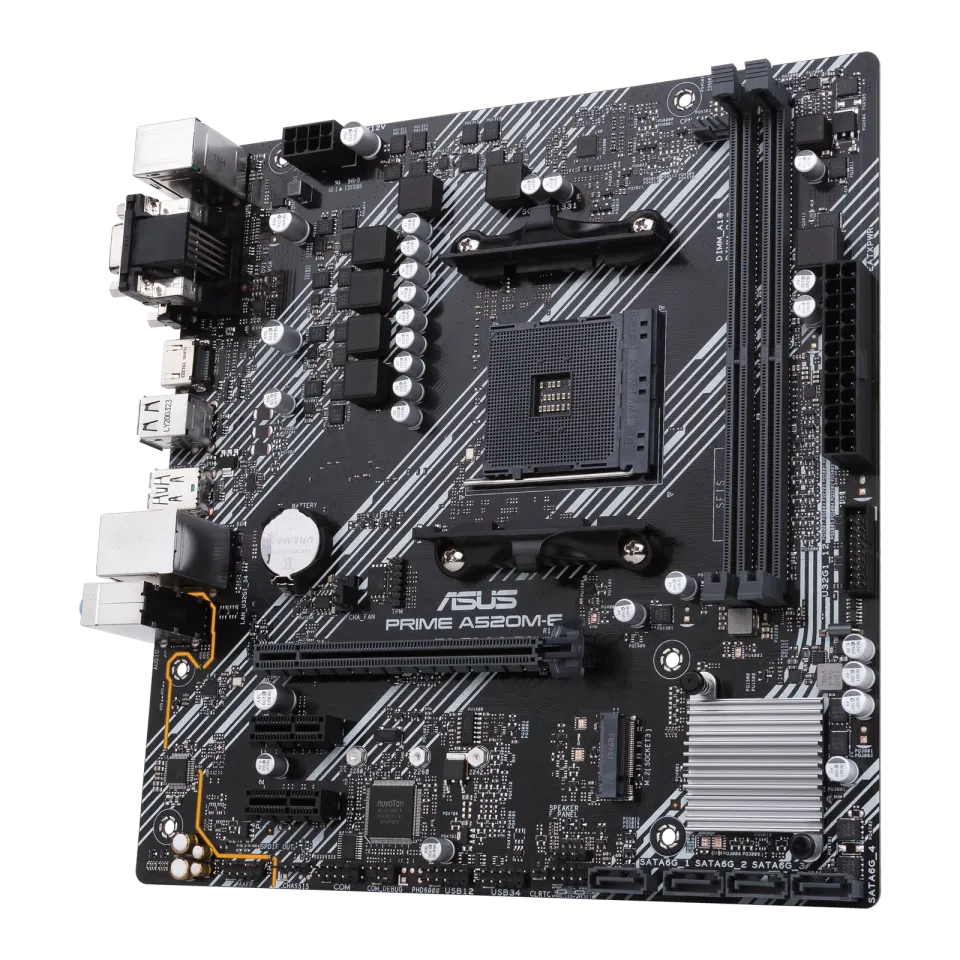

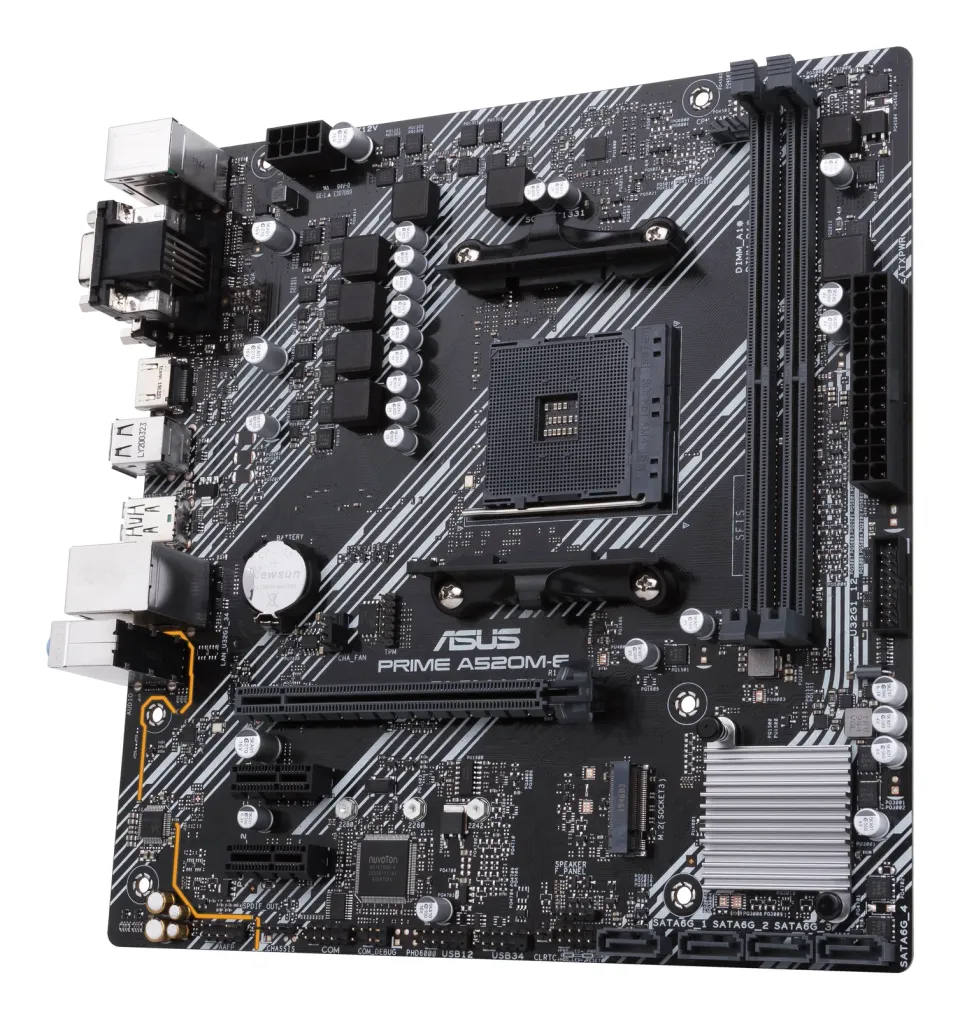

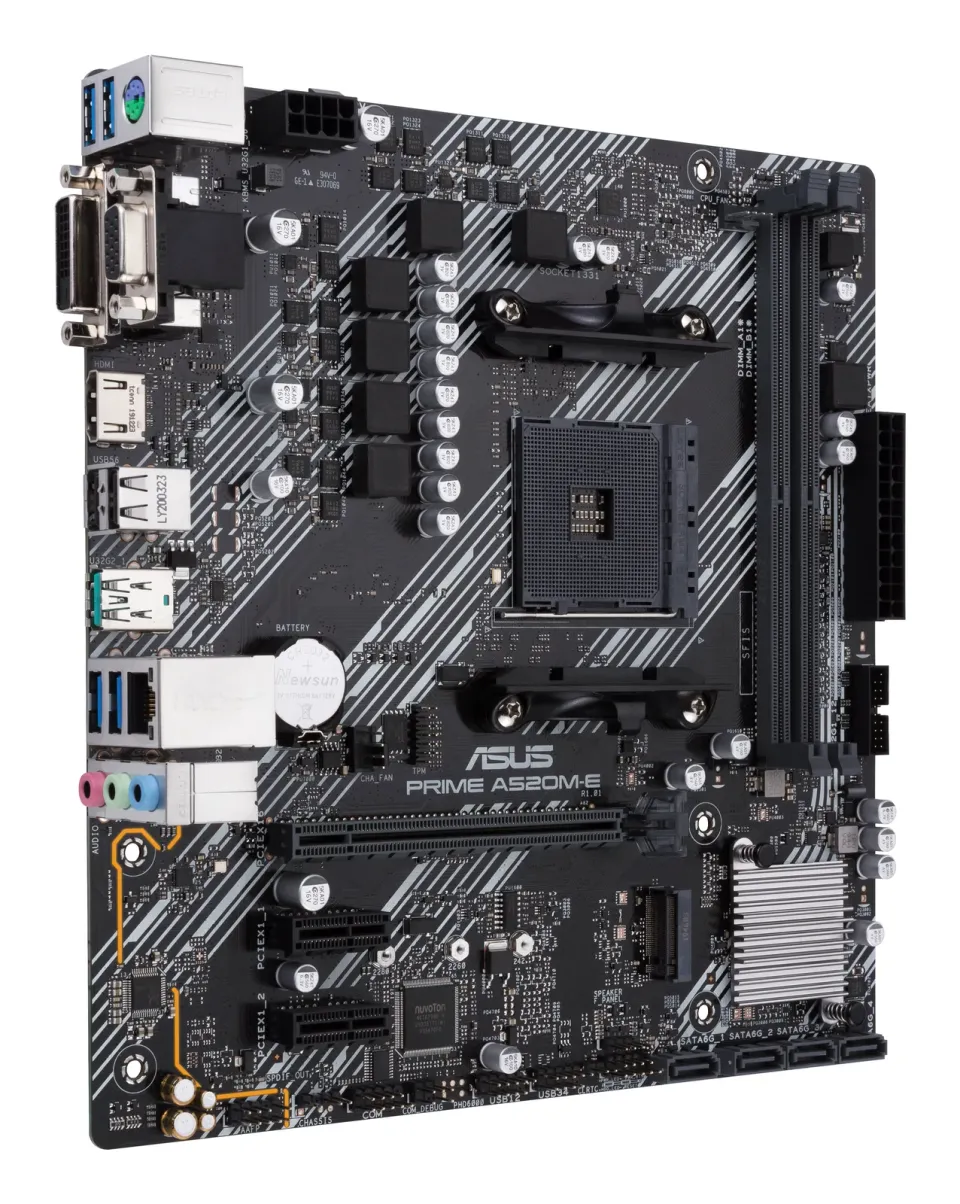

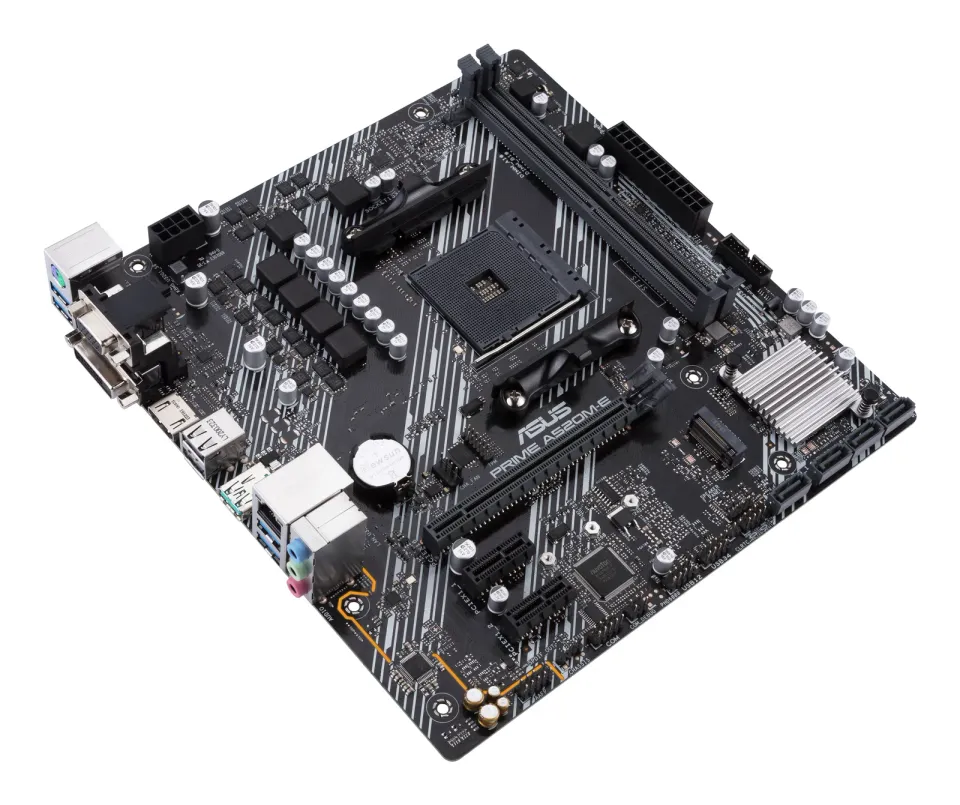

ASUS mb PRIME A520M-E/CSM soc.AM4 A520 DDR4 mATX

ASUS PRIME A520M-E/CSM
AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/DVI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 2 Type-A

• AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Comprehensive cooling: PCH heatsink and Fan Xpert
• Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
• 5X Protection III: Multiple hardware safeguards for all-around system protection
  CPU
  AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *

• Refer to www.asus.com for CPU support list.
  Chipset
  AMD A520
  Memory
  2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.
• Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
  Graphics
  1 x D-Sub
  1 x DVI-D
  1 x HDMI 2.1(4K@60HZ)
  Expansion Slots
  AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
  1 x PCIe 3.0 x16 (x16 mode)
  AMD A520 Chipset
  2 x PCIe 3.0 x1
  Storage
  Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
  AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :
  1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
  AMD A520 Chipset :
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
  LAN
  Realtek RTL8111H 1Gb Ethernet
  ASUS LANGuard
  Audio
  Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *

• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
• LED-illuminated design
• Audio Shielding
• Dedicated audio PCB layers
• Premium audio capacitors

• Choose the chassis with HD audio module in front panel to support 8-channel audio output.
  USB Ports
  Rear USB Port ( Total 7 )
  1 x USB 3.2 Gen 2 port(s)
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
  4 x USB 2.0 port(s)(4 x Type-A)
  Software Features
  ASUS Exclusive Software
  Armoury Crate
  AI Suite 3

• Performance and Power Saving Utility
  TurboV EVO
  EPU
  Digi+ VRM
  Fan Xpert
• EZ update
  ASUS CPU-Z
  AI Charger
  DAEMON Tools
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
  ASUS Special Features
  ASUS 5X PROTECTION III
• ASUS DIGI+ VRM
• ASUS LANGuard
• ASUS Overvoltage Protection
• ASUS SafeSlot Core
• ASUS Stainless-Steel Back I/O
  ASUS Q-Design
• ASUS Q-DIMM
• ASUS Q-Slot
  ASUS Thermal Solution
• Aluminum heatsink design
  ASUS Lighting Control

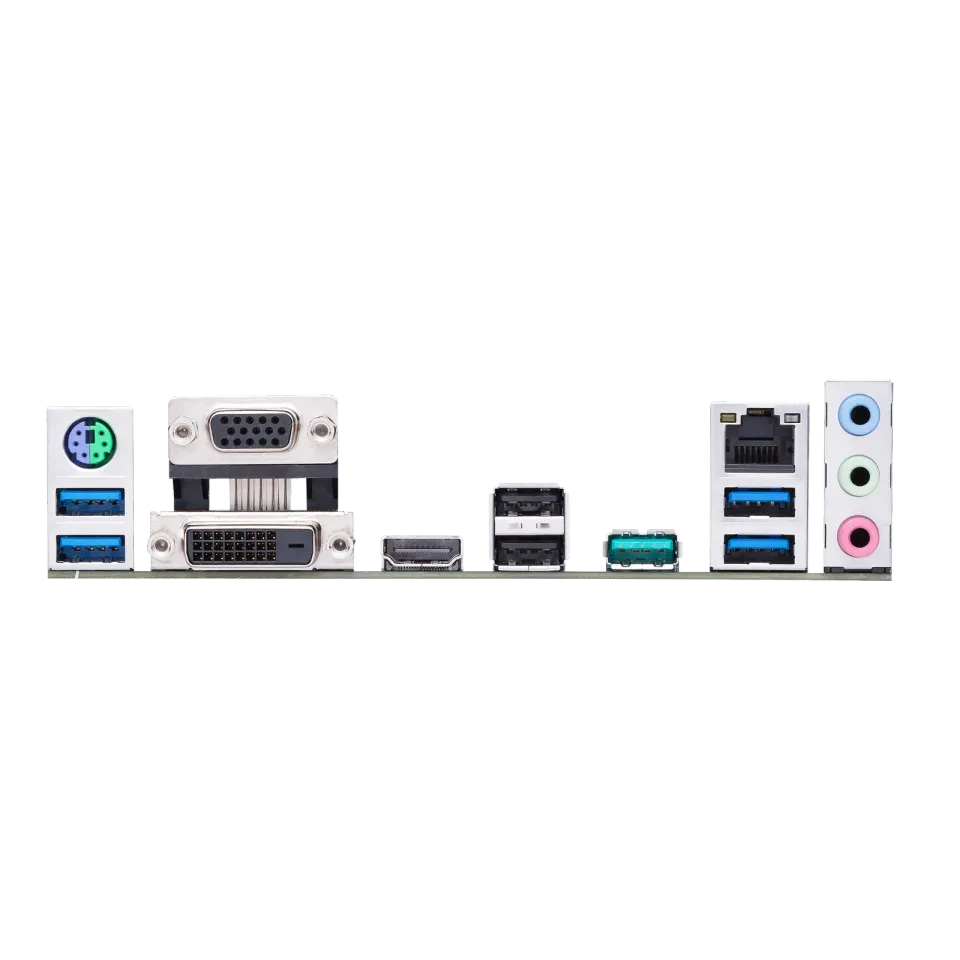

  Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 3.2 Gen 2 (teal blue) (1 x Type-A)
  4 x USB 3.2 Gen 1 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)
  Internal I/O Ports
  1 x CPU Fan connector(s)
  1 x Chassis Fan connector(s)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x SPI TPM header
  4 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
  1 x COM port header
  1 x Speaker connector
  Accessories
  User´s manual
  1 x ACC Express Activation Key Card
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x Supporting DVD
  1 x M.2 SSD screw package(s)
  BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
  Manageability
  WOL by PME, PXE
  Operating System
  Windows 10 64-bit
  Form Factor
  mATX Form Factor
  226 mm x 221 mm

Formát základní desky: micro ATX
Chipset: AMD A520, AMD
Socket (patice): Socket AM4
Pro procesory: AMD
Technologie paměti RAM: DDR4
Počet paměťových slotů: 2
M.2 slot: 1
SATA 3: 4
Podpora RAID: 0, 1, 10
PCI Express x16: 1
PCI Express x1: 2
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: bez
DisplayPort: 0
HDMI: 1
VGA: 1
DVI: 1
USB 2: 6
USB 3: 7
USB C: 0
COM port
