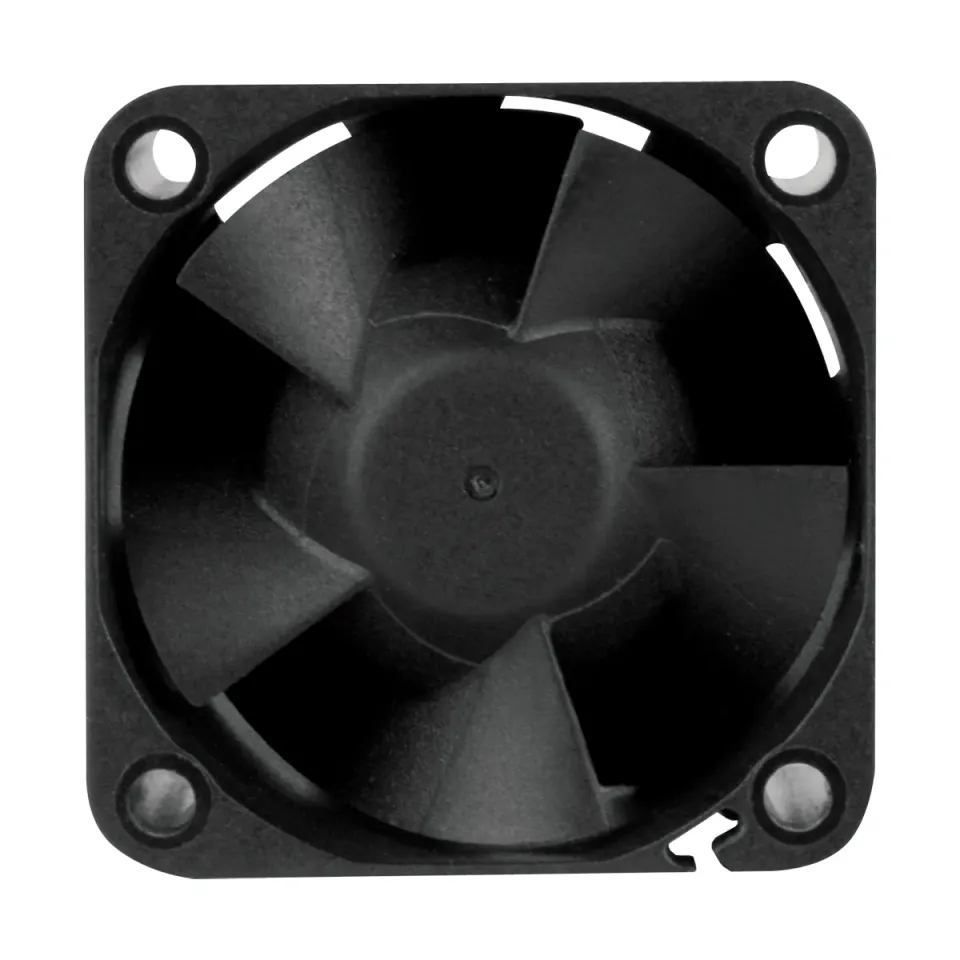

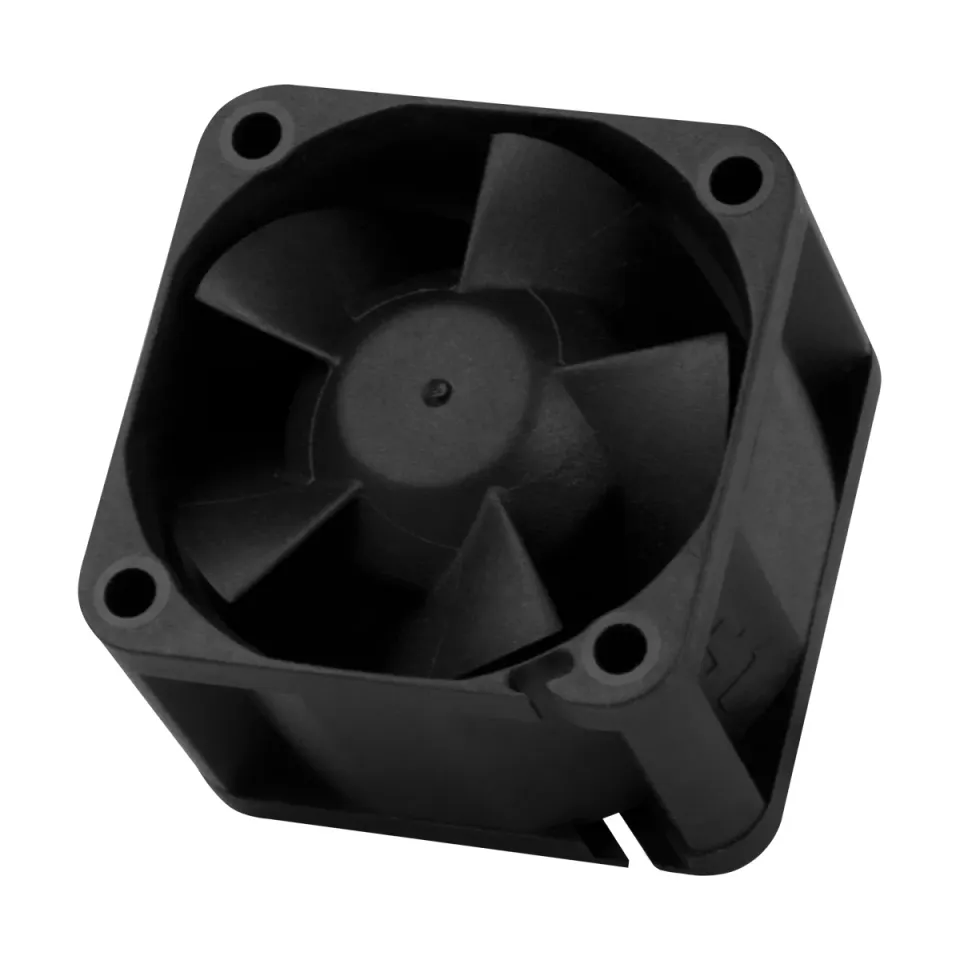

ARCTIC S4028-6K 40x28mm DC Fan for server application - 6000 RPM - Dual Ball Bearing

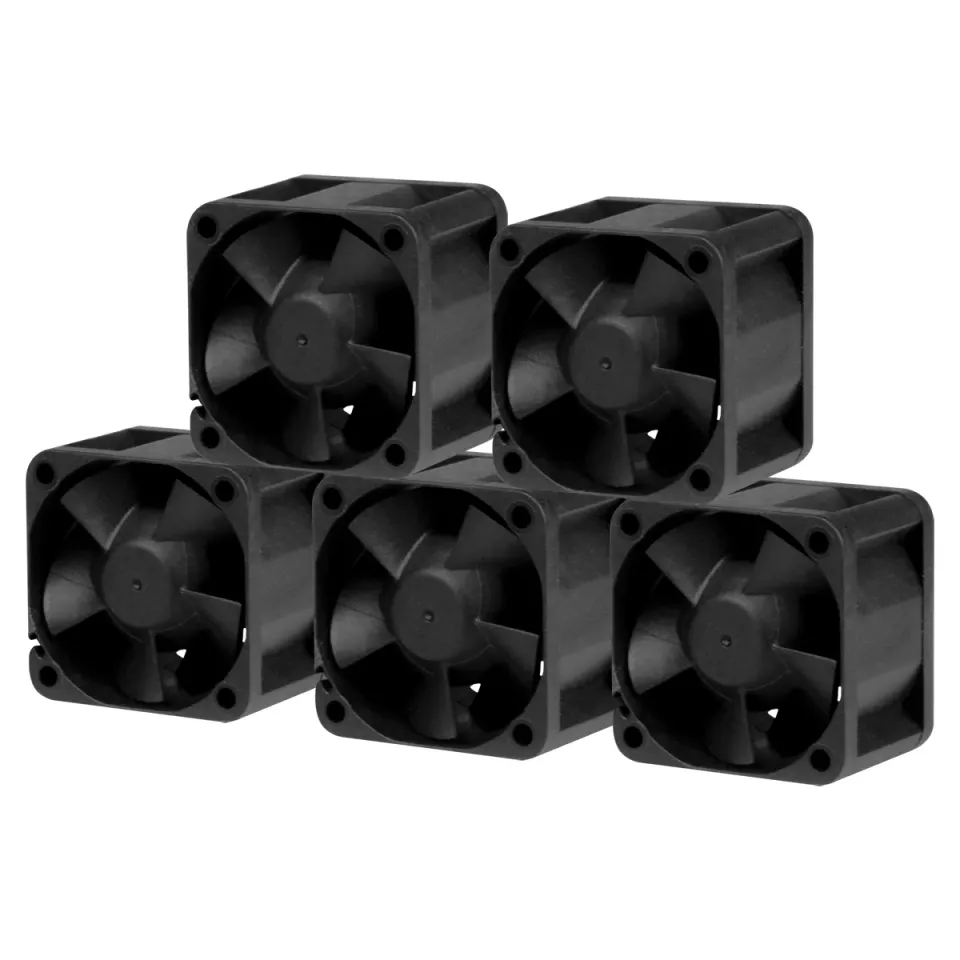

S4028-6K (balení 5ks)
40 mm Server Fan

DESIGNED FOR CONTINUOUS OPERATION
The impeller of the S4028-6K is held in place by two ball bearings and is therefore particularly durable and less sensitive to external influences such as heat and dust.

FULL CONTROL WITH A WIDE SPEED RANGE
The S4028-6K has a very wide speed range that can be regulated via PWM and voltage. With its 6000 rpm max, it offers a good balance between cooling power and noise.

HIGH AIRFLOW AND STATIC PRESSURE
With a static pressure of 4.2 mm/H2O and a maximum airflow of 12.06 m3/h, the S4028-6K is a true all-rounder and is suitable as both a radiator and case fan.

WIDE RANGE OF APPLICATIONS
The S4028-6K fits into 1U server cases and can serve as a replacement fan for routers, switches and NAS. It can also be used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures and 3D printers.

FLEXIBLE CONNECTION OPTIONS
The fan has a standard 4-pin fan connector and can also be connected to and controlled on 2-pin or 3-pin headers, while the 40cm cable allows a lot of flexibility in positioning.

General data

Performance

Fan Speed: 250 - 6000 rpm
Airflow: 7.1 CFM / 12.06 m3/h
Speed Control: Pulse Width Modulation – PWM
Static Pressure: 4.2 mm H2O

Fan

Fan Frame: Standard
Connector: 2510 4-Pin Fan-Connector
Fan Bearing: Dual Ball Bearing
Operating Ambient Temperature: 0 - 40 °C

Electric Characteristics:
¨
Starting Voltage: 4.5 V

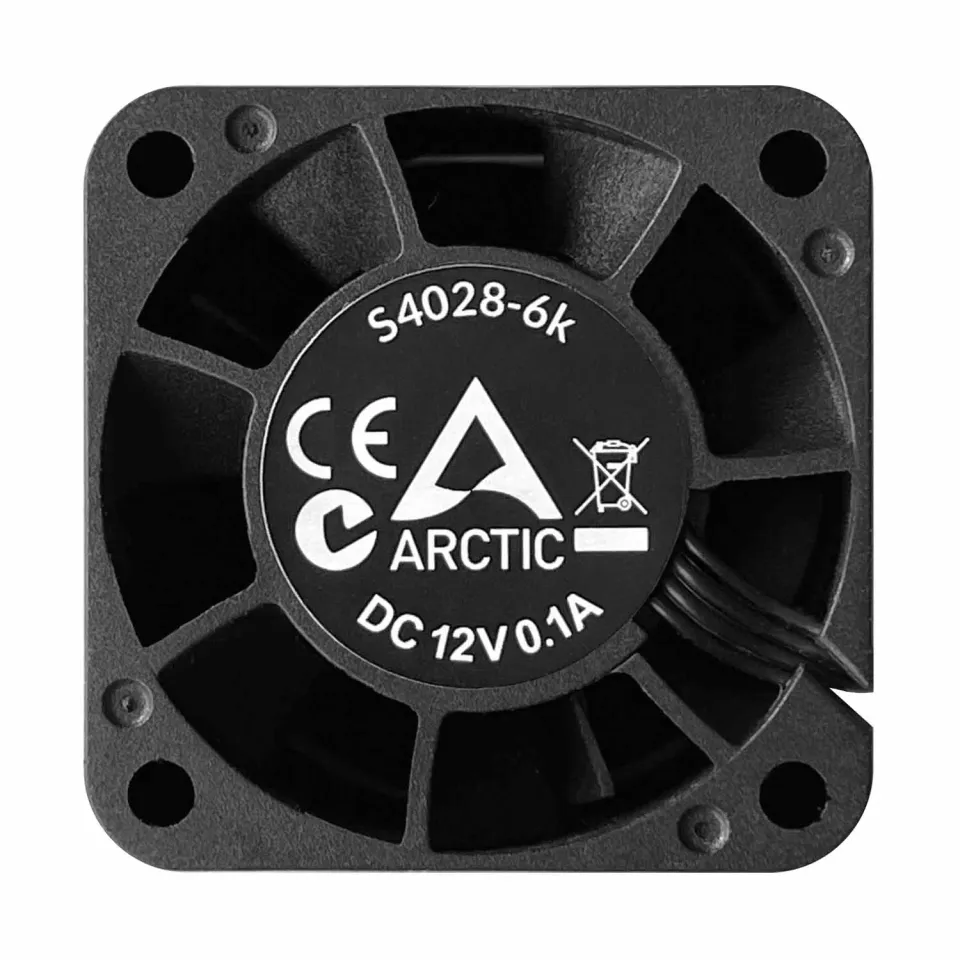

Current/ Voltage: 0.1 A/ 12.0 V DC
Cable Lenght: 400 mm

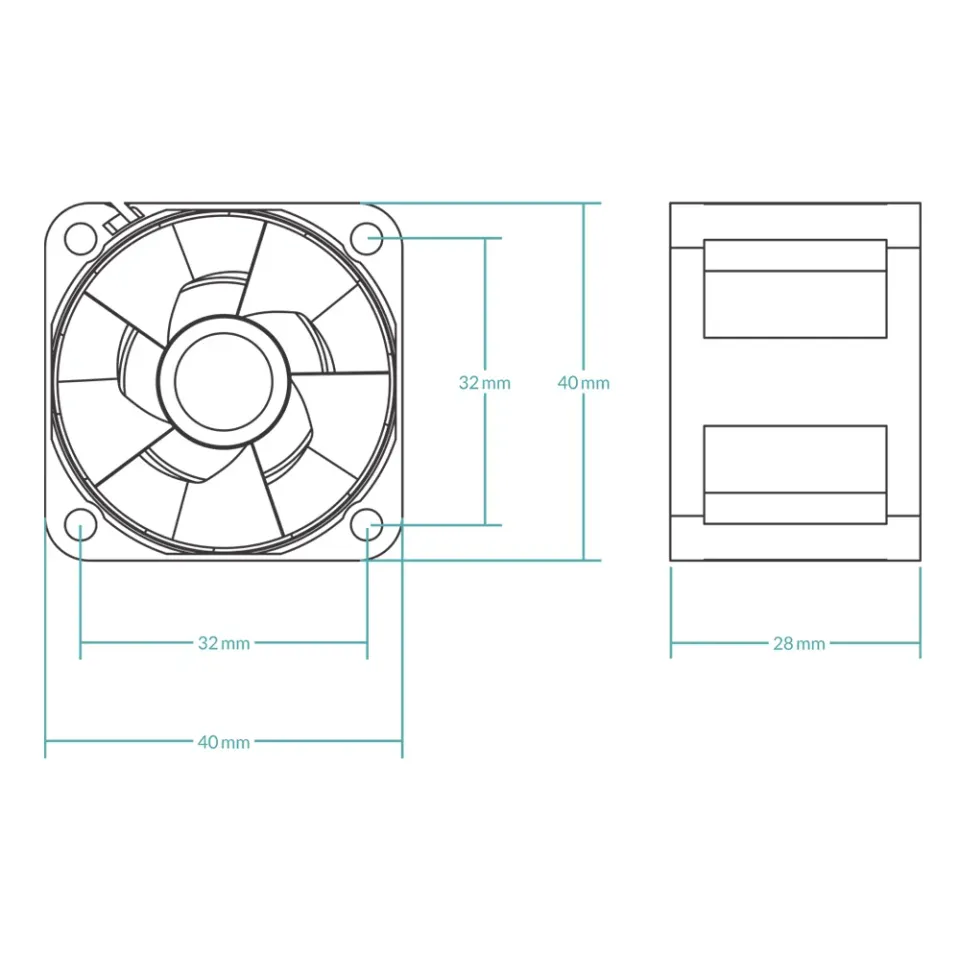

Size & Weight
¨
Length: 40 mm
Width: 40 mm
Height: 28 mm
Weight: 40 g
